18000 BTU 230V Mini Split AC Wall Mounted Bravo Series Heat Pump | 13FT
Bravo
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days
Bravo Wall Mount
Bravo Single-Zone Units are designed to provide reliable heating and cooling for individual spaces, combining energy efficiency with advanced technology. With compact, modern designs and easy installation, these units seamlessly blend into various interiors. Featuring quiet operation and powerful performance, they ensure consistent comfort throughout the year. Built with durable components and anti-corrosion coatings, Bravo Units are engineered to handle diverse climates while maintaining peak efficiency. Perfect for residential or commercial environments, they deliver eco-friendly performance and tailored temperature control. Trust Bravo Single-Zone Units for innovative climate solutions that enhance your space effortlessly.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 3 years for the compressor and 3 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included

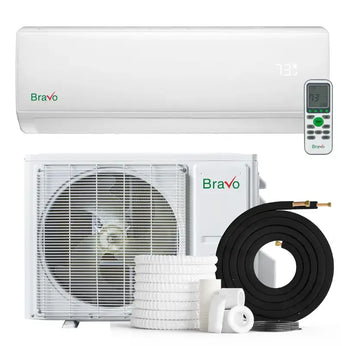

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | BRV-R12W-115VI | BRV-R12W-230VI | BRV-R18W-230VI | BRV-R24W-230VI | BRV-R36W-230VI | |
|---|---|---|---|---|---|---|
| Outdoor Model | BRV-R12LS-115VO | BRV-R12LS-230VO | BRV-R18LS-230VO | BRV-R24LS-230VO | BRV-R36LS-230VO | |
| Power Supply (V,Ph,Hz) | 115,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 35,000 | |
| EER2 (Btu/h) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | |
| SEER2 (Btu/h) | 17 | 17 | 17 | 17 | 17 | |
| Heating | ||||||
| Rated Capacity (range) (Btu/h) | 12,000 | 12,000 | 17,000 | 24,000 | 34,500 | |
| COP2 (W/W) | 3.5 | 3.2 | 3.5 | 3.5 | 3.2 | |
| HSPF2-4 | 9.0 | 9.0 | 10.5 | 8.64 | 8.5 | |
| Minimum Circuit Ampacity (A) | 17 | 11 | 13 | 13 | 23 | |
| Max. Fuse (A) | 25 | 15 | 20 | 20 | 35 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo/Mute (CFM) | 276/265/241/224/206 | 294/264/235/206/159 | 412/364/294/235/208 | 676/629/505/412/352 | 882/741/564/458/411 | |
| Indoor Noise Level - Turbo/Hi/Mi/Lo/Mute (dB(A)) | 42.9/40/36.1/33/29 | 45/42/39/35/33 | 49/45/43/40/37 | 47/45/39/34/32 | 55/52/46/41/39 | |
| Indoor Unit Dimension (WxDxH) (inch) | 30.59x9.84x7.91 | 30.59x9.84x7.91 | 35.82x11.57x8.11 | 39.76x12.40x8.66 | 46.88x14.17x10.15 | |
| Indoor Unit Packing (WxDxH) (inch) | 33.07x12.40x10.23 | 33.07x12.40x10.23 | 38.54x14.64x10.90 | 43.15x15.35x11.81 | 49.60x16.92x12.91 | |
| Indoor Unit Net/Gross Weight (lbs.) | 22.05 | 22.05 | 26.46 | 28.66 | 46.30 | |
| Outdoor Air Flow (CFM) | 1,213 | 1,213 | 1,704 | 1,645 | 1,645 | |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 57 | 55 | 63 | |
| Outdoor Unit Dimension (WxDxH) (inch) | 30.59x11.42x19.61 | 30.59x11.41x19.61 | 31.88x12.00x21.61 | 30.70x13.74x23.81 | 38.50x16.57x31.61 | |
| Outdoor Unit Packing (WxDxH) (inch) | 32.20x12.80x20.27 | 32.20x12.80x21.18 | 33.54x14.09x24.02 | 35.43x15.94x25.79 | 40.23x18.89x32.87 | |
| Outdoor Unit Net/Gross Weight (lbs.) | 52.9 | 58.4 | 62.8 | 72.8 | 120.2 | |
| Refrigerant Type (oz.) | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | |
| Design Pressure (PSIG) | 652.5 | 652.5 | 652.5 | 652.5 | 652.5 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 1/4"/5/8" | |
| Max. Pipe Length (ft.) | 50 | 50 | 50 | 65 | 65 | |
| Connection Wiring - Size x Core Number | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | 4x16AWG | |
| Ambient Temperature | ||||||
| Indoor (Cooling/Heating) (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | |
| Outdoor (Cooling/Heating) (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | |
Multiple Control Methods
Bravo’s Series can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my space?
For effective cooling and heating, the Bravo 18000 BTU mini split is ideal for rooms up to 850 sq ft. This capacity ensures optimal performance in medium-sized spaces.
How much does a mini split system like the Bravo cost?
The price for a Bravo 18000 BTU mini split system varies based on installation options but typically ranges between $1,500 to $3,000. This price reflects the unit's quality and efficiency, with an 18.0 SEER rating.
Can I install the Bravo mini split myself?
While DIY installation is possible for the Bravo 18000 BTU mini split, it's recommended to hire a professional for best results. The installation process may require technical skills, especially if you are using longer line sets.
Does the Bravo mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies the installation process, ensuring the unit operates efficiently from the start.
What warranty does the Bravo mini split offer?
The Bravo 18000 BTU mini split comes with a 5-year parts and compressor warranty, providing peace of mind for your investment. This warranty covers essential components, ensuring long-term reliability.
What is the voltage requirement for the Bravo mini split unit?
The Bravo 18000 BTU mini split operates on a 230V power supply, making it suitable for most residential applications. Ensure your electrical setup matches this requirement for optimal performance.
