Cooper & Hunter 3/8"-3/4" Mini Split Installation Kit Insulated Pre-Flared 25ft/50ft with Connection Wires | 25FT
Cooper & Hunter
Product specifications
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM

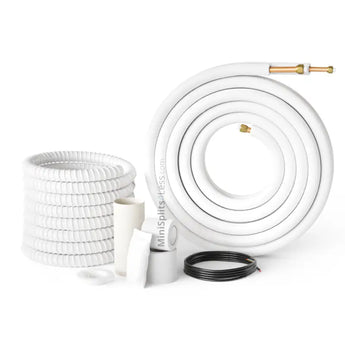

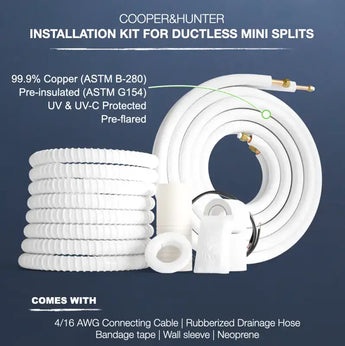

Installation Kit
Our bundled installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace.
Technical Specifications
System Specs
| Copper Line Length | 25 ft |
|---|
Series Comparison Table
Technical specifications for every model in the series — this product is one of them.
| Line Set Model 9mm | Line Set Model 13mm | Line Set Diameter (Liquid/Gas Side)* | Pipe Insulation Thickness & Rating | Copper Line Length | 4/16 AWG Cable | Rubber Drain Hose |
|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX | PJX-N1-C16FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 16 FT | 18 FT | 16 FT |
| PJX-N1-C25FTW-MAX | PJX-N1-C25FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 25 FT | 29.5 FT | 16 FT |
| PJX-N1-C50FTW-MAX | PJX-N1-C50FTW-MAX-I05 | 1/4"-3/8" | 3/8", R-2.5 | 50 FT | 55.8 FT | 16 FT |
| PJX-N2-C16FTW-MAX | PJX-N2-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N2-C25FTW-MAX | PJX-N2-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N2-C50FTW-MAX | PJX-N2-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N3-C16FTW-MAX | PJX-N3-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N3-C25FTW-MAX | PJX-N3-C25FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT |
| PJX-N3-C50FTW-MAX | PJX-N3-C50FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| PJX-N4-C16FTW-MAX | PJX-N4-C16FTW-MAX-I05 | 3/8"-7/8" | 3/8", R-2.2 | 16 FT | 18 FT | 16 FT |
| PJX-N4-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N4-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT | |
| PJX-N6-C25FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 25 FT | 29.5 FT | 16 FT | |
| PJX-N6-C50FTW-MAX | 3/8"-7/8" | 3/8", R-2.2 | 50 FT | 55.8 FT | 16 FT |
| Line Set Model 9mm | Line Set Model 13mm | Wall Mount | Duct | Ceiling Cassette | Mini Console | Universal Floor Ceiling | Air Handler | One-Way Cassette |
|---|---|---|---|---|---|---|---|---|
| PJX-N1-C16FTW-MAX PJX-N1-C25FTW-MAX PJX-N1-C50FTW-MAX |
PJX-N1-C16FTW-MAX-i05 PJX-N1-C25FTW-MAX-i05 PJX-N1-C50FTW-MAX-i05 |
6K Btu/h 9K Btu/h - 230V |
9K Btu/h |
9K Btu/h |
6K Btu/h 9K Btu/h |
|||
| PJX-N2-C16FTW-MAX PJX-N2-C25FTW-MAX PJX-N2-C50FTW-MAX |
PJX-N2-C16FTW-MAX-i05 PJX-N2-C25FTW-MAX-i05 PJX-N2-C50FTW-MAX-i05 |
9K Btu/h - 115V 12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 18K Btu/h |
12K Btu/h 16K Btu/h |
18K Btu/h |
18K Btu/h |
12K Btu/h 18K Btu/h |
| PJX-N3-C16FTW-MAX PJX-N3-C25FTW-MAX PJX-N3-C50FTW-MAX |
PJX-N3-C16FTW-MAX-i05 PJX-N3-C25FTW-MAX-i05 PJX-N3-C50FTW-MAX-i05 |
24K Btu/h 30K Btu/h 36K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
24K Btu/h 36K Btu/h 48K Btu/h |
||
| PJX-N4-C25FTW-MAX PJX-N4-C50FTW-MAX |
48K Btu/h 60K Btu/h |
60K Btu/h |
||||||
| PJX-N6-C25FTW-MAX PJX-N6-C50FTW-MAX |
48K Btu/h |
60K Btu/h |
