2 Zone 48,000 BTU Olivia Midnight Ductless Mini Split AC Wall Mounted 24K+24K

Name: 2 Zone 48,000 BTU Olivia Midnight Ductless Mini Split AC Wall Mounted 24K+24K
Brand: Cooper & Hunter
SKU: ch-48mes-230vo-ch-b24molvwm-230vi
Price: 3685 USD
Availability: InStock
Rating: 4.7 (5 reviews)

Dual Zone Midnight Olivia Series System Bundle

Sku: CH-48MES-230VO & CH-B24MOLVWM-230VI

Brand:	Cooper & Hunter
Voltage:	230V
SEER Rating:	23.4
WiFi:	Included
Zone:	Dual Zone
Type:	Wall Mount

In stock

Price

$3,685.00

$4,336.00

395 Reviews

93% of buyers have recommended this.

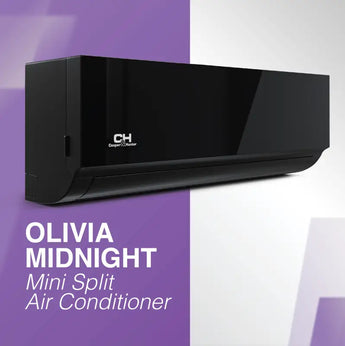

The Cooper&Hunter Olivia Midnight Unit blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort. Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance. Whether you're looking to cool or heat your space, the Olivia Midnight delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.

Energy Efficiency

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

Main Features

Cooper&Hunter’s MIA NY Series units are specifically designed to provide maximum comfort in smaller spaces. Featuring advanced inverter technology, these units deliver energy-efficient heating and cooling, while quiet operation ensures a peaceful environment. With precise airflow control and seamless integration into any interior, the MIA NY Series offers reliable, consistent comfort in even the tightest spaces.

All Accessories Included

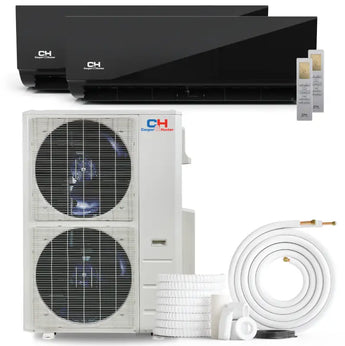

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

INDOOR MODELS

Indoor Model	CH-B06MOLVWM-230VI	CH-B09MOLVWM-230VI	CH-B12MOLVWM-230VI	CH-B18MOLVWM-230VI	CH-B24MOLVWM-230VI	CH-B09OLVWM-115VI	CH-B12OLVWM-115VI	CH-B09MOLVWM-230VI	CH-B12MOLVWM-230VI	CH-B18MOLVWM-230VI	CH-B24MOLVWM-230VI
Power Supply	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	115,1, 60	115, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60	208/230, 1, 60
Rated Capacity	6,000 Btu/h	9,000 Btu/h	12,000 Btu/h	18,000 Btu/h	24,000 Btu/h	9,000 Btu/h	12,000 Btu/h	9,000 Btu/h	12,000 Btu/h	18,000 Btu/h	24,000 Btu/h
Minimum Circuit Ampacity (MCA)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Max. Fuse	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Indoor Air Flow (Turbo/Hi/Mi/Lo)	294/247/176/141 CFM	341/291/194/152 CFM	341/291/194/152 CFM	760/530/458/382 CFM	760/601/458/382 CFM	341/300/241/176 CFM	341/300/241/176 CFM	291.18/194.12/152.94 CFM	341/291/194/152 CFM	760/530/458/382 CFM	760/601/458/382 CFM
Indoor Noise Level (Hi/Mi/Lo)	38.5/33/20.5 dB(A)	40/35/23.5 dB(A)	41.5/36/24 dB(A)	46/40/25 dB(A)	46.5/44/35 dB(A)	41.5/36/24 dB(A)	41.5/36/24 dB(A)	40/34/23.5 dB(A)	42/36/25 dB(A)	45.5/41/24.5 dB(A)	48/40/28 dB(A)
Dimension (WxDxH)	28.70x7.87x11.50 inch	31.57x7.87x11.61 inch	31.57x7.87x11.61 inch	42.64x9.61x13.23 inch	42.60x9.21x13.27 inch	31.57x7.87x11.61 inch	31.57x7.87x11.61 inch	31.57x7.87x11.61 inch	31.57x7.87x11.61 inch	42.64x9.61x13.23 inch	42.60x9.21x13.27 inch
Packing (WxDxH)	31.10x10.63x14.76 inch	34.45x11.22x14.96 inch	34.45x11.22x14.96 inch	45.47x16.34x12.40 inch	45.47x16.34x12.40 inch	34.45x11.22x14.96 inch	34.45x11.22x14.96 inch	34.45x11.22x14.96 inch	34.45x11.22x14.96 inch	45.47x16.34x12.40 inch	45.47x16.34x12.40 inch
Net/Gross Weight	17.64/22.49 lbs.	18.96/24.25 lbs.	18.74/24.25 lbs.	29.54/37.48 lbs.	29.98/38.14 lbs.	18.96/24.47 lbs.	18.96/24.47 lbs.	18.96/24.25 lbs.	18.74/24.25 lbs.	29.54/37.48 lbs.	29.98/38.14 lbs.
Room temperature	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F	60 ˜ 90 °F
Heating	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F	32 ˜ 86 °F
Liquid Side/Gas Side	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	1/4" / 1/2"	1/4” / 1/2”	1/4” / 3/8”	1/4” / 1/2”	1/4” / 1/2”	3/8” / 5/8”

OUTDOOR MODELS

Outdoor Model		CH-HPR06F9-230VO	CH-HPR09-230VO	CH-HPR12-230VO	CH-HPR18-230VO	CH-HPR24-230VO	CH-ES09-115VO	CH-ES12-115VO	CH-ES09-230VO	CH-ES12-230VO	CH-ES18-230VO	CH-ES24-230VO
Series		HPR Series	HPR Series	HPR Series	HPR Series	HPR Series	ES Series	ES Series	ES Series	ES Series	ES Series	ES-Series
Power Supply		208/230,1, 60	208/230,1, 60	208/230,1, 60	208/230,1, 60	208/230,1, 60	115V, 1Ph, 60Hz	115V, 1Ph, 60Hz	208/230,1, 60	208/230,1, 60	208/230,1, 60	208/230,1, 60
Voltage Range		187-253 V	187-253 V	187-253 V	187-253 V	187-253 V	103.5-126.5 V	103.5-126.5 V	187-253 V	187-253 V	187-253 V	187-253 V
Cooling	Rated Capacity (range)	6,000 (2,500-11,800)	9,000 (3,700~13,300)	12,000 (3,700~13,300)	18,000 (8,400~20,200)	23,000 (4,650~26,600)	9,000 (3,930~13,200)	12,000 (3,930~13,200)	9,000 (2,500~11,900)	12,000 (3,600~13,300)	18,000 (7,320~19,500)	24,000 (9,200~25,000)
	Rated Current	4.75 A	4 A	4.25 A	9.2 A	11.38 A	6.5 A	8.7 A	3.48 A	4.5 A	6.31 A	10.35 A
	EER2	15 Btu/h	15.8 Btu/h	13 Btu/h	13 Btu/h	12.5 Btu/h	13.8 Btu/h	12.5 Btu/h	14.7 Btu/h	13 Btu/h	13.5 Btu/h	13 Btu/h
	SEER2	23.5 Btu/h	26.4 Btu/h	23.1 Btu/h	22 Btu/h	22.3 Btu/h	23 Btu/h	22.7 Btu/h	24 Btu/h	23.1 Btu/h	24 Btu/h	21 Btu/h
Heating at 47℉	Rated Capacity (range)	7,000 (3,400-11,230)	12,000 (5,100~14,300)	12,000 (5,100~14,300)	18,000 (6,000~23,000)	26,000 (9.550~27,000)	10,000 (5,000~12,600)	12,000 (5,000~12,600)	10,000 (3,400~13,000)	12,000 (4,500~13,500)	18,000 (6,620~21,200)	26,000 (10,350~26,410)
	Rated current	3.76 A	4 A	4.25 A	9.2 A	11.38 A	8.7 A	8.7 A	3.48 A	4.5 A	6.31 A	10.35 A
	COP	3.76 W/W	3.9 W/W	3.6 W/W	3.35 W/W	3 W/W	3.91 W/W	3.52 W/W	3.66 W/W	3.4 W/W	3.74 W/W	3.15 W/W
	HSPF4	12	11.6	10.5	10.6	10.3	9.8	10.4	11.6	10.8	10.5	8.5
	HSPF5	10	8.5	8	7.9	7.7	7.6	7.6	8.8	8	7.9	6.3
Heating at 17℉ (AHRI)		9,100 Btu/h	12,800 Btu/h	13,400 Btu/h	21,000 Btu/h	25,100 Btu/h	8,600 Btu/h	8,600 Btu/h	10,100 Btu/h	10,300 Btu/h	16,200 Btu/h	19,600 Btu/h
Minimum Circuit Ampacity		13 A	15 A	15 A	20 A	25 A	19 A	19 A	13 A	13 A	19 A	23 A
Max.Fuse (Outdoor Unit)		15 A	15 A	15 A	25 A	35 A	25 A	25 A	15 A	15 A	30 A	30 A
Outdoor Air Flow (Max.)		1,294 CFM	1,324 CFM	1,324 CFM	1,765 CFM	2,235 CFM	794 CFM	794 CFM	1,294 CFM	1,294 CFM	2,058 CFM	2,235 CFM
Outdoor Noise Level (Sound Pressure)		53.5 dB(A)	55.5 dB(A)	56 dB(A)	58 dB(A)	62.5 dB(A)	54 dB(A)	54 dB(A)	53 dB(A)	54.5 dB(A)	58.8 dB(A)	62 dB(A)
Dimension (W×D×H)		30.12x11.93x21.85 inch	31.69x12.99x21.81 inch	31.69x12.99x21.81 inch	35.04x13.46x26.50 inch	37.24x16.14x31.89 inch	30.12x11.93x21.85 inch	30.12x11.93x21.85 inch	30.12x11.93x21.85 inch	30.12x11.93x21.85 inch	35.04x13.46x26.50 inch	37.24x16.14x31.89 inch
Packing (W×D×H)		34.92x13.27x24.02 inch	36.02x14.57x24.21 inch	36.02x14.57x24.21 inch	39.17x15.67x29.13 inch	42.91x19.69x34.84 inch	34.92x13.27x24.02 inch	34.92x13.27x24.02 inch	34.92x13.27x24.02 inch	34.92x13.27x24.02 inch	39.17x15.67x29.13 inch	42.91x19.69x34.84 inch
Net/Gross Weight		63.71/69.00 lbs.	74.07/80.25 lbs.	73.63/79.37 lbs.	100.97/108.03 lbs.	134.48/144.40 lbs.	66.80/72.31 lbs.	66.80/72.31 lbs.	63.71/69.00 lbs.	63.71/69.00 lbs.	94.36/100.97 lbs.	124.78/134.92 lbs.
Refrigerant Type / Charge		R410A/38.1 oz.	R410A/41.62 oz.	R410A/41.62 oz.	R410A/65.2 oz.	R410A/91.7 oz.	R410A/39.51 oz.	R410A/39.51 oz.	R410A/38.1 oz.	R410A/38.1 oz.	R410A/56.44 oz.	R410A/82.89 oz.
Refrigerant Precharge Length		25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.	25 ft.
Additional Charge for Each ft.		0.16 oz/ft	0.16 oz/ft	0.16 oz/ft	0.16 oz/ft	0.32 oz/ft	0.16 oz/ft	0.16 oz/ft	0.16 oz/ft	0.16 oz/ft	0.16 oz/ft	0.32 oz/ft
Design Pressure		550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG	550/340 PSIG
Refrigerant Piping Liquid Side/Gas Side		1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	1/4" / 1/2"	1/4” / 1/2”	1/4” / 3/8”	1/4” / 1/2”	1/4” / 1/2”	3/8” / 5/8”
Max. Pipe Length		82 ft.	82 ft.	82 ft.	98 ft.	164 ft.	82 ft.	82 ft.	82 ft.	82 ft.	98 ft.	164 ft.
Max. Difference in Level		32.8 ft.	32.8 ft.	32.8 ft.	66 ft.	82 ft.	32.8 ft.	32.8 ft.	32.8 ft.	32.8 ft.	66 ft.	82 ft.

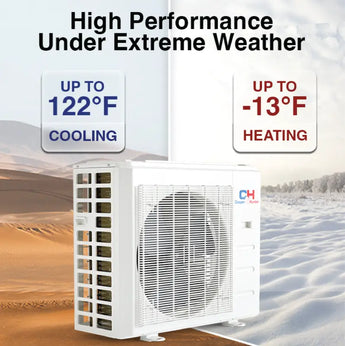

Ambient Temperature Cooling		-22~122 ℉	-22~122 ℉	-22~122 ℉	-22~122 ℉	-22~122 ℉	-13~122 ℉	-13~122 ℉	-13~122 ℉	-13~122 ℉	-13~122 ℉	-13~122 ℉
Ambient Temperature Heating		-22~75 ℉	-22~75 ℉	-22~75 ℉	-22~75 ℉	-22~75 ℉	-13~75 ℉	-13~75 ℉	-13~75 ℉	-13~75 ℉	-13~75 ℉	-13~75 ℉
Certifications		UL, AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star	AHRI, Energy Star	AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star	UL, AHRI, Energy Star

Multiple Control Methods

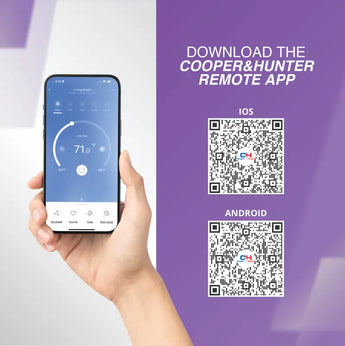

Cooper&Hunter’s Olivia Midnight Unit can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
