Bravo

BRV-SD36HI-230VO+BRV-MP36AHUW-230VI
Product specifications
Brand Bravo
Voltage 230V
SEER 17
EER 10.4
WiFi Included
Zone Single Zone
Type Multi Position
Freon R32
Compressor Inverter
$2,742.00 $2,604.90 Save 5%
Shipping Policy calculated at checkout.
*Installation Kit Option*: No Installation Kit

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

FREE Armbridge Accessory With This Purchase

Choose one below — it will be added to your cart for free

Select your free accessory:

FREE
ARMBRIDGE AB-RF Rubber Feet Mounting Set Heavy-Duty Adjustable Base with Built-In Leveler
AB-RF Rubber Feet Mounting Set Heavy-Duty Adjustable Base...
FREE
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)
Mini Split Wall Mounting Bracket High Load Capacity Zinc,...
FREE
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Foldable 304 Stainless Steel, Vibration-Absorbing (Up to 550 lbs Each)
Mini Split Wall Mounting Bracket High Load Capacity Folda...
FREE
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity
Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets ...
FREE
ARMBRIDGE 18"x38"x3" Ribbed Plastic Condenser Pad Shock-Absorbing, Anti-Slip Foundation for HVAC Systems and Outdoor Equipment
18"x38"x3" Ribbed Plastic Condenser Pad Shock-Absorbing, ...
Free gift added to your cart!
*Installation Kit Option*
Discount Banner
Star
TrustScore 4.8

Bravo 36,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V

SKU: BRV-SD36HI-230VO + BRV-MP36AHUW-230VI

Overview

The Bravo 36,000 BTU heat pump system pairs the BRV-SD36HI-230VO outdoor unit with the BRV-MP36AHUW-230VI indoor air handler to deliver dependable year-round comfort for larger residential and light commercial applications. This single-zone system uses R32 refrigerant, operates on 208-230V single-phase power, and is designed for reliable performance across a wide range of outdoor conditions.

The indoor unit features an optimized A-coil, multi-position installation, and support for up to 0.80 in. w.g. external static pressure. The system is also built for easy integration with 24V thermostat controls and compatible third-party setups, while AHRI and ETL certifications support dependable, standards-compliant operation.

Highlights

36,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant 17.0 SEER2 Multi-position air handler ECM constant torque motor 0.80 in. w.g. ESP 24V thermostat compatible Optional aux heat kit Crankcase heater standard
  • Efficient performance: This pairing is rated at 17.0 SEER2 and 10.4 EER2 in the provided specs.
  • Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
  • Consistent airflow: ECM fan motor uses constant torque technology for dependable air delivery in demanding applications.
  • External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted system design.
  • Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
  • Auxiliary heat ready: Supports an optional electric heat kit up to 20kW for enhanced heating capability.
  • Control flexibility: Compatible with 24V thermostat controls, and the provided feature list also notes a wired controller with built-in WiFi.
  • Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
  • Cold-weather protection: Crankcase heater comes equipped as standard.
  • Service-friendly design: Built for easy maintenance and dependable long-term use.

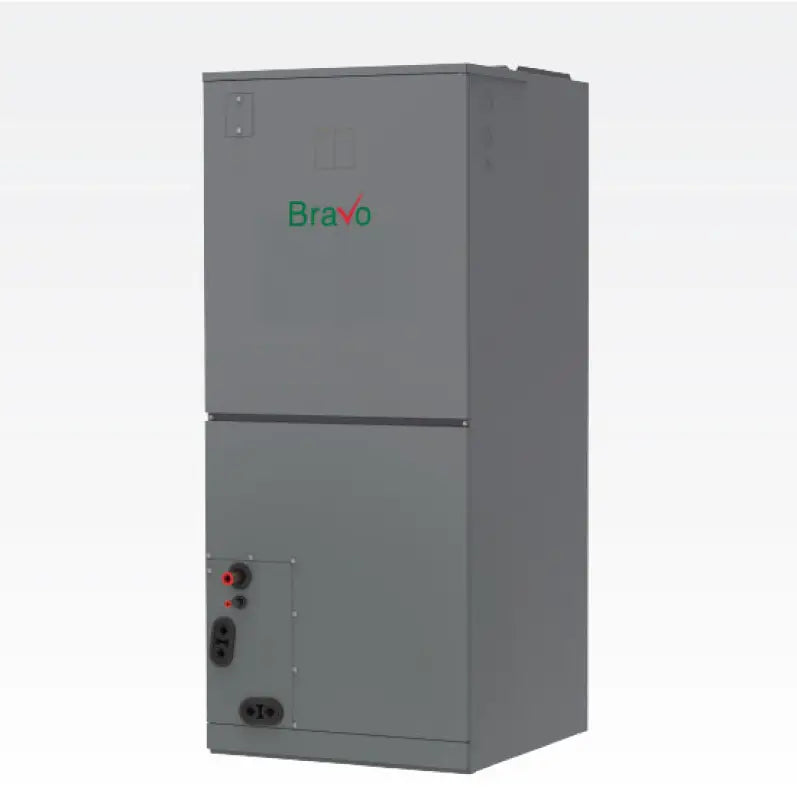

Indoor BRV-MP36AHUW-230VI

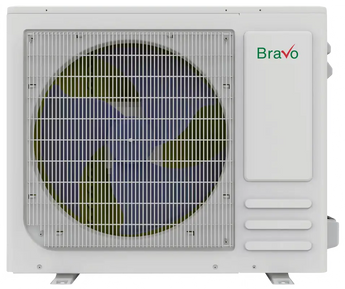

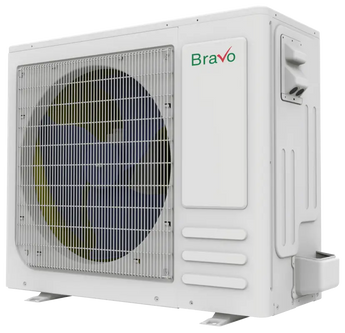

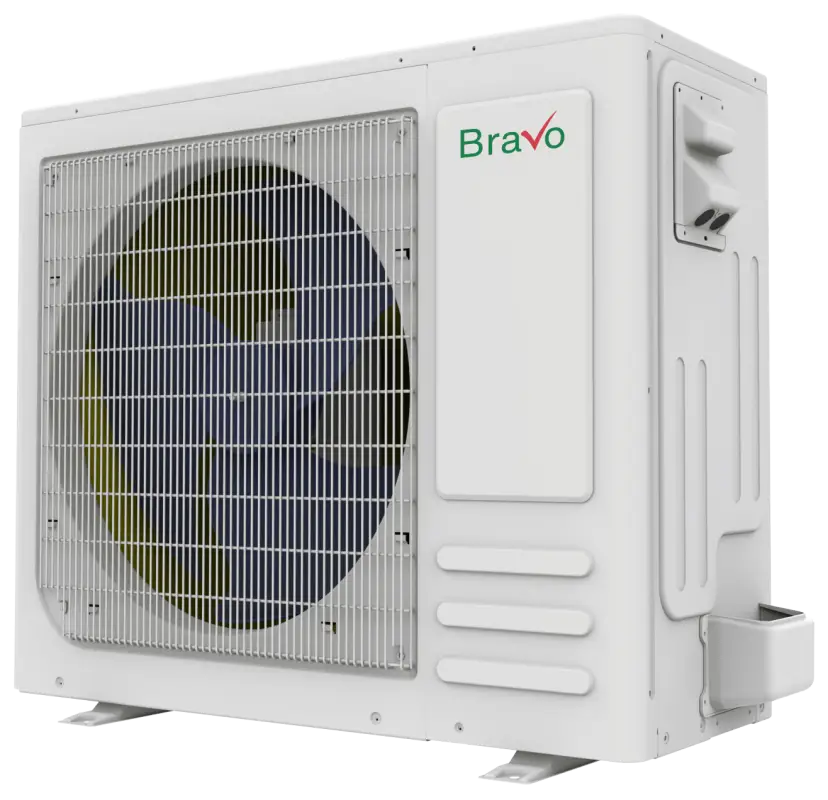

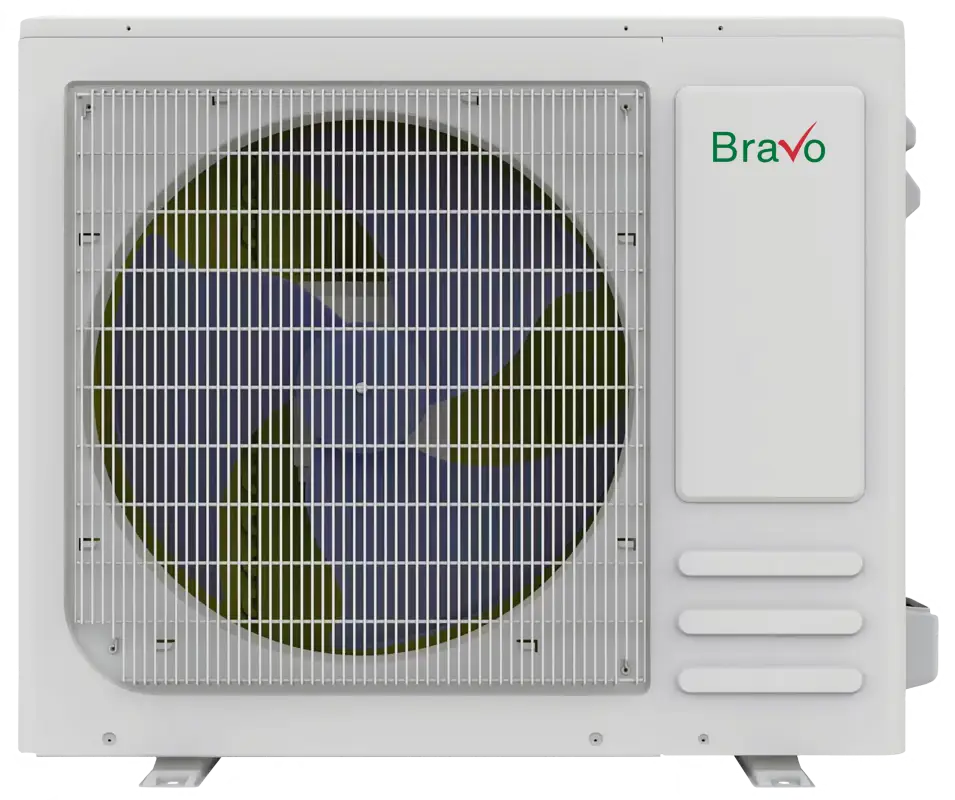

Outdoor BRV-SD36HI-230VO
Voltage 208-230V
Refrigerant R32

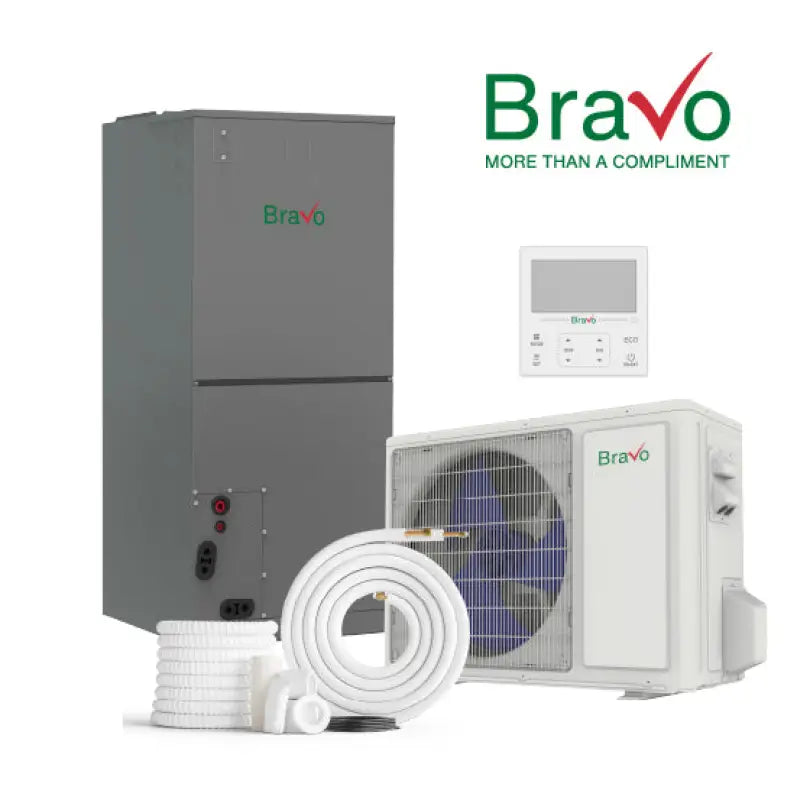

What’s Included

  • Indoor unit: BRV-MP36AHUW-230VI
  • Outdoor unit: BRV-SD36HI-230VO

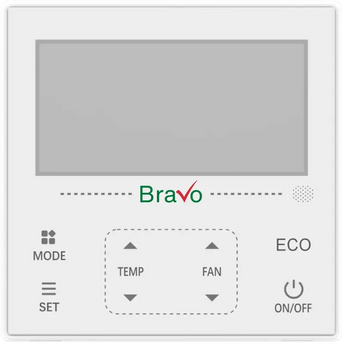

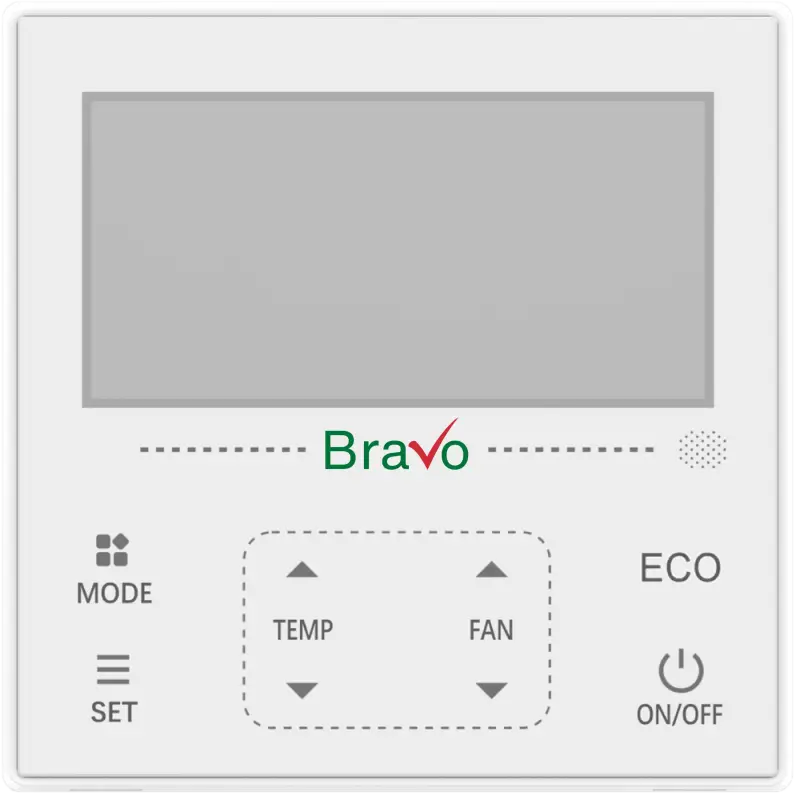

  • Wired controller

Indoor Specs

Spec Details
Model BRV-MP36AHUW-230VI
Power supply 208-230V, 1Ph, 60Hz
Communication wiring AWG 25x3
Cooling capacity 36,000 BTU/h (8,300 to 38,900)
Cooling input 3,462 W (710 to 4,500)
Cooling rated current 15.5 A (4.7 to 18.3)
EER / EER2 10.4
SEER / SEER2 17.0
Heating capacity at 47°F 36,000 BTU/h (6,700 to 41,300)
Heating input at 47°F 3,050 W (460 to 3,550)
Heating rated current at 47°F 13.5 A (2.5 to 15.6)
COP 3.45 W/W
Indoor fan motor qty 1
Indoor fan motor input 375 W
Indoor fan motor RLA 3.6 A
Indoor air flow 1241 / 901 CFM
ESP range 0 to 0.8 in. w.g.
Indoor noise level 48 / 39 dB(A)
Dehumidification 3.97 L/H
Unit dimensions (W x D x H) 21-1/32 x 21-1/32 x 49-7/32 in.
Packed dimensions (W x D x H) 24-13/32 x 26-37/64 x 50-13/64 in.
Net / gross weight 137 / 151 lbs
Drain connection 3/4 in.
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Design pressure 609 / 174 PSIG
Controller Wired controller
Room temperature range, cooling 60 to 90°F
Room temperature range, heating 60 to 90°F

Outdoor Specs

Spec Details
Model BRV-SD36HI-230VO
Power supply 208-230V, 1Ph, 60Hz
Minimum circuit ampacity 25 A
Maximum fuse 30 A
Compressor model KTM240D57UMT
Compressor type Twin-rotary
Compressor capacity 36,000 BTU/h
Compressor input 3,462 W (710 to 4,500)
Compressor rated current (RLA) 2.50 A
Refrigerant oil VGA74 / 22.6 oz
Outdoor fan motor qty 1
Outdoor fan motor input 150 W
Outdoor fan motor RLA 2.50 A
Outdoor airflow (max) 2,650 CFM
Outdoor noise level (max) 56 dB(A)
Throttle type Capillary
Unit dimensions (W x D x H) 37-63/64 x 31-57/64 x 15-3/4 in.
Packed dimensions (W x D x H) 42-1/8 x 34-41/64 x 20-43/64 in.
Net / gross weight 132 / 140 lbs
Refrigerant type R32
Factory precharge 24.6 ft
Additional charge for 3/8 in. liquid pipe 0.52 oz
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Maximum pipe length 246 ft
Maximum level difference 98.4 ft
Ambient range, cooling 5 to 131°F
Ambient range, heating -4 to 75°F

Frequently Asked Questions

What size mini split do I need for my home?

The Bravo 36,000 BTU single zone mini split is suitable for spaces up to 1500 sq ft. This makes it an excellent choice for larger rooms or open-concept areas.

Can I install a mini split myself?

While the Bravo mini split can be installed by a DIY enthusiast, it requires proper tools and knowledge of HVAC systems. For best results, consider hiring a professional, especially for the 230V electrical connections.

Does the mini split come pre-charged with refrigerant?

Yes, the Bravo mini split is pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for easier installation, as long as the line set does not exceed this length.

What voltage does this mini split require?

The Bravo 36,000 BTU mini split operates on a 230V electrical system. Ensure your electrical setup can support this voltage before installation.

What warranty does Bravo offer on their mini split systems?

Bravo provides a 5-year parts and compressor warranty on their mini split systems. This warranty ensures you are covered for any manufacturing defects or failures.

What SEER rating do I need for energy efficiency?

The Bravo mini split features a SEER rating of 17.0, which is considered efficient for both heating and cooling. A higher SEER rating typically results in lower energy bills, making it a smart choice for energy-conscious homeowners.
