Bravo 48,000 BTU Single Zone Multi Position Air Handler, 230V, R32 - Ducted Mini Split Heat Pump | No Kit
Bravo7-Yr Warranty
Product specifications
| SEER | |
|---|---|
| WiFi | |
| Brand | |
| Voltage | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Availability
Out of stock right now
For the next arrival, call (855) 775-4822.
— we’ll fill in your ZIP. Used only for delivery dates and pickup.
FREE shipping to We don’t ship to .Pick up at ·
Buy with Shop skips your pickup choice; Add to cart keeps it.
Delivery dates are estimates
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Questions about this system?
Answers in seconds — tap a question below
-
Up to about 2,200 sq ft at average conditions. We size at about 22 BTU per sq ft. Add capacity for a hot climate, ceilings over 8 ft, strong sun (+10%), a kitchen (+4,000 BTU) or each person over two (+600 BTU). For a room-by-room load calculation, ask your installer for an ACCA Manual J. Not sure? Call (855) 775-4822 and we'll confirm the right size for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 48,000 BTU. BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 16.5 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 16.5) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: BRV-SD48HI-230VO, BRV-MP48AHUW-230VI. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on items over $300 within the U.S., and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping on items over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Multi-Position Air Handler
Installs in upflow, downflow or horizontal orientation to fit a closet, attic or utility room to the whole home.
Inverter Efficiency — SEER2 16.5
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 16.5 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Heats & cools up to about 2,200 sq ft at average conditions (about 22 BTU per sq ft).

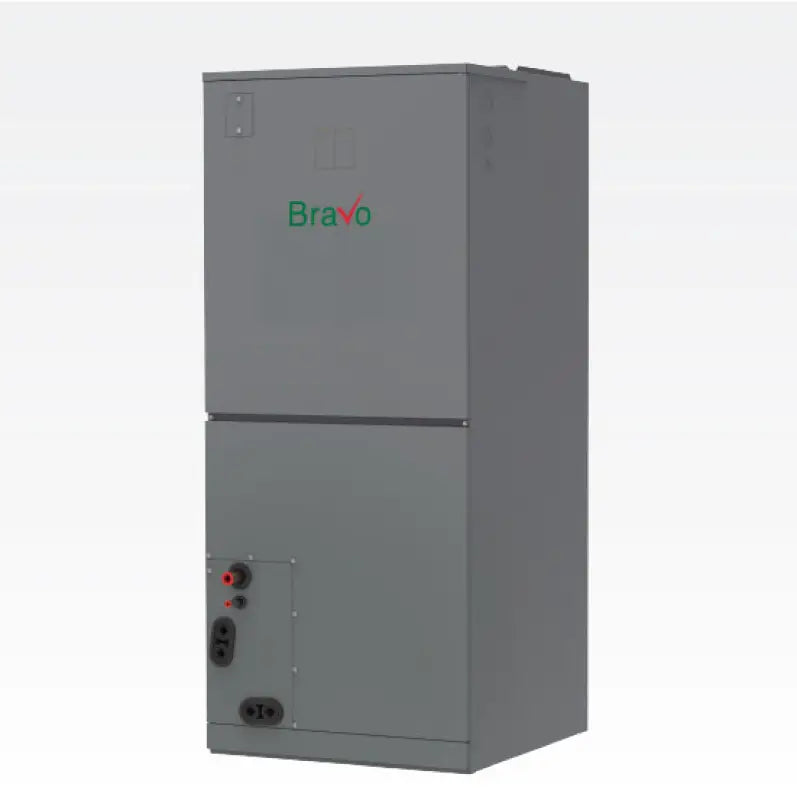

Bravo Multi-Position Air Handler
Bravo Multi-Position Air Handlers are engineered to connect seamlessly to your existing ductwork, delivering reliable heating and cooling with exceptional flexibility. Designed for horizontal, vertical, or downflow installation, these units adapt to virtually any space. Powered by advanced inverter technology and R32 refrigerant, they offer superior energy efficiency, ultra-quiet operation, and precise temperature control — making them the ideal solution for residential and commercial applications year-round.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, and a Smartkit (WIFI). The line set is sold separately: choose the 25ft or 50ft installation kit option. We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor Unit Specs
| Model | BRV-MP48AHUW-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 24.48 x 21.03 x 52.98 in |
| Net/Gross Weight | 165/184 lb |
| Packing Dimensions (WxDxH) | 27.88 x 26.58 x 54.14 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 10 A |
| Min. Circuit Ampacity | 7 A |
| Copper Line Size (Liquid/Gas) | 3/8" 3/4" |
| Noise Level (Hi/Med/Lo) | 50/41 dB |
| Airflow (Turbo/Hi/Mi/Lo) | 1862/1227 CFM |
| Dehumidification | 5.28 pt/h |
| Drain Pipe Diameter | 3/4" |
| Controller | Wired Controller |
Outdoor Unit Specs

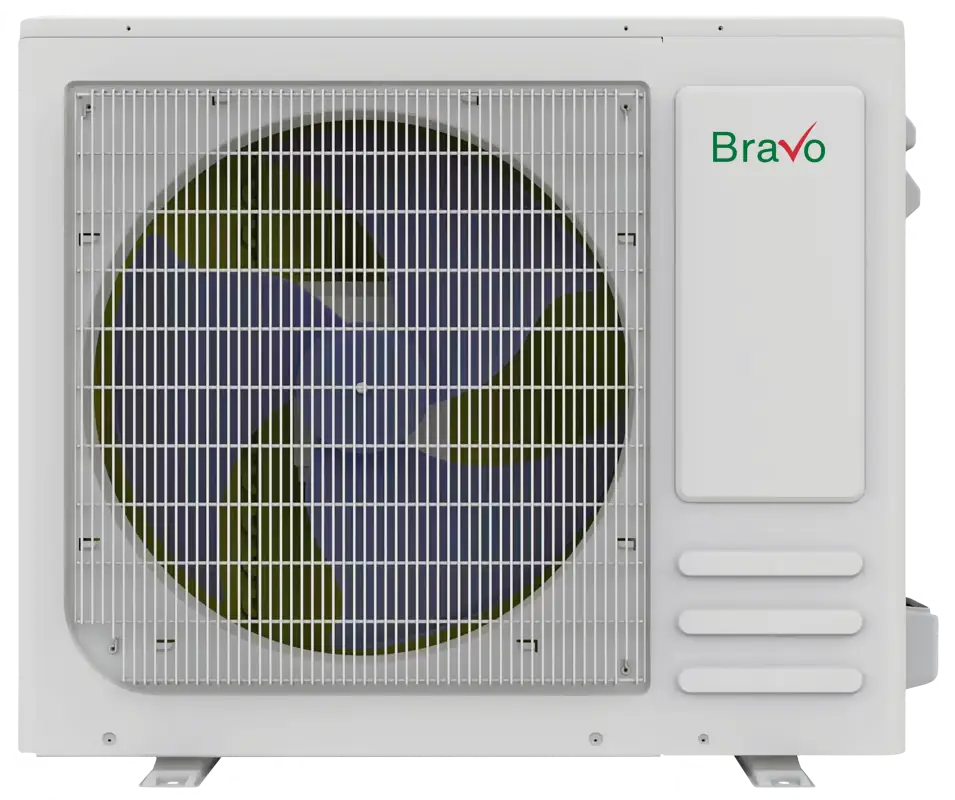

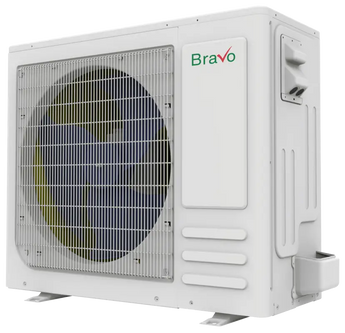

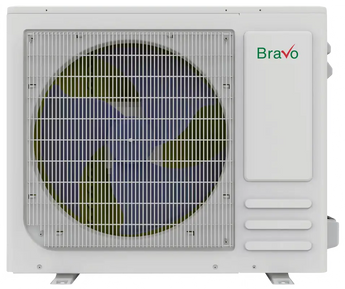

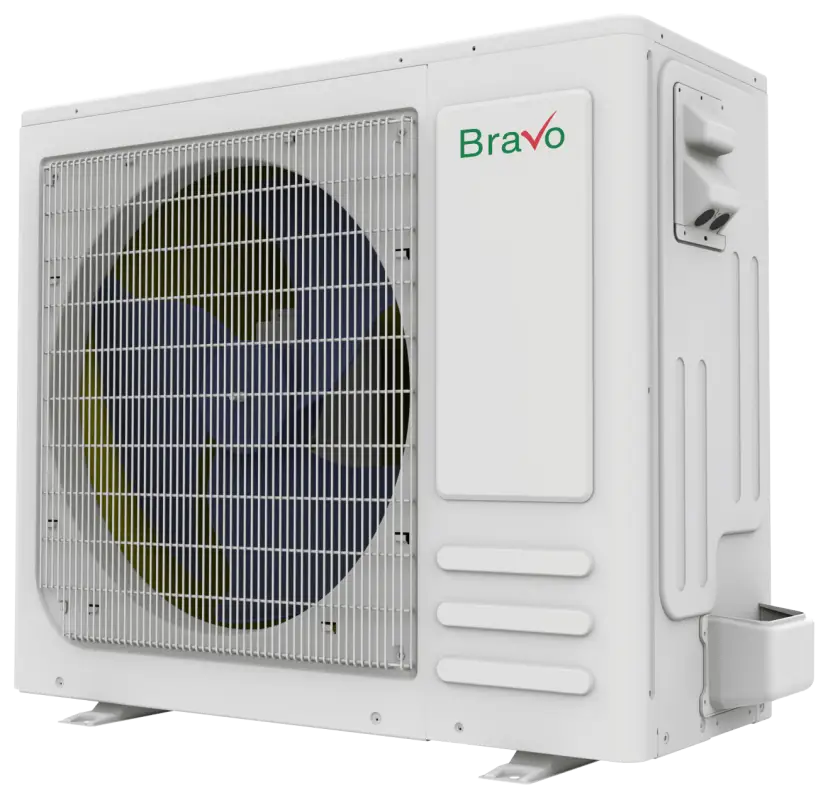

| Model | BRV-SD48HI-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 37.98 x 31.89 x 15.75 in |
| Net/Gross Weight | 152/160 lb |
| Packing Dimensions (WxDxH) | 42.12 x 34.64 x 20.67 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 40 A |
| Min. Circuit Ampacity | 37 A |
| Copper Line Size (Liquid/Gas) | 3/8" 3/4" |
| Noise Level | 60 dB |
| Airflow | 2950 CFM |
| Dehumidification | 5.28 pt/h |
System Specs
| Cooling Capacity | 48,000 BTU |
|---|---|
| SEER2 | 16.5 |
| Zones | 1 |
| Voltage | 230V |
| Refrigerant Type | R32 |
| Compressor | Inverter |
| WiFi | Included |
| Heating Capacity | 48,000 (15,300~49,500) BTU/h |
| Cooling Capacity Range | 48,000 (16,600~49,900) BTU/h |
| Operating Range (Cooling) | 5~131 °F |
| Operating Range (Heating) | -4~75 °F |
| Max. Pipe Length | 246 ft |
| Refrigerant Precharge | 24.6 ft |
| Max Height Difference | 98.4 ft |
| COP | 3.45 |
Series Comparison Table
Technical specifications for every model in the Standard series — this product is one of them.
| Indoor Model | BRV-MP18AHUW-230VI | BRV-MP24AHUW-230VI | BRV-MP36AHUW-230VI | BRV-MP48AHUW-230VI | BRV-MP60AHUW-230VI |
|---|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 53,000 |
| Heating (Btu/h) | 19,000 | 26,000 | 36,000 | 48,000 | 55,000 |
| Indoor Fan Motor – Type | ECM | ECM | ECM | ECM | ECM |
| Indoor Fan Motor – Output (W) | 75 | 75 | 150 | 150 | 150 |
| Max Fuse (A) | 6.0 | 6.0 | 6.0 | 10.0 | 10.0 |
| Indoor Air Flow – High/Low (CFM) | 650 / 420 | 830 / 420 | 1110 / 520 | 1690 / 750 | 1740 / 750 |
| Indoor Noise Level – High/Low (dB(A)) | 38.5 / 34 | 42 / 38 | 50 / 42.5 | 53 / 46 | 53 / 46 |
| Indoor Unit – Dimensions WxDxH (in) | 17.52×21.02×45.00 | 17.52×21.03×45.00 | 21.03×21.03×49.22 | 24.48×21.03×52.98 | 24.48×21.03×52.98 |
| Indoor Unit – Packing WxDxH (in) | 20.87×26.57×46.26 | 20.86×26.57×46.27 | 24.41×26.58×50.20 | 27.88×26.58×54.14 | 27.88×26.58×54.14 |
| Indoor Unit – Net/Gross Weight (lbs.) | 84 / 92 | 84 / 92 | 132 / 140 | 152 / 160 | 152 / 160 |
| Refrigerant Piping – Liquid / Gas Side (in) | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" |
| Ambient Temperature Range – Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Ambient Temperature Range – Heating (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Outdoor Model | BRV-SD18HI-230VO | BRV-SD24HI-230VO | BRV-SD36HI-230VO | BRV-SD48HI-230VO | BRV-SD60HI-230VO |
|---|---|---|---|---|---|
| Power Supply (V-Ph-Hz) | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling – Rated Capacity (Btu/h) | 18,000 | 24,000 | 36,000 | 48,000 | 53,000 |
| Cooling – EER2 | 11.5 | 10.4 | 10.4 | 9 | 8 |
| Cooling – SEER2 | 18.4 | 17.7 | 17.0 | 16.5 | 15.8 |
| Heating – Rated Capacity (Btu/h) | 19,000 | 26,000 | 36,000 | 48,000 | 55,000 |
| Heating – HSPF2 | 8.6 | 8.5 | 8.4 | 8.5 | 8.5 |
| Heating – COP (W/W) | 3.85 | 3.4 | 3.45 | 3.45 | 3.55 |
| Compressor – Type | rotary | rotary | rotary | rotary | rotary |
| Compressor – Rated Current RLA (A) | 6.80 | 9.45 | 9.45 | 5.25 | 5.25 |
| Compressor – Capacity (W) | 1115 | 2085 | 2085 | 2680 | 2680 |
| Compressor – Rated Current (A) | 6.80 | 9.45 | 9.45 | 5.25 | 5.25 |
| Outdoor Fan Motor RLA (A) | 2.00 | 2.00 | 2.50 | 2.50 | 2.50 |
| Outdoor Unit – Dimensions WxDxH (in) | 36.03×25.59×13.58 | 36.03×25.59×13.58 | 37.98×31.89×15.75 | 37.98×31.89×15.75 | 37.98×31.89×15.75 |
| Outdoor Unit – Packing WxDxH (in) | 40.16×28.94×17.13 | 40.16×28.94×17.13 | 42.13×34.64×20.67 | 42.13×34.64×20.67 | 42.13×34.64×20.67 |
| Outdoor Unit – Net/Gross Weight (lbs.) | 84 / 92 | 84 / 92 | 132 / 140 | 152 / 160 | 152 / 160 |
| Refrigerant System – Type | R32 | R32 | R32 | R32 | R32 |
| Refrigerant System – Charge (oz) | 56.44 | 58.2 | 84.66 | 105.82 | 105.82 |
| Refrigerant System – Liquid / Gas Side (in) | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" | 3/8" / 3/4" |
| Refrigerant System – Max Pipe Length (ft) | 98.4 | 164 | 246 | 246 | 246 |
| Refrigerant System – Max Different Level (ft) | 65.6 | 82 | 98.4 | 98.4 | 98.4 |
| Max Fuse (A) | 20 | 25 | 30 | 40 | 50 |
| Outdoor Air Flow (CFM) | 2000 | 2000 | 2650 | 2950 | 2950 |
| Outdoor Noise Level – High (dB(A)) | 54 | 55 | 56 | 60 | 60 |
| Operation Temperature Range – Cooling (°F) | 5~131 | 5~131 | 5~131 | 5~131 | 5~131 |
| Operation Temperature Range – Heating (°F) | -4~75 | -4~75 | -4~75 | -4~75 | -4~75 |
| Ambient Temperature – Indoor Cooling/Heating (°F) | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 | >=62/<=86 |
| Ambient Temperature – Outdoor Cooling/Heating (°F) | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 | 5~122/-4~86 |

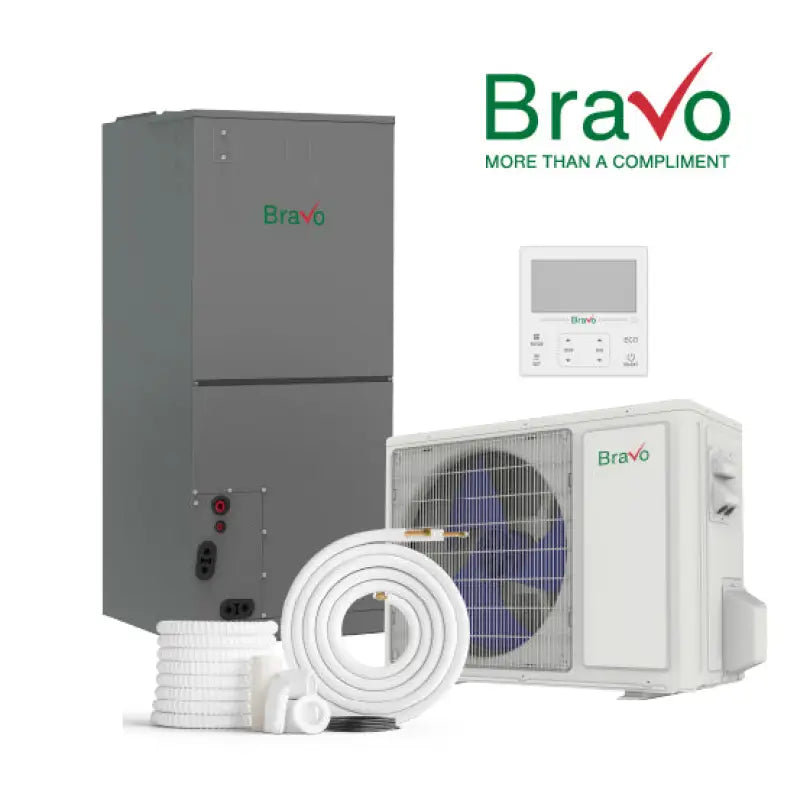

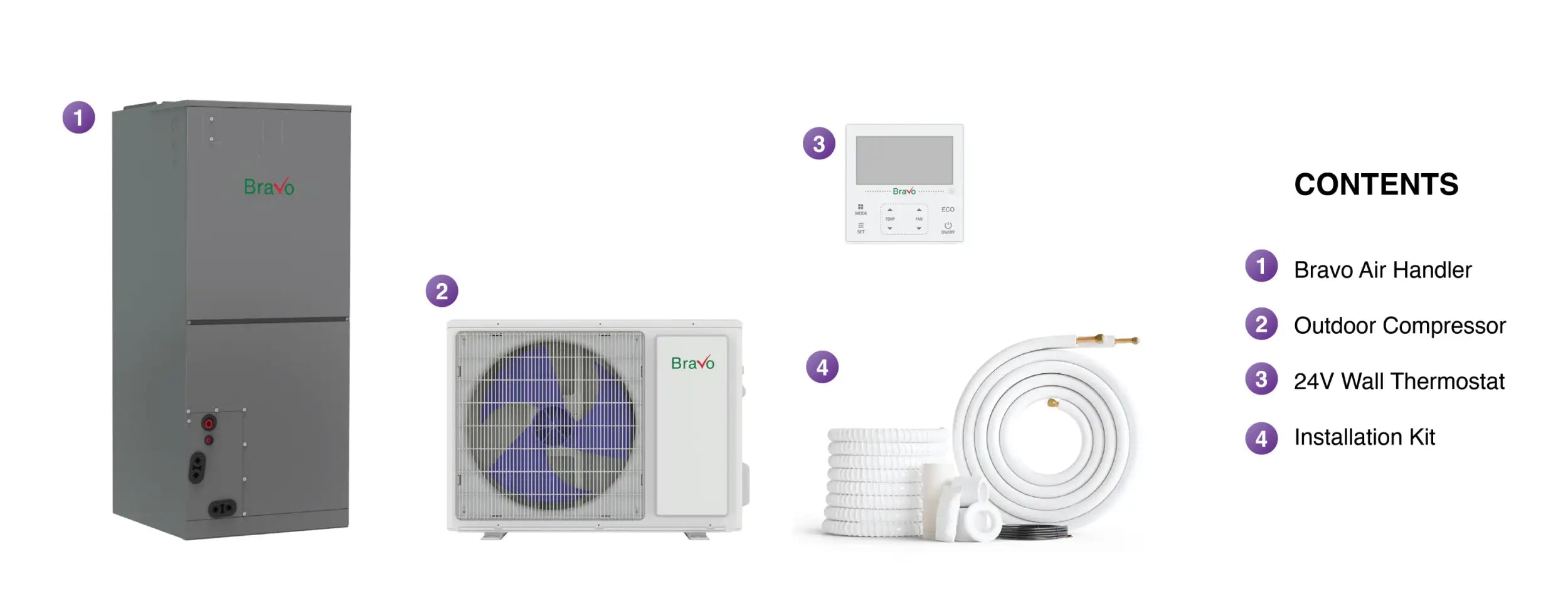

What’s Included
| Outdoor condenser | BRV-SD48HI-230VO |
|---|---|
| Indoor unit | BRV-MP48AHUW-230VI |

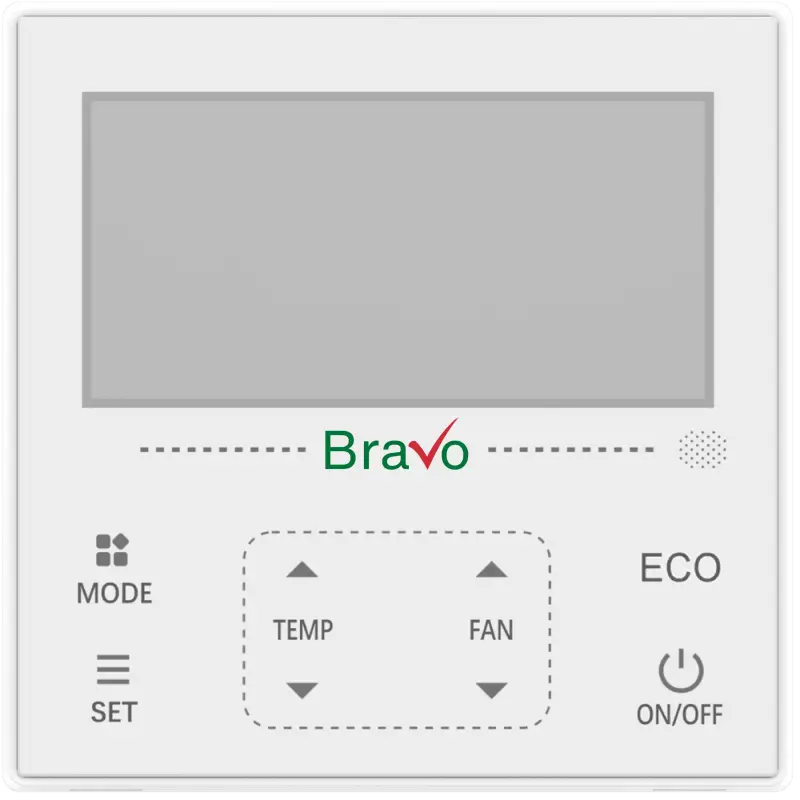

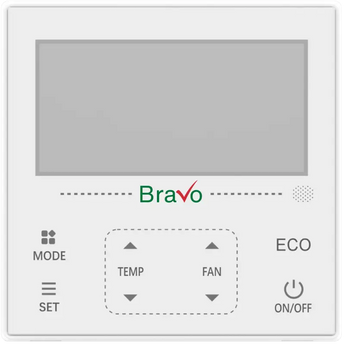

| Remote controller | Wired Controller |
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
- Free shipping on every item over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
Multiple Control Methods
Bravo AHU can be managed with a user-friendly remote control or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Compare with similar items
Frequently Asked Questions
What size mini split do I need for my home?
For optimal performance, the Bravo 48,000 BTU Single Zone Multi Position Air Handler is suitable for covering areas up to 2000 sq ft. This makes it ideal for large rooms or open floor plans.
Can I install a mini split myself?
While the installation of the Bravo mini split can be done by homeowners, it is recommended to hire a professional for best results, especially since it involves handling refrigerant and electrical connections. If you choose to DIY, ensure you have the necessary tools and follow local codes.
Does the mini split come pre-charged with refrigerant?
Yes, the Bravo mini split system comes pre-charged with R32 refrigerant for up to 25 ft of line set, allowing for a straightforward installation process. Be mindful of the specific installation conditions to maintain efficiency.
What voltage does the Bravo mini split require?
The Bravo 48,000 BTU model operates at 230V, making it compatible with most residential electrical systems in the U.S. Ensure your electrical setup can accommodate this voltage for proper functioning.
What warranty does the Bravo mini split offer?
The Bravo mini split system comes with a 5-year parts and compressor warranty, providing peace of mind regarding your investment. This warranty covers any manufacturing defects for the specified duration.
What is the SEER rating of the Bravo mini split system?
The Bravo 48,000 BTU Single Zone Multi Position Air Handler boasts a SEER rating of 16.5, indicating its high energy efficiency. A higher SEER rating translates to lower energy bills, making it an efficient choice for heating and cooling.
