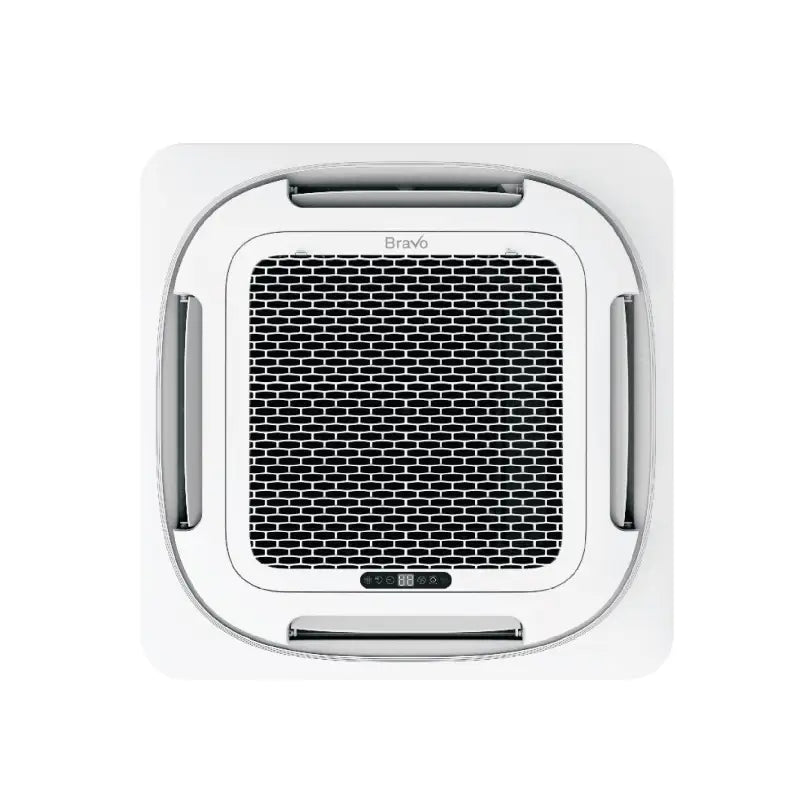

Bravo Pisa 24,000 BTU Single Zone Ceiling Cassette, 230V, R32 - Ductless Mini Split Heat Pump | 16FT
Bravo7-Yr Warranty166 shoppers interested
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about 800–1200 sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 24,000 BTU (2-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 24,000 BTU (2-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 22.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 22.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: BRV-P24LS-230VO, BRV-P24CT-230VI, BRV-PNL24CT. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on items over $300 within the U.S., and our team can help with sizing and support.
Warranty and Tech Support Info
By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
Main Features
Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.
All Accessories Included

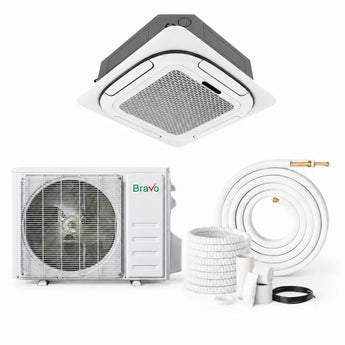

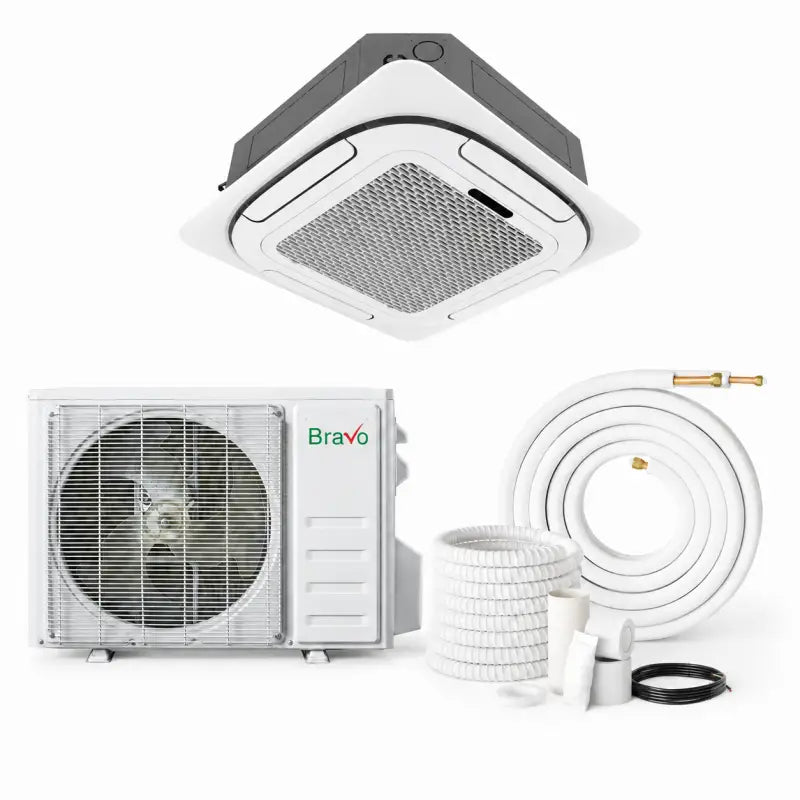

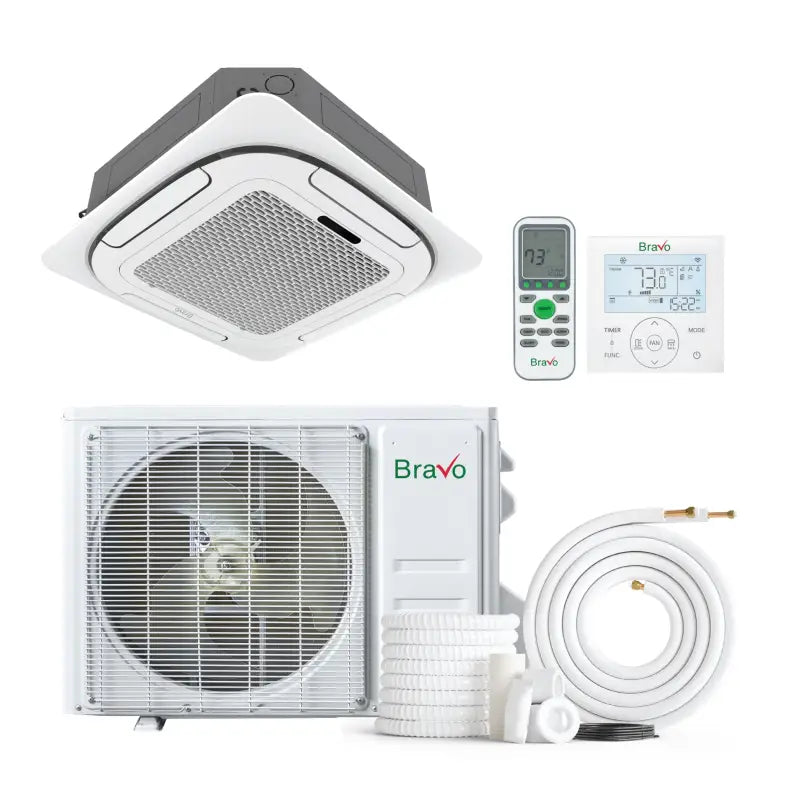

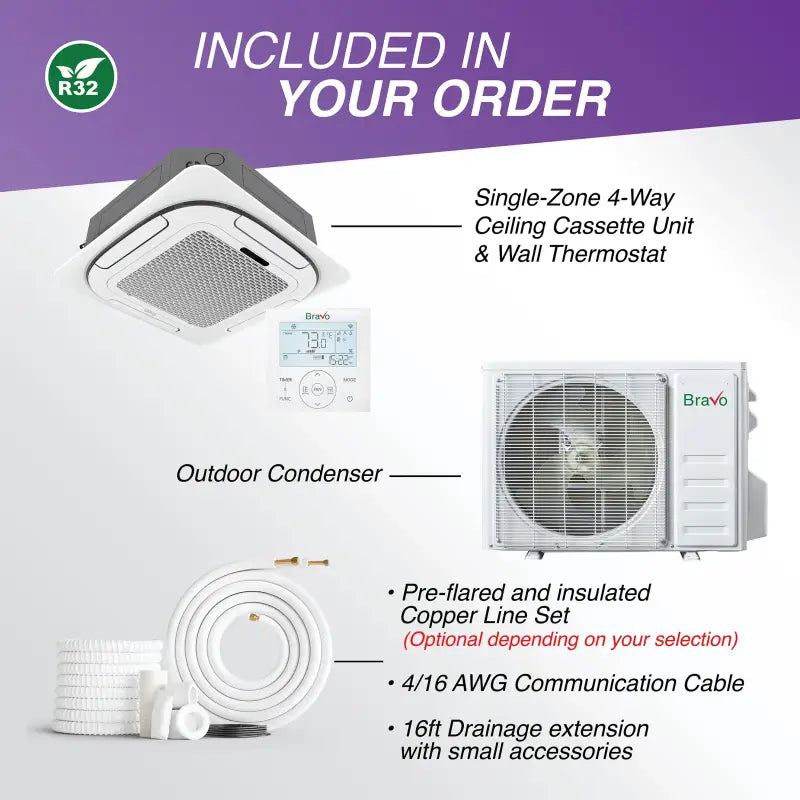

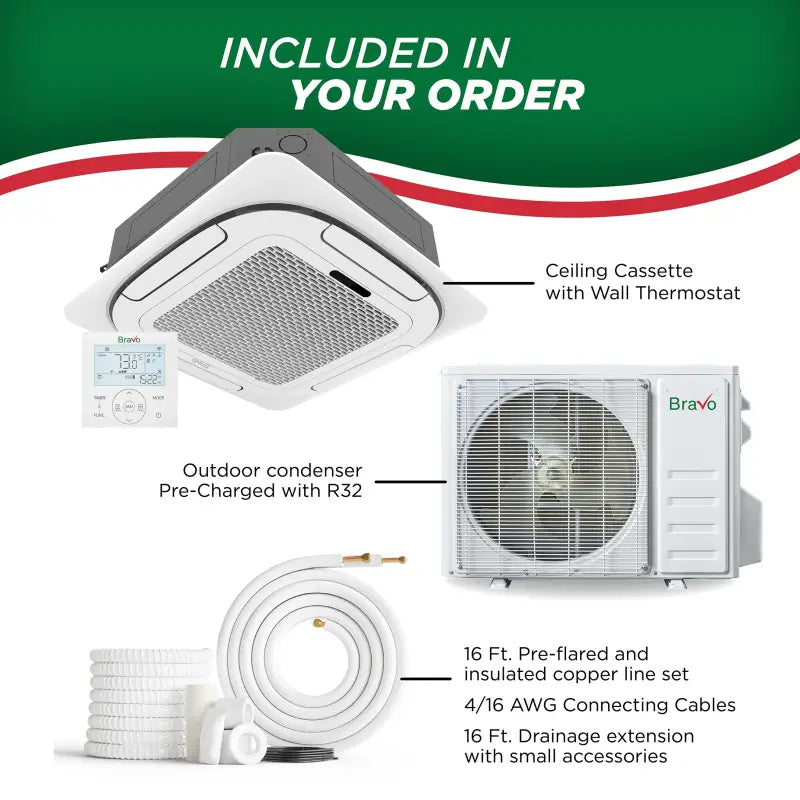

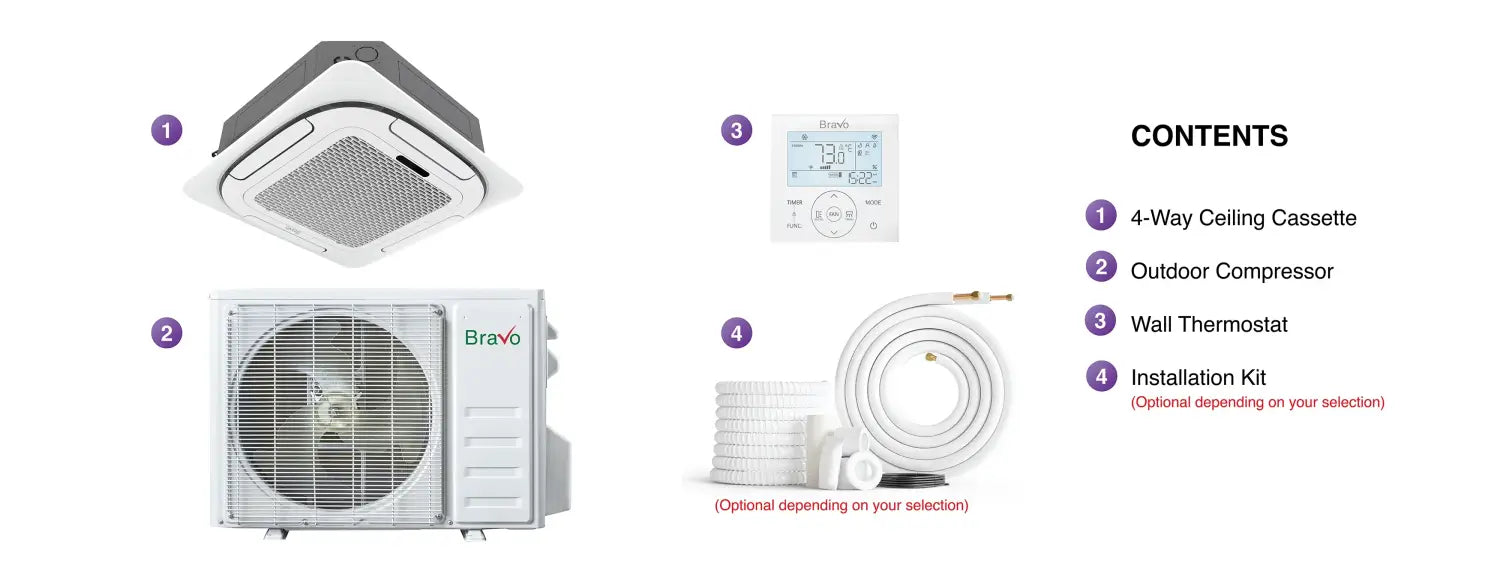

With the purchase of Bravo Pisa 4-Way Ceiling Cassette System, included in your complete package will be 1-Indoor unit, 1-Outdoor Unit, 1-Wall Thermostat and 1-Installation Kit.
Technical Specifications
System Specs
| Cooling Capacity | 24,000 BTU |
|---|---|
| SEER2 | 22 |
| Zones | 1 |
| Voltage | 230V |
| Refrigerant Type | R32 |
| Copper Line Length | 16.4 ft |
| Compressor | Inverter |
| WiFi | Included |
Series Comparison Table
Technical specifications for every model in the Pisa series — this product is one of them.
| Indoor Model | BRV-P09CT-230VI | BRV-P12CT-230VI | BRV-P18CT-230VI | BRV-P24CT-230VI |
|---|---|---|---|---|
| Panel Model | BRV-PNL09-18CT | BRV-PNL09-18CT | BRV-PNL09-18CT | BRV-P24CT-230VI |
| Outdoor Model | BRV-P09LS-230VO | BRV-P12LS-230VO | BRV-P18LS-230VO | BRV-P24LS-230VO |
| Power Supply (V-Ph-Hz) | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 | 208~230-1-60 |
| Cooling – Rated Capacity (Btu/h) | 9,000 | 12,000 | 18,000 | 24,000 |
| Cooling – EER2 | 11.0 | 9.5 | 9.5 | 9.5 |
| Cooling – SEER2 | 20.0 | 20.0 | 20.0 | 20.0 |
| Heating – Rated Capacity (Btu/h) | 9,000 | 12,000 | 18,500 | 24,000 |
| Heating – HSPF2-4 | 9.5 | 9.5 | 9.5 | 9.5 |
| Heating – COP2 (W/W) | 3.8 | 3.5 | 2.9 | 3.5 |
| Minimum Circuit Ampacity (A) | 10 | 11 | 12 | 17 |
| Max Fuse (A) | 15 | 15 | 20 | 25 |
| Indoor Air Flow – Turbo/Hi/Mi/Lo/Mute (CFM) | 329/300/270/217/194 | 360/320/260/200/190 | 441/394/335/282/253 | 836/765/630/530/482 |
| Indoor Noise Level – Turbo/Hi/Mi/Lo/Mute (dB(A)) | 43/41/37/33/32 | 45/43/39/35/32 | 48/46/42/39/37 | 51/48/44/40/37 |
| Indoor Unit – Dimensions WxDxH (in) | 22.44×22.44×10.24 | 22.44×22.44×10.24 | 22.44×22.44×10.24 | 32.99×32.99×10 |
| Indoor Unit – Packing WxDxH (in) | 28.27×25.87×11.85 | 28.27×25.87×11.85 | 28.27×25.87×11.85 | 36.81×36.81×11.42 |
| Indoor Unit – Net/Gross Weight (lbs.) | 31.9 / 38.6 | 31.9 / 38.6 | 31.9 / 38.6 | 51.8 / 59.5 |
| Outdoor Side Noise Level (dB(A)) | 53 | 55 | 55 | 60 |
| Outdoor Unit – Dimensions WxDxH (in) | 30.98×11.42×19.61 | 31.5×12.01×21.69 | 33.54×13.74×23.7 | 36.1×14.76×27.56 |
| Outdoor Unit – Packing WxDxH (in) | 32.2×12.8×20.28 | 32.87×13.39×23.03 | 35.04×15.16×24.72 | 37.4×16.54×28.82 |
| Outdoor Unit – Net/Gross Weight (lbs.) | 50.7 / 57.3 | 51.8 / 58.4 | 66.8 / 74.5 | 88.2 / 97.0 |
| Refrigerant Type / Pre-charge (oz) | R32 / 21.16 | R32 / 20.46 | R32 / 37.74 | R32 / 42.33 |
| Refrigerant Precharge Length (ft) | 25 | 25 | 25 | 25 |
| Refrigerant Piping – Liquid/Gas Side (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" |
| Max Refrigerant Pipe Length (ft) | 49 | 49 | 65 | 65 |
| Max Height Diff Indoor/Outdoor (ft) | 33 | 33 | 49 | 49 |
| Ambient Temperature Range – Cooling Indoor (°F) | 62~89 | 62~89 | 62~89 | 62~89 |
| Ambient Temperature Range – Cooling Outdoor (°F) | 5~127 | 5~127 | 5~127 | 5~127 |
| Ambient Temperature Range – Heating Indoor (°F) | 32~86 | 32~86 | 32~86 | 32~86 |
| Ambient Temperature Range – Heating Outdoor (°F) | -4~75 | -4~75 | -4~75 | -4~75 |
What’s Included

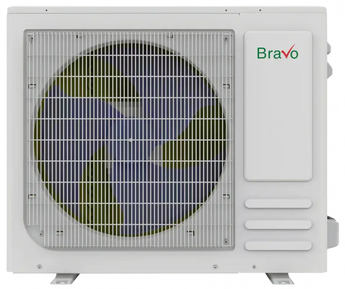

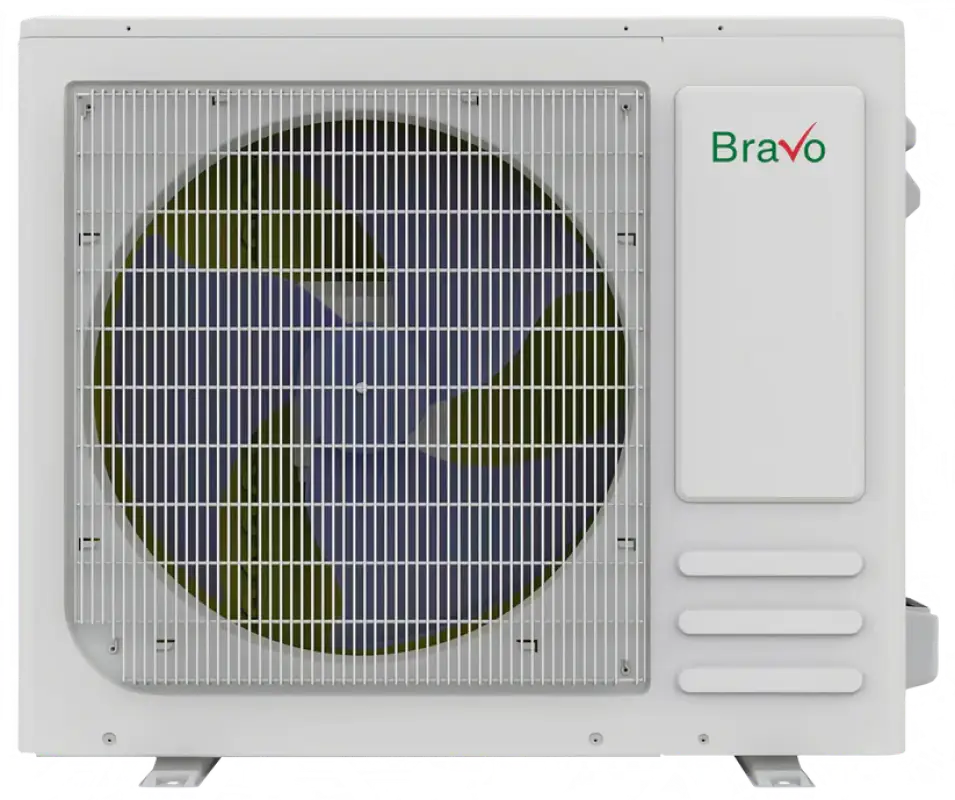

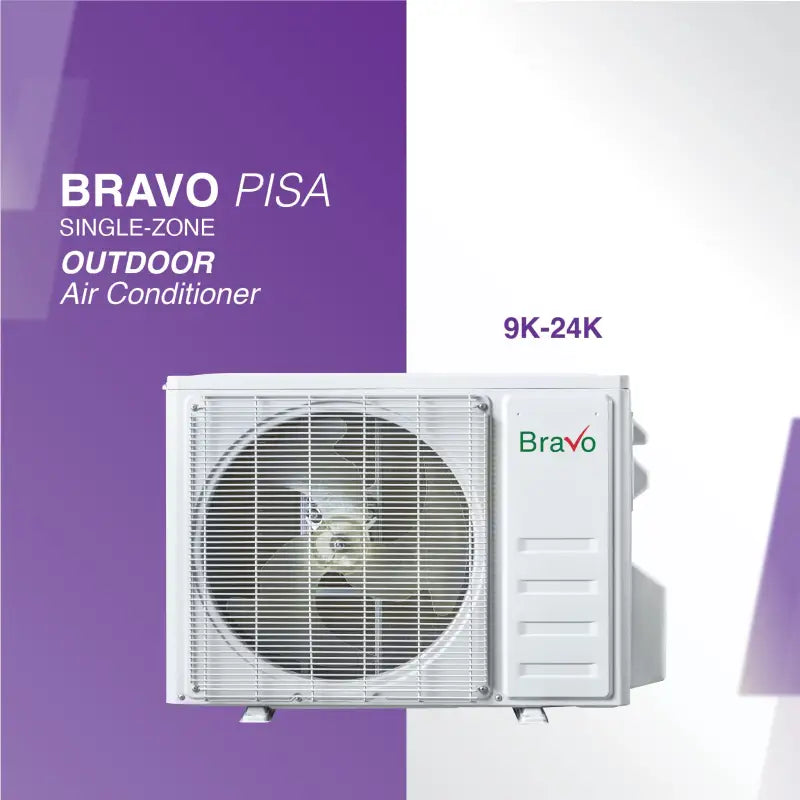

| Outdoor condenser | BRV-P24LS-230VO |
|---|---|

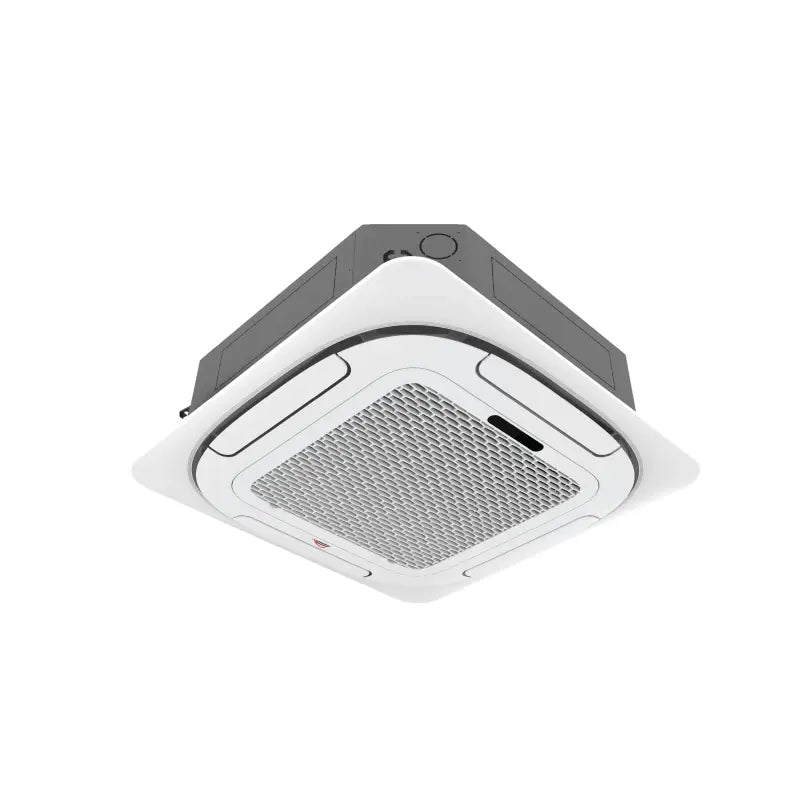

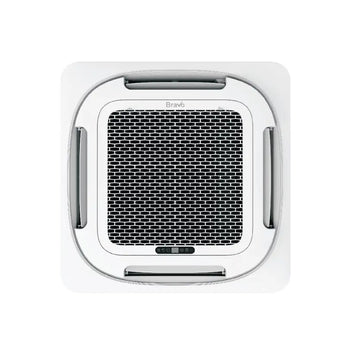

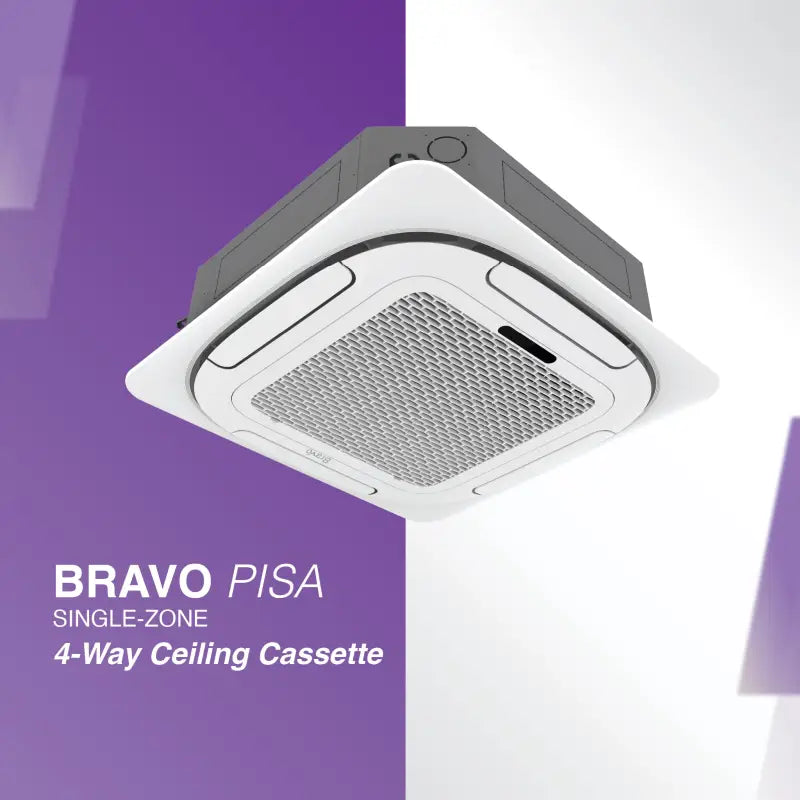

| Indoor unit | BRV-P24CT-230VI |
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
- Free shipping on every item over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Installation by a licensed HVAC professional and product registration are required to keep coverage valid.
Multiple Control Methods

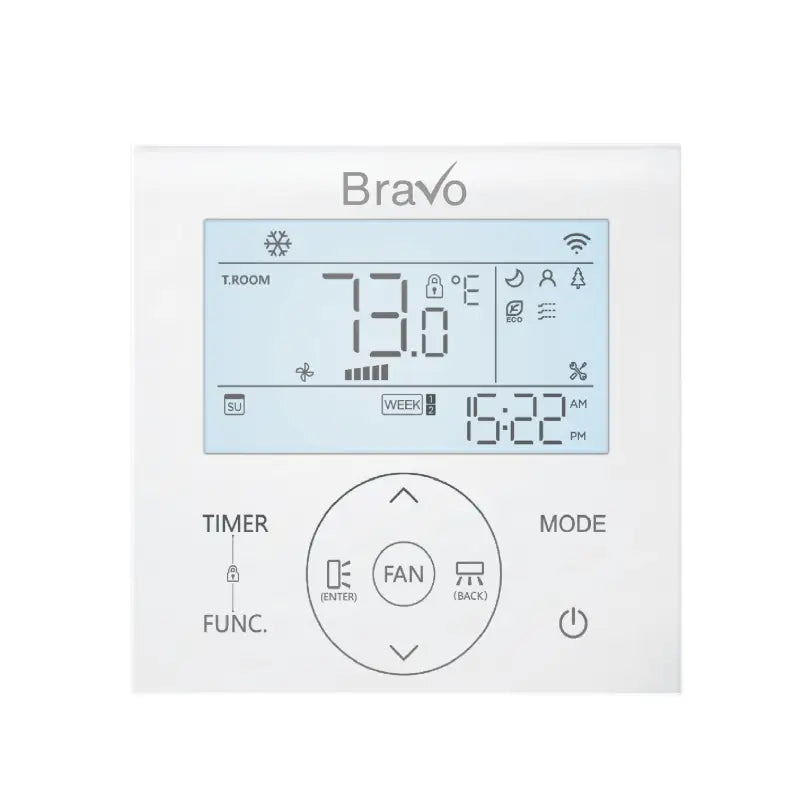

The Bravo Pisa 4-Way Ceiling Cassette can be managed with a user-friendly Wall Thermostat control, Hand held remote or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
