Bravo Pisa 9,000 BTU Single Zone Concealed Duct, 230V, R32 - Ducted Mini Split Heat Pump | 16FT

Name: Bravo Pisa 9,000 BTU Single Zone Concealed Duct, 230V, R32 - Ducted Mi
Brand: Bravo
SKU: BRV-P09LS-230VO09DT
Price: 938.23 USD
Availability: InStock

SEER222 Heats & cools

Bravo Pisa slim concealed duct single zone system

SEER222 Heats & cools

Bravo Pisa slim concealed duct single zone system

SEER222 Heats & cools

Bravo Pisa slim concealed duct single zone system

SEER222 Heats & cools

Bravo Pisa slim concealed duct single zone system

SEER222 Heats & cools

Bravo Pisa slim concealed duct single zone system

Bravo7-Yr Warranty

BRV-P09LS-230VO09DT

Product specifications

SEER	22
WiFi	Included
Brand	Bravo
Voltage	230V
Zone	Single Zone
Type	Concealed Duct
Freon	R32
Compressor	Inverter

See full Tech Specs

~~$1,130.40~~ $938.23 Save 17%

Shipping Policy calculated at checkout.

*Installation Kit Option*: 16ft Installation Kit

16ft Installation Kit 25ft Installation Kit 50ft Installation Kit

Product variants

Size — match your room area

✓ Selected9,000 BTUup to 400 ft²~~$1,130.40~~$938.23-17%12,000 BTUup to 550 ft²~~$1,195.20~~$992.01-17%18,000 BTUup to 800 ft²~~$1,540.80~~$1,278.86-17%24,000 BTUup to 1,100 ft²~~$1,857.60~~$1,541.80-17%

Availability

Out of stock right now
For the next arrival, call (855) 775-4822.

ShippingUsually ships in1–2 business days PickupCheck pickupnear you

Enter your ZIP code for the delivery date.

— we’ll fill in your ZIP. Used only for delivery dates and pickup.

FREE shipping to We don’t ship to .Pick up at Medley, FL ·

9400 Northwest 104th Street, Suite 150, Medley, FL 33178

Questions? (855) 775-4822

Mon–Fri 9–5 ET

Delivery dates are estimates

Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

Questions about this system?

Answers in seconds — tap a question below

Up to about 400 sq ft at average conditions. We size at about 22 BTU per sq ft, the same as the ENERGY STAR room-size chart for this capacity. Add capacity for a hot climate, ceilings over 8 ft, strong sun (+10%), a kitchen (+4,000 BTU) or each person over two (+600 BTU). For a room-by-room load calculation, ask your installer for an ACCA Manual J. Not sure? Call (855) 775-4822 and we'll confirm the right size for your space.
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 9,000 BTU (0.75-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
It uses R32 — an efficient, lower-GWP refrigerant that's now the industry standard on modern mini splits. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
Rated SEER2 22.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
Yes — a big upgrade. It's far more efficient (inverter, SEER2 22.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
Ships as a complete set: BRV-P09LS-230VO, BRV-P09DT230VI. Everything arrives together — check the photos and specs for the full kit.
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on items over $300 within the U.S., and our team can help with sizing and support.

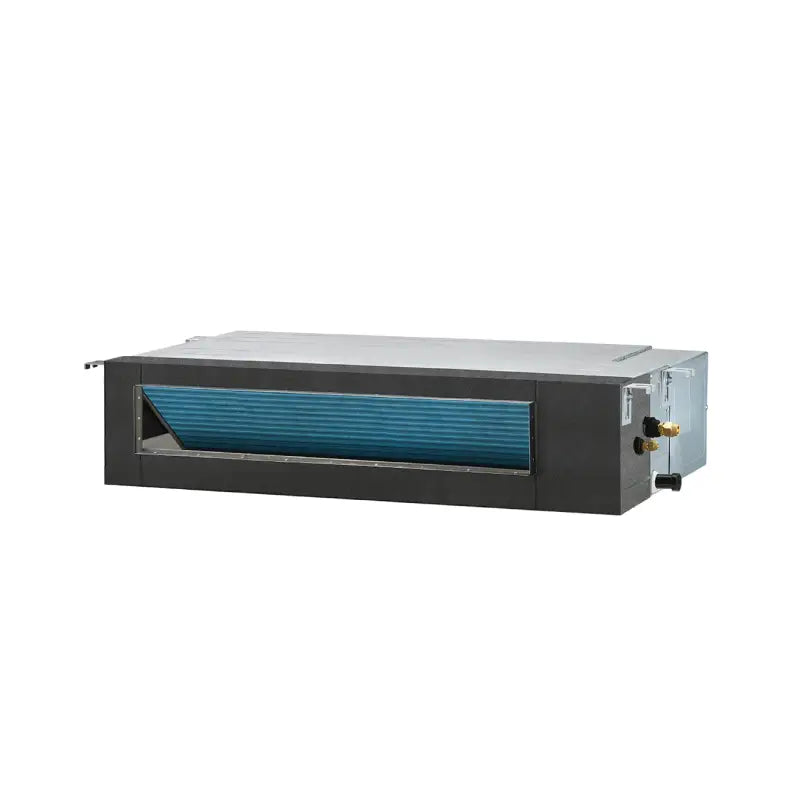

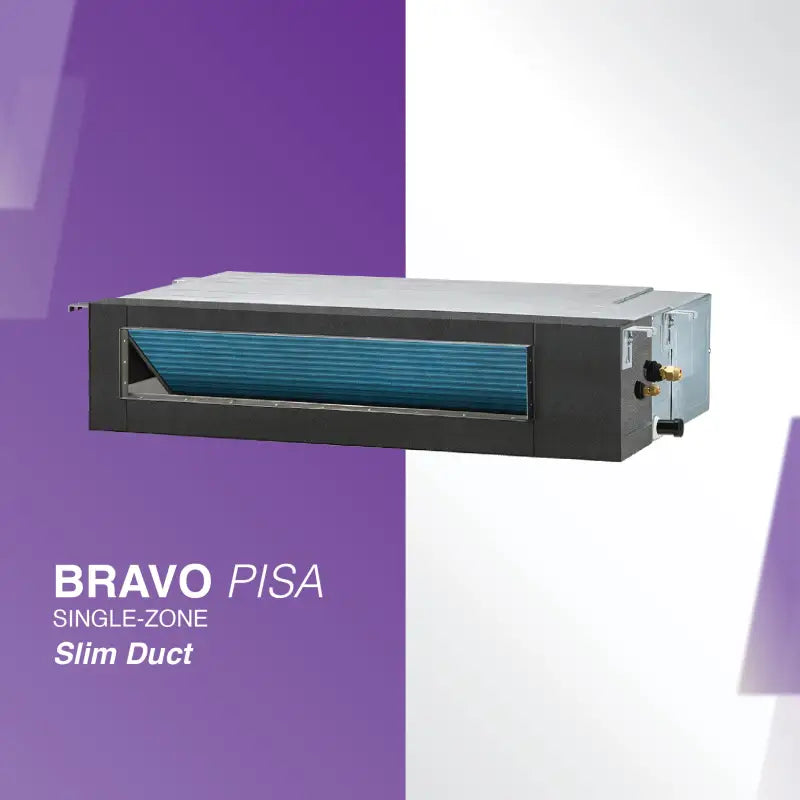

The Bravo Pisa Slim Duct Mini Split system offers a discreet, high-performance climate solution for modern homes. Hidden entirely within ceilings or crawlspaces, this low-profile ductless system delivers powerful heating and cooling without disrupting your interior design.

Available in capacities from 9k to 24k BTU, it easily scales to handle single rooms or large living zones. Utilizing energy-efficient inverter technology, the system operates quietly while maintaining precise temperatures. Its flexible static pressure design allows for short duct runs to multiple registers, ensuring uniform air distribution. Compatible with smart thermostats, this compact unit combines hidden premium comfort with exceptional energy savings.

Warranty and Tech Support Info

By selecting Bravo products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.

Main Features

Bravo Units offer advanced temperature control for individual spaces with energy efficiency and quiet operation. Featuring compact designs and easy installation, they blend seamlessly into interiors. Durable components, anti-corrosion coatings, and eco-friendly performance ensure reliability and comfort, making them ideal for residential and commercial environments all year round.

All Accessories Included

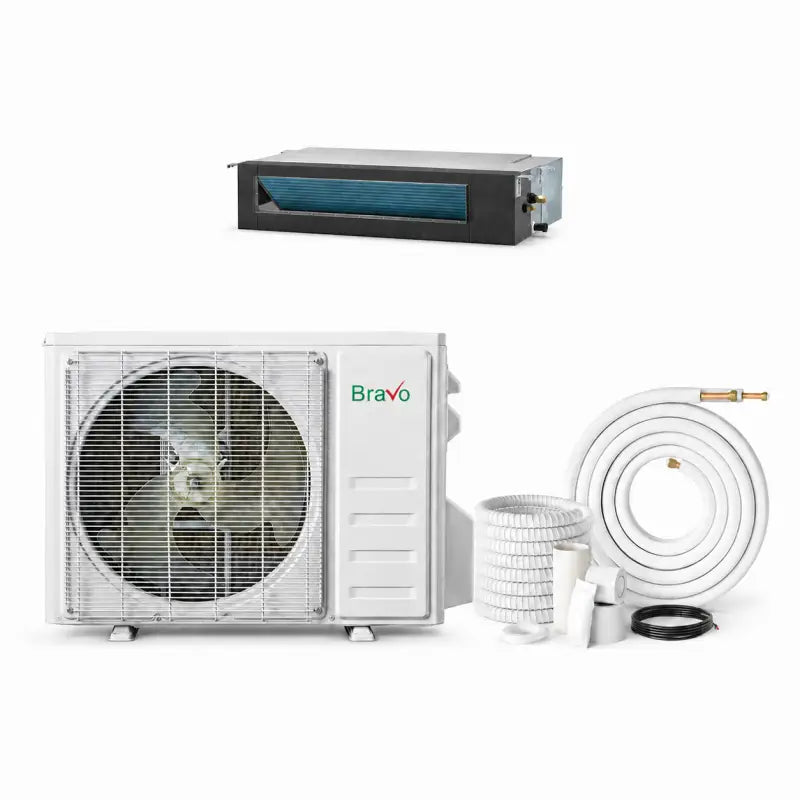

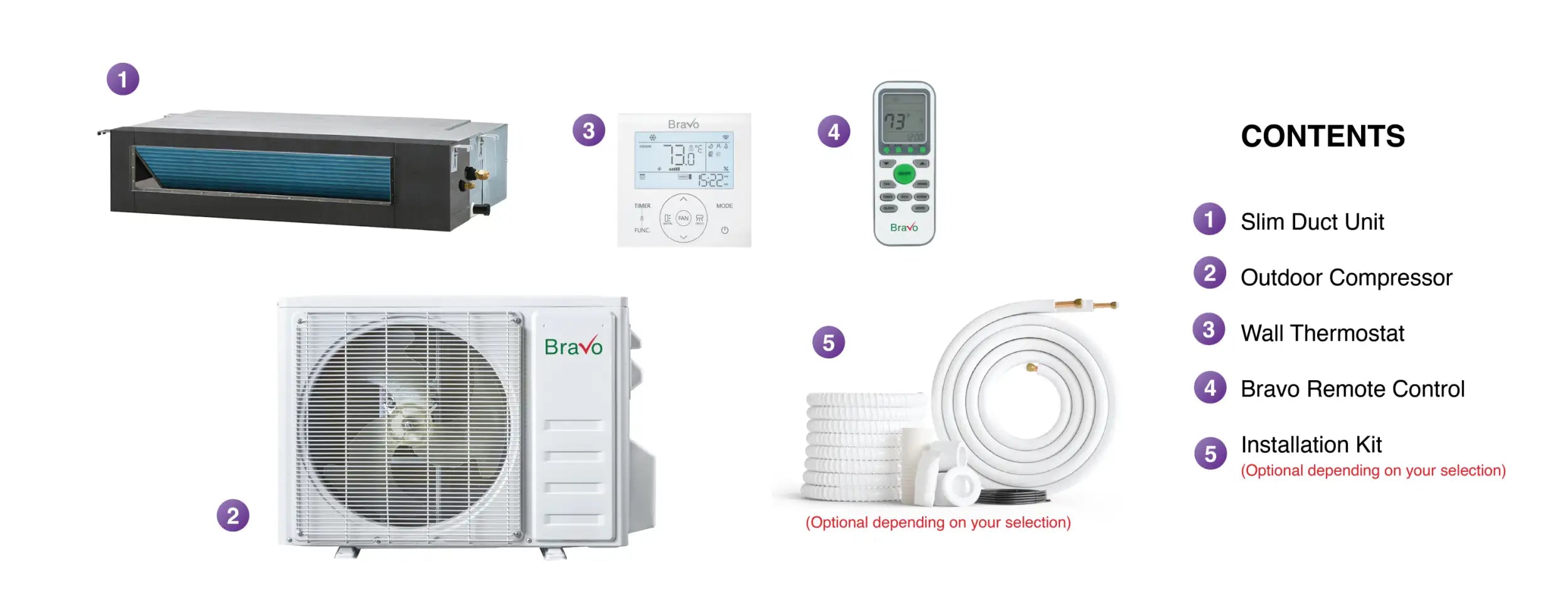

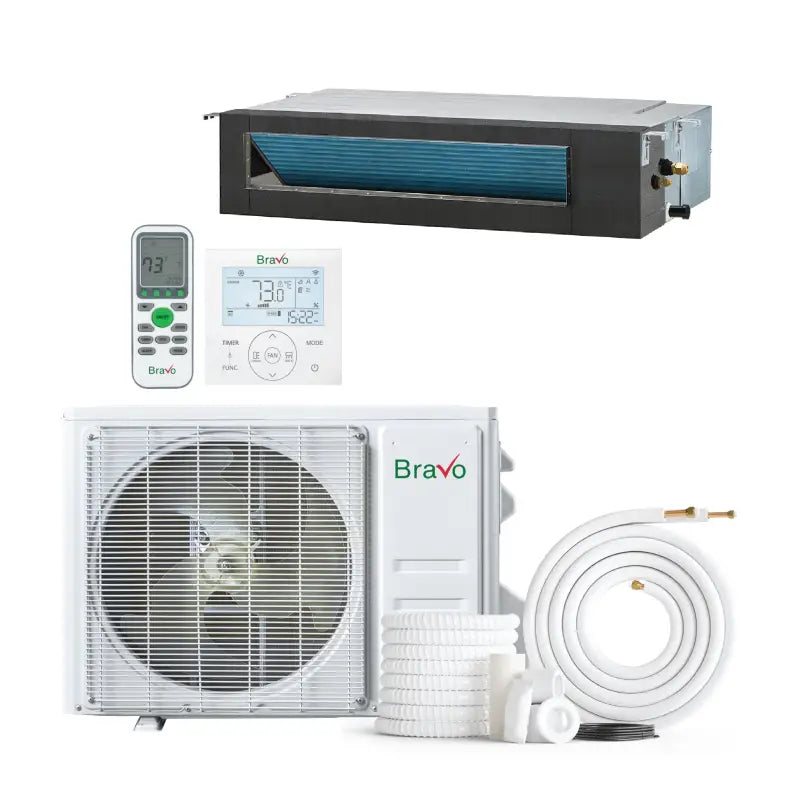

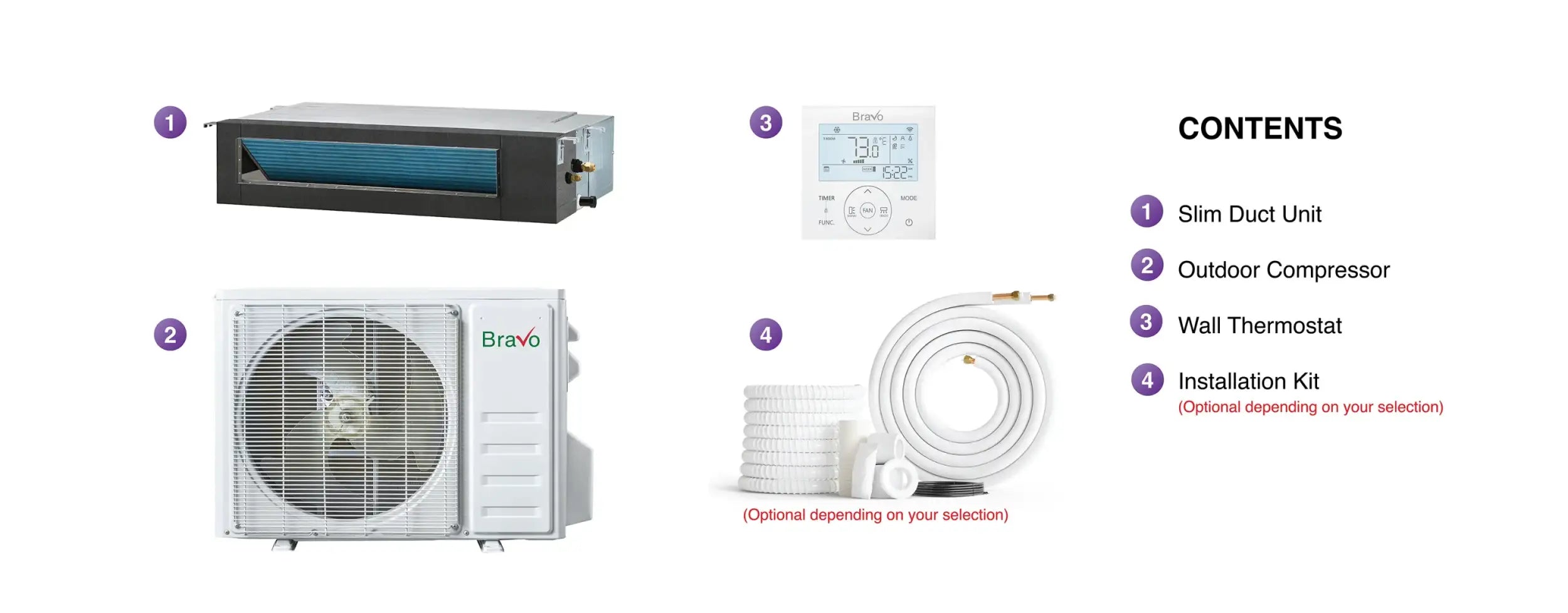

With the purchase of Bravo Pisa Slim Duct System, included in your complete package will be 1-Indoor unit, 1-Outdoor Unit, 1-Wall Thermostat and 1-Installation Kit.

Technical Specifications

System Specs

System Specs
Cooling Capacity	9,000 BTU
SEER2	22
Zones	1
Voltage	230V
Refrigerant Type	R32
Copper Line Length	16.4 ft
Compressor	Inverter
WiFi	Included

Series Comparison Table

Technical specifications for every model in the Pisa series — this product is one of them.

Indoor Model	BRV-P09DT230VI	BRV-P12DT230VI	BRV-P18DT230VI	BRV-P24DT230VI
Outdoor Model	BRV-P09LS-230VO	BRV-P12LS-230VO	BRV-P18LS-230VO	BRV-P24LS-230VO
Power Supply (V-Ph-Hz)	208~230-1-60	208~230-1-60	208~230-1-60	208~230-1-60
Cooling – Rated Capacity (Btu/h)	9,000	12,000	18,000	24,000
Cooling – EER2	11.0	9.5	9.5	9.5
Cooling – SEER2	20.0	20.0	20.0	20.0
Heating – Rated Capacity (Btu/h)	10,000	12,000	18,500	24,000
Heating – HSPF2-4	9.5	9.5	9.5	9.5
Heating – COP2 (W/W)	3.8	3.5	2.9	3.5
Minimum Circuit Ampacity (A)	10	11	12	17
Max Fuse (A)	15	15	20	25
Indoor Air Flow – Turbo/Hi/Mi/Lo/Mute (CFM)	335/305/276/182/182	360/330/270/217/194	500/426/370/300/283	741/623/558/529/470
Indoor Noise Level – Turbo/Hi/Mi/Lo/Mute (dB(A))	42/39/34/28/28	42/39/34/28/28	48/44/41/36/33	51/49/46/39/34
Indoor Unit – Dimensions WxDxH (in)	27.56×17.8×7.87	27.56×17.8×7.87	36.22×17.8×7.87	43.31×17.8×7.87
Indoor Unit – Packing WxDxH (in)	35.43×21.85×9.84	35.43×21.85×9.84	44.09×21.85×9.84	50.79×22.24×9.65
Indoor Unit – Net/Gross Weight (lbs.)	33.1 / 39.7	33.1 / 39.7	39.7 / 47.4	50.7 / 58.4
Outdoor Side Noise Level (dB(A))	53	55	55	60
Outdoor Unit – Dimensions WxDxH (in)	30.98×11.42×19.61	31.5×12.01×21.69	33.54×13.74×23.7	36.1×14.76×27.56
Outdoor Unit – Packing WxDxH (in)	32.2×12.8×20.28	32.87×13.39×23.03	35.04×15.16×24.72	37.4×16.54×28.82
Outdoor Unit – Net/Gross Weight (lbs.)	50.7 / 57.3	51.8 / 58.4	66.8 / 74.5	88.2 / 97.0
Refrigerant Type / Pre-charge (oz)	R32 / 21.16	R32 / 20.46	R32 / 37.74	R32 / 42.33
Refrigerant Precharge Length (ft)	25	25	25	25
Additional Refrigerant Charge >25ft (oz/ft)	0.11	0.11	0.11	0.11
Refrigerant Piping – Liquid/Gas Side (in)	1/4" / 3/8"	1/4" / 3/8"	1/4" / 3/8"	1/4" / 1/2"
Max Height Diff Indoor/Outdoor (ft)	33	33	49	49
Ambient Temperature Range – Cooling Indoor (°F)	62~89	62~89	62~89	62~89
Ambient Temperature Range – Cooling Outdoor (°F)	5~127	5~127	5~127	5~127
Ambient Temperature Range – Heating Indoor (°F)	32~86	32~86	32~86	32~86
Ambient Temperature Range – Heating Outdoor (°F)	-4~75	-4~75	-4~75	-4~75

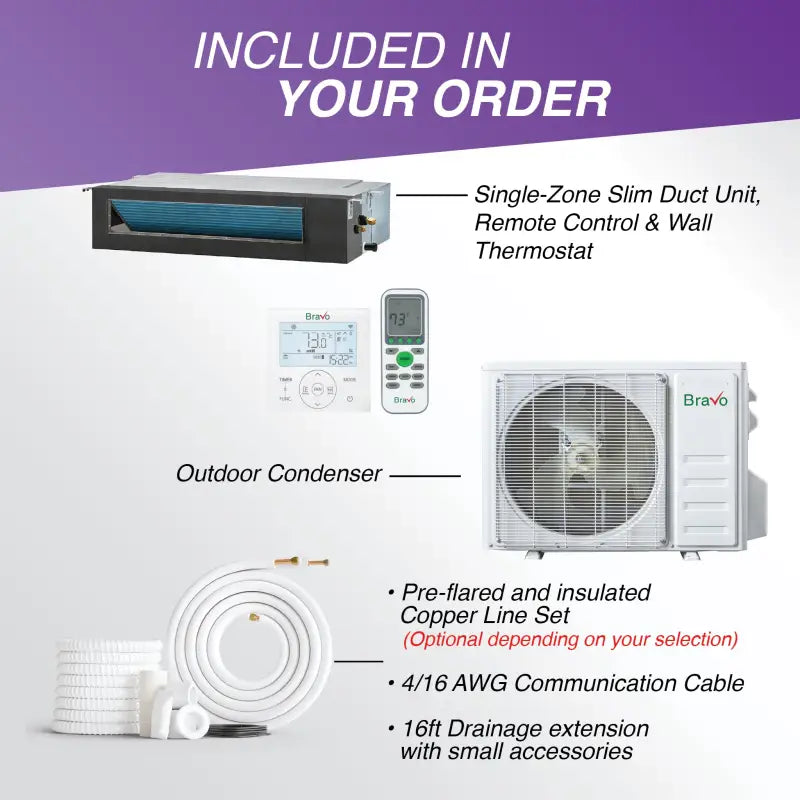

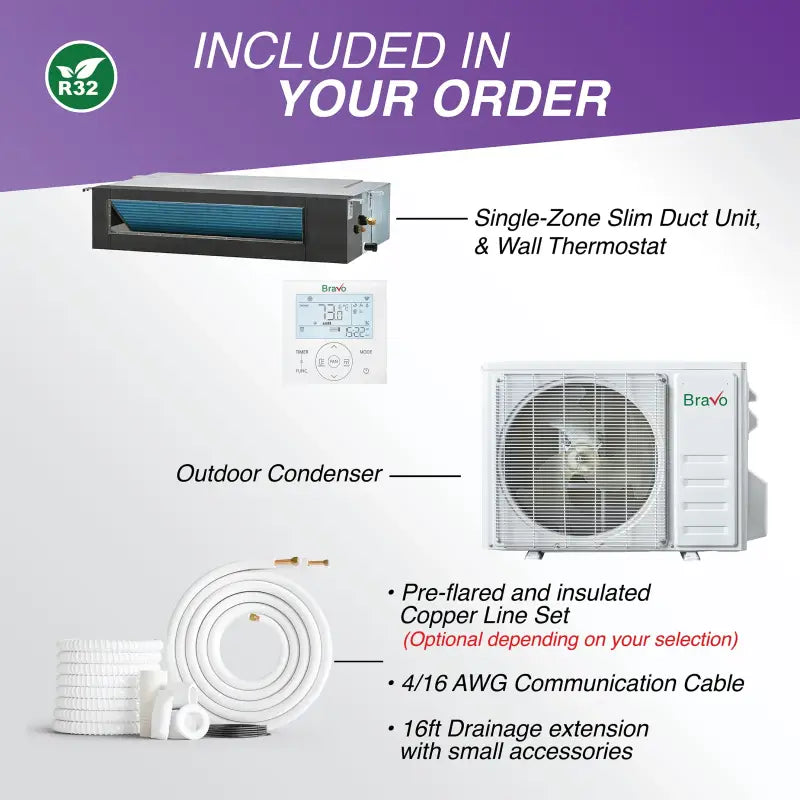

What’s Included

What’s Included

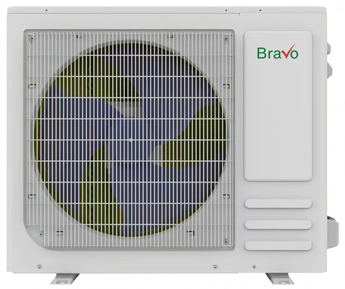

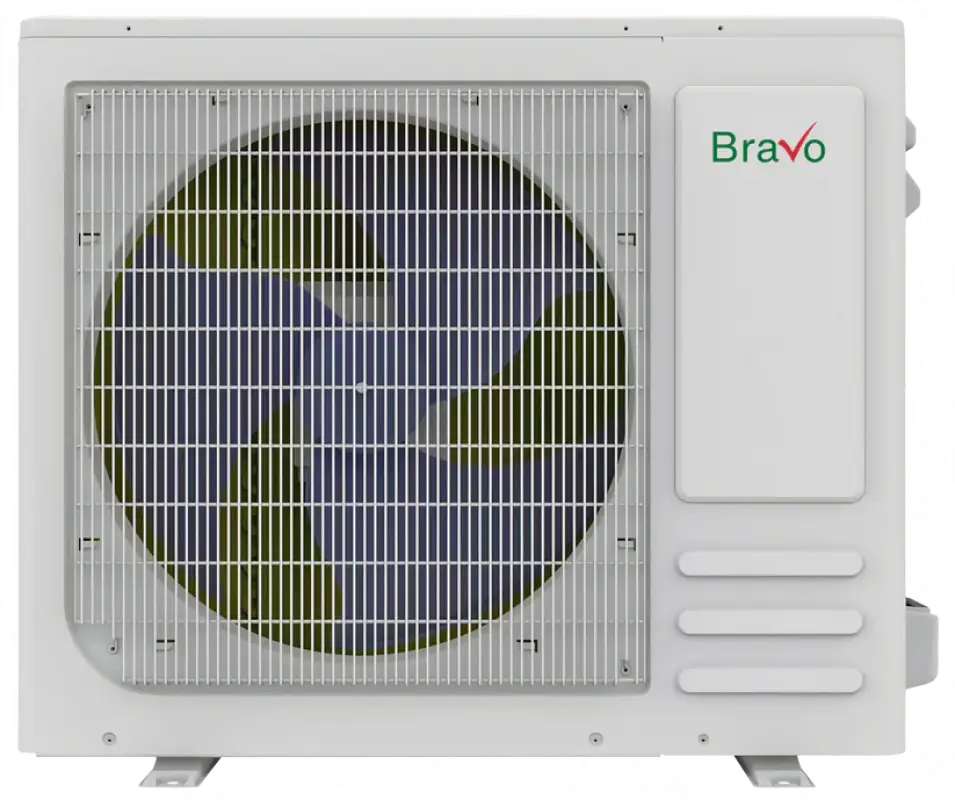

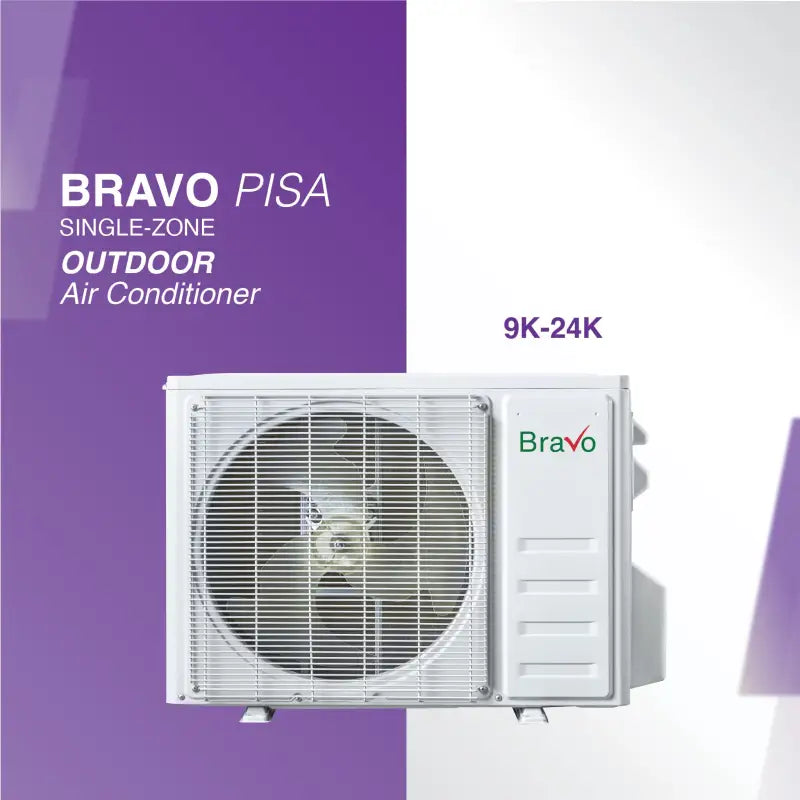

Outdoor condenser	BRV-P09LS-230VO
Indoor unit	BRV-P09DT230VI

Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.

Shipping & Returns

Free shipping on every item over $300.
Delivery estimate for your ZIP is shown in the buy box above.
Returns accepted per our policy — unopened units in original packaging.

Shipping & delivery policy Returns policy

Warranty

7-year compressor / 5-year parts

Limited manufacturer warranty on the compressor and sealed system components.
Installation by a licensed HVAC professional and product registration are required to keep coverage valid.

Full warranty terms

Multiple Control Methods

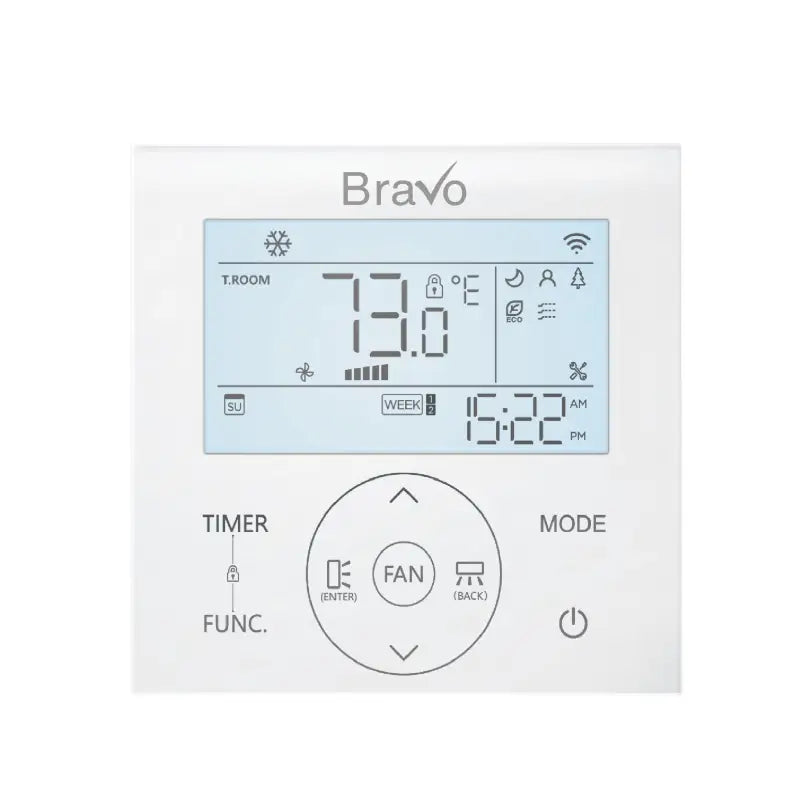

The Bravo Pisa Slim Duct can be managed with a user-friendly Wall Thermostat control, Hand held remote or the Bravo optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
