Cooper & Hunter MIA 24,000 BTU Single Zone Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | FACTORY
Cooper & Hunter7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon |
Every system includes a 16 ft installation kit inside the factory box. Selecting 25 ft or 50 ft orders a separate, longer kit — it does not replace the included 16 ft kit.
Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated
Pickup available at Medley Warehouse
Usually ready in 24 hours
Mon–Fri, 9:00 AM – 4:30 PM
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about 800–1200 sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 24,000 BTU (2-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 24,000 BTU (2-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 18.7 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 18.7) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-
Ships as a complete set: CH-RLS24MIA-230VO, CH-RLS24MIA-230VI. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

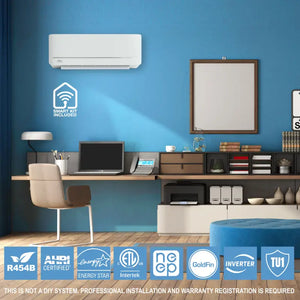

Sleek Wall-Mount Design
A slim, quiet indoor head mounts high on the wall and delivers 24000 BTU of heating & cooling — modern looks with whisper-quiet operation.
Inverter Efficiency — SEER2 18.7
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 18.7 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 800–1200 sq ft — matched capacity so you never over- or under-size the space.
MIA NY Wall Mount
The Cooper&Hunter MIA NY Series is a cutting-edge line of air conditioning units designed to provide optimal comfort and efficiency. Combining sleek aesthetics with advanced inverter technology, these units offer powerful cooling and heating capabilities while operating quietly and energy-efficiently. Ideal for both small residential and commercial spaces, the MIA NY Series delivers consistent climate control with features like precise airflow, smart Wi-Fi connectivity, and a modern design that integrates seamlessly into any interior.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter’s MIA NY Series units are specifically designed to provide maximum comfort in smaller spaces. Featuring advanced inverter technology, these units deliver energy-efficient heating and cooling, while quiet operation ensures a peaceful environment. With precise airflow control and seamless integration into any interior, the MIA NY Series offers reliable, consistent comfort in even the tightest spaces.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor Unit Specs
| Model | CH-RLS24MIA-230VI |
|---|---|
| Unit Dimensions (WxDxH) | 42.52 x 8.90 x 13.19 in |
| Net/Gross Weight | 30.64/39.46 lb |
| Packing Dimensions (WxDxH) | 45.47 x 16.34 x 12.60 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 15 A |
| Min. Circuit Ampacity | 3 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level (Hi/Med/Lo) | 45/41.5/27 dB |
| Dehumidification | 6.34 pt/h |
| Drain Pipe Diameter | 5/8" |
| Controller | remote controller |
Outdoor Unit Specs
| Model | CH-RLS24MIA-230VO |
|---|---|
| Unit Dimensions (WxDxH) | 35.04 x 13.46 x 26.50 in |
| Net/Gross Weight | 94.58/102.29 lb |
| Packing Dimensions (WxDxH) | 40.55 x 17.24 x 28.74 in |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Maximum Fuse Size | 20 A |
| Min. Circuit Ampacity | 19 A |
| Copper Line Size (Liquid/Gas) | 3/8"/5/8" |
| Noise Level | 59.5 dB |
| Airflow | 1,764.7 CFM |
| Dehumidification | 6.34 pt/h |
System Specs
| Cooling Capacity | 24,000 BTU |
|---|---|
| SEER2 | 18.7 |
| Zones | 1 |
| Voltage | 230V |
| Refrigerant Type | R454B |
| Copper Line Length | 16.4 ft |
| WiFi | Included |
| Heating Capacity | 24,000 (6,300~27,000) BTU/h |
| Cooling Capacity Range | 24,000 (5,500~24,200) BTU/h |
| Operating Range (Cooling) | 5 ~ 122 °F |
| Operating Range (Heating) | 5 ~ 75 °F |
| Max. Pipe Length | 164 ft |
| Refrigerant Precharge | 25 ft |
| Max Height Difference | 82 ft |
| COP | 3.31 |
Series Comparison Table
Technical specifications for every model in the MIA series — this product is one of them.
| Indoor Model | CH-RLS06MIA-115VI | CH-RLS09MIA-115VI | CH-RLS12MIA-115VI | CH-RLS09MIA-230VI | CH-RLS12MIA-230VI | CH-RLS18MIA-230VI | CH-RLS24MIA-230VI |
|---|---|---|---|---|---|---|---|
| Power Supply | 115, 1, 60 | 115, 1, 60 | 115, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Rated Capacity Range | 6,000 | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| Heating | 7,000 | 10,000 | 12,000 | 10,000 | 12,000 | 18,800 | 24,000 |
| Minimum Circuit Ampacity | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Max. Fuse | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 282.5/235.4/206.0/164.8/117.7 | 282.5/235.4/206.0/164.8/117.7 | 341.4/309.0/206.0/176.6/94.2 | 312.0/264.9/194.2/153.0/105.9 | 359.0/306.1/206.0/144.2 | 429.7/388.5/259.0/217.8 | 729.9/529.7/400.2/329.6 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) | 43.0/37.5/33.5/25.0/18.0 | 43.0/37.5/33.5/25.0/18.0 | 45.0/40.5/32.5/25.0/17.5 | 40.5/35.5/31.5/23.0/18.5 | 40.5/35.5/31.5/23.0/18.5 | 40.5/35.5/31.5/23.0/18.5 | 54.0/45.0/41.5/27.0/21.5 |
| Dimension (WxDxH) | 28.43x7.36x11.42 | 28.43x7.36x11.42 | 31.57x7.44x11.69 | 28.43x7.36x11.42 | 31.57x7.44x11.69 | 37.99x8.46x12.56 | 42.52x8.90x13.19 |
| Packing (WxDxH) | 31.10x10.63x14.76 | 31.10x10.63x14.76 | 34.45x11.22x14.96 | 31.10x10.63x14.76 | 34.45x11.22x14.96 | 41.14x12.01x16.14 | 45.47x16.34x12.60 |
| Net/Gross Weight | 17.42/22.93 | 17.42/22.93 | 19.40/25.13 | 16.98/22.27 | 19.40/25.13 | 24.47/32.63 | 30.64/39.46 |
| Room Temperature | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Outdoor Model | CH-RLS06MIA-115VO | CH-RLS09MIA-115VO | CH-RLS12MIA-115VO | CH-RLS09MIA-230VO | CH-RLS12MIA-230VO | CH-RLS18MIA-230VO | CH-RLS24MIA-230VO |
|---|---|---|---|---|---|---|---|
| Power Supply | 115, 1, 60 | 115, 1, 60 | 115, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 |
| Voltage Range | 103.5-126.5 | 103.5-126.5 | 103.5-126.5 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity Range | 2,200~9,900 | 2,200~9,900 | 2,200~12,300 | 2,300~9,700 | 1,700~13,300 | 4,100~19,000 | 5,500~24,200 |
| Rated Current | 8.0 | 8.0 | 12.7 | 5.0 | 5.0 | 7.2 | 10.9 |
| Cooling | 12.5 | 12.5 | 10.1 | 12.6 | 10.8 | 10.8 | 10.0 |
| EER2 | 21.5 | 21.5 | 21.2 | 21.2 | 21.3 | 19.2 | 18.7 |
| SEER2 | 4,200~10,200 | 4,200~10,200 | 3,400~12,200 | 4,300~11,100 | 3,500~13,400 | 6,200~20,200 | 6,300~27,000 |
| Rated Capacity Range | 9.8 | 9.8 | 11.7 | 4.0 | 4.9 | 8.1 | 9.6 |
| Heating at 47°F | 3.29 | 3.29 | 3.30 | 3.20 | 3.18 | 3.06 | 3.31 |
| HSPF4 | 9 | 9 | 8.7 | 9.1 | 9.1 | 9.6 | 9.3 |
| HSPF5 | 7 | 7 | 6.7 | 7 | 7 | 7.5 | 7.3 |
| Minimum Circuit Ampacity | 18 | 18 | 19 | 12 | 13 | 15 | 19 |
| Max Fuse (Outdoor Unit) | 20 | 20 | 20 | 15 | 15 | 20 | 20 |
| Outdoor Air Flow (Max.) | 1,294.1 | 1,294.1 | 1,235.3 | 1,294.1 | 1,235.3 | 1,235.3 | 1,764.7 |
| Outdoor Noise Level (Sound Pressure) | 52.5 | 52.5 | 54 | 53.5 | 54 | 56 | 59.5 |
| Dimensions (W×D×H) | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 30.12x11.93x21.85 | 31.69x12.99x21.81 | 35.04x13.46x26.50 |
| Packing (W×D×H) | 34.84x14.76x23.81 | 34.84x14.76x23.81 | 34.84x14.76x23.81 | 34.84x14.76x23.81 | 34.84x14.76x23.81 | 37.0x16.14x23.81 | 40.55x17.24x28.74 |
| Net/Gross Weight | 56.66/62.17 | 56.66/62.17 | 61.29/67.02 | 54.23/59.74 | 59.08/64.37 | 72.31/78.48 | 94.58/102.29 |
| Refrigerant Type / Charge | R454B/21.52 | R454B/21.52 | R454B/24.34 | R454B/21.52 | R454B/24.69 | R454B/40.57 | R454B/53.62 |
| Refrigerant Precharge Length | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 |
| Design Pressure | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max Pipe Length | 82 | 82 | 82 | 82 | 82 | 98.4 | 164 |
| Max. Difference in Level | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 | 65.6 | 82 |
| Ambient Temperature Cooling | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 | 5~122 |
| Heating | 5~75 | 5~75 | 5~75 | 5~75 | 5~75 | 5~75 | 5~75 |
| ETL | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| AHRI | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Energy Star | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| NEEP | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
What’s Included
| Outdoor condenser | CH-RLS24MIA-230VO |
|---|---|
| Indoor unit | CH-RLS24MIA-230VI |
| Remote controller | remote controller |
Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.
Shipping & Returns
- Free shipping on every order over $300.
- Delivery estimate for your ZIP is shown in the buy box above.
- Returns accepted per our policy — unopened units in original packaging.
Warranty
7-year compressor / 5-year parts
- Limited manufacturer warranty on the compressor and sealed system components.
- Your order number is the proof of purchase — keep it for any claim.
Multiple Control Methods
Cooper&Hunter’s Mia NY Series Unit can be managed with a Cooper&Hunter remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Compare with similar items
Frequently Asked Questions
What size mini split do I need for my space?
For optimal performance, the Cooper & Hunter MIA 24,000 BTU model is suitable for spaces up to 1,200 sq ft. This makes it ideal for medium to large rooms, ensuring effective heating and cooling.
Can I install a mini split myself?
While the Cooper & Hunter MIA 24,000 BTU unit is designed for easier installation, professional installation is recommended for best results. DIY installation is feasible but requires knowledge of HVAC systems and local codes.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter MIA 24,000 BTU unit comes pre-charged with R454B refrigerant for up to 25 ft of line set. This allows for straightforward installation without needing to add refrigerant.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter MIA 24,000 BTU mini split operates on 230V. Make sure your electrical system can support this voltage for proper function.
What warranty does the Cooper & Hunter MIA offer?
The Cooper & Hunter MIA provides a 5-year parts and 7-year compressor warranty, with registration required within 30 days of purchase. This warranty gives you peace of mind regarding your investment.
What seer rating do I need for energy efficiency?
The Cooper & Hunter MIA has an impressive SEER rating of 18.7, making it highly efficient for both heating and cooling. For optimal energy savings, look for units with a SEER rating of at least 16.
