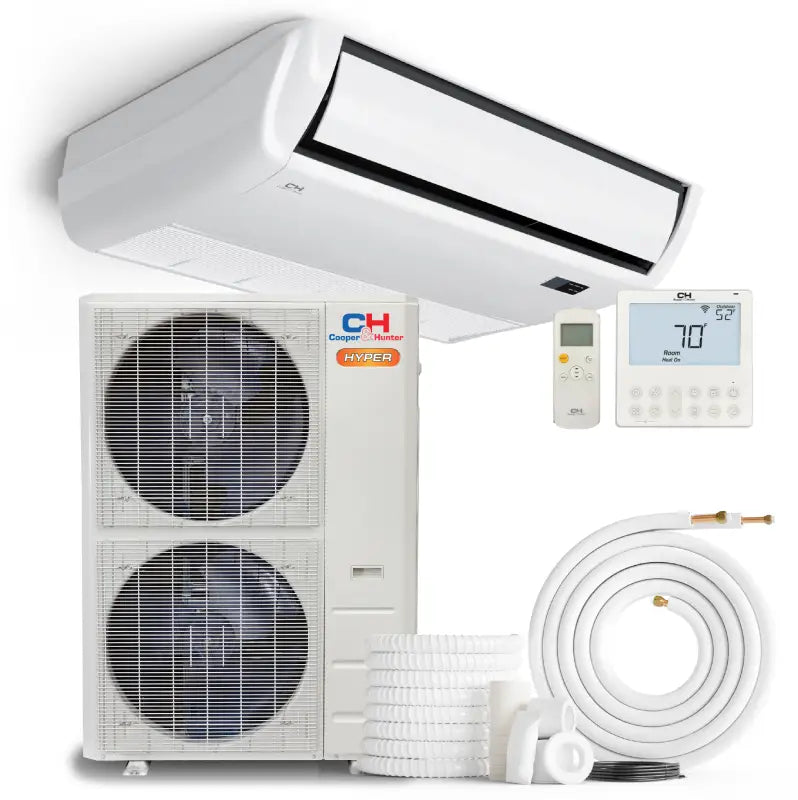

Cooper & Hunter Hyper Heat 60,000 BTU Single Zone Light Commercial Universal Floor/Ceiling, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit

Cooper & Hunter7-Yr Warranty

CH-RHP60LCU-230VO60FC
Product specifications
Brand Cooper & Hunter
Voltage 230V
SEER 18
WiFi Included
Zone Single Zone
Type Universal Floor/Ceiling
Freon R454B
Compressor Inverter
$6,653.44
Shipping Policy calculated at checkout.
Installation Kit: NO INSTALLATION KIT
FREE Delivery

Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

Pickup available at Medley Warehouse

Usually ready in 24 hours

Mon–Fri, 9:00 AM – 4:30 PM

Add more to unlock bulk savings
FREE Armbridge accessory included with this order — choose yours in the cart (up to $79 value). Orders from $5,000 get a BULK volume discount instead — it saves more than the accessory.

Questions about this system?

Answers in seconds — tap a question below

  • Sized for about 2800–3500 sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 60,000 BTU (5-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
  • 12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 60,000 BTU (5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
  • It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
  • Rated SEER2 18.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
  • Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
  • Yes — a big upgrade. It's far more efficient (inverter, SEER2 18.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
  • Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
  • Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
  • Ships as a complete set: CH-RHP60LCU-230VO, CH-RSH60LCFC. Everything arrives together — check the photos and specs for the full kit.
  • It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
  • Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Best brands with the best deals

Why buy this mini split from MiniSplitsForLess

  • Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
  • USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
  • Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
  • Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.

What Stands Out

Floor & Ceiling Flexibility

Mounts low on the wall or up near the ceiling — a versatile fit for rooms where a standard wall unit won't work, sized at 60000 BTU.

Inverter Efficiency — SEER2 18

A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 18 on 230V — steady comfort with noticeably lower energy bills.

Right-Sized Coverage

Engineered to heat & cool up to 2800–3500 sq ft — matched capacity so you never over- or under-size the space.

Universal Floor Ceiling

Cooper&Hunter's Universal Floor Ceiling Units deliver efficient heating and cooling solutions, adaptable for floor or ceiling installations. Ideal for residential and commercial spaces, these units ensure consistent comfort with advanced airflow control for even temperature distribution.

Featuring energy-saving technology, they offer eco-friendly and cost-effective performance while operating quietly. Built with durable anti-corrosion coatings, the units are designed to withstand diverse climates, ensuring reliability and longevity.

Their sleek, modern design seamlessly integrates into various layouts, making them a flexible choice for any environment.

Experience innovative, high-performance climate control with Cooper&Hunter's Universal Floor Ceiling Units tailored to your comfort needs.

White air conditioner with purple shield logo and text ’universal floor ceiling’ on a network background.

Warranty and Tech Support Info

By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

Warranty terms
White air conditioning unit with black fan and copper tubing design.

Energy Efficiency

Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

White office cubicle partition with gray panels and black mesh chairs.

Main Features

Cooper&Hunter's Universal Floor Ceiling Units are adaptable for floor or ceiling installations, ensuring even temperature distribution with advanced airflow control. They feature energy-saving technology for eco-friendly performance and operate quietly for added comfort. Durable anti-corrosion coatings enhance reliability, while their sleek design allows seamless integration into various residential or commercial spaces.

All Accessories Included

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

Indoor Unit Specs

Indoor Unit Specs — CH-RSH60LCFC
ModelCH-RSH60LCFC
Unit Dimensions (WxDxH)64.96 x 26.57 x 9.25 in
Net/Gross Weight95.24/111.33 lb
Packing Dimensions (WxDxH)67.91 x 29.72 x 12.52 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity3 A
Copper Line Size (Liquid/Gas)3/8"/3/4"
Noise Level (Hi/Med/Lo)54.5/49/42 dB
Dehumidification15.14 pt/h
Drain Pipe Diameter1"
Controllerremote controller

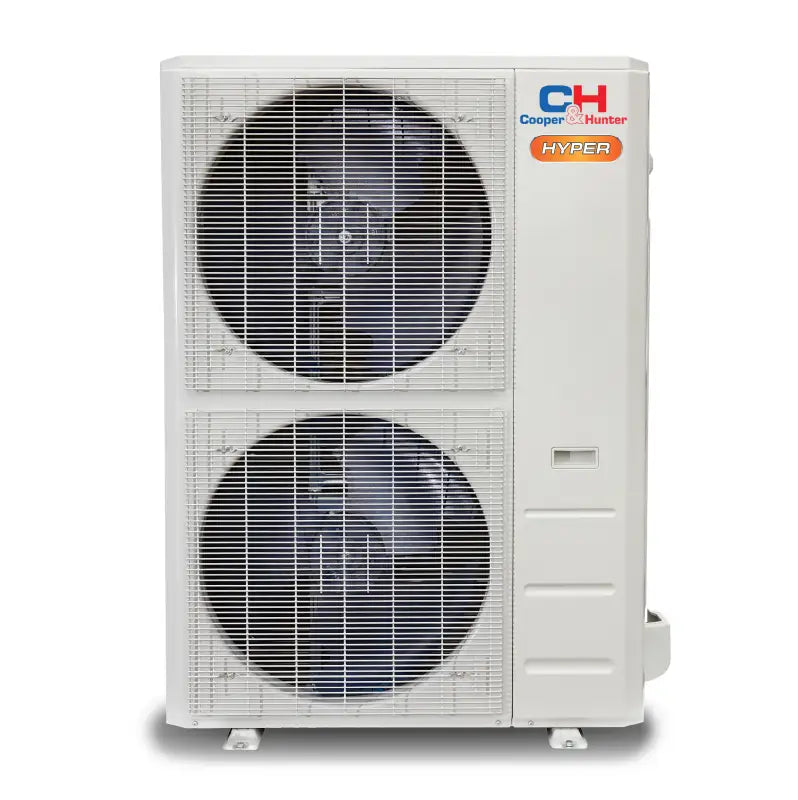

Outdoor Unit Specs

Outdoor Unit Specs — CH-RHP60LCU-230VO
ModelCH-RHP60LCU-230VO
Unit Dimensions (WxDxH)37.48 x 16.34 x 52.48 in
Net/Gross Weight208.78/239.86 lb
Packing Dimensions (WxDxH)43.11 x 19.49 x 57.48 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size45 A
Min. Circuit Ampacity44 A
Copper Line Size (Liquid/Gas)3/8"/3/4"
Noise Level64.5 dB
Airflow4,237.9 CFM
Dehumidification15.14 pt/h

System Specs

System Specs
Cooling Capacity 60,000 BTU
SEER2 18
Zones 1
Voltage 230V
Refrigerant Type R454B
Compressor Inverter
WiFi Included
Heating Capacity60,000 (21,700~65,500) BTU/h
Cooling Capacity Range54,000 (20,000~54,500) BTU/h
Operating Range (Cooling)-22 ~ 122 °F
Operating Range (Heating)-22~75 °F
Max. Pipe Length246 ft
Refrigerant Precharge25 ft
Max Height Difference98.4 ft
COP03.02

Series Comparison Table

Technical specifications for every model in the Hyper Heat series — this product is one of them.

Indoor Model Model Numbers
CH-RSH18MFC CH-RSH24MFC CH-RSH38LCFC CH-RSH48LCFC CH-RSH60LCFC
Power Supply
Rated (V, Ph, Hz) 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60
Rated Capacity
Cooling (Btu/h) 17,000 22,000 36,400 48,000 54,000
Heating (Btu/h) 19,000 26,000 38,000 52,000 60,000
Minimum Circuit Ampacity (MCA) (A) 1.9 2.5 3 3 3
Max. Fuse (A) 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) 576.8/547.4/465.6/420.8/INA 735.8/706.3/606.3/453.2/376.7 1224.3/1088.9/988.8/765.2/653.3 1353.8/1236.1/1083.0/800.5/665.1 1365.6/1236.1/1118.3/882.9/777.0
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) 45/42.5/39.5/30.5/29 51.5/49/45/34/29 NVA/51/45.5/39/35 54/53.0/48.5/39/35 NVA/54.5/49/42/39
Indoor Unit Dimensions
Dimension (W×D×H) (inch) 42.05×26.57×9.25 42.05×26.57×9.25 64.96×26.57×9.25 64.96×26.57×9.25 64.96×26.57×9.25
Packing (W×D×H) (inch) 45.08×29.72×12.52 45.08×29.72×12.52 67.91×29.72×12.52 67.91×29.72×12.52 67.91×29.72×12.52
Net/Gross Weight (lbs.) 58.42/70.55 61.29/73.19 88.85/104.94 89.07/105.16 95.24/111.33
Room Temperature
Cooling (°F) 60~90 60~90 60~90 60~90 60~90
Heating (°F) 32~86 32~86 32~86 32~86 32~86
Liquid Side/Gas Side (inch) 1/4"/1/2" 3/8"/5/8" 3/8"/3/4" 3/8"/3/4" 3/8"/3/4"
Specification Outdoor Model
CH-RHP18-230V0 CH-RHP24-230V0 CH-RHP36LCU-230V0 CH-RHP48LCU-230V0 CH-RHP60LCU-230V0
Power Supply
Rated (V, Ph, Hz) 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60
Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling Performance
Rated Capacity Range (Btu/h) 7,400~19,200 12,700~25,600 6,100~38,300 6,700~53,500 20,000~54,500
Rated Current (A) 8.7 8.2 13.3 22.5 26.2
EER2 (Btu/h) 12.5 12 12 9.4 9
SEER2 (Btu/h) 20.4 20.4 20 18.5 18
Heating Performance at 47°F
Rated Capacity Range (Btu/h) 8,300~20,700 11,300~29,500 11,100~45,400 18,800~58,700 21,700~65,500
Rated Current (A) 11 10.1 15.1 24.2 26.1
COP (W/W) 3.07 3.34 3.29 2.86 3.02
HSPF4 10.3 12.1 10.8 10.1 10.7
HSPF5 8.2 9.8 8.9 8.0 8.5
Minimum Circuit Ampacity (A) 19 24.9 38 44 44
Max.Fuse (Outdoor Unit) (A) 20 25 40 45 45
Outdoor Air Flow (Max.) (CFM) 1,765.8 2,236.7 3,001.9 4,237.9 4,237.9
Outdoor Noise Level (Sound Pressure) (dB(A)) 58 61.5 65 64.5 64.5
Physical Specifications
Dimension (W×D×H) (inch) 35.04×13.46×26.50 37.24×16.14×31.89 38.56×16.34×38.39 37.48×16.34×52.48 37.48×16.34×52.48
Packing (W×D×H) (inch) 39.17×15.67×29.13 42.91×19.68×34.84 45.08×19.68×42.52 43.11×19.49×57.48 43.11×19.49×58.27
Net/Gross Weight (lbs.) 99.87/107.80 130.29/141.31 206.57/237.44 208.78/239.86 230.38/261.69
Refrigerant Specifications
Refrigerant Type / Charge (oz.) R454B/55.38 R454B/63.49 R454B/126.99 R454B/126.99 R454B/151.68
Refrigerant Precharge Length (ft.) 25 25 25 25 25
Additional Charge for Each ft. (oz/ft) 0.16 0.32 0.32 0.32 0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping Liquid Side/Gas Side (inch) 1/4"×1/2" 3/8"×5/8" 3/8"×3/4" 3/8"×3/4" 3/8"×3/4"
Max. Pipe Length (ft.) 98.42 164 246 246 246
Max. Difference in Level (ft.) 65.60 82.00 98.40 98.40 98.40
Operating Conditions
Ambient Temperature - Cooling (°F) -22~122 -22~122 -22~122 -22~122 -22~122
Ambient Temperature - Heating (°F) -22~75 -22~75 -22~75 -22~75 -22~75
Certifications
ETL
AHRI
Energy Star
NEEP
Specification CH-RSH18MFC CH-RSH24MFC CH-RSH36LCFC CH-RSH48LCFC CH-RSH60LCFC
Power Supply - Rated (V, Ph, Hz) 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60
Cooling Capacity (Btu/h) 18,000 24,000 36,000 48,000 54,000
Heating Capacity (Btu/h) 18,000 24,400 38,000 50,000 60,000
Minimum Circuit Ampacity (A) 1.9 2.5 3 3 3
Max. Fuse (A) 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) 576.8/547.4/485.6/420.8/N\A 735.8/706.3/606.3/453.2/376.7 1224.3/1088.9/988.8/765.2/653.3 1353.8/1236.1/1083.0/800.5/665.1 1365.6/1236.1/1118.3/882.9/777.0
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) N\A/43.0/40.0/32.0/29.0 51.5/49/45/34/29 50.5/49/44.5/37/33 N\A/53/49/39/34.5 N\A/54.5/49.5/41.5/38.5
Dimension (W×D×H) (inch) 42.05×26.57×9.25 42.05×26.57×9.25 64.96×26.57×9.25 64.96×26.57×9.25 64.96×26.57×9.25
Packing (W×D×H) (inch) 45.08×29.72×12.52 45.08×29.72×12.52 67.91×29.72×12.52 67.91×29.72×12.52 67.91×29.72×12.52
Net/Gross Weight (lbs.) 58.42/70.55 61.29/73.19 88.85/104.94 89.07/105.16 95.24/111.33
Operating Temperature - Cooling (°F) 60~90 60~90 60~90 60~90 60~90
Operating Temperature - Heating (°F) 32~86 32~86 32~86 32~86 32~86
Refrigerant Piping (Liquid Side/Gas Side) (inch) 1/4"×1/2" 3/8"×5/8" 3/8"×3/4" 3/8"×3/4" 3/8"×3/4"
Specification CH-RES18-230V0 CH-RES24-230V0 CH-R36LCU-230V0 CH-R48LCU-230V0 CH-R60LCU-230V0
Power Supply - Rated (V, Ph, Hz) 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60 208/230,1,60
Power Supply - Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling - Rated Capacity Range (Btu/h) 7,000~19,300 11,100~29,000 7,300~39,500 10,100~50,000 15,000~54,500
Cooling - Rated Current (A) 6.4 8.6 15.3 22 24.6
Cooling - EER (Btu/h) 12.5 12.2 10.1 9.5 9.5
Cooling - SEER (Btu/h) 23.3 21.1 20 19.8 19.5
Heating - Rated Capacity Range (Btu/h) 7,200~22,200 11,800~32,600 14,100~40,400 15,800~59,100 20,200~60,000
Heating - Rated Current (A) 7.2 10.4 14.3 22.6 26.2
Heating - COP (W/W) 3.30 2.99 3.34 2.82 3.05
Heating - HSPF4 10.4 11.1 10 10.2 9.5
Heating - HSPF5 8.0 8.4 7.7 7.8 7.2
Minimum Circuit Ampacity (A) 18 24 33 39 42
Max.Fuse (Outdoor Unit) (A) 20 25 35 40 45
Outdoor Air Flow (Max.) (CFM) 1,765.8 2,236.7 2,413.3 4,237.9 4,237.9
Outdoor Noise Level (dB(A)) 57 59 64 62.5 63.5
Dimension (W×D×H) (inch) 35.04×13.46×26.50 37.24×16.14×31.89 37.24×16.14×31.89 37.48×16.34×52.48 37.48×16.34×52.48
Packing (W×D×H) (inch) 39.17×15.67×29.13 42.91×19.69×34.84 42.91×19.68×34.84 43.11×19.49×57.48 43.11×19.49×58.27
Net/Gross Weight (lbs.) 42.0/45.5 55.4/60.0 152.34/162.48 208.78/239.86 209.44/240.08
Refrigerant Type / Charge (oz.) R454B/47.97 R454B/70.55 R454B/91.71 R454B/126.99 R454B/144.62
Refrigerant Precharge Length (ft.) 25 25 25 25 25
Additional Charge for Each ft. (oz/ft) 0.16 0.32 0.32 0.32 0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping (Liquid Side/Gas Side) (inch) 1/4"×1/2" 3/8"×5/8" 3/8"×3/4" 3/8"×3/4" 3/8"×3/4"
Max. Pipe Length (ft.) 98.40 164 246 246 246
Max. Difference in Level (ft.) 65.60 82 98.40 98.40 98.40
Ambient Temperature - Cooling (°F) -13~122 -13~122 -13~122 -13~122 -13~122
Ambient Temperature - Heating (°F) -13~75 -13~75 -13~75 -13~75 -13~75
Certification - Standard 1
Certification - Standard 2
Certification - Standard 3

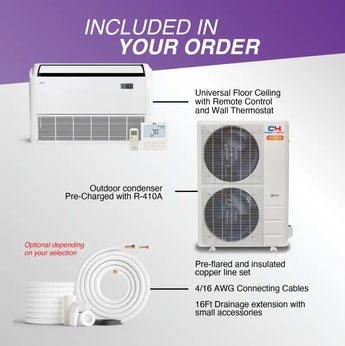

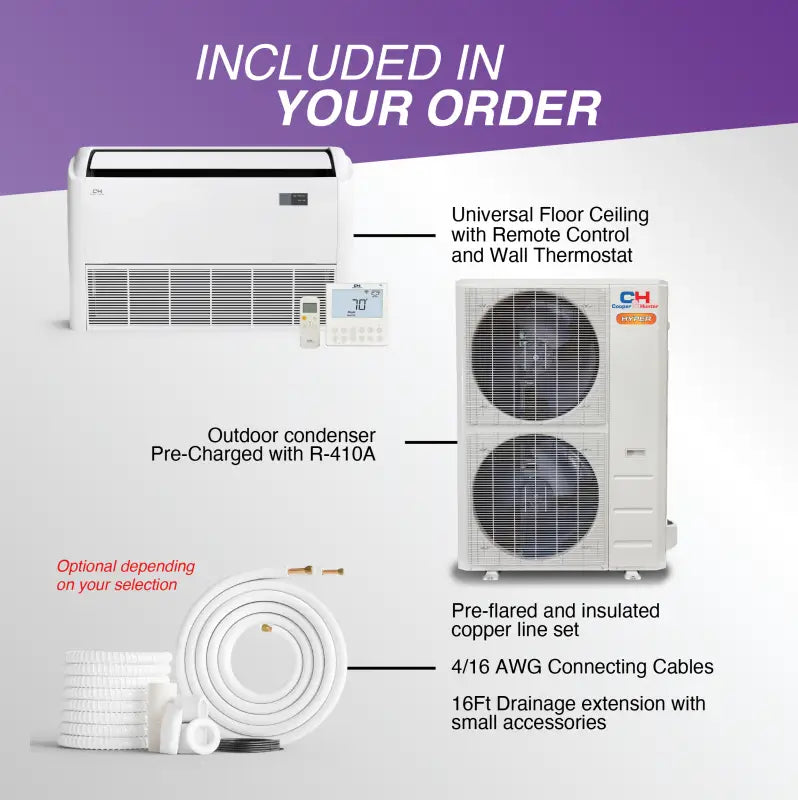

What’s Included

What’s Included
Outdoor condenserCH-RHP60LCU-230VO
Remote controllerremote controller

Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.

Shipping & Returns

  • Free shipping on every order over $300.
  • Delivery estimate for your ZIP is shown in the buy box above.
  • Returns accepted per our policy — unopened units in original packaging.

Warranty

7-year compressor / 5-year parts

  • Limited manufacturer warranty on the compressor and sealed system components.
  • Your order number is the proof of purchase — keep it for any claim.

Multiple Control Methods

Cooper&Hunter’s Universal Floor Ceiling can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.

App Promo

Compare with similar items

60,000
up to 2,800 ft²
18.0
R454B
7 years
230V
Included
Hyper Heat
Universal Floor/Ceiling
60,000
up to 2,800 ft²
19.5
R454B
7 years
230V
Included
Standard
Universal Floor/Ceiling
18,000
up to 850 ft²
23.3
R454B
7 years
230V
Included
Hyper Heat
Universal Floor/Ceiling
24,000
up to 1,200 ft²
21.1
R454B
7 years
230V
Included
Hyper Heat
Universal Floor/Ceiling
36,000
up to 1,600 ft²
20.0
R454B
7 years
230V
Included
Hyper Heat
Universal Floor/Ceiling
48,000
up to 2,200 ft²
19.9
R454B
7 years
230V
Included
Hyper Heat
Universal Floor/Ceiling

Frequently Asked Questions

What size mini split do I need for my space?

For spaces up to 2500 sq ft, the Cooper & Hunter 60,000 BTU mini split is ideal. This capacity ensures efficient heating and cooling for larger areas, making it suitable for light commercial applications.

How much does a Cooper & Hunter mini split system cost?

The price of a Cooper & Hunter mini split system, like the 60,000 BTU model, varies based on installation kits and additional features. Typically, you can expect a price range that reflects its high efficiency with an 18.0 SEER rating and robust performance.

Can I install the Cooper & Hunter mini split myself?

While some homeowners may attempt DIY installation, it's recommended to use a professional for the Cooper & Hunter 60,000 BTU mini split for optimal performance and compliance with electrical standards, especially given its 230V requirement.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter mini split system comes pre-charged with R454B refrigerant for up to 25 ft of line set, allowing for a straightforward installation process and immediate operation once installed.

What warranty does the Cooper & Hunter mini split offer?

The Cooper & Hunter 60,000 BTU mini split includes a 5-year parts warranty and a 7-year compressor warranty, provided that you register the product within 30 days of purchase, ensuring peace of mind with your investment.

What is the SEER rating of the Cooper & Hunter mini split, and why is it important?

The Cooper & Hunter mini split boasts an 18.0 SEER rating, which indicates high energy efficiency. This rating is crucial as it translates to lower energy bills and reduced environmental impact, making it a smart choice for heating and cooling.
