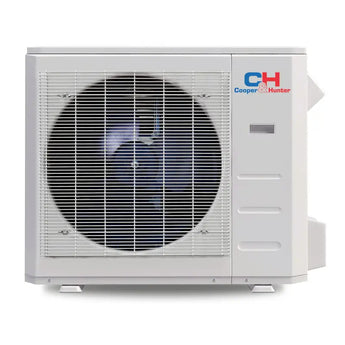

Cooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump | No Kit

Cooper & Hunter7-Yr Warranty265 shoppers interested

CH-EL30-230VO30AST
Product specifications
SEER 20
WiFi Included
Brand Cooper & Hunter
Voltage 230V
Zone Single Zone
Type Wall Mount
Freon R410A
Compressor Inverter
$1,521.04
Store rating: 4.5 Trustpilot (591) 4.6 Google (522)
Installation Kit Option: NO INSTALLATION KIT
Shipping Policy calculated at checkout.

Availability

Out of stock right now
For the next arrival, call (855) 775-4822.

How do you want to get it?

— we’ll fill in your ZIP. Used only for delivery dates and pickup.

FREE shipping to We don’t ship to .Pick up at ·

Choose a pickup warehouse

Cooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat PumpNO INSTALLATION KIT · Qty 1

Closest to first

— we’ll fill in your ZIP. Used only for delivery dates and pickup.

Pickup warehouses

Stock is checked again at checkout. Buying 2 or more? Checkout confirms the warehouse has them all.

✓ Automatic

Questions? (855) 775-4822

Mon–Fri 9–5 ET

Delivery dates are estimates

Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

Questions about this system?

Answers in seconds — tap a question below

  • Up to about 1,350 sq ft at average conditions. We size at about 22 BTU per sq ft, more conservative than the ENERGY STAR room-size chart. Add capacity for a hot climate, ceilings over 8 ft, strong sun (+10%), a kitchen (+4,000 BTU) or each person over two (+600 BTU). For a room-by-room load calculation, ask your installer for an ACCA Manual J. Not sure? Call (855) 775-4822 and we'll confirm the right size for your space.
  • 12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 30,000 BTU (2.5-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
  • It uses R410A — a proven, widely serviced refrigerant. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
  • Rated SEER2 20.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
  • Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
  • Yes — a big upgrade. It's far more efficient (inverter, SEER2 20.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
  • Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
  • Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
  • Ships as a complete set: CH-EL30-230VO, CH-30ASTWM-230VI. Everything arrives together — check the photos and specs for the full kit.
  • It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
  • Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on items over $300 within the U.S., and our team can help with sizing and support.
Hurry to buy! Get your mini-split system with R-410A refrigerant (limited stock)
Important info
  • R-410A is being phased down in favor of newer refrigerants; inventory is limited.
  • Existing R-410A systems remain serviceable; parts and qualified service are widely available.
  • Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
  • We stock both R-410A and next-gen options—choose what fits your timeline and budget.

Bulk savings

Up to 8% off full-price Cooper & Hunter, OLMO and accessories.

Automatic — no code needed

Your progress

    The discount covers your whole Cooper & Hunter, OLMO and accessories subtotal, not just the part over the line.

    How it works

    1. Add full-price Cooper & Hunter, OLMO or accessory items — mix any models.
    2. Reach $5,000 in these items in one order.
    3. The discount shows up in your cart automatically.

    What counts

    • Counts: Full-price Cooper & Hunter and OLMO systems, accessories
    • Doesn't count: Sale items, indoor or outdoor units sold on their own, parts
    • BRAVO counts toward its own tiers (5–15% off).

    Big order? Call (855) 775-4822

    Cooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount reviews

    No reviews of the Cooper & Hunter Astoria 30,000 BTU Single Zone Wall Mount yet. Store rating: 4.5★ on Trustpilot (591 reviews of our service)

    No reviews for this model yet.

    Reviews of MiniSplitsForLess as a store on Trustpilot: ordering, shipping and support.

    See all 591 reviews on Trustpilot ›

    Reviews of MiniSplitsForLess as a store on Google: ordering, shipping and support.

    Reviews of this model

    Best brands with the best deals

    Why buy this mini split from MiniSplitsForLess

    • Free Shipping on items over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
    • USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
    • Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
    • Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.

    What Stands Out

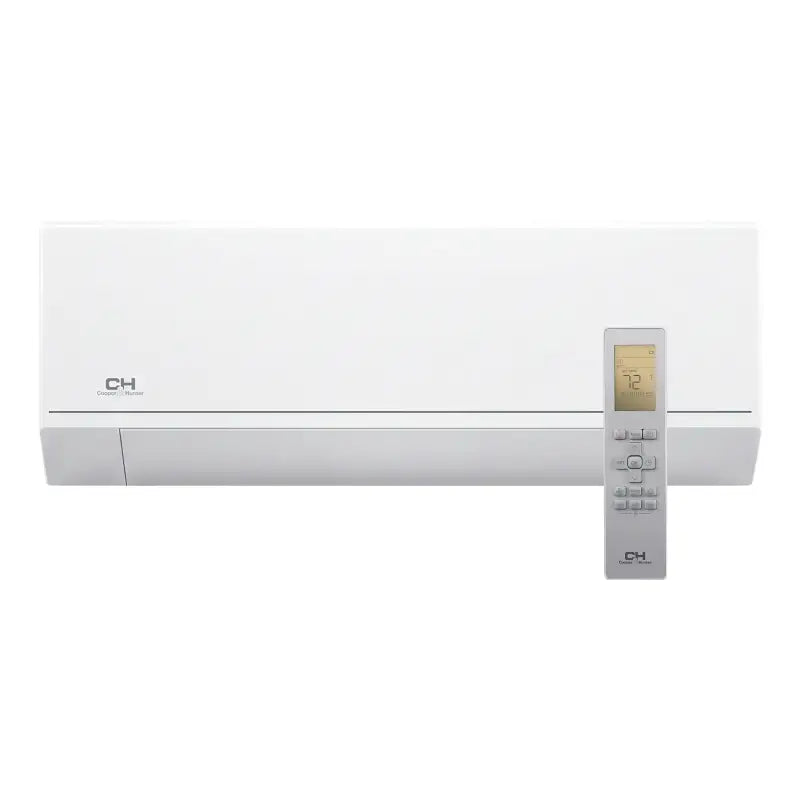

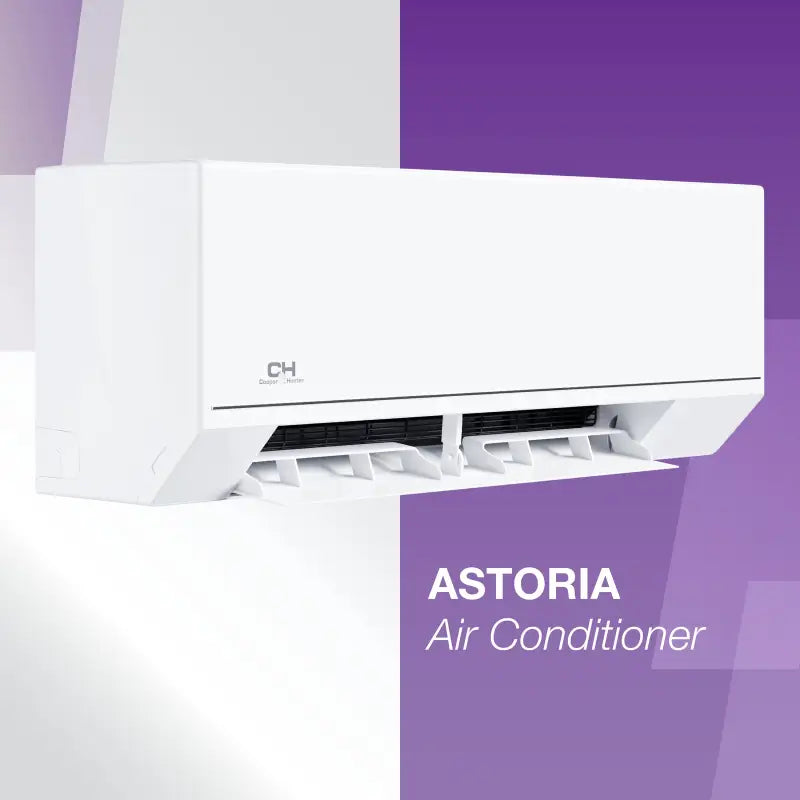

    Sleek Wall-Mount Design

    A slim, quiet indoor head mounts high on the wall and delivers 30000 BTU of Astoria-series heating & cooling — modern looks with whisper-quiet operation.

    Inverter Efficiency — SEER2 20

    A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 20 on 230V — steady comfort with noticeably lower energy bills.

    Right-Sized Coverage

    Heats & cools up to about 1,350 sq ft at average conditions (about 22 BTU per sq ft).

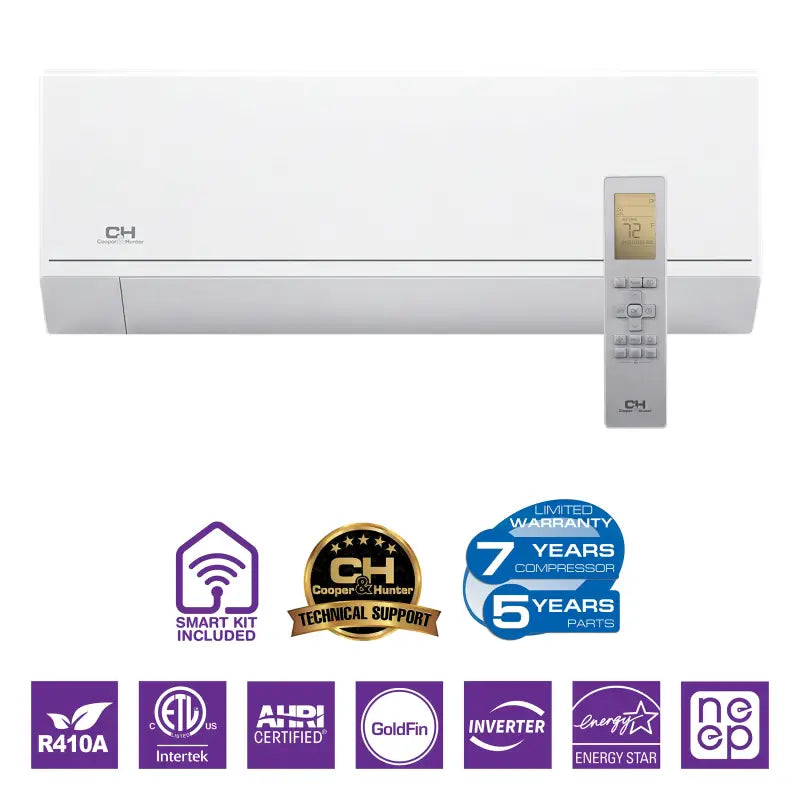

    Astoria Wall Mount

    The Cooper&Hunter Astoria Unit mini splits AC blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.

    Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit mini splits AC is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.

    Whether you're looking to cool or heat your space, the Astoria delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.

    Warranty and Tech Support Info

    By selecting Cooper&Hunter mini splits AC products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

    Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

    Warranty terms
    White air conditioning unit with black fan and copper tubing design.

    Energy Efficiency

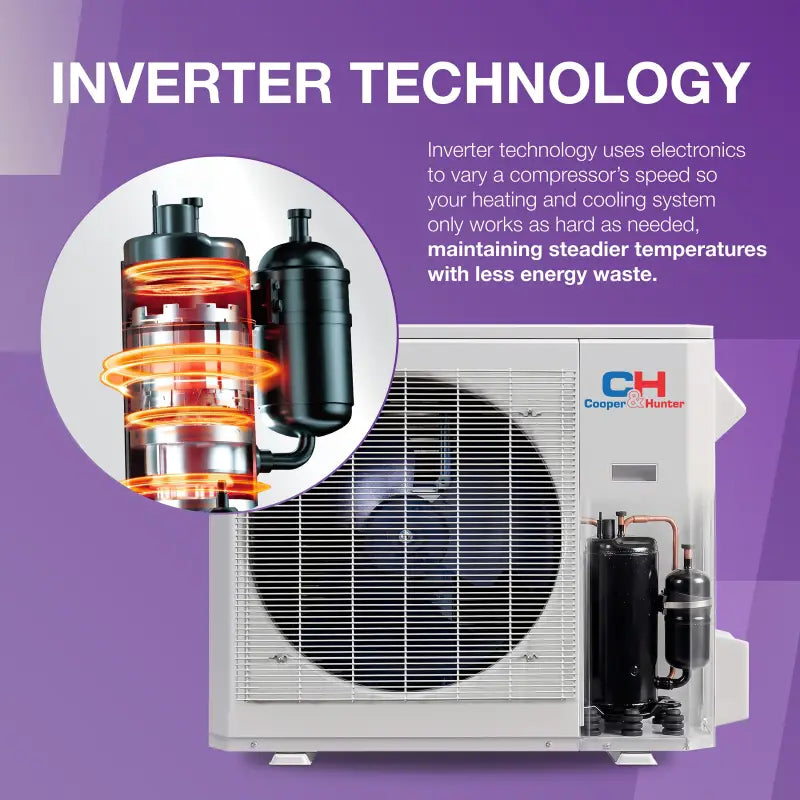

    Cooper&Hunter’s mini split AC Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

    Main Features

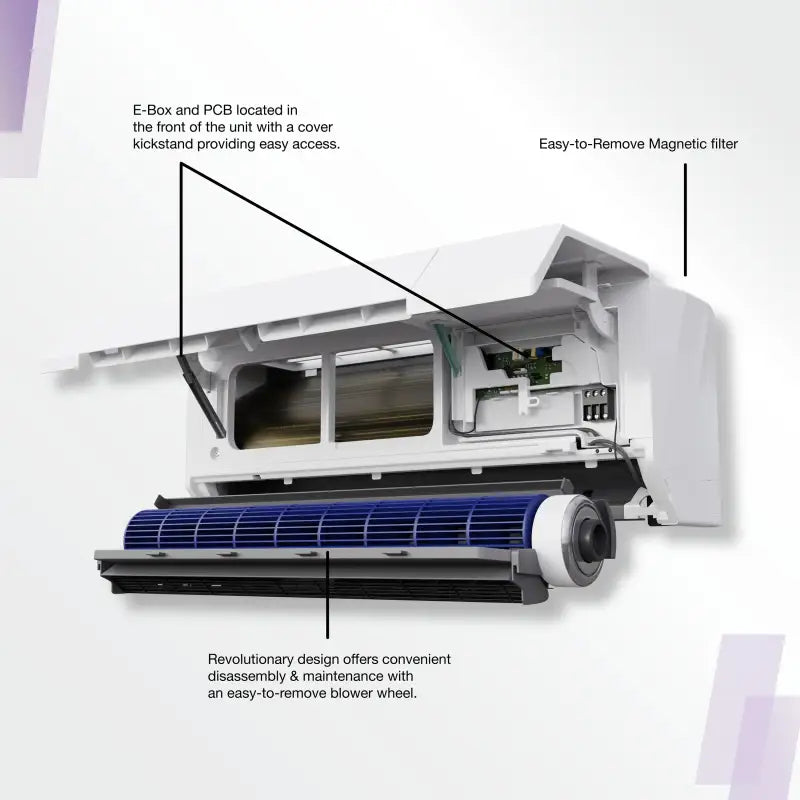

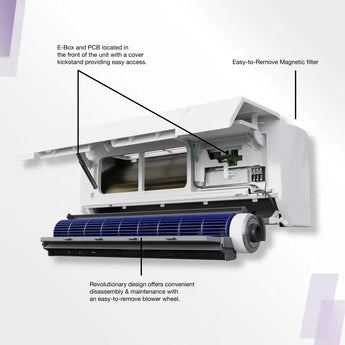

    Cooper&Hunter's Astoria Units mini split AC feature sleek, modern design with efficient heating and cooling capabilities. They offer quiet operation, energy-saving technology, and advanced air filtration for improved indoor air quality. Ideal for residential and light commercial use, these units provide easy installation, minimal maintenance, and reliable year-round comfort.

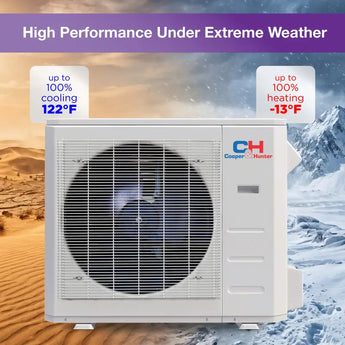

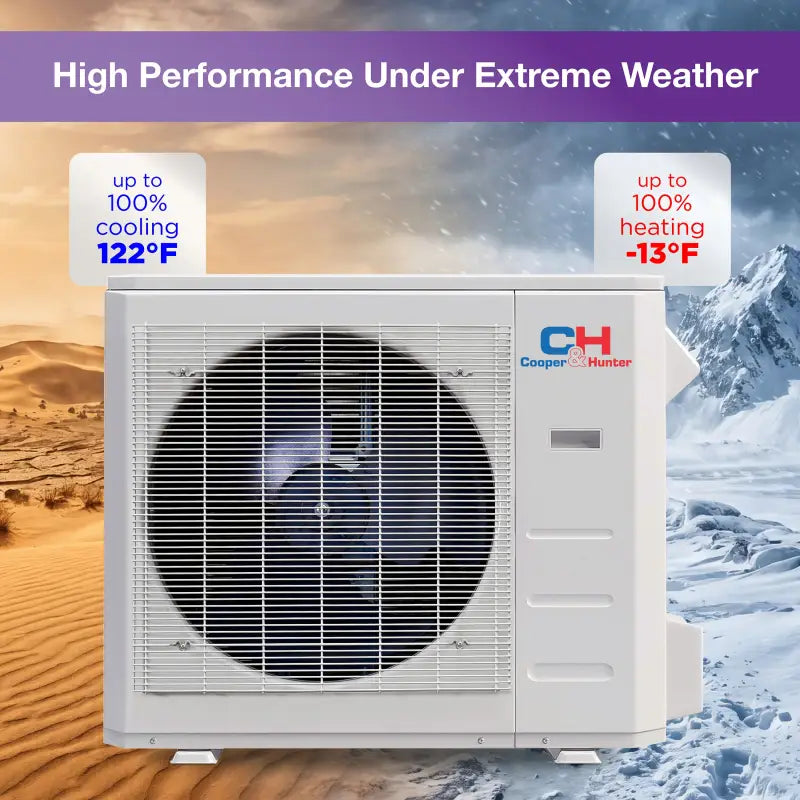

    High Performance Under Extreme Weather

    The Astoria keeps working when the weather doesn’t cooperate: 100% cooling capacity at up to 122°F and 100% heating at down to -13°F. The inverter compressor adjusts output smoothly instead of cycling on and off — steadier temperatures, less energy, less noise.

    Rated operating range: cooling -13°F to 122°F · heating -13°F to 75°F

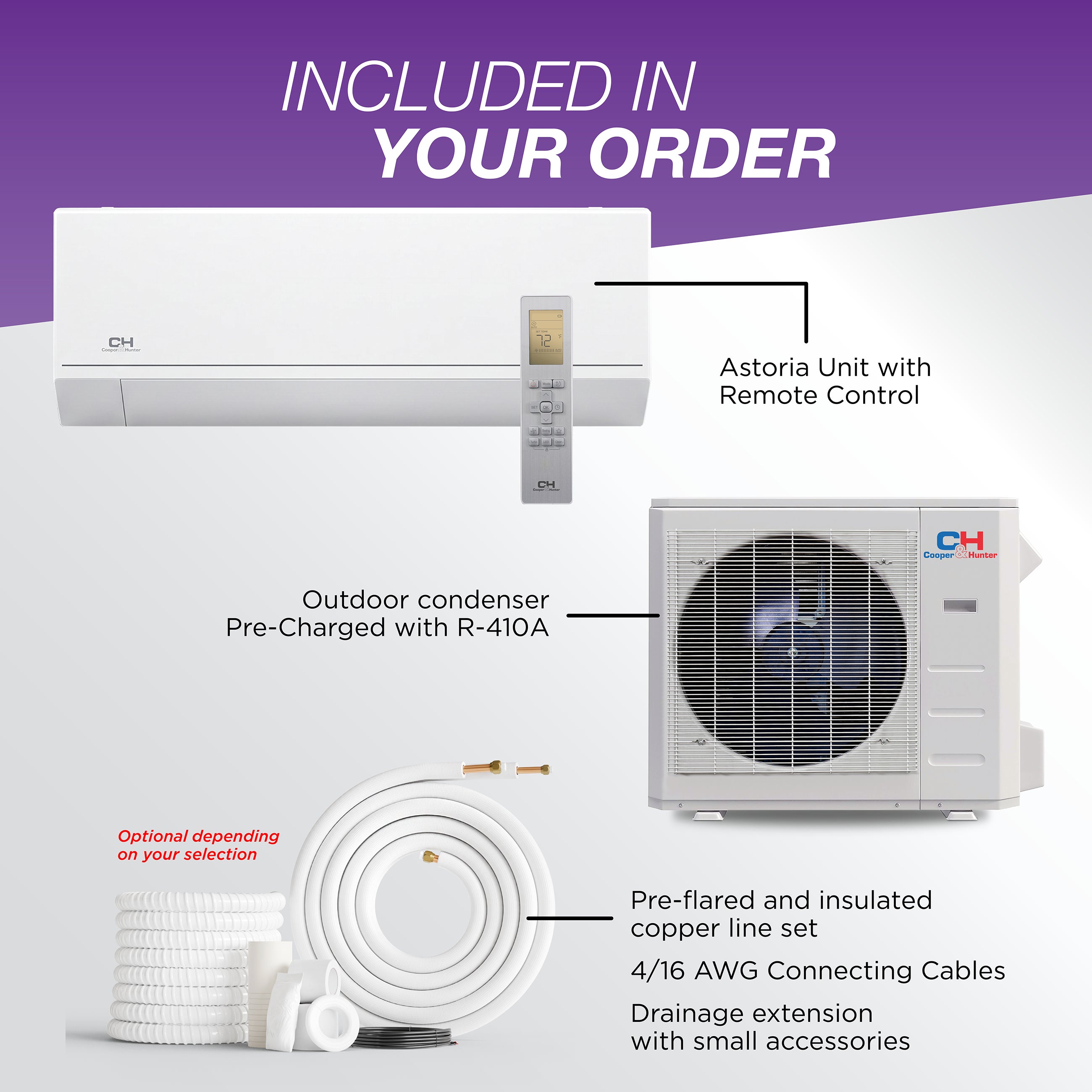

    All Accessories Included

    With your purchase mini split AC, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

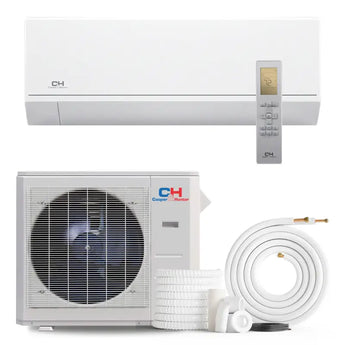

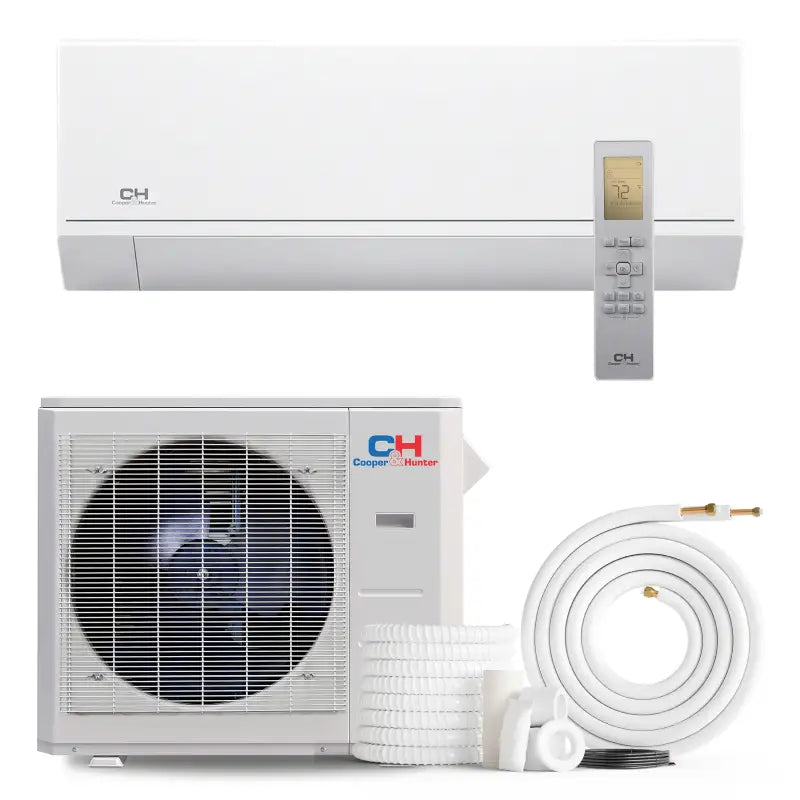

    All Accessories Included

    Everything needed for a standard installation ships in the box:

    • Astoria unit with remote control
    • Outdoor condenser pre-charged with R-410A
    • Pre-flared and insulated copper line set (optional, per your selection)
    • 4/16 AWG connecting cables

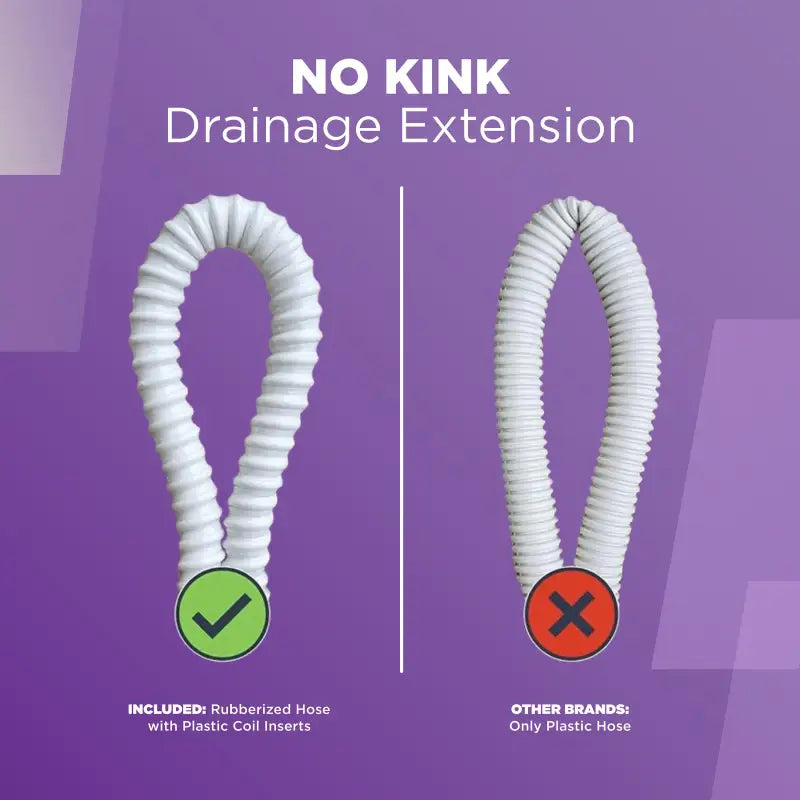

    • No-kink drainage extension with small accessories

    Line set length is chosen at checkout — 16, 25 or 50 ft.

    Technical Specifications

    Indoor Unit Specs

    Indoor Unit Specs — CH-30ASTWM-230VI
    ModelCH-30ASTWM-230VI
    Unit Dimensions (WxDxH)44.88x10.83x14.57 in
    Net/Gross Weight43.65/54.89 lb
    Packing Dimensions (WxDxH)48.43x17.91x13.98 in
    Power Supply208-230V, 1Ph, 60Hz
    Maximum Fuse Size15 A
    Min. Circuit Ampacity3 A
    Copper Line Size (Liquid/Gas)3/8"/5/8"
    Noise Level (Hi/Med/Lo)46/40.5/33 dB
    Airflow (Turbo/Hi/Mi/Lo)842.94/646.47/505.29/382.35 CFM
    Dehumidification7.65 pt/h
    Drain Pipe Diameter5/8"
    ControllerRG10K-exclusive remote

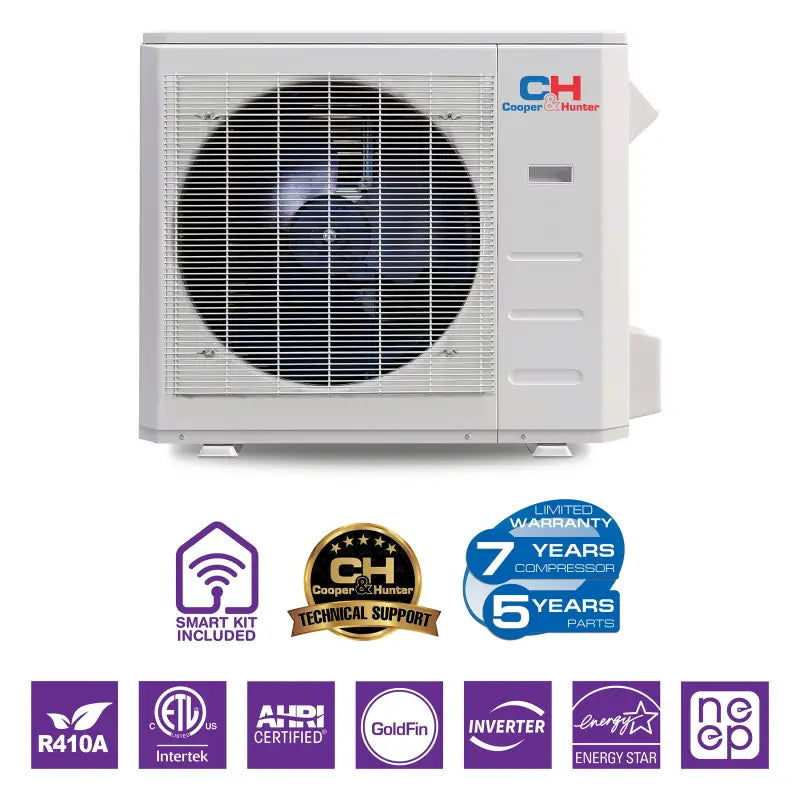

    Outdoor Unit Specs

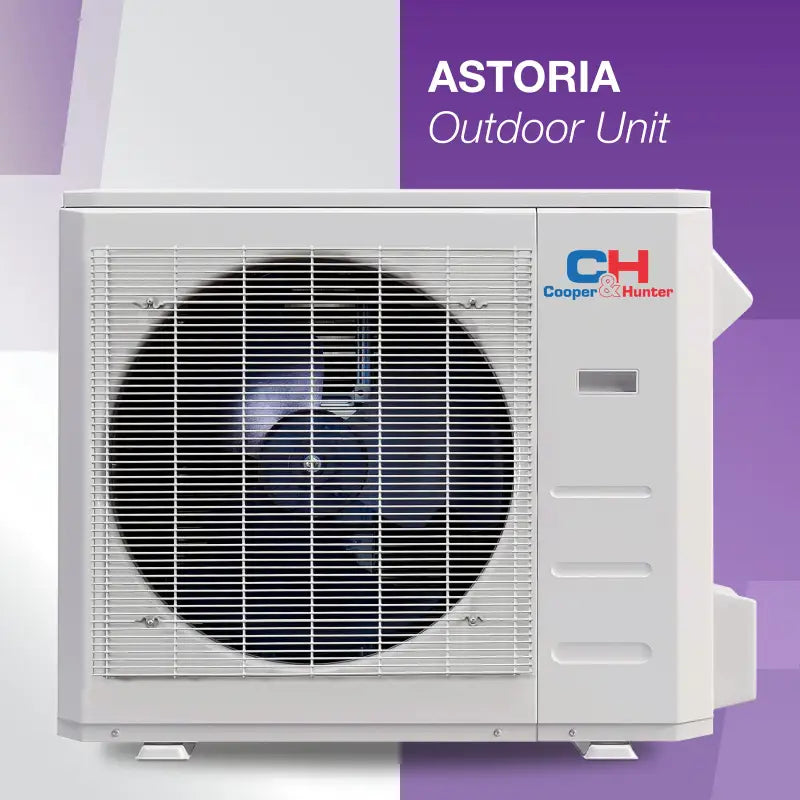

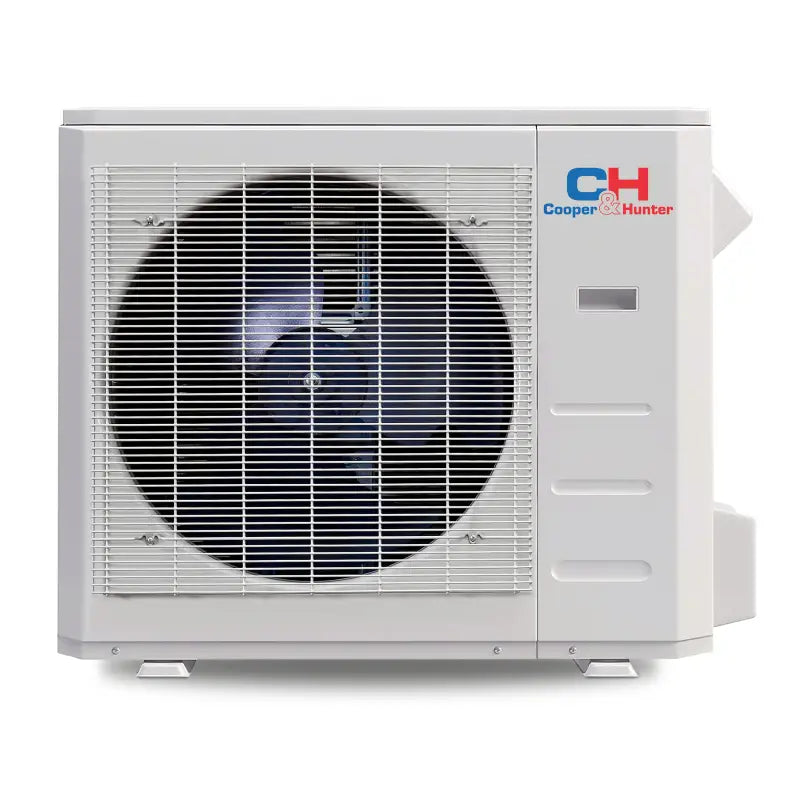

    Outdoor Unit Specs — CH-EL30-230VO
    ModelCH-EL30-230VO
    Unit Dimensions (WxDxH)37.24x16.14x31.89 in
    Net/Gross Weight141.76/151.90 lb
    Packing Dimensions (WxDxH)42.91x19.69x34.84 in
    Power Supply208-230V, 1Ph, 60Hz
    Maximum Fuse Size30 A
    Min. Circuit Ampacity23 A
    Copper Line Size (Liquid/Gas)3/8"/5/8"
    Noise Level61.5 dB
    Airflow2,235.29 CFM
    Dehumidification7.65 pt/h

    System Specs

    System Specs
    Cooling Capacity 30,000 BTU
    SEER2 20
    Zones 1
    Voltage 230V
    Refrigerant Type R410A
    Compressor Inverter
    WiFi Included
    Heating Capacity30,000(8,600~34,800) BTU/h
    Cooling Capacity Range30,000(9,070~30,700) BTU/h
    Operating Range (Cooling)5~122 °F
    Operating Range (Heating)5~75 °F
    Max. Pipe Length164.04 ft
    Refrigerant Precharge25 ft
    Max Height Difference82.02 ft
    COP2.6

    Series Comparison Table

    Technical specifications for every model in the Astoria series — this product is one of them.

    INDOOR MODELS HYPER

    SpecificationAstoria 30K Single Zone
    Indoor ModelCH-30ASTWM-230VI
    Outdoor ModelCH-EL30-230VO
    Power Supply (V-Hz-Ph)208-230/60/1
    Cooling Capacity (Btu/h)30,000
    SEER2 (up to)20
    Indoor Noise Level (Hi/Mi/Lo) dB(A)46/40.5/33
    Indoor Unit Dimension (WxDxH) in44.88x10.83x14.57
    Indoor Net/Gross Weight (lb)43.65/54.89
    Refrigerant Piping (Liquid/Gas)3/8" / 5/8"
    RefrigerantR410A

    Multiple Control Methods

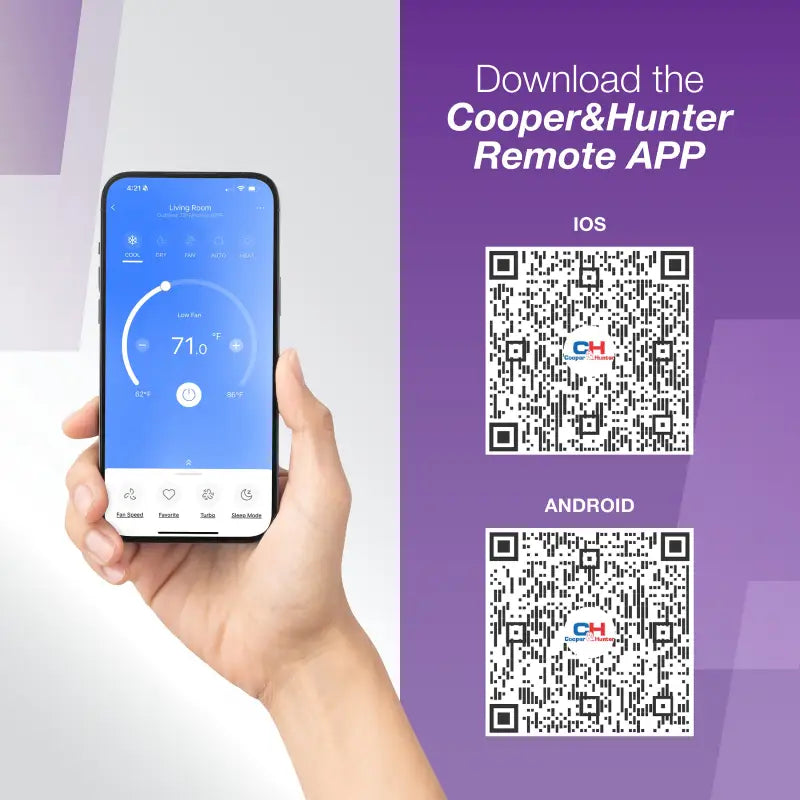

    Cooper&Hunter’s Astoria Unit mini split AC can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
