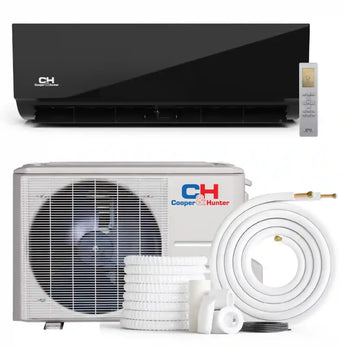

Cooper & Hunter Olivia Midnight 9,000 BTU Single Zone Wall Mount, 115V, R410A - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Cooper & Hunter7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

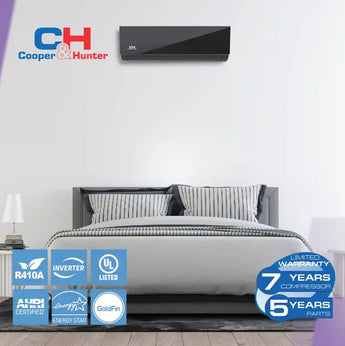

Sleek Wall-Mount Design
A slim, quiet indoor head mounts high on the wall and delivers 9000 BTU of Olivia Midnight-series heating & cooling — modern looks with whisper-quiet operation.
Inverter Efficiency — SEER2 23
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 23 on 115V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 100–300 sq ft — matched capacity so you never over- or under-size the space.

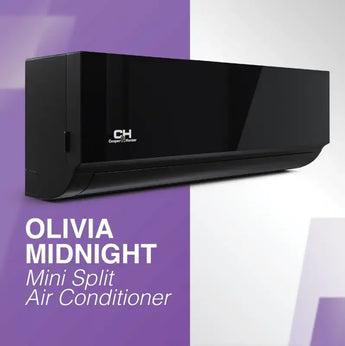

Olivia Midnight Wall Mount
The Cooper&Hunter Olivia Midnight Unit blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.
Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.
Whether you're looking to cool or heat your space, the Olivia Midnight delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter’s Olivia Midnight Series units are specifically designed to provide maximum comfort in smaller spaces. Featuring advanced inverter technology, these units deliver energy-efficient heating and cooling, while quiet operation ensures a peaceful environment. With precise airflow control and seamless integration into any interior, the Olivia Midnight Series offers reliable, consistent comfort in even the tightest spaces.

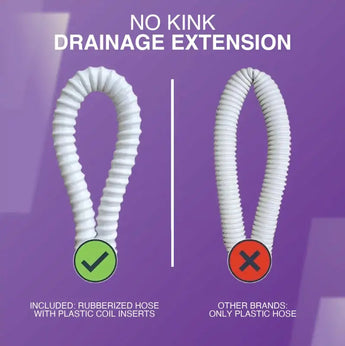

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
INDOOR MODELS
| Indoor Model | CH-B06MOLVWM-230VI | CH-B09MOLVWM-230VI | CH-B12MOLVWM-230VI | CH-B18MOLVWM-230VI | CH-B24MOLVWM-230VI | CH-B09OLVWM-115VI | CH-B12OLVWM-115VI | CH-B09MOLVWM-230VI | CH-B12MOLVWM-230VI | CH-B18MOLVWM-230VI | CH-B24MOLVWM-230VI | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Supply | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 115,1, 60 | 115, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | 208/230, 1, 60 | |
| Rated Capacity | 6,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 24,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 9,000 Btu/h | 12,000 Btu/h | 18,000 Btu/h | 24,000 Btu/h | |
| Minimum Circuit Ampacity (MCA) | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | |
| Max. Fuse | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 294/247/176/141 CFM | 341/291/194/152 CFM | 341/291/194/152 CFM | 760/530/458/382 CFM | 760/601/458/382 CFM | 341/300/241/176 CFM | 341/300/241/176 CFM | 291.18/194.12/152.94 CFM | 341/291/194/152 CFM | 760/530/458/382 CFM | 760/601/458/382 CFM | |
| Indoor Noise Level (Hi/Mi/Lo) | 38.5/33/20.5 dB(A) | 40/35/23.5 dB(A) | 41.5/36/24 dB(A) | 46/40/25 dB(A) | 46.5/44/35 dB(A) | 41.5/36/24 dB(A) | 41.5/36/24 dB(A) | 40/34/23.5 dB(A) | 42/36/25 dB(A) | 45.5/41/24.5 dB(A) | 48/40/28 dB(A) | |
| Dimension (WxDxH) | 28.70x7.87x11.50 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.64x9.61x13.23 inch | 42.60x9.21x13.27 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 31.57x7.87x11.61 inch | 42.64x9.61x13.23 inch | 42.60x9.21x13.27 inch | |
| Packing (WxDxH) | 31.10x10.63x14.76 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x16.34x12.40 inch | 45.47x16.34x12.40 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 34.45x11.22x14.96 inch | 45.47x16.34x12.40 inch | 45.47x16.34x12.40 inch | |
| Net/Gross Weight | 17.64/22.49 lbs. | 18.96/24.25 lbs. | 18.74/24.25 lbs. | 29.54/37.48 lbs. | 29.98/38.14 lbs. | 18.96/24.47 lbs. | 18.96/24.47 lbs. | 18.96/24.25 lbs. | 18.74/24.25 lbs. | 29.54/37.48 lbs. | 29.98/38.14 lbs. | |
| Room temperature | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | 60 ˜ 90 °F | |
| Heating | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | 32 ˜ 86 °F | |
| Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 1/4" / 1/2" | 1/4” / 1/2” | 1/4” / 3/8” | 1/4” / 1/2” | 1/4” / 1/2” | 3/8” / 5/8” | |

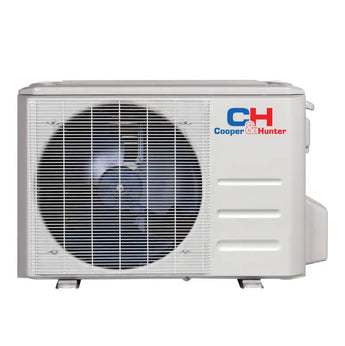

OUTDOOR MODELS
| Outdoor Model | CH-HPR06F9-230VO | CH-HPR09-230VO | CH-HPR12-230VO | CH-HPR18-230VO | CH-HPR24-230VO | CH-ES09-115VO | CH-ES12-115VO | CH-ES09-230VO | CH-ES12-230VO | CH-ES18-230VO | CH-ES24-230VO | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series | HPR Series | HPR Series | HPR Series | HPR Series | HPR Series | ES Series | ES Series | ES Series | ES Series | ES Series | ES-Series | |
| Power Supply | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 115V, 1Ph, 60Hz | 115V, 1Ph, 60Hz | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | |
| Voltage Range | 187-253 V | 187-253 V | 187-253 V | 187-253 V | 187-253 V | 103.5-126.5 V | 103.5-126.5 V | 187-253 V | 187-253 V | 187-253 V | 187-253 V | |
| Cooling | Rated Capacity (range) | 6,000 (2,500-11,800) | 9,000 (3,700~13,300) | 12,000 (3,700~13,300) | 18,000 (8,400~20,200) | 23,000 (4,650~26,600) | 9,000 (3,930~13,200) | 12,000 (3,930~13,200) | 9,000 (2,500~11,900) | 12,000 (3,600~13,300) | 18,000 (7,320~19,500) | 24,000 (9,200~25,000) |
| Rated Current | 4.75 A | 4 A | 4.25 A | 9.2 A | 11.38 A | 6.5 A | 8.7 A | 3.48 A | 4.5 A | 6.31 A | 10.35 A | |
| EER2 | 15 Btu/h | 15.8 Btu/h | 13 Btu/h | 13 Btu/h | 12.5 Btu/h | 13.8 Btu/h | 12.5 Btu/h | 14.7 Btu/h | 13 Btu/h | 13.5 Btu/h | 13 Btu/h | |
| SEER2 | 23.5 Btu/h | 26.4 Btu/h | 23.1 Btu/h | 22 Btu/h | 22.3 Btu/h | 23 Btu/h | 22.7 Btu/h | 24 Btu/h | 23.1 Btu/h | 24 Btu/h | 21 Btu/h | |
| Heating at 47℉ | Rated Capacity (range) | 7,000 (3,400-11,230) | 12,000 (5,100~14,300) | 12,000 (5,100~14,300) | 18,000 (6,000~23,000) | 26,000 (9.550~27,000) | 10,000 (5,000~12,600) | 12,000 (5,000~12,600) | 10,000 (3,400~13,000) | 12,000 (4,500~13,500) | 18,000 (6,620~21,200) | 26,000 (10,350~26,410) |
| Rated current | 3.76 A | 4 A | 4.25 A | 9.2 A | 11.38 A | 8.7 A | 8.7 A | 3.48 A | 4.5 A | 6.31 A | 10.35 A | |
| COP | 3.76 W/W | 3.9 W/W | 3.6 W/W | 3.35 W/W | 3 W/W | 3.91 W/W | 3.52 W/W | 3.66 W/W | 3.4 W/W | 3.74 W/W | 3.15 W/W | |
| HSPF4 | 12 | 11.6 | 10.5 | 10.6 | 10.3 | 9.8 | 10.4 | 11.6 | 10.8 | 10.5 | 8.5 | |
| HSPF5 | 10 | 8.5 | 8 | 7.9 | 7.7 | 7.6 | 7.6 | 8.8 | 8 | 7.9 | 6.3 | |
| Heating at 17℉ (AHRI) | 9,100 Btu/h | 12,800 Btu/h | 13,400 Btu/h | 21,000 Btu/h | 25,100 Btu/h | 8,600 Btu/h | 8,600 Btu/h | 10,100 Btu/h | 10,300 Btu/h | 16,200 Btu/h | 19,600 Btu/h | |
| Minimum Circuit Ampacity | 13 A | 15 A | 15 A | 20 A | 25 A | 19 A | 19 A | 13 A | 13 A | 19 A | 23 A | |
| Max.Fuse (Outdoor Unit) | 15 A | 15 A | 15 A | 25 A | 35 A | 25 A | 25 A | 15 A | 15 A | 30 A | 30 A | |
| Outdoor Air Flow (Max.) | 1,294 CFM | 1,324 CFM | 1,324 CFM | 1,765 CFM | 2,235 CFM | 794 CFM | 794 CFM | 1,294 CFM | 1,294 CFM | 2,058 CFM | 2,235 CFM | |
| Outdoor Noise Level (Sound Pressure) | 53.5 dB(A) | 55.5 dB(A) | 56 dB(A) | 58 dB(A) | 62.5 dB(A) | 54 dB(A) | 54 dB(A) | 53 dB(A) | 54.5 dB(A) | 58.8 dB(A) | 62 dB(A) | |
| Dimension (W×D×H) | 30.12x11.93x21.85 inch | 31.69x12.99x21.81 inch | 31.69x12.99x21.81 inch | 35.04x13.46x26.50 inch | 37.24x16.14x31.89 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 30.12x11.93x21.85 inch | 35.04x13.46x26.50 inch | 37.24x16.14x31.89 inch | |
| Packing (W×D×H) | 34.92x13.27x24.02 inch | 36.02x14.57x24.21 inch | 36.02x14.57x24.21 inch | 39.17x15.67x29.13 inch | 42.91x19.69x34.84 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 34.92x13.27x24.02 inch | 39.17x15.67x29.13 inch | 42.91x19.69x34.84 inch | |
| Net/Gross Weight | 63.71/69.00 lbs. | 74.07/80.25 lbs. | 73.63/79.37 lbs. | 100.97/108.03 lbs. | 134.48/144.40 lbs. | 66.80/72.31 lbs. | 66.80/72.31 lbs. | 63.71/69.00 lbs. | 63.71/69.00 lbs. | 94.36/100.97 lbs. | 124.78/134.92 lbs. | |
| Refrigerant Type / Charge | R410A/38.1 oz. | R410A/41.62 oz. | R410A/41.62 oz. | R410A/65.2 oz. | R410A/91.7 oz. | R410A/39.51 oz. | R410A/39.51 oz. | R410A/38.1 oz. | R410A/38.1 oz. | R410A/56.44 oz. | R410A/82.89 oz. | |
| Refrigerant Precharge Length | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | 25 ft. | |
| Additional Charge for Each ft. | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.32 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.16 oz/ft | 0.32 oz/ft | |
| Design Pressure | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | 550/340 PSIG | |
| Refrigerant Piping Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 1/4" / 1/2" | 1/4” / 1/2” | 1/4” / 3/8” | 1/4” / 1/2” | 1/4” / 1/2” | 3/8” / 5/8” | |
| Max. Pipe Length | 82 ft. | 82 ft. | 82 ft. | 98 ft. | 164 ft. | 82 ft. | 82 ft. | 82 ft. | 82 ft. | 98 ft. | 164 ft. | |
| Max. Difference in Level | 32.8 ft. | 32.8 ft. | 32.8 ft. | 66 ft. | 82 ft. | 32.8 ft. | 32.8 ft. | 32.8 ft. | 32.8 ft. | 66 ft. | 82 ft. | |

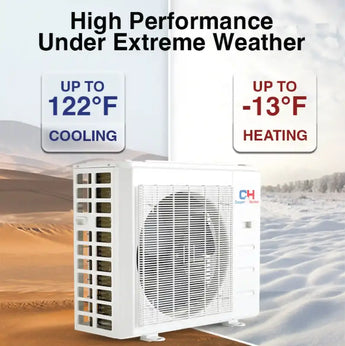

| Ambient Temperature Cooling | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -22~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | -13~122 ℉ | |
| Ambient Temperature Heating | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -22~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | -13~75 ℉ | |
| Certifications | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | AHRI, Energy Star | AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | UL, AHRI, Energy Star | |
Multiple Control Methods

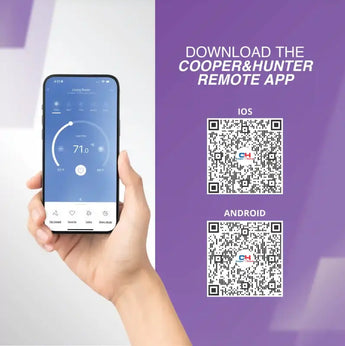

Cooper&Hunter’s Olivia Midnight Unit can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
The Cooper & Hunter Olivia Midnight 9,000 BTU mini split is ideal for spaces up to 350 sq ft. This makes it a suitable choice for small to medium-sized rooms, ensuring efficient cooling and heating.
Can I install a mini split myself?
While the Cooper & Hunter Olivia Midnight can be installed by a DIY enthusiast, professional installation is recommended for optimal performance. If you choose to install it yourself, be aware that it requires a 115V power supply and proper handling of refrigerant R410A.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter Olivia Midnight mini split comes pre-charged with R410A refrigerant for up to 25 ft of line set. This allows for easier installation, but it's essential to follow the manufacturer's guidelines to ensure proper performance.
What warranty does the Cooper & Hunter Olivia Midnight offer?
The Cooper & Hunter Olivia Midnight includes a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of purchase. This warranty ensures peace of mind for your investment in a reliable heating and cooling solution.
What SEER rating do I need for efficiency?
The Cooper & Hunter Olivia Midnight boasts a 23.0 SEER rating, which is excellent for energy efficiency. For most residential applications, a SEER rating of 15 or higher is recommended, making this model a top choice for energy savings.
Is a mini split good for heating in cold weather?
Yes, the Cooper & Hunter Olivia Midnight mini split effectively provides heating even in colder climates, thanks to its heat pump functionality. With a 9,000 BTU capacity, it can maintain comfortable temperatures in well-insulated spaces during winter.
