12,000 BTU 115V Ductless Mini Split AC Wall Mounted OLMO Alpic Series Heat Pump | 16FT
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Sierra Wall Mount
OLMO Alpic Eco Units are efficient ductless mini-split systems designed for modern climate control, with capacities ranging from 9000 to 24000 BTU to deliver powerful cooling and heating solutions. Featuring inverter technology, up to 18.5 SEER efficiency, and eco-friendly R410A refrigerant, they ensure both energy savings and environmental care. Equipped with user-friendly features such as sleep mode, auto-swing louvers, and a digital remote, these units provide customizable comfort. Their sleek design and quiet operation make them ideal for residential and commercial spaces, offering reliable year-round performance and enhancing any environment with efficient climate control.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO Alpic Eco Units are designed to deliver energy-efficient heating and cooling for year-round comfort. They operate seamlessly in a wide range of outdoor temperatures and are pre-charged with eco-friendly R410A refrigerant. With features like Sleep mode, auto-swing louvers, self-diagnostics, and a 24-hour timer, they ensure reliable and customizable climate control.

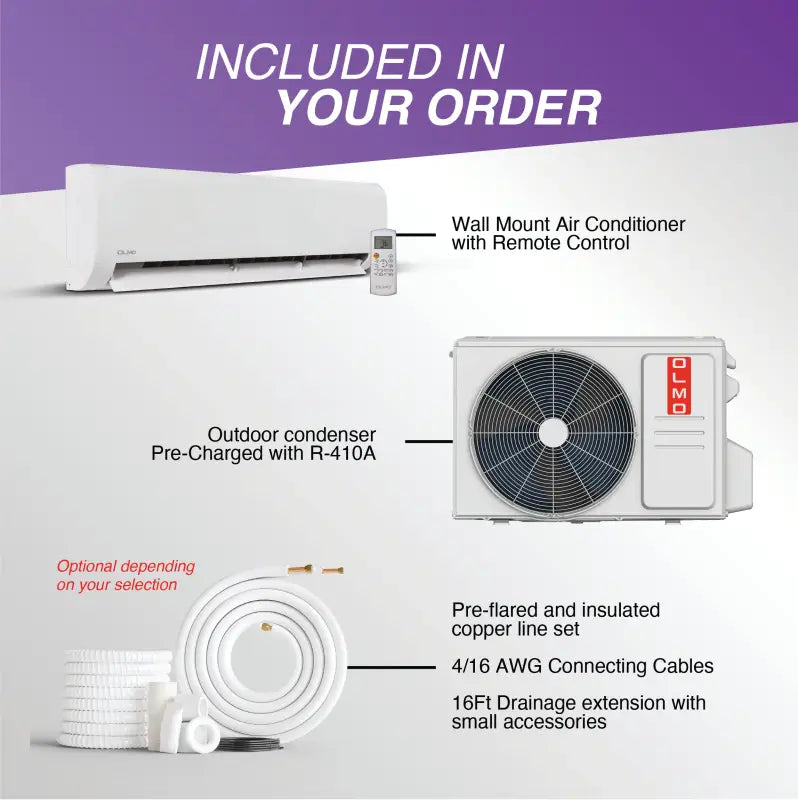

All Accessories Included

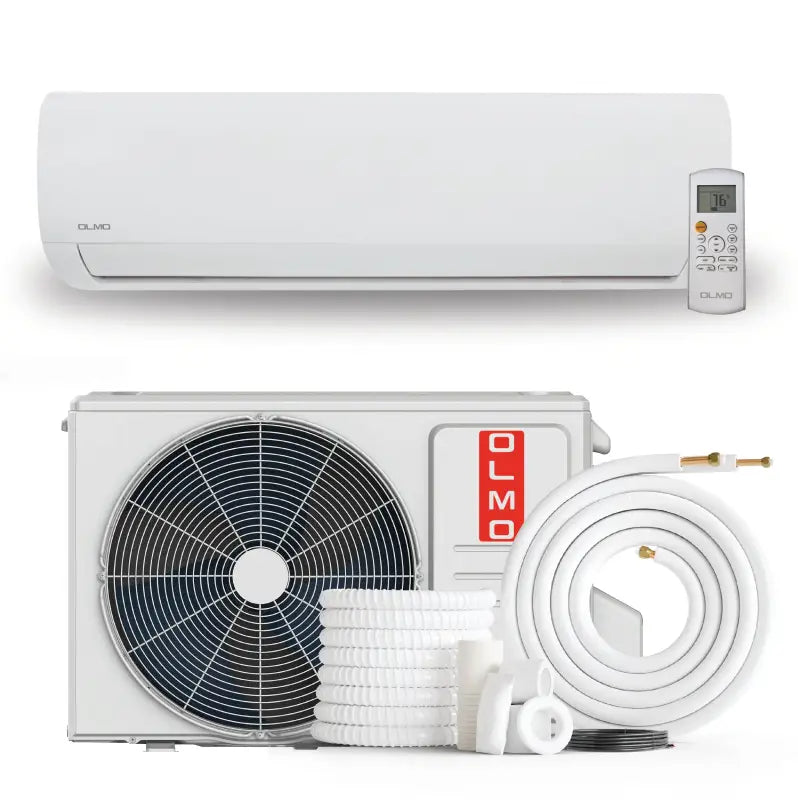

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet. We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor model Outdoor model |
OS-EL09ALP115VI | OS-EL12ALP115VI | OS-EL09ALP230VI | OS-EL12ALP230VI | OS-EL18ALP230VI | OS-EL24ALP230VI |
|---|---|---|---|---|---|---|
| OS-EL09ALP115VO | OS-EL12ALP115VO | OS-EL09ALP230VO | OS-EL12ALP230VO | OS-EL18ALP230VO | OS-EL24ALP230VO | |
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 |
| Capacity (Btu/h) | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| Cooling | ||||||
| EER2 (Btu/h) | 10.1 | 8.8 | 8.8 | 8.8 | 9.9 | 8.9 |
| SEER2 (Btu/h) | 17.0 | 17.4 | 18.5 | 17.6 | 18.3 | 16.7 |
| Heating | ||||||
| Rated Capacity (Btu/h) | 9,800 | 12,000 | 10,000 | 12,000 | 18,000 | 24,000 |
| HSPF4 (Btu/h) | 9.0 | 8.7 | 8.8 | 8.8 | 8.7 | 8.0 |
| HSPF5 (Btu/h) | 7.0 | 6.8 | 8.8 | 8.8 | 8.7 | 8.0 |
| COP2 (W/W) | 2.8 | 2.82 | 3.42 | 2.9 | 3.07 | 2.82 |
| Electrical | ||||||
| Minimum Circuit Ampacity (A) | 16 | 17 | 12 | 12 | 15 | 19 |
| Max Fuse (A) | 20 | 20 | 15 | 15 | 20 | 30 |
| Indoor Unit | ||||||
| Air Flow - Turbo/Hi/Mi/Lo (CFM) | 294/265/211/158 | 353/318/241/176 | 353/317/241/176 | 353/317/241/176 | 500/463/369/275 | 588/564/447/341 |
| Noise Level - Hi/Mi/Lo (dB(A)) | 39.5/33.5/26 | 41/34.5/27.5 | 41.5/34.5/25.5 | 41.5/34.5/25.5 | 44/38/30 | 46/40/33.5 |
| Dimensions - W×D×H (in) | 28.15×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 37.68×8.39×11.89 | 40.94×8.66×12.87 |
| Packing - W×D×H (in) | 30.71×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 40.75×11.61×15.16 | 44.09×12.40×15.94 |
| Net/Gross Weight (lbs) | 15.87/20.50 | 17.20/22.27 | 17.20/22.27 | 17.20/22.27 | 22.93/29.32 | 28.88/36.60 |
| Outdoor Unit | ||||||
| Air Flow - Hi (CFM) | 1,058.82 | 1,058.82 | 1,058.82 | 1,058.82 | 1,235.29 | 1,764.71 |
| Noise Level (dB(A)) | 54.5 | 55.0 | 54.5 | 54.5 | 57.0 | 59.5 |
| Dimensions - W×D×H (in) | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 30.12×11.93×21.85 | 35.04×13.46×26.50 |
| Packing - W×D×H (in) | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 34.92×13.27×24.02 | 39.17×15.67×29.13 |
| Net/Gross Weight (lbs) | 54.67/58.42 | 55.11/58.86 | 52.91/56.44 | 52.91/56.44 | 64.15/69.67 | 97.88/104.50 |
| Refrigerant | ||||||
| Type/Quantity | R410A/20.46 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/47.97 oz | R410A/62.79 oz |
| Precharge Length (ft) | 25 | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Piping - Liquid/Gas Side (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max Pipe Length (ft) | 82 | 82 | 82 | 82 | 98 | 98 |
| Max. Difference in Level (ft) | 33 | 33 | 33 | 33 | 66 | 66 |
| Connection Wiring | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded |
| Temperature | ||||||
| Ambient - Indoor Cooling/Heating (°F) | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 |
| Ambient - Outdoor Cooling/Heating (°F) | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 |
Multiple Control Methods
Olmo’s Alpic Eco Unit can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For optimal cooling, the Olmo 12,000 BTU mini split is ideal for spaces up to 550 sq ft. Ensure your room size aligns with this coverage for effective temperature control.
Can I install a mini split myself?
While some homeowners opt for DIY installation, the Olmo mini split requires professional expertise, especially for refrigerant handling and electrical connections. Consider hiring a licensed HVAC technician to ensure proper setup and compliance with local codes.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo 12,000 BTU mini split comes pre-charged with R410A refrigerant for up to 25 ft of line set. This allows for easier installation, but it's essential to follow the manufacturer's guidelines for any additional refrigerant needed.
What voltage does the Olmo mini split require?
The Olmo 12,000 BTU mini split operates at 115V, making it compatible with standard household electrical systems. Ensure your electrical supply meets this requirement for proper functionality.
What warranty does the Olmo mini split offer?
The Olmo 12,000 BTU mini split comes with a comprehensive 5-year parts and compressor warranty. This coverage provides peace of mind regarding the durability and reliability of your investment.
What is the SEER rating of the Olmo mini split?
The Olmo 12,000 BTU mini split boasts an impressive SEER rating of 16.5, indicating high energy efficiency. This rating helps you save on energy costs while maintaining a comfortable indoor climate.
