Concealed Duct Mini Splits & Heat Pumps
Experience the ultimate in architectural climate control. A slim duct mini split offers the power of central AC with the energy efficiency of a ductless inverter. Whether you need a concealed mini split for a single master suite or a ducted minisplit setup for an entire home, these units remain hidden in the ceiling, leaving only sleek grilles visible. Upgrade to a mini split ducted system today!
- 🙈 Zero Wall Clutter
- 📐 Ultra-Slim (Fits 8-10" voids)
- 🌐 Multi-Zone Compatible
- 🌬️ Custom Air Distribution
Advanced Invisible HVAC Solutions
A mini split with ducts is the "gold standard" for high-end renovations, allowing you to place multiple supply vents in one room for perfectly even airflow.
-
✓
Static Pressure Control
Adjustable fans allow for short duct runs to deliver air precisely where it's needed, even behind decorative grilles. -
✓
Built-in Condensate Pump
Every slim duct mini split includes a powerful internal lift pump, making ceiling installation hassle-free even in tight spots. -
✓
Discreet Serviceability
Requires only a small access panel for maintenance, keeping the aesthetic of your ceiling clean and professional.
Sizing Guide for Concealed Systems
| Capacity | Approx. Sq Ft | Typical Use Case |
|---|---|---|
| 9,000 BTU | ~250 – 400 | Standard Bedrooms / Small Offices |
| 12,000 BTU | ~400 – 600 | Master Suites / Living Areas |
| 18,000 BTU | ~600 – 1,000 | Open Studios / Hotel Suites |
| 24,000 BTU | ~1,000 – 1,400 | Large Living Rooms / Basements |
| 36,000 BTU | ~1,400 – 1,800 | Whole Floor / Light Commercial |
| 48,000 BTU | ~1,800 – 2,500 | Showrooms / Large Workshops |
Note: Ducting adds static pressure which can slightly reduce effective airflow distance. Consult an HVAC professional for exact sizing.
🎯 Save on Premium Concealed Solutions

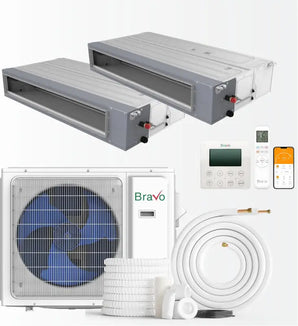

Ready to upgrade to a hidden mini split duct system? Check our SALE Collection for exclusive discounts on Cooper & Hunter and Bravo Slim Duct configurations.
FAQ: Concealed Ducted Systems
🏘️ Can I use concealed units in a multi-zone setup? ›
Absolutely. You can mix and match. For example, use a concealed duct mini split for the master bedroom (to keep it invisible) and standard wall units for other bedrooms, all connected to a single multi-zone outdoor condenser.
📏 How much ceiling space do I need for a slim duct unit? ›
Slim duct mini split air handlers are incredibly compact, usually requiring only 8 to 10 inches of vertical clearance. They are designed to fit between standard floor joists or in a dropped soffit.
🛠️ Do I need an access panel for a concealed mini split? ›
Yes. For long-term maintenance, such as filter cleaning and electronics access, a small service hatch or access panel is required for any ducted mini split. This can often be integrated into the return air grille for a seamless look.
🔀 Can one concealed unit cool two rooms? ›
Technically yes, if the rooms are adjacent and you use ductwork to split the airflow. However, they will share the same thermostat setting. For independent control, a multi-zone ducted mini split system with separate units is recommended.
🔇 How loud are concealed mini split systems? ›
Since the mini split ducted unit is hidden behind drywall and insulation, they are often even quieter than wall-mounted units. You typically only hear a gentle whisper of air from the grilles.
