Cooper & Hunter Hyper Heat 24,000 BTU Single Zone Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Cooper & Hunter7-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at Medley Warehouse
Usually ready in 24 hours
Questions about this system?
Answers in seconds — tap a question below
-
Sized for about 800–1200 sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 24,000 BTU (2-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
-
12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 24,000 BTU (2-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
-
It uses R454B — the newest low-GWP eco refrigerant, so it's future-proof and efficient. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
-
Rated SEER2 22.3 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
-
Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
-
Yes — a big upgrade. It's far more efficient (inverter, SEER2 22.3) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
-
Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
-
Yes — WiFi is not included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
-

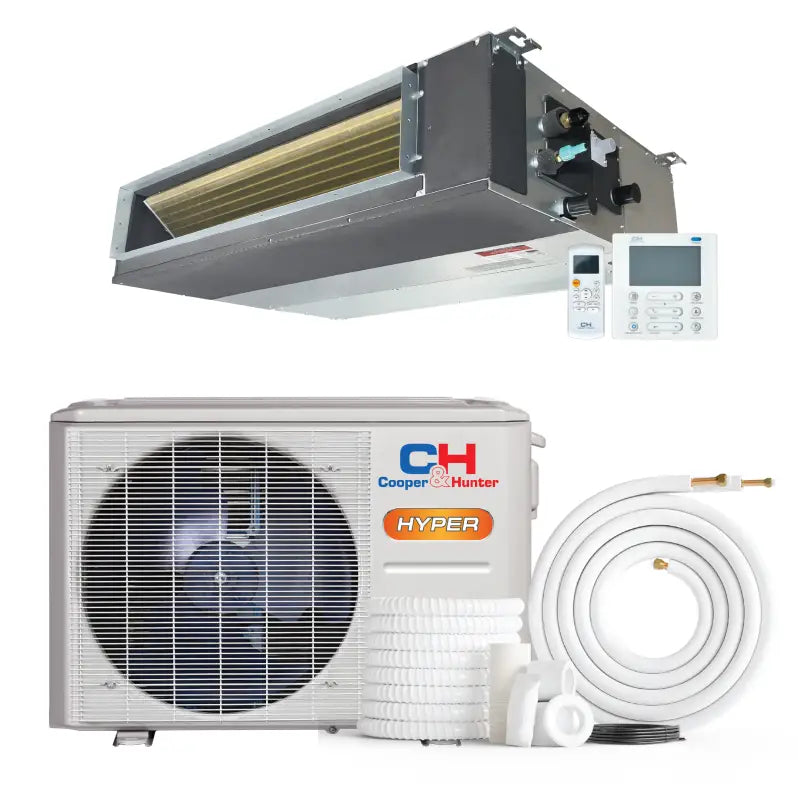

Ships as a complete set: CH-RHP24-230VO, CH-RS24MDT-HS. Everything arrives together — check the photos and specs for the full kit.
-
It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
-
Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out
Multi-Position Air Handler
Installs in upflow, downflow or horizontal orientation to fit a closet, attic or utility room, delivering ducted 24000 BTU comfort to the whole home.
Inverter Efficiency — SEER2 22.3
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 22.3 on 230V — steady comfort with noticeably lower energy bills.
Right-Sized Coverage
Engineered to heat & cool up to 800–1200 sq ft — matched capacity so you never over- or under-size the space.
Concealed Duct
Cooper&Hunter's Slim Duct Units offer a discreet and efficient climate control solution for residential and commercial spaces. With capacities ranging from 9,000 to 60,000 BTU and SEER2 ratings up to 20.2, these units ensure energy-efficient performance.
Their slim design allows for concealed installation in ceilings or walls, maintaining a sleek interior. Equipped with advanced inverter technology, quiet operation, and optional Wi-Fi control, Slim Duct Units provide reliable, customizable comfort while blending seamlessly into any space.
Perfect for single or multi-zone systems, they deliver powerful performance with minimal ductwork.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Slim Duct Units feature inverter technology, ultra-quiet operation, flexible ducting, and optional Wi-Fi control, their slim design allows concealed installation, ensuring powerful performance, energy efficiency, and a seamless fit for any space.

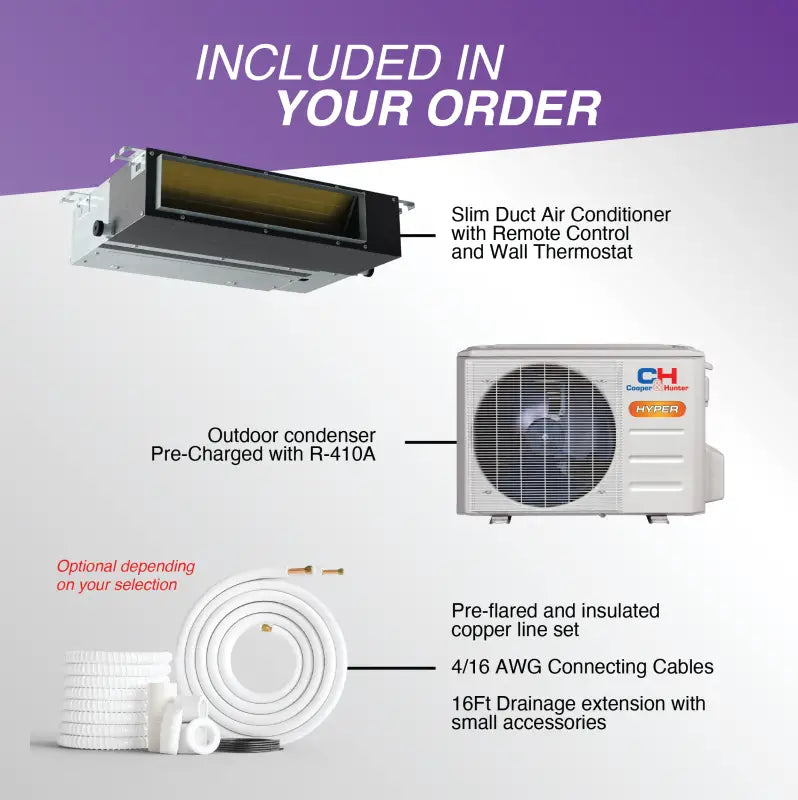

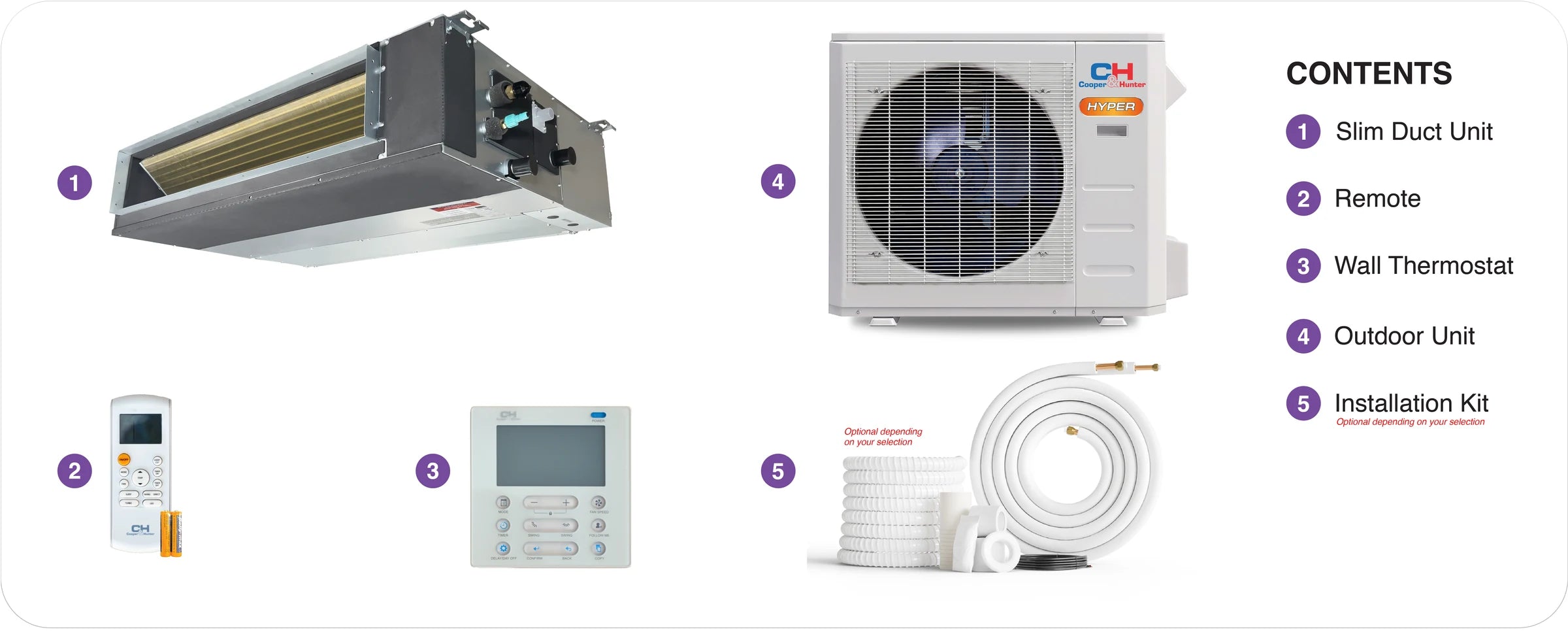

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor and Outdoor Hyper
| Indoor Model | CH-RS06MDT-MS CH-RS06-12MDT-MS (Dip Switch 6) |
CH-RS09MDT-MS CH-RS06-12MDT-MS (Dip Switch 9) |
CH-RS12MDT-MS CH-RS06-12MDT-MS (Dip Switch 12) |
CH-RS18MDT-MS | CH-RS24MDT-HS | CH-RS36CLCDT-HS | CH-RS48CLCDT-HS | CH-RS60CLCDT-HS |
|---|---|---|---|---|---|---|---|---|
| Power Supply | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Rated Capacity | 6,500/8,000 | 9,000/10,000 | 12,000/12,500 | 17,000/19,000 | 24,000/26,000 | 36,000/42,000 | 48,000/52,000 | 55,000/60,000 |
| Minimum Circuit Ampacity (MCA) | 3 | 3 | 3 | 3 | 3 | 4 | 5 | 5 |
| Max. Fuse | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM | 323.7/264.9/206.0/147.2/117.7 | 323.7/264.9/206.0/147.2/117.7 | 400.2/323.7/264.9/176.6/117.7 | 600.4/559.2/500.3/441.4/NA | 853.5/706.3/618.0/500.3/NA | 1236.1/1059.5/941.8/766.5/NA | 1648.1/1471.5/1294.9/1059.5/NA | 2001.2/1706.9/1412.6/1118.3/NA |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) | NA/32.5/30.5/29.5/22 | NA/32.5/31/29.5/23 | NA/36/34.5/32.5/25.5 | NA/40/39/38/32 | NA/40/37/35/29.5 | NA/45/40/34/31 | NA/51/46/42/40 | NA/52/48/42/41 |
| Dimension (WxDxH) inch | 27.56 x 19.92 x 7.87 | 27.56 x 19.92 x 7.87 | 27.56 x 19.92 x 7.87 | 34.65 x 26.54 x 8.27 | 39.37 x 29.53 x 9.65 | 47.24 x 29.53 x 11.81 | 47.24 x 29.53 x 11.81 | 55.12 x 31.50 x 14.96 |
| Packing (WxDxH) inch | 33.86 x 21.26 x 11.22 | 33.86 x 21.26 x 11.22 | 33.86 x 21.26 x 11.22 | 42.13 x 28.54 x 11.02 | 48.23 x 33.86 x 11.97 | 56.10 x 33.86 x 14.13 | 56.10 x 33.86 x 14.13 | 62.99 x 36.02 x 17.52 |
| Net/Gross Weight lbs. | 39.46/46.74 | 39.46/46.74 | 39.46/46.74 | 54.45/66.14 | 80.47/91.93 | 106.26/120.37 | 111.33/124.78 | 161.38/178.13 |
| Room Temperature Cooling °F | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Room Temperature Heating °F | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side inch | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/3/4" | 3/8"/3/4" | 3/8"/3/4" |
| Outdoor Model | CH-RHP06F9-230VO | CH-RHP09-230VO | CH-RHP12-230VO | CH-RHP18-230VO | CH-RHP24-230VO | CH-RHP36CLU-230VO | CH-RHP48CLU-230VO | CH-RHP60CLU-230VO |
|---|---|---|---|---|---|---|---|---|
| Power Supply Rated |
208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity Range Cooling (Btu/h) |
3,300~11,800 | 3,400~13,500 | 3,400~13,500 | 6,500~18,800 | 5,000~28,000 | 9,800~37,000 | 11,000~55,500 | 14,200~60,100 |
| Rated Current Cooling (A) |
4.8 | 4.8 | 4.6 | 9.1 | 8.8 | 13.5 | 19.9 | 23.5 |
| EER2 (Btu/h) | 11.4 | 11.4 | 12.0 | 12.0 | 12.0 | 12.0 | 10.4 | 10.2 |
| SEER2 (Btu/h) | 21.4 | 21.4 | 21.4 | 19.0 | 15.8 | 17.7 | 15.8 | 15.8 |
| Rated Capacity Range Heating at 47°F (Btu/h) |
3,700~13,100 | 3,800~16,200 | 3,800~16,200 | 8,900~22,000 | 7,300~31,400 | 11,000~45,500 | 11,200~60,000 | 11,200~66,000 |
| Rated Current Heating (A) |
4.5 | 5.0 | 5.0 | 10.5 | 8.8 | 14.1 | 19.0 | 20.9 |
| COP (W/W) | 3.53 | 3.39 | 3.37 | 3.37 | 3.37 | 3.80 | 3.60 | 3.74 |
| HSPF4 | 13.8 | 10.8 | 10.5 | 11.7 | 9.0 | 11.1 | 10.8 | 10.4 |
| HSPF5 | 10.8 | 9.7 | 8.0 | 9.0 | 9.3 | 9.2 | 8.8 | 8.7 |
| Minimum Circuit Ampacity (A) | 12.0 | 15.0 | 15.0 | 19.0 | 24.9 | 38.0 | 44.0 | 44.0 |
| Max.Fuse (Outdoor Unit) (A) | 15.0 | 15.0 | 15.0 | 20.0 | 25.0 | 40.0 | 45.0 | 45.0 |
| Outdoor Air Flow (Max.) (CFM) | 1,236.1 | 1,471.5 | 1,471.5 | 1,765.8 | 2,236.7 | 3,001.9 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 54.0 | 56.0 | 56.0 | 59.0 | 61.0 | 65.0 | 65.0 | 63.0 |
| Dimension (WxDxH) inch | 30.12 x 11.99 x 21.85 | 31.69 x 12.99 x 21.81 | 31.69 x 12.99 x 21.81 | 35.04 x 13.46 x 26.50 | 37.24 x 16.14 x 31.89 | 38.58 x 16.34 x 38.39 | 37.48 x 16.34 x 52.48 | 37.48 x 16.34 x 52.48 |
| Packing (WxDxH) inch | 34.92 x 13.27 x 24.02 | 36.02 x 14.57 x 24.21 | 36.02 x 14.57 x 24.21 | 39.17 x 15.67 x 28.13 | 42.91 x 19.68 x 34.84 | 45.08 x 19.68 x 42.52 | 43.11 x 19.49 x 57.48 | 43.11 x 19.49 x 58.27 |
| Net/Gross Weight (lbs.) | 62.17/67.68 | 72.75/78.70 | 72.75/78.70 | 99.87/107.80 | 130.29/141.31 | 206.57/237.44 | 208.78/239.86 | 230.38/261.69 |
| Refrigerant Type / Charge (oz.) | R454B / 35.27 | R454B / 35.27 | R454B / 35.27 | R454B / 55.38 | R454B / 63.49 | R454B / 126.99 | R454B / 126.99 | R454B / 151.68 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/3/4" | 3/8"/3/4" | 3/8"/3/4" |
| Max. Pipe Length (ft.) | 82.0 | 82.0 | 82.0 | 98.40 | 164.0 | 246.0 | 246.0 | 246.0 |
| Max. Difference in Level (ft.) | 32.8 | 32.8 | 32.8 | 65.60 | 82.00 | 98.40 | 98.40 | 98.40 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Certifications ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Multiple Control Methods
Cooper&Hunter’s Slim Duct Unit can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Compare with similar items
Frequently Asked Questions
What size mini split do I need for my space?
For spaces up to 1,200 sq ft, the Cooper & Hunter Hyper Heat 24,000 BTU mini split is an excellent choice. Its coverage is ideal for larger rooms or open floor plans.
How much does a mini split system like Cooper & Hunter cost?
The price of the Cooper & Hunter Hyper Heat 24,000 BTU mini split system can vary based on installation kits, but typically, you should expect to invest in the range of $2,500 to $4,000, depending on your specific needs.
Can I install a mini split myself?
While some homeowners may attempt a DIY installation, it is recommended to hire a professional for the Cooper & Hunter Hyper Heat 24,000 BTU system, especially since proper setup is crucial for optimal performance and efficiency.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter Hyper Heat 24,000 BTU mini split comes pre-charged with R454B refrigerant for up to 25 ft of line set, ensuring efficient operation right out of the box.
What is the voltage requirement for a mini split like Cooper & Hunter?
The Cooper & Hunter Hyper Heat 24,000 BTU mini split requires a 230V power supply, making it suitable for most residential electrical systems.
What warranty does Cooper & Hunter offer on their mini splits?
Cooper & Hunter provides a 5-year parts warranty and a 7-year compressor warranty for the Hyper Heat 24,000 BTU model, but registration is required within 30 days of purchase to activate these warranties.
