Cooper&Hunter's Slim Duct Units offer a discreet and efficient climate control solution for residential and commercial spaces. With capacities ranging from 9,000 to 60,000 BTU and SEER2 ratings up to 20.2, these units ensure energy-efficient performance.
Their slim design allows for concealed installation in ceilings or walls, maintaining a sleek interior. Equipped with advanced inverter technology, quiet operation, and optional Wi-Fi control, Slim Duct Units provide reliable, customizable comfort while blending seamlessly into any space.
Perfect for single or multi-zone systems, they deliver powerful performance with minimal ductwork.
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
INDOOR HYPER
| Indoor Model | CH-MO9DTUI | CH-M12DTUI | CH-M18DTUI | CH-M24DTUI | CH-36LCDTU/I | CH-48LCDTU/I | CH-60LCDTU/I |
|---|---|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling (Btu/h) | 9,000 | 12,000 | 17,000 | 24,000 | 36,000 | 48,000 | 60,000 |
| Heating (Btu/h) | 10,000 | 12,500 | 19,000 | 25,000 | 42,000 | 52,000 | 57,000 |
| Minimum Circuit Ampacity (MCA) (A) | 1.2 | 1.3 | 3 | 3 | 3 | 5 | 5 |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) | 353/353/282/176 | 353/353/282/176 | 529/529/450/371 | 775/775/693/435 | 1,082/1,082/912/703 | 1,529/1,529/1,118/735 | 2,303/2,156/1,709/1,262 |
| Indoor Noise Level (Hi/Mi/Lo) (dB(A)) | 33/30.5/27 | 40/31.5/26.5 | 40/37.5/35 | 44/40/35.5 | 49.5/46.5/43 | 54.5/50.5/47.5 | 54/49.5/46 |
| Dimension (W×D×H) (inch) | 27.56×19.92×7.87 | 27.56×19.92×7.87 | 34.65×26.54×8.27 | 43.31×30.47×9.80 | 53.54×30.47×9.80 | 47.24×34.41×11.81 | 55.12×33.78×18.11 |
| Packing (W×D×H) (inch) | 33.86×21.26×11.22 | 33.86×21.26×11.22 | 42.13×28.54×11.02 | 51.38×31.69×12.40 | 61.81×31.69×12.99 | 55.31×36.02×14.37 | 63.19×35.83×21.06 |
| Net/Gross Weight (lbs.) | 39.02/48.28 | 39.24/48.50 | 55.34/67.02 | 90.39/105.82 | 110.89/128.09 | 119.71/141.76 | 174.60/200.40 |
| Room Temperature Cooling (°F) | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 | 62~90 |
| Room Temperature Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side (inch) | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 7/8" |
OUTDOOR HYPER
| Outdoor Model | CH-HPR09-230V0 | CH-HPR12-230V0 | CH-HPR18-230V0 | CH-HPR24-230V0 | CH-NHPR36LCU-230V0 | CH-NHPR48LCU-230V0 | CH-NHPR60LCU-230V0 |
|---|---|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling Rated Capacity Range (Btu/h) | 2,400~12,500 | 2,250~14,400 | 6,500~18,800 | 6,500~27,800 | 9,770~41,600 | 10,300~53,100 | 12,000~59,000 |
| Cooling Rated Current (A) | 4.7 | 4.22 | 9.32 | 8.52 | 17.5 | 26 | 26 |
| EER2 (Btu/h) | 13.2 | 11.7 | 11.7 | 12 | 9 | 8.2 | 9.4 |
| SEER2 (Btu/h) | 20.2 | 19.5 | 18 | 19.2 | 16.5 | 14.3 | 15.8 |
| Heating Rated Capacity Range (Btu/h) | 1,700~15,600 | 1,800~16,300 | 8,900~22,000 | 12,200~32,200 | 12,700~52,000 | 11,500~53,600 | 12,000~53,600 |
| Heating Rated Current (A) | 4.0 | 4.38 | 11.5 | 8.19 | 16.9 | 20.5 | 22.5 |
| COP (W/W) | 3.37 | 3.56 | 2.93 | 3.3 | 3.33 | 3.28 | 3.24 |
| HSPF4 | 12 | 10 | 9.5 | 10.5 | 11 | 10.3 | 9.5 |
| HSPF5 | 9.5 | 8.2 | 7.5 | 8.8 | 8.8 | 8.4 | 7.8 |
| Minimum Circuit Ampacity (A) | 15 | 15 | 20 | 25 | 40 | 40 | 44 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 25 | 35 | 50 | 50 | 60 |
| Outdoor Air Flow (Max.) (CFM) | 1,324 | 1,324 | 1,765 | 2,235 | 4,500 | 4,500 | 4,235 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 54 | 52 | 59 | 62 | 65 | 65 | 60.5 |
| Dimension (W×D×H) (inch) | 31.69×12.99×21.81 | 31.69×12.99×21.81 | 35.04×13.46×26.50 | 37.24×16.14×31.89 | 37.48×16.34×52.48 | 37.48×16.34×52.48 | 37.48×16.34×52.48 |
| Packing (W×D×H) (inch) | 36.02×14.57×24.21 | 36.02×14.57×24.21 | 39.17×15.67×29.13 | 42.91×19.69×34.94 | 43.11×19.49×58.27 | 43.11×19.49×58.27 | 43.11×19.49×58.27 |
| Net/Gross Weight (lbs.) | 74.07/80.25 | 73.63/79.37 | 100.97/108.03 | 134.48/144.40 | 220.24/248.02 | 227.07/255.73 | 240.74/271.61 |
| Refrigerant Type / Charge (oz.) | R410A / 41.62 | R410A / 41.62 | R410A / 65.26 | R410A / 91.71 | R410A / 148.4 | R410A / 148 | R410A / 169 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 7/8" |
| Max. Pipe Length (ft.) | 82.02 | 82.02 | 98.42 | 164.04 | 213.25 | 213.25 | 213.25 |
| Max. Difference in Level (ft.) | 32.81 | 32.81 | 65.62 | 92.02 | 98.42 | 98.42 | 98.42 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | 5~122 | 5~122 | 5~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Certifications | UL, AHRI, NEEP | UL, AHRI, NEEP | UL, AHRI, NEEP | UL, AHRI, NEEP | UL, AHRI, NEEP | UL, AHRI, NEEP | UL, AHRI, NEEP |
INDOOR REGULAR
| Indoor Model | CH-MO9DTUI | CH-M12DTUI | CH-M18DTUI | CH-M24DTUI | CH-36LCDTU/l | CH-48LCDTU/I | CH-60LCDTU/I | |
|---|---|---|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling (Btu/h) | 9,000 | 11,500 | 17,000 | 23,000 | 36,000 | 48,000 | 60,000 | |
| Heating (Btu/h) | 10,000 | 12,000 | 20,000 | 25,000 | 40,000 | 50,000 | 60,000 | |
| Minimum Circuit Ampacity (MCA) | 1.3 A | 1.3 A | 3 A | 3 A | 3 A | 3 A | 5 A | |
| Max. Fuse | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | |
| Indoor Air Flow (Turbo/Hi/Mi/Lo) | 353/353/262/176 CFM | 353/353/262/176 CFM | 529/529/450/371 CFM | 775/775/693/435 CFM | 1,062/1,082/912/703 CFM | 1,228/1,228/1,031/715 CFM | 2,303/2,156/1,709/1,262 CFM | |
| Indoor Noise Level (Hi/Mi/Lo) | 33.5/28.5/27 dB(A) | 39/34.5/31 dB(A) | 42/38/35.5 dB(A) | 44/41/37 dB(A) | 48/43.5/40.5 dB(A) | 52/50/49 dB(A) | 57/54/51 dB(A) | |
| Dimension (WxDxH) | 27.56x19.92x7.87 inch | 27.56x19.92x7.87 inch | 34.65x26.54x8.27 inch | 43.31x30.47x9.80 inch | 53.54x30.47x9.80 inch | 47.24x34.41x11.81 inch | 55.12x33.78x18.11 inch | |
| Packing (WxDxH) | 33.86x21.26x11.22 inch | 33.86x21.26x11.22 inch | 42.13x28.54x11.02 inch | 51.38x31.59x12.40 inch | 61.81x31.59x12.99 inch | 55.31x35.02x14.37 inch | 63.19x35.83x21.05 inch | |
| Net/Gross Weight | 39.02/48.28 lbs. | 39.24/48.30 lbs. | 55.34/67.02 lbs. | 90.39/105.82 lbs. | 110.89/128.09 lbs. | 119.71/141.76 lbs. | 174.60/200.40 lbs. | |
| Room Temperature Cooling | 62~90 °F | 62~90 °F | 62~90 °F | 62~90 °F | 62~90 °F | 62~90 °F | 62~90 °F | |
| Room Temperature Heating | 32~86 °F | 32~86 °F | 32~86 °F | 32~86 °F | 32~86 °F | 32~86 °F | 32~86 °F | |
| Liquid Side/Gas Side | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 7/8" | |
OUTDOOR REGULAR
| Outdoor Model | CH-ES09-230V0 | CH-ES12-230V0 | CH-ES18-230V0 | CH-ES24-230V0 | CH-N36LCU-230V0 | CH-N48LCU-230V0 | CH-N60LCU-230V0 |
|---|---|---|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 2,220~11,600 | 2,100~13,450 | 5,800~18,000 | 6,100~28,200 | 8,900~36,000 | 10,500~48,000 | 12,000~62,000 |
| Cooling - Rated Current (A) | 4.8 | 4.38 | 6.17 | 8.5 | 18.63 | 24.5 | 25 |
| Cooling - EER2 (Btu/h) | 12.5 | 11.7 | 12.5 | 12.5 | 8.8 | 8.5 | 10.3 |
| Cooling - SEER2 (Btu/h) | 19.2 | 19 | 20 | 19 | 15.8 | 15.1 | 17 |
| Heating at 47°F - Rated Capacity Range (Btu/h) | 2,240~13,350 | 1,900~15,000 | 5,000~20,000 | 11,700~33,000 | 12,700~40,000 | 11,000~63,400 | 12,000~60,000 |
| Heating at 47°F - Rated Current (A) | 3.7 | 4.78 | 7.90 | 9.3 | 15.4 | 20.5 | 22 |
| Heating at 47°F - COP (W/W) | 3.62 | 3.52 | 3.12 | 3.61 | 3.3 | 3.19 | 3.52 |
| Heating at 47°F - HSPF4 | 10.2 | 10.3 | 10.6 | 11.2 | 8.8 | 9.3 | 8.4 |
| Heating at 47°F - HSPF5 | 8 | 7.8 | 8.2 | 8.8 | 7 | 7.3 | 6.5 |
| Minimum Circuit Ampacity (A) | 13 | 13 | 19 | 22 | 30 | 39 | 39 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 30 | 30 | 45 | 50 | 50 |
| Outdoor Air Flow (Max.) (CFM) | 1,294 | 1,294 | 2,059 | 2,235 | 3,000 | 4,500 | 2,647 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 55 | 53.5 | 60 | 59 | 65 | 63.5 | 62.5 |
| Dimension (W×D×H) (inch) | 30.12×11.93×21.85 | 30.12×11.93×21.85 | 35.04×13.46×26.50 | 37.24×16.14×31.89 | 37.24×16.14×31.89 | 37.48×16.34×52.48 | 37.48×16.34×52.48 |
| Packing (W×D×H) (inch) | 34.92×13.27×24.02 | 34.92×13.27×24.02 | 39.17×15.67×29.13 | 42.91×19.69×34.84 | 42.91×19.69×34.84 | 43.11×19.49×58.27 | 43.11×19.49×58.27 |
| Net/Gross Weight (lbs.) | 63.71/69.00 | 63.71/69.00 | 94.36/100.97 | 124.78/134.92 | 155.42/166.23 | 219.14/249.12 | 217.15/248.24 |
| Refrigerant Type / Charge (oz.) | R410A / 38 | R410A / 38 | R410A / 56.44 | R410A / 82.89 | R410A / 112.9 | R410A / 158.7 | R410A / 169.3 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 5/8" | 3/8" / 7/8" |
| Max. Pipe Length (ft.) | 82.02 | 82.02 | 98.42 | 164.04 | 213.25 | 213.25 | 213.25 |
| Max. Difference in Level (ft.) | 32.81 | 32.81 | 65.62 | 82.02 | 98.42 | 98.42 | 98.42 |
| Ambient Temperature Cooling (°F) | -13~122 | -13~122 | -13~122 | -13~122 | 5~122 | 5~122 | 5~122 |
| Ambient Temperature Heating (°F) | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 | -13~75 |
| Certifications | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP | UL, ETL, AHRI, Energy Star, NEEP |
Multiple Control Methods
Cooper&Hunter’s Slim Duct Unit can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
BEST SELLERS
Cooper & Hunter
24,000 BTU 230V Ducted Mini Split AC Concealed Duct Heat Pump
Stay Comfortable Year-Round with the Cooper & Hunter 24,000 BTU Mini Split System Introducing the Cooper & Hunter 24,000 BTU Concealed Duct Mini Split Air Conditioner and Heat Pump, a...
Cooper & Hunter
18,000 BTU 230V Ducted Mini Split AC Concealed Duct Heat Pump
Cooper & Hunter 18,000 BTU Mini Split Air Conditioner & Heat Pump Experience year-round comfort with the Cooper & Hunter Sophia Series 18,000 BTU Mini Split Air Conditioner and Heat...
Cooper & Hunter

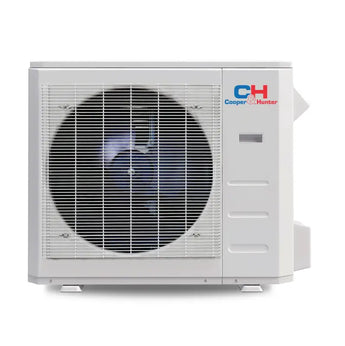

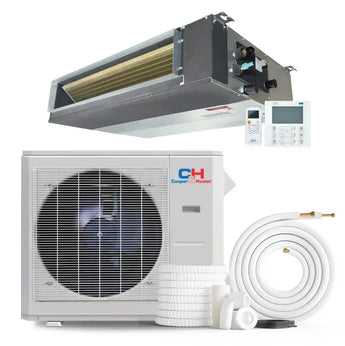

12,000 BTU 230V Ducted Mini Split AC Concealed Duct Heat Pump
