12,000 BTU 230V Ductless Mini Split AC Wall Mounted OLMO Alpic Series Heat Pump | 16FT
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Sierra Wall Mount
OLMO Alpic Eco Units are efficient ductless mini-split systems designed for modern climate control, with capacities ranging from 9000 to 24000 BTU to deliver powerful cooling and heating solutions. Featuring inverter technology, up to 18.5 SEER efficiency, and eco-friendly R410A refrigerant, they ensure both energy savings and environmental care. Equipped with user-friendly features such as sleep mode, auto-swing louvers, and a digital remote, these units provide customizable comfort. Their sleek design and quiet operation make them ideal for residential and commercial spaces, offering reliable year-round performance and enhancing any environment with efficient climate control.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO Alpic Eco Units are designed to deliver energy-efficient heating and cooling for year-round comfort. They operate seamlessly in a wide range of outdoor temperatures and are pre-charged with eco-friendly R410A refrigerant. With features like Sleep mode, auto-swing louvers, self-diagnostics, and a 24-hour timer, they ensure reliable and customizable climate control.

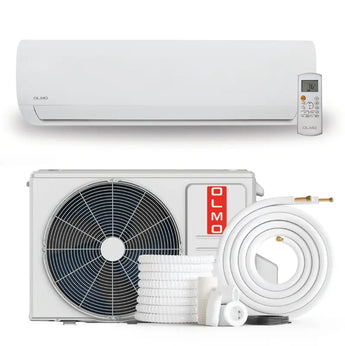

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet. We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor model Outdoor model |
OS-EL09ALP115VI | OS-EL12ALP115VI | OS-EL09ALP230VI | OS-EL12ALP230VI | OS-EL18ALP230VI | OS-EL24ALP230VI |
|---|---|---|---|---|---|---|
| OS-EL09ALP115VO | OS-EL12ALP115VO | OS-EL09ALP230VO | OS-EL12ALP230VO | OS-EL18ALP230VO | OS-EL24ALP230VO | |
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 |
| Capacity (Btu/h) | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| Cooling | ||||||
| EER2 (Btu/h) | 10.1 | 8.8 | 8.8 | 8.8 | 9.9 | 8.9 |
| SEER2 (Btu/h) | 17.0 | 17.4 | 18.5 | 17.6 | 18.3 | 16.7 |
| Heating | ||||||
| Rated Capacity (Btu/h) | 9,800 | 12,000 | 10,000 | 12,000 | 18,000 | 24,000 |
| HSPF4 (Btu/h) | 9.0 | 8.7 | 8.8 | 8.8 | 8.7 | 8.0 |
| HSPF5 (Btu/h) | 7.0 | 6.8 | 8.8 | 8.8 | 8.7 | 8.0 |
| COP2 (W/W) | 2.8 | 2.82 | 3.42 | 2.9 | 3.07 | 2.82 |
| Electrical | ||||||
| Minimum Circuit Ampacity (A) | 16 | 17 | 12 | 12 | 15 | 19 |
| Max Fuse (A) | 20 | 20 | 15 | 15 | 20 | 30 |
| Indoor Unit | ||||||
| Air Flow - Turbo/Hi/Mi/Lo (CFM) | 294/265/211/158 | 353/318/241/176 | 353/317/241/176 | 353/317/241/176 | 500/463/369/275 | 588/564/447/341 |
| Noise Level - Hi/Mi/Lo (dB(A)) | 39.5/33.5/26 | 41/34.5/27.5 | 41.5/34.5/25.5 | 41.5/34.5/25.5 | 44/38/30 | 46/40/33.5 |
| Dimensions - W×D×H (in) | 28.15×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 37.68×8.39×11.89 | 40.94×8.66×12.87 |
| Packing - W×D×H (in) | 30.71×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 40.75×11.61×15.16 | 44.09×12.40×15.94 |
| Net/Gross Weight (lbs) | 15.87/20.50 | 17.20/22.27 | 17.20/22.27 | 17.20/22.27 | 22.93/29.32 | 28.88/36.60 |
| Outdoor Unit | ||||||
| Air Flow - Hi (CFM) | 1,058.82 | 1,058.82 | 1,058.82 | 1,058.82 | 1,235.29 | 1,764.71 |
| Noise Level (dB(A)) | 54.5 | 55.0 | 54.5 | 54.5 | 57.0 | 59.5 |
| Dimensions - W×D×H (in) | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 30.12×11.93×21.85 | 35.04×13.46×26.50 |
| Packing - W×D×H (in) | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 34.92×13.27×24.02 | 39.17×15.67×29.13 |
| Net/Gross Weight (lbs) | 54.67/58.42 | 55.11/58.86 | 52.91/56.44 | 52.91/56.44 | 64.15/69.67 | 97.88/104.50 |
| Refrigerant | ||||||
| Type/Quantity | R410A/20.46 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/47.97 oz | R410A/62.79 oz |
| Precharge Length (ft) | 25 | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Piping - Liquid/Gas Side (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max Pipe Length (ft) | 82 | 82 | 82 | 82 | 98 | 98 |
| Max. Difference in Level (ft) | 33 | 33 | 33 | 33 | 66 | 66 |
| Connection Wiring | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded |
| Temperature | ||||||
| Ambient - Indoor Cooling/Heating (°F) | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 |
| Ambient - Outdoor Cooling/Heating (°F) | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 |
Multiple Control Methods
Olmo’s Alpic Eco Unit can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a space of up to 550 sq ft, the Olmo 12,000 BTU ductless mini split is ideal. This capacity ensures efficient cooling and heating for typical-sized rooms.
How much does a mini split system like the Olmo cost?
The price of the Olmo 12,000 BTU mini split system varies based on installation kit options but generally falls within the competitive range for high-efficiency systems with a 16.8 SEER rating.
Can I install the Olmo mini split myself?
While some homeowners attempt DIY installation, it’s important to note that the Olmo 12,000 BTU unit requires proper handling of refrigerants and electrical connections; professional installation is recommended for safety and compliance.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo 12,000 BTU mini split comes pre-charged with R410A refrigerant for up to 25 ft of line set, making it easier for installation without the need for an additional refrigerant charge.
What voltage does the Olmo mini split require?
The Olmo 12,000 BTU ductless mini split operates on a standard 230V electrical supply, suitable for residential installations across most regions.
What warranty does the Olmo mini split offer?
The Olmo 12,000 BTU mini split includes a 5-year parts and compressor warranty, ensuring peace of mind against manufacturing defects and operational issues.
