OLMO Alpic 18,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump | 16FT
OLMO5-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
Important info
- R-410A is being phased down in favor of newer refrigerants; inventory is limited.
- Existing R-410A systems remain serviceable; parts and qualified service are widely available.
- Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
- We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Browse: R-410A systems · R-32 · R-454B
Why buy this mini split from MiniSplitsForLess
- Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
- USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
- Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
- Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.
What Stands Out

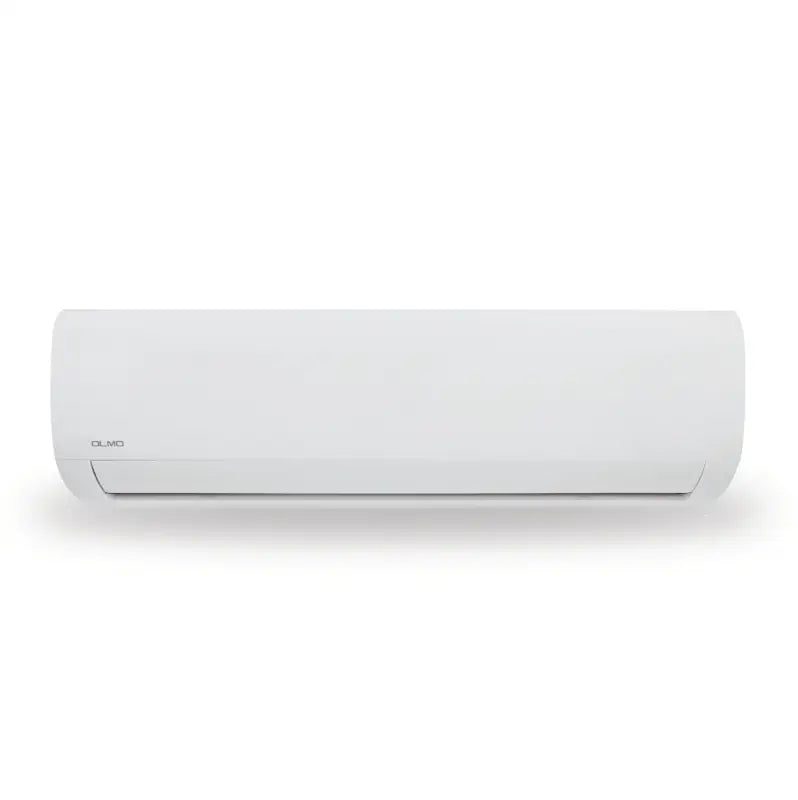

Sleek Wall-Mount Design
A slim, quiet indoor head mounts high on the wall of heating & cooling — modern looks with whisper-quiet operation.
Inverter Efficiency — SEER2 16.8
A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 16.8 on 230V — steady comfort with noticeably lower energy bills.
Smart Wi-Fi Control
Wi-Fi is not included — set schedules and adjust the temperature from your phone anywhere, or pair with Alexa & Google Home.
Sierra Wall Mount
OLMO Alpic Eco Units are efficient ductless mini-split systems designed for modern climate control, with capacities ranging from 9000 to 24000 BTU to deliver powerful cooling and heating solutions. Featuring inverter technology, up to 18.5 SEER efficiency, and eco-friendly R410A refrigerant, they ensure both energy savings and environmental care. Equipped with user-friendly features such as sleep mode, auto-swing louvers, and a digital remote, these units provide customizable comfort. Their sleek design and quiet operation make them ideal for residential and commercial spaces, offering reliable year-round performance and enhancing any environment with efficient climate control.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO Alpic Eco Units are designed to deliver energy-efficient heating and cooling for year-round comfort. They operate seamlessly in a wide range of outdoor temperatures and are pre-charged with eco-friendly R410A refrigerant. With features like Sleep mode, auto-swing louvers, self-diagnostics, and a 24-hour timer, they ensure reliable and customizable climate control.

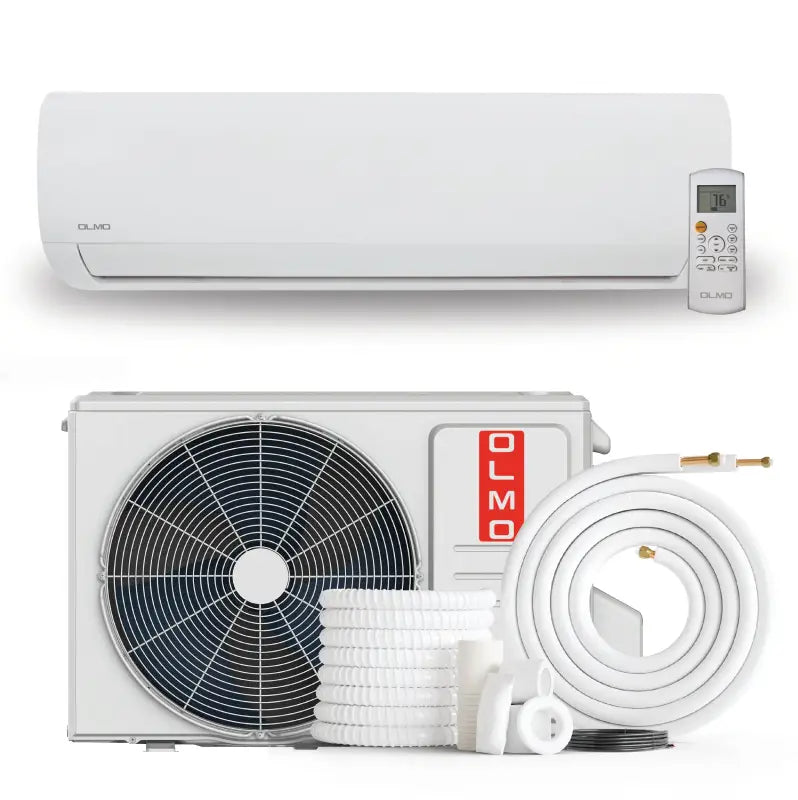

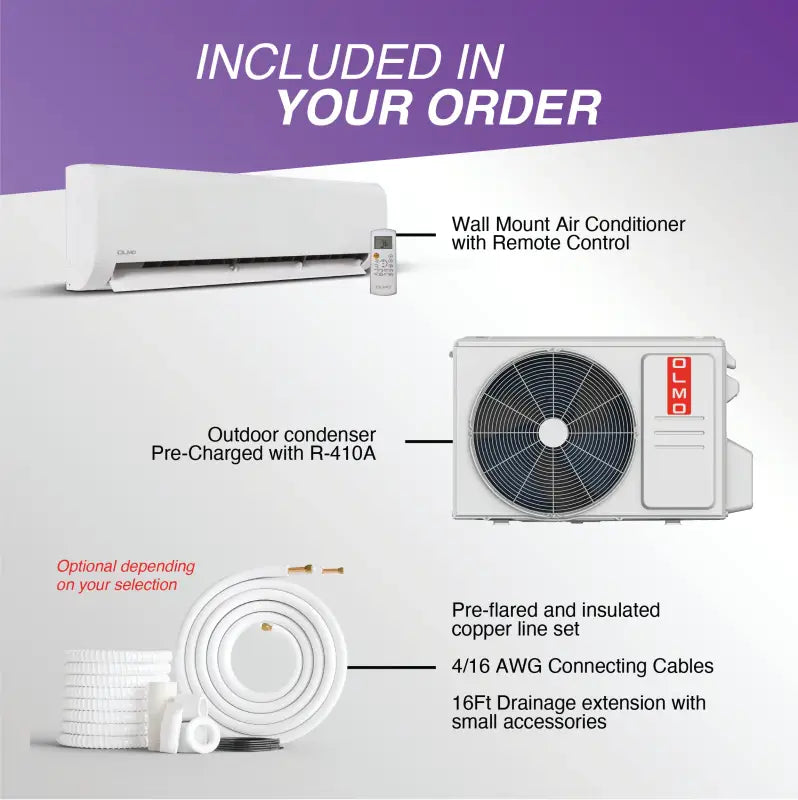

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, a 16ft Line Set. We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor model Outdoor model |
OS-EL09ALP115VI | OS-EL12ALP115VI | OS-EL09ALP230VI | OS-EL12ALP230VI | OS-EL18ALP230VI | OS-EL24ALP230VI |
|---|---|---|---|---|---|---|
| OS-EL09ALP115VO | OS-EL12ALP115VO | OS-EL09ALP230VO | OS-EL12ALP230VO | OS-EL18ALP230VO | OS-EL24ALP230VO | |
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 |
| Capacity (Btu/h) | 9,000 | 12,000 | 9,000 | 12,000 | 18,000 | 24,000 |
| Cooling | ||||||
| EER2 (Btu/h) | 10.1 | 8.8 | 8.8 | 8.8 | 9.9 | 8.9 |
| SEER2 (Btu/h) | 17.0 | 17.4 | 18.5 | 17.6 | 18.3 | 16.7 |
| Heating | ||||||
| Rated Capacity (Btu/h) | 9,800 | 12,000 | 10,000 | 12,000 | 18,000 | 24,000 |
| HSPF4 (Btu/h) | 9.0 | 8.7 | 8.8 | 8.8 | 8.7 | 8.0 |
| HSPF5 (Btu/h) | 7.0 | 6.8 | 8.8 | 8.8 | 8.7 | 8.0 |
| COP2 (W/W) | 2.8 | 2.82 | 3.42 | 2.9 | 3.07 | 2.82 |
| Electrical | ||||||
| Minimum Circuit Ampacity (A) | 16 | 17 | 12 | 12 | 15 | 19 |
| Max Fuse (A) | 20 | 20 | 15 | 15 | 20 | 30 |
| Indoor Unit | ||||||
| Air Flow - Turbo/Hi/Mi/Lo (CFM) | 294/265/211/158 | 353/318/241/176 | 353/317/241/176 | 353/317/241/176 | 500/463/369/275 | 588/564/447/341 |
| Noise Level - Hi/Mi/Lo (dB(A)) | 39.5/33.5/26 | 41/34.5/27.5 | 41.5/34.5/25.5 | 41.5/34.5/25.5 | 44/38/30 | 46/40/33.5 |
| Dimensions - W×D×H (in) | 28.15×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 31.69×7.64×11.22 | 37.68×8.39×11.89 | 40.94×8.66×12.87 |
| Packing - W×D×H (in) | 30.71×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 34.25×10.63×14.37 | 40.75×11.61×15.16 | 44.09×12.40×15.94 |
| Net/Gross Weight (lbs) | 15.87/20.50 | 17.20/22.27 | 17.20/22.27 | 17.20/22.27 | 22.93/29.32 | 28.88/36.60 |

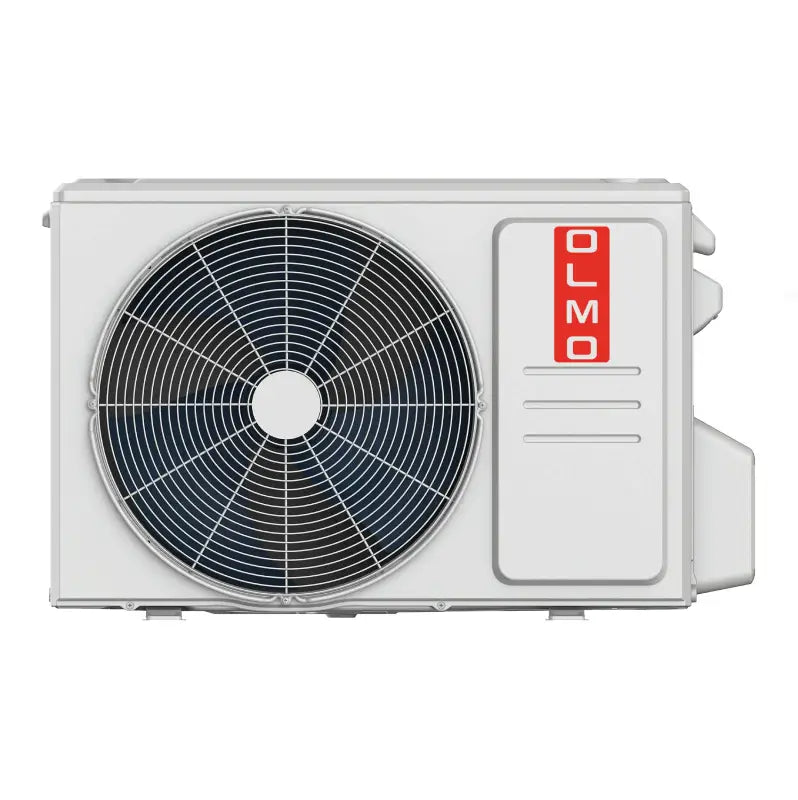

| Outdoor Unit | ||||||
| Air Flow - Hi (CFM) | 1,058.82 | 1,058.82 | 1,058.82 | 1,058.82 | 1,235.29 | 1,764.71 |
| Noise Level (dB(A)) | 54.5 | 55.0 | 54.5 | 54.5 | 57.0 | 59.5 |
| Dimensions - W×D×H (in) | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 28.35×10.63×19.49 | 30.12×11.93×21.85 | 35.04×13.46×26.50 |
| Packing - W×D×H (in) | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 32.87×11.81×21.26 | 34.92×13.27×24.02 | 39.17×15.67×29.13 |
| Net/Gross Weight (lbs) | 54.67/58.42 | 55.11/58.86 | 52.91/56.44 | 52.91/56.44 | 64.15/69.67 | 97.88/104.50 |
| Refrigerant | ||||||
| Type/Quantity | R410A/20.46 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/25.75 oz | R410A/47.97 oz | R410A/62.79 oz |
| Precharge Length (ft) | 25 | 25 | 25 | 25 | 25 | 25 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Piping - Liquid/Gas Side (in) | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 3/8" | 1/4" / 1/2" | 3/8" / 5/8" |
| Max Pipe Length (ft) | 82 | 82 | 82 | 82 | 98 | 98 |
| Max. Difference in Level (ft) | 33 | 33 | 33 | 33 | 66 | 66 |
| Connection Wiring | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded | 16AWG×4 Stranded, Unshielded |
| Temperature | ||||||
| Ambient - Indoor Cooling/Heating (°F) | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 | 62~90/32~86 |
| Ambient - Outdoor Cooling/Heating (°F) | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 | 5~122/15~86 |
Multiple Control Methods
Olmo’s Alpic Eco Unit can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my home?
For a standard room size, the Olmo 18,000 BTU mini split can effectively cover up to 850 sq ft, making it suitable for larger living spaces or open floor plans.
How much does an Olmo mini split system cost?
The price of the Olmo 18,000 BTU ductless mini split varies depending on installation kit options, but typically ranges from a few hundred to over a thousand dollars, excluding installation costs.
Can I install the Olmo mini split myself?
While DIY installation is possible for the Olmo 18,000 BTU mini split, it is recommended to hire a professional to ensure proper setup, especially since it requires handling refrigerant and electrical connections.
Does the Olmo mini split come pre-charged with refrigerant?
Yes, the Olmo 18,000 BTU mini split is pre-charged with R410A refrigerant for up to 25 ft of line set, which facilitates easier installation if you're using the standard installation kits.
What voltage does the Olmo mini split require?
The Olmo 18,000 BTU ductless mini split operates on a 230V power supply, which is standard for most residential mini split systems.
What warranty does the Olmo mini split offer?
The Olmo 18,000 BTU mini split comes with a comprehensive 5-year parts and compressor warranty, providing peace of mind regarding its durability and performance.
