9,000 BTU 230V Ductless Mini Split AC Wall Mounted OLMO Sierra Series Heat Pump | 16FT
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

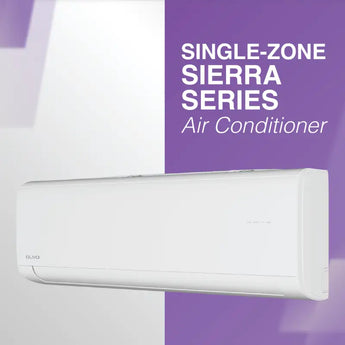

Sierra Wall Mount
OLMO's Single-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms. Equipped with advanced inverter technology, these units deliver precise temperature control and significant energy savings. Using eco-friendly R32 refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms
Main Features
OLMO's Single-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R32 refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.

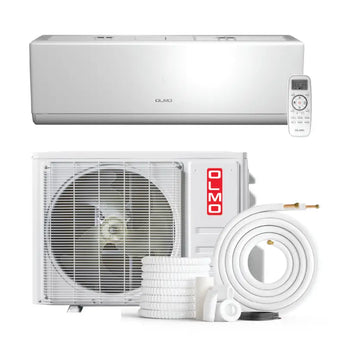

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | OS-09SRW-115VI | OS-12SRW-115VI | OS-09SRW-230VI | OS-12SRW-230VI | OS-18SRW-230VI | OS-24SRW-230VI | OS-R36SRW-230VI |
|---|---|---|---|---|---|---|---|
| Outdoor Model | OS-SR09-115VO | OS-SR12-115VO | OS-SR09-230VO | OS-SR12-230VO | OS-SR18-230VO | OS-SR24-230VO | OS-RSR36-230VO |
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Capacity | 9000 | 12000 | 9000 | 12000 | 18000 | 24000 | 34500 |
| Cooling | |||||||
| EER2 | 12.5 | 10.2 | 12.95 | 11.1 | 11.95 | 10.6 | 9.4 |
| SEER2 | 20.0 | 18.0 | 22.5 | 20.0 | 21.0 | 19.5 | 20.0 |
| Rated Capacity | 9500 | 12000 | 9000 | 12000 | 18000 | 24000 | 35000 |
| Heating | |||||||
| HSPF4 | 9.0 | 8.5 | 8.5 | 8.5 | 9.8 | 8.5 | 8.4 |
| HSPF5 | 7.0 | 8.0 | 8.0 | 8.0 | 9.0 | 8.0 | 8.2 |
| COP2 | 4.1 | 3.4 | 4.12 | 3.5 | 3.91 | 3.3 | 3.2 |
| Minimum Circuit Ampacity | 14.6 | 15.6 | 9.5 | 9.5 | 14.5 | 21 | 26.8 |
| Max Fuse | 25 | 25 | 15 | 15 | 20 | 35 | 35 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 353/382/341/294/247 | 365/394/365/312/253 | 353/382/341/294/247 | 365/394/365/312/253 | 647/647/588/482/382 | 706/706/647/559/441 | 706/706/647/559/441/647 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 42/39/37/35 | 42/39/37/35 | 42/39/37/35 | 42/39/37/35 | 48/45/41/39 | 50/48/43/41 | 50/47/43/39 |
| Indoor Unit | |||||||
| Dimensions (WxDxH) | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 42.5x12.37x9 | 42.5x12.37x9 | 52.75x14.83x10.81 |
| Packing (WxDxH) | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 48x15.75x12.19 | 48x15.75x12.19 | 56.12x15.56x18.12 |
| Net/Gross Weight | 18.5/23.1 | 18.5/23.1 | 18.5/23.1 | 18.5/23.1 | 30.9/37.5 | 29.8/37.5 | 40.8 |

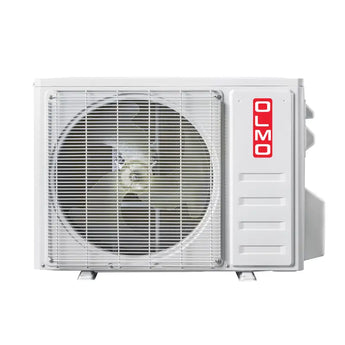

| Outdoor Unit | |||||||
| Outdoor Air Flow (Hi) | 470 | 488 | 470 | 488 | 588 | 647 | 647 |
| Outdoor Side Noise Level | 53 | 53 | 53 | 53 | 58 | 60 | 60 |
| Dimensions (WxDxH) | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 31.88x23x11 | 33.88×25.5×12.2 | 35.43x13.38x29.5 |
| Packing (WxDxH) | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 37x25.19x15.15 | 39.17×28.34×16.53 | 41.75x17.69x32.31 |
| Net/Gross Weight | 52.9/61.7 | 57.3/66.1 | 48.5/57.3 | 52.9/61.7 | 75/82.7 | 101.4/110.2 | 121.3 |
| Refrigerant | |||||||
| Refrigerant Type/Quantity | R32/21.2 | R32/21.9 | R32/20.5 | R32/21.9 | R32/45.9 | R32/47.6 | R32/72.4 |
| Refrigerant Precharge | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Design Pressure | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
| Liquid Side / Gas Side | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 1/2'' | 3/8'' / 5/8'' | 3/8'' / 5/8'' |
| Refrigerant Piping | |||||||
| Max Refrigerant Pipe Length | 65.6 | 65.6 | 65.6 | 65.6 | 98.4 | 98.4 | 98.4 |
| Max. Difference in Level | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Ambient Temperature | |||||||
| Indoor (Cooling/Heating) | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 |
| Outdoor (Cooling/Heating) | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 |
| Energy Star Certified | ✓ | ✓ | ✓ | ||||
Multiple Control Methods
Olmo’s Sierra can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a room size of up to 350 sq ft, the 9,000 BTU Olmo Sierra Series mini split is an ideal choice. It delivers efficient cooling and heating for smaller spaces.
Can I install a mini split myself?
While it's possible to install the Olmo mini split yourself, professional installation is recommended due to the complexities involved. If you choose to DIY, ensure you have the necessary skills and tools for a proper setup.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo Sierra Series mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies installation, as you won't need to add refrigerant immediately.
What voltage does the Olmo mini split require?
The Olmo Sierra Series mini split operates on a 230V power supply, making it compatible with standard residential electrical systems in many areas.
What warranty does the Olmo Sierra Series offer?
The Olmo Sierra Series mini split includes a 5-year parts and compressor warranty, providing you with peace of mind regarding your investment and long-term performance.
What is the SEER rating of the Olmo mini split, and why is it important?
The Olmo Sierra Series boasts a SEER rating of 22.5, indicating high energy efficiency. A higher SEER rating means lower energy costs, making this model an economical choice for both cooling and heating.
