36,000 BTU 230V Ductless Mini Split AC Wall Mounted OLMO Sierra Series Heat Pump | 16FT
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court

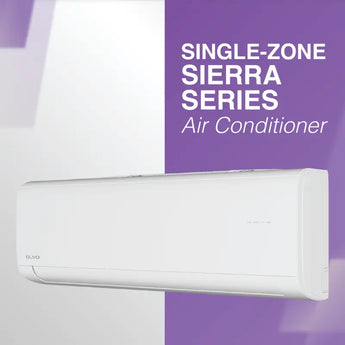

Sierra Wall Mount
OLMO's Single-Zone Sierra Series is a versatile HVAC solution designed to provide efficient heating and cooling for multiple rooms. Equipped with advanced inverter technology, these units deliver precise temperature control and significant energy savings. Using eco-friendly R32 refrigerant, the system ensures reliable performance with minimal environmental impact. Perfect for residential or commercial applications, the Sierra Series offers quiet operation, flexible installation, and user-friendly controls, making it an ideal choice for maintaining year-round comfort across multiple zones with one efficient system.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 5 years for the compressor and 2 years for parts.
Warranty terms

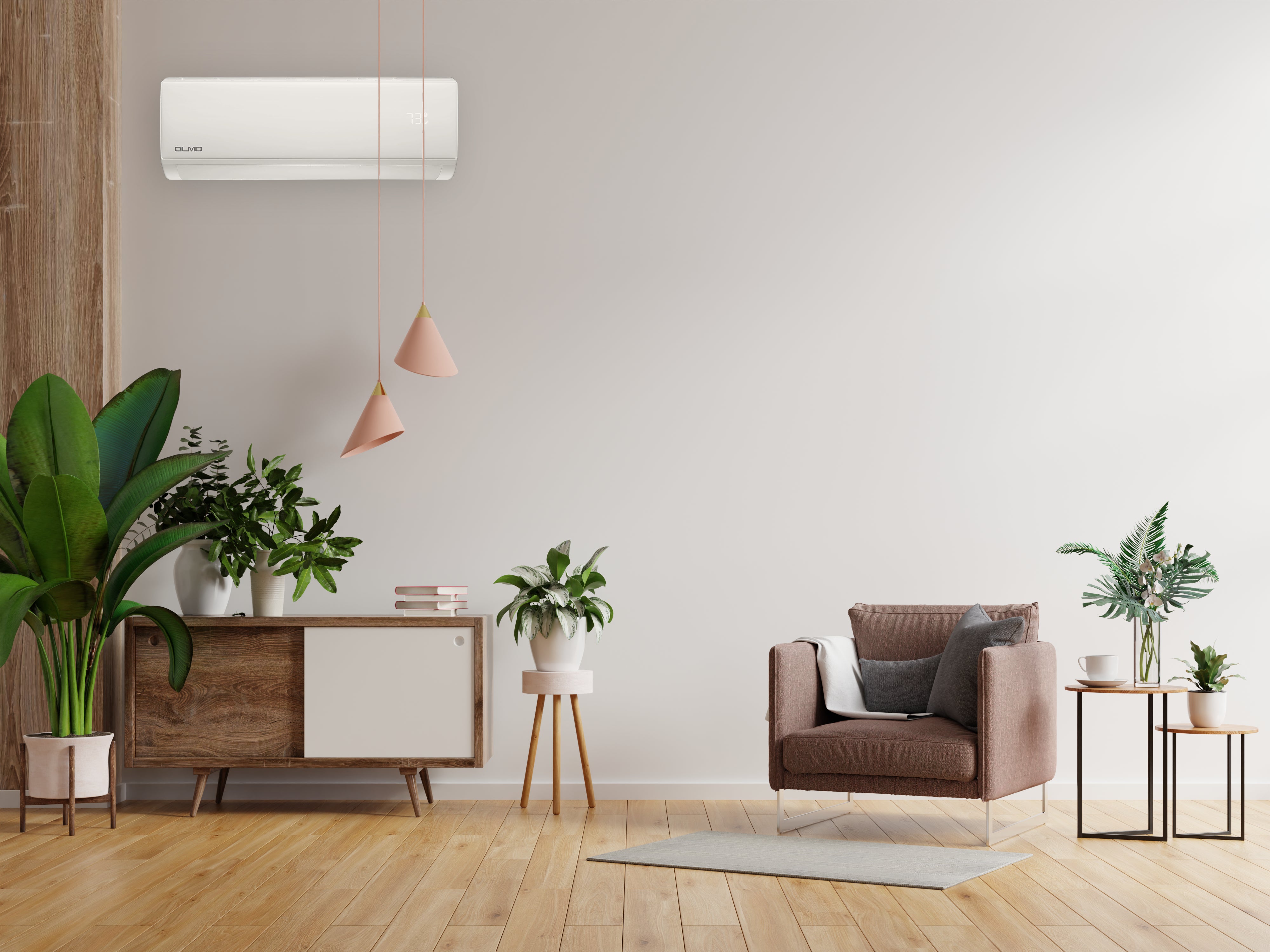

Main Features
OLMO's Single-Zone Sierra Series delivers efficient multi-room comfort with advanced inverter technology for precise temperature control. Its eco-friendly R32 refrigerant reduces environmental impact, while quiet operation ensures minimal disruption. With flexible installation options, sleek design, and reliable heating and cooling, it’s the perfect solution for modern multi-zone climate control needs.

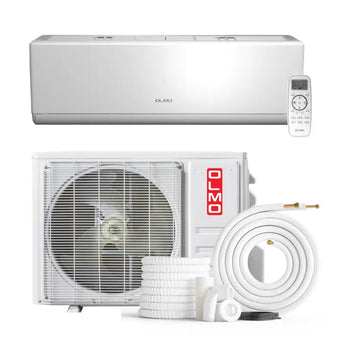

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor Model | OS-09SRW-115VI | OS-12SRW-115VI | OS-09SRW-230VI | OS-12SRW-230VI | OS-18SRW-230VI | OS-24SRW-230VI | OS-R36SRW-230VI |
|---|---|---|---|---|---|---|---|
| Outdoor Model | OS-SR09-115VO | OS-SR12-115VO | OS-SR09-230VO | OS-SR12-230VO | OS-SR18-230VO | OS-SR24-230VO | OS-RSR36-230VO |
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 |
| Capacity | 9000 | 12000 | 9000 | 12000 | 18000 | 24000 | 34500 |
| Cooling | |||||||
| EER2 | 12.5 | 10.2 | 12.95 | 11.1 | 11.95 | 10.6 | 9.4 |
| SEER2 | 20.0 | 18.0 | 22.5 | 20.0 | 21.0 | 19.5 | 20.0 |
| Rated Capacity | 9500 | 12000 | 9000 | 12000 | 18000 | 24000 | 35000 |
| Heating | |||||||
| HSPF4 | 9.0 | 8.5 | 8.5 | 8.5 | 9.8 | 8.5 | 8.4 |
| HSPF5 | 7.0 | 8.0 | 8.0 | 8.0 | 9.0 | 8.0 | 8.2 |
| COP2 | 4.1 | 3.4 | 4.12 | 3.5 | 3.91 | 3.3 | 3.2 |
| Minimum Circuit Ampacity | 14.6 | 15.6 | 9.5 | 9.5 | 14.5 | 21 | 26.8 |
| Max Fuse | 25 | 25 | 15 | 15 | 20 | 35 | 35 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) | 353/382/341/294/247 | 365/394/365/312/253 | 353/382/341/294/247 | 365/394/365/312/253 | 647/647/588/482/382 | 706/706/647/559/441 | 706/706/647/559/441/647 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | 42/39/37/35 | 42/39/37/35 | 42/39/37/35 | 42/39/37/35 | 48/45/41/39 | 50/48/43/41 | 50/47/43/39 |
| Indoor Unit | |||||||
| Dimensions (WxDxH) | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 33.5x10.62x8.19 | 42.5x12.37x9 | 42.5x12.37x9 | 52.75x14.83x10.81 |
| Packing (WxDxH) | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 35.87x13.13x10.25 | 48x15.75x12.19 | 48x15.75x12.19 | 56.12x15.56x18.12 |
| Net/Gross Weight | 18.5/23.1 | 18.5/23.1 | 18.5/23.1 | 18.5/23.1 | 30.9/37.5 | 29.8/37.5 | 40.8 |
| Outdoor Unit | |||||||
| Outdoor Air Flow (Hi) | 470 | 488 | 470 | 488 | 588 | 647 | 647 |
| Outdoor Side Noise Level | 53 | 53 | 53 | 53 | 58 | 60 | 60 |
| Dimensions (WxDxH) | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 28.13×21.25×9.5 | 31.88x23x11 | 33.88×25.5×12.2 | 35.43x13.38x29.5 |
| Packing (WxDxH) | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 32.67x23.62x13.18 | 37x25.19x15.15 | 39.17×28.34×16.53 | 41.75x17.69x32.31 |
| Net/Gross Weight | 52.9/61.7 | 57.3/66.1 | 48.5/57.3 | 52.9/61.7 | 75/82.7 | 101.4/110.2 | 121.3 |
| Refrigerant | |||||||
| Refrigerant Type/Quantity | R32/21.2 | R32/21.9 | R32/20.5 | R32/21.9 | R32/45.9 | R32/47.6 | R32/72.4 |
| Refrigerant Precharge | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 | 24.6 |
| Design Pressure | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
| Liquid Side / Gas Side | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 3/8'' | 1/4'' / 1/2'' | 3/8'' / 5/8'' | 3/8'' / 5/8'' |
| Refrigerant Piping | |||||||
| Max Refrigerant Pipe Length | 65.6 | 65.6 | 65.6 | 65.6 | 98.4 | 98.4 | 98.4 |
| Max. Difference in Level | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 | 49.2 |
| Ambient Temperature | |||||||
| Indoor (Cooling/Heating) | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 |
| Outdoor (Cooling/Heating) | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 | 5~118/-5~75 |
| Energy Star Certified | ✓ | ✓ | ✓ | ||||
Multiple Control Methods
Olmo’s Sierra can be managed with a user-friendly remote control. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my space?
For a space of up to 1,500 sq ft, the Olmo Sierra Series 36,000 BTU mini split is an excellent choice. This capacity ensures efficient cooling and heating for larger rooms or open areas.
Can I install a mini split myself?
While the Olmo mini split can be installed by a DIY enthusiast, it is recommended to hire a professional for optimal performance. Proper installation ensures that the 230V unit operates efficiently and maintains its 20.0 SEER rating.
Does the mini split come pre-charged with refrigerant?
Yes, the Olmo Sierra Series mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies installation and allows for immediate use after setup.
What voltage does the Olmo mini split require?
The Olmo Sierra Series operates on a 230V electrical system, making it suitable for standard residential wiring in many homes. Ensure that your electrical supply matches this requirement before installation.
What warranty does the Olmo mini split offer?
The Olmo Sierra Series comes with a 5-year parts and compressor warranty, providing peace of mind regarding potential repairs or replacements. This robust warranty reflects Olmo's commitment to quality.
What is the SEER rating for the Olmo mini split, and is it efficient?
The Olmo Sierra Series boasts a 20.0 SEER rating, indicating high energy efficiency for both cooling and heating. This efficiency can lead to substantial savings on your energy bills over time.
