Cooper & Hunter 16,000 BTU Single Zone Mini Floor Console, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Cooper & Hunter
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

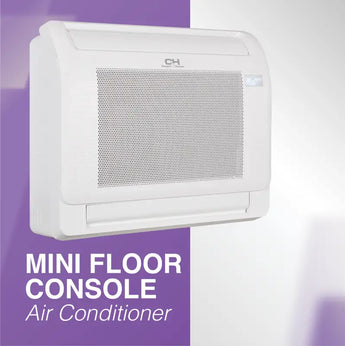

Mini Floor Console
Cooper&Hunter's Mini Floor Console is the perfect blend of style, efficiency, and advanced technology, designed to elevate your comfort while seamlessly integrating into any space. Compact yet powerful, this unit is an exceptional solution for both heating and cooling needs in residential or commercial settings.
It features advanced airflow control, allowing for optimal temperature distribution, and operates with whisper-quiet performance, ensuring a peaceful environment.
Engineered with energy-saving technology, the Mini Floor Console provides cost-effective and eco-friendly climate control. Its durable construction, paired with a sleek, modern design, makes it a versatile addition to any interior.
Ideal for spaces where wall-mounted units aren't an option, this console offers flexibility without compromising on efficiency or aesthetics. Trust Cooper&Hunter's Mini Floor Console to deliver reliable performance, consistent comfort, and effortless elegance.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Mini Floor Console features advanced airflow control for optimal temperature distribution, energy-saving technology for eco-friendly operation, and whisper-quiet performance for a peaceful environment. Compact and versatile, it integrates seamlessly into any space, offering durable construction, modern design, and reliable heating and cooling for both residential and commercial needs.

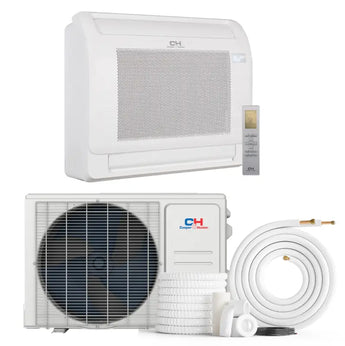

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Indoor model | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Rated Capacity - Cooling (Btu/h) | 9,000 | 12,000 | 16,000 |
| Rated Capacity - Heating (Btu/h) | 9,000 | 12,000 | 17,000 |
| Minimum Circuit Ampacity (MCA) (A) | 3 | 3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 441.4/376.7/323.7/188.4/129.5 | 441.4/376.7/323.7/188.4/129.5 | 500.3/441.4/382.6/323.7/206.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | 45/41.0/37.5/25.5/22 | 44/40.5/37.0/26.5/24 | 47/43.5/40.5/30.5/25.5 |
| Dimension (W×D×H) (inch) | 31.26×7.87×24.45 | 31.26×7.87×24.45 | 31.26×7.87×24.45 |
| Packing (W×D×H) (inch) | 34.06×11.02×28.31 | 34.06×11.02×28.31 | 34.06×11.02×28.31 |
| Net/Gross Weight (lbs.) | 32.85/41.89 | 32.85/41.89 | 32.85/41.89 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 |
| Refrigerant Piping (Liquid Side/Gas Side) (inch) | 1/4”/3/8” | 1/4”/1/2” | 1/4”/1/2” |

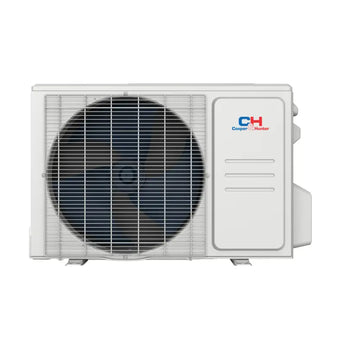

| Outdoor model | CH-RHP09-230V0 | CH-RHP12-230V0 | CH-RHP18-230V0 |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Power Supply - Voltage Range (V) | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 3,700~13,700 | 3,700~14,000 | 6,500~17,200 |
| Cooling - Rated Current (A) | 4.2 | 4.3 | 8 |
| Cooling - EER2 (Btu/h) | 15.1 | 12.5 | 12.5 |
| Cooling - SEER2 (Btu/h) | 27.2 | 25.0 | 20 |
| Heating at 47°F - Rated Capacity Range (Btu/h) | 4,400~16,100 | 4,400~16,100 | 6,500~20,000 |
| Heating at 47°F - Rated Current (A) | 4.1 | 4 | 8 |
| Heating at 47°F - COP (W/W) | 4.43 | 3.88 | 2.85 |
| Heating at 47°F - HSPF4 | 10.9 | 10.5 | 10.3 |
| Heating at 47°F - HSPF5 | 8.9 | 8.3 | 8.7 |
| Minimum Circuit Ampacity (A) | 15 | 15 | 19 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 20 |
| Outdoor - Dimension (W×D×H) (inch) | 31.69×12.99×21.81 | 31.69×12.99×21.81 | 35.04×13.46×26.50 |
| Outdoor - Packing (W×D×H) (inch) | 36.02×14.57×24.21 | 36.02×14.57×24.21 | 39.17×15.67×29.13 |
| Outdoor - Net/Gross Weight (lbs.) | 72.75/78.70 | 72.75/78.70 | 99.87/107.80 |
| Refrigerant Type / Charge (oz.) | R454B/35.27 | R454B/35.27 | R454B/55.38 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4”/3/8” | 1/4”/1/2” | 1/4”/1/2” |
| Max. Pipe Length (ft.) | 82 | 82 | 98.40 |
| Max. Difference in Level (ft.) | 49.20 | 49.20 | 65.60 |
| Ambient Temperature - Cooling (°F) | -22~122 | -22~122 | -22~122 |
| Ambient Temperature - Heating (°F) | -22~75 | -22~75 | -22~75 |
| Certifications - ETL | ✔ | ✔ | ✔ |
| Certifications - AHRI | ✔ | ✔ | ✔ |
| Certifications - Energy Star | ✔ | ✔ | ✔ |
| Certifications - NEEP | ✔ | ✔ | ✔ |
| Parameter | CH-RSH09MMC | CH-RSH12MMC | CH-RSH16MMC |
|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Cooling Capacity (Btu/h) | 9,000 | 12,000 | 16,000 |
| Heating Capacity (Btu/h) | 9,000 | 12,000 | 17,000 |
| Minimum Circuit Ampacity (A) | 3 | 3 | 3 |
| Max. Fuse (A) | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) (CFM) | 441.4/376.7/323.7/188.4/129.5 | 441.4/376.7/323.7/188.4/129.5 | 500.3/441.4/382.6/323.7/206.0 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) (dB(A)) | 42/39.0/34.5/29.5/19.5 | 42/39/34.5/29.5/23.5 | N/A/41.5/39.0/28.5/24.0 |
| Dimension (W×D×H) (inch) | 31.26×7.87×24.45 | 31.26×7.87×24.45 | 31.26×7.87×24.45 |
| Packing (W×D×H) (inch) | 34.06×11.02×28.31 | 34.06×11.02×28.31 | 34.06×11.02×28.31 |
| Net/Gross Weight (lbs.) | 32.85/41.89 | 32.85/41.89 | 32.85/41.89 |
| Room Temperature - Cooling (°F) | 60~90 | 60~90 | 60~90 |
| Room Temperature - Heating (°F) | 32~86 | 32~86 | 32~86 |
| Refrigerant Pipes (Liquid Side/Gas Side) (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" |
| Outdoor Model | CH-RE509-230V0 | CH-RE512-230V0 | CH-RE518-230V0 |
|---|---|---|---|
| Power Supply - Rated (V, Ph, Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 |
| Power Supply - Voltage Range (V) | 187-253 | 187-253 | 187-253 |
| Cooling - Rated Capacity Range (Btu/h) | 5,100~12,700 | 5,100~12,900 | 7,300~22,900 |
| Cooling - EER (Btu/h) | 4.2 | 4.2 | 5.8 |
| Heating - Rated Capacity (Btu/h) | 16.2 | 12.7 | 12.5 |
| Heating - HSPF (Btu/h) | 26 | 24.6 | 23.8 |
| Sound Level (dB) | 5,100~12,700 | 5,100~12,900 | 7,300~22,900 |
| Power Input - Cooling (kW) | 4.6 | 4 | 6.7 |
| Power Input - Heating (kW) | 4.35 | 3.9 | 3.37 |
| Current - Cooling (A) | 13.9 | 11 | 13.5 |
| Current - Heating (A) | 10 | 8.2 | 9.4 |
| Minimum Circuit Ampacity (A) | 12 | 12 | 18 |
| Max.Fuse (Outdoor Unit) (A) | 15 | 15 | 20 |
| Outdoor - Dimension (W×D×H) (inch) | 30.12×11.93×21.85 | 30.12×11.93×21.85 | 35.04×13.46×26.50 |
| Outdoor - Packing (W×D×H) (inch) | 34.92×13.27×24.02 | 34.92×13.27×24.02 | 39.17×15.67×29.13 |
| Outdoor - Net/Gross Weight (lbs.) | 62.17/67.68 | 62.17/67.68 | 92.59/100.31 |
| Refrigerant Type / Charge (oz.) | R454B/32.45 | R454B/32.45 | R454B/47.97 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4”/3/8” | 1/4”/3/8” | 1/4”/1/2” |
| Max. Pipe Length (ft.) | 82 | 82 | 98.40 |
| Max. Difference in Level (ft.) | 49.20 | 49.20 | 65.60 |
| Operating Temperature Range (°F) | 60~90 | 60~90 | 60~90 |
| Storage Temperature Range (°F) | 32~86 | 32~86 | 32~86 |
| Certifications - Standard 1 | ✔ | ✔ | ✔ |
| Certifications - Standard 2 | ✔ | ✔ | ✔ |
| Certifications - Standard 3 | ✔ | ✔ | ✔ |

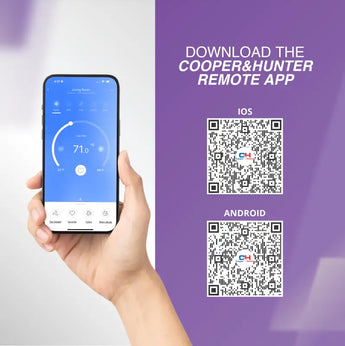

Multiple Control Methods
Cooper&Hunter’s Mini Floor Console Units can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For optimal cooling and heating, the Cooper & Hunter 16,000 BTU mini split is suitable for spaces up to approximately 750 sq ft, depending on insulation and climate. This makes it an excellent choice for medium-sized rooms.
Can I install the Cooper & Hunter mini split myself?
While it is possible to install the Cooper & Hunter 16,000 BTU mini split yourself, it is recommended to hire a professional for proper installation and to ensure compliance with local codes. DIY installation can be complex, especially with the refrigerant and electrical connections.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 16,000 BTU mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, making it easier for installation. This feature helps maintain efficiency and performance right from the start.
What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 16,000 BTU mini split operates on 230V, which is standard for many residential systems. Ensure your electrical setup can support this voltage for optimal performance.
What warranty does the Cooper & Hunter mini split offer?
The Cooper & Hunter 16,000 BTU mini split comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the unit within 30 days of purchase. This warranty provides peace of mind regarding your investment.
What is the SEER rating of the Cooper & Hunter mini split?
The Cooper & Hunter 16,000 BTU mini split boasts an impressive SEER rating of 22.4, indicating excellent energy efficiency. A higher SEER rating can lead to significant savings on your energy bills over time.
