8,000 BTU 115V OLMO Through-the-Wall Air Conditioner w/ Remote, Smart Kit, Cooling Only
OLMO
Product specifications
| Brand | |
|---|---|
| Voltage | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

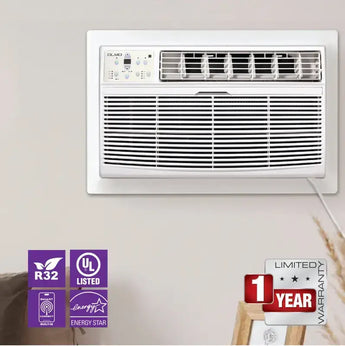

Through The Wall

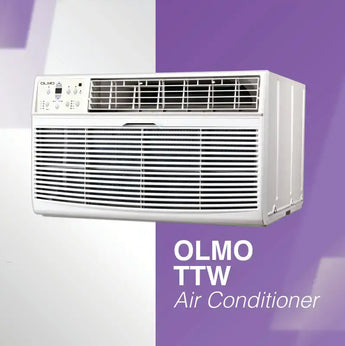

The OLMO TTW (Through-the-Wall) unit is a versatile and efficient solution for heating and cooling in residential and commercial spaces. With a sleek, space-saving design, the TTW unit is installed directly into the wall, making it ideal for apartments, offices, and hotels where floor space is limited. These units combine powerful performance with quiet operation, offering year-round comfort through reliable heating and cooling functions. Designed for ease of installation and minimal maintenance, OLMO TTW units feature energy-efficient components that help reduce utility costs while maintaining optimal indoor climates.
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information
Warranty terms: The manufacturer provides a Limited Warranty of 1 year for the compressor and 1 year for parts.
Warranty terms
Main Features
The OLMO TTW unit offers efficient heating and cooling in a compact, space-saving design. Ideal for apartments and offices, it features quiet operation, energy-efficient performance, and easy installation. With advanced filtration, user-friendly controls, and low maintenance, this unit ensures year-round comfort while reducing energy costs and enhancing indoor air quality.
All Accessories Included

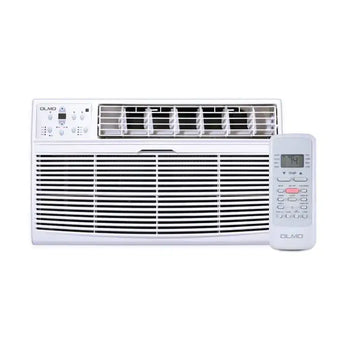

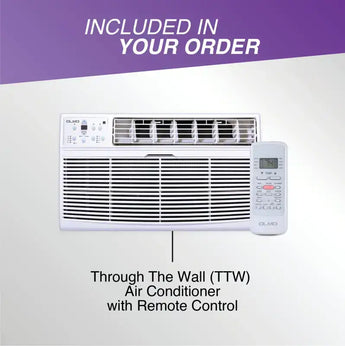

With the purchase of the OLMO TTW system, your complete package will include 1-TTW Unit and 1-Remote.
Technical Specifications
| Model | OW-P08AC115WF | OW-P08HS115WF | OW-P12AC115WF | OW-P12AC230WF | OW-P14AC230WF | OW-P12HS230WF | OW-P14HS230WF | |
|---|---|---|---|---|---|---|---|---|
| Power Supply | 115V-1Ph-60 | 115V-1Ph-60 | 115V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | 208/230V-1Ph-60 | |
| Cooling | Capacity | 8300 Btu/h | 8000 Btu/h | 12000 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h | 12000/11700 Btu/h | 14000/13600 Btu/h |
| EER | 3.11 W/W | 3.13 W/W | 3.08 W/W | 3.08 W/W | 2.78 W/W | 2.98/2.95 W/W | 2.86/2.84 W/W | |
| CEER | 10.6 Btu/h/W | 9.6 Btu/h/W | 10.5 Btu/h/W | 10.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | 9.5 Btu/h/W | |
| Input | 760 W | 750 W | 1140 W | 1140/1110 W | 1400/1360 W | 1180/1160 W | 1430/1400 W | |
| Current | 7.8 A | 9.4 A | 11.3 A | 5.6/6.3 A | 7.0/7.7 A | 6.5/7.0 A | 7.9/8.5 A | |
| Standby Power | 1.25 W | 1.34 W | 1.25 W | 1.435 W | 1.435 W | 1.34 W | - | |
| Heating | Rated Capacity | - | 4200 Btu/h | - | - | - | 10600/8600 Btu/h | 10600/8600 Btu/h |
| Rated Input (Heater) | - | 1220 W | - | - | - | 3450/2821 W | 3450/2821 W | |
| Rated Current | - | 11 A | - | - | - | 15/13.5 A | 15.0/14.0 A | |
| Compressor | Type | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY | ROTARY |
| Rated Current (RLA) | 5.10 A | 5.10 A | 7.30 A | 4.18/3.85±3% A | 6.00/5.55±3% A | 4.18/3.85±3% A | 6.00/5.55±3% A | |
| Locked Rotor Amp (LRA) | 36 A | 36 A | 49 A | 28.5±10% A | 34.5±10% A | 28.5±10% A | 34.5±10% A | |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 | R32 | R32 | |
| Refrigerant Charge (oz) | 10.93 | 11.99 | 17.28 | 16.58 | 17.99 | 17.28 | 19.40 | |
| Indoor Air Flow (Hi/Mi/Lo) | 270.0/232.9/202.9 ft3/min | 258.8/227.1/192.4 ft3/min | 276.5/250.6/220.0 ft3/min | 274.7/259.4/237.1 ft3/min | 280.0/264.7/245.3 ft3/min | 273.5/251.8/230.6 ft3/min | 272.4/251.8/232.9 ft3/min | |
| Indoor Noise Level (Hi/Mi/Lo) | 55.6/52.4/49.5 dB(A) | 58.7/55.4/52 dB(A) | 59/56.8/55.3 dB(A) | 60.2/59/57.5 dB(A) | 60.5/59.5/58 dB(A) | 61.8/60/58 dB(A) | 62.3/61.2/59.8 dB(A) | |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | 532.9/497.1/452.9 ft3/min | 554.1/526.5/487.1 ft3/min | 451.2/408.8/366.5 ft3/min | 480.0/439.4/400.0 ft3/min | |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63.6/59.4/55.9 dB(A) | 63.5/59.7/55.9 dB(A) | 68.7/65.3/62 dB(A) | 68.3/66.7/63.9 dB(A) | 69.9/68/65.9 dB(A) | 65.4/63.2/61.1 dB(A) | 69.8/67.2/64.8 dB(A) | |
| Power Cord Length | 7.02 ft | 5.58 ft | 7.02 ft | 6.50 ft | 6.50 ft | 5.58 ft | 5.58 ft | |
| Control Type | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | Remote Control/ Smart Connect | |
| Operation Temp | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | 63-90/ - °F | |
| Outdoor (cooling/heating) | 64-109 °F | 64-109/23-75 °F | 64-109 °F | 64-109 °F | 64-109 °F | 64-109/23-75 °F | 64-109/23-75 °F | |
| Dimension (WxDxH) | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | 24.21x20.28x14.53 in | |
| Packing (WxDxH) | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | 27.95x26.57x16.93 in | |
| Net/Gross Weight | 65.48/77.16 lbs | 66.80/77.16 lbs | 74.96/87.52 lbs | 74.52/86.86 lbs | 75.40/87.74 lbs | 74.96/85.76 lbs | 77.38/87.74 lbs | |
Multiple Control Methods

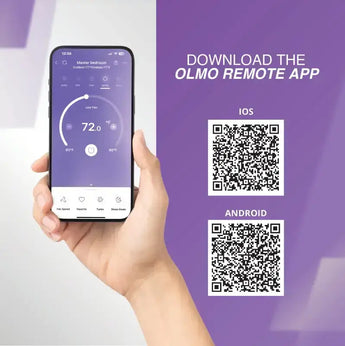

Olmo’s TTW Unit can be managed with a user-friendly remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a room size coverage of up to 350 sq ft, the 8,000 BTU Olmo Through-the-Wall Air Conditioner is an excellent choice. Its efficient design with a SEER rating of 21+ ensures optimal cooling performance for that space.
Can I install a mini split myself?
Yes, you can install the Olmo 8,000 BTU system yourself, especially if you opt for one of the installation kits available (16ft, 25ft, or 50ft). However, ensure you follow the installation guidelines carefully to maintain performance and warranty validity.
Does the mini split come pre-charged with refrigerant?
The Olmo Through-the-Wall Air Conditioner comes pre-charged with R32 refrigerant for line sets up to 25 ft. This feature simplifies the installation process, so you can get your cooling system up and running quickly.
What voltage does the Olmo mini split require?

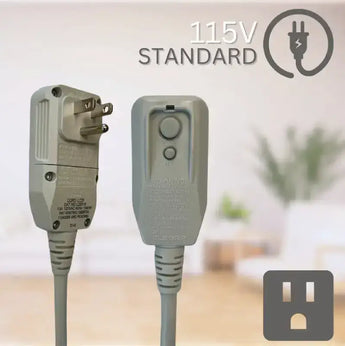

The Olmo 8,000 BTU unit operates on a standard 115V power supply, making it compatible with most residential electrical systems. Ensure your electrical setup meets this requirement for optimal performance.
What warranty does the Olmo air conditioner offer?
Olmo provides a 5-year parts and compressor warranty on their 8,000 BTU unit, giving you peace of mind regarding your investment. This warranty covers any manufacturing defects and ensures reliable operation.
What is the SEER rating of the Olmo mini split and why is it important?
The Olmo Through-the-Wall Air Conditioner boasts a SEER rating of 21+, indicating high energy efficiency. A higher SEER rating means lower energy costs over time, making it a smart choice for cooling your space.
