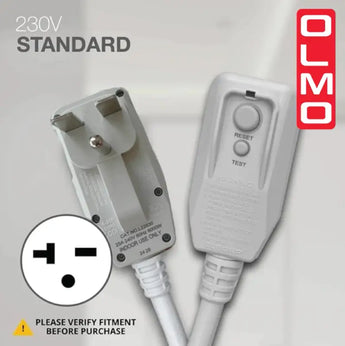

9,000 BTU PTAC OLMO Air Conditioner, Heat Strip, Heating And Cooling w/Electric Cord and Remote
OLMO1-Yr Warranty
Product specifications
| Brand | |
|---|---|
| Voltage | |
| EER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup currently unavailable at 3550 Northwest 113th Court
PTAC

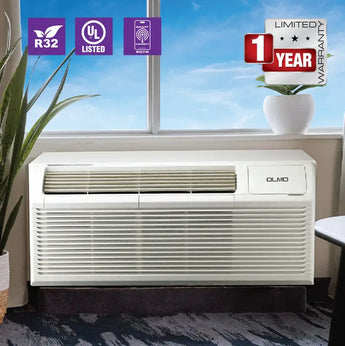

Experience year-round comfort with OLMO's PTAC Units—designed for efficiency, reliability, and modern convenience. Perfect for residential, hospitality, or commercial spaces, these compact units offer powerful heating and cooling solutions.
Upgrade your space today with OLMO, where innovative technology meets dependable performance!
Warranty and Tech Support Info
By selecting OLMO products for your home or business, you’ll receive expert technical support from heating and cooling specialist, including access to product manuals, troubleshooting guides and warranty information.
The manufacturer provides a Limited Warranty of 1 year for the compressor and 1 year for parts.
Warranty terms
Main Features

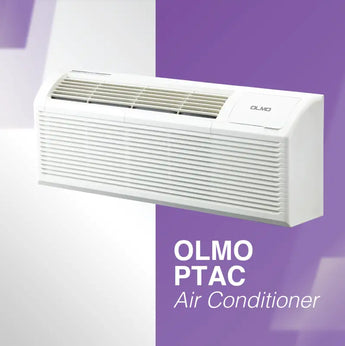

OLMO's PTAC (Packaged Terminal Air Conditioner) units deliver efficient heating and cooling for residential, commercial, and hospitality spaces. Equipped with smart features like remote control, dual fan speeds, and auto-restart, they ensure year-round comfort. Compact and energy-efficient, these units are ideal for spaces where central HVAC systems aren't practical.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Model | OS-MBW-09HS | OS-MBW-12HS | OS-MBW-15HS | |
|---|---|---|---|---|
| Power Supply | 208-230V-1Ph-60 | 208-230V-1Ph-60 | 208-230V-1Ph-60 | |
| Cooling | Capacity | 9200/9000 Btu/h | 12000/11800 Btu/h | 14700/14500 Btu/h |
| Input | 790/780 W | 1080/1060 W | 1390/1370 W | |
| Current | 4.3/4.9 A | 5.5/6.1 A | 7.5/8.9 A | |
| EER2 | 11.3 W/W | 10.7 W/W | 10.6 W/W | |

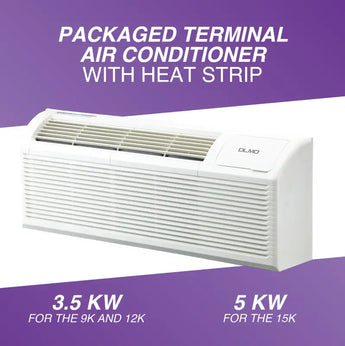

| Heating (Heat Strip) | Rated Capacity | 10900/8900 Btu/h | 10900/8900 Btu/h | 15000/12200 Btu/h |
| Rated Input (Heater) | 3.5 W | 3.5 W | 5 W | |
| Rated Current | 15.3/13.7 A | 14.96/13.7 A | 22.3/20.1 A | |
| Refrigerant Type | R32 | R32 | R32 | |
| Indoor Air Flow (Hi/Mi/Lo) | 430.0/342.3 ft3/min | 431.1/348.2 ft3/min | 430.0/349.4 ft3/min | |
| Indoor Noise Level (Hi/Mi/Lo) | 50/49.5 dB(A) | 52/51.5 dB(A) | 51/50.5 dB(A) | |
| Outdoor Air Flow (Hi/Med/Lo) | 467.7/394.1/333.5 ft3/min | 424.7/360.6/296.5 ft3/min | 544.1/485.3/424.1 ft3/min | |
| Outdoor Side Noise Level (Hi/Med/Lo) | 63 dB(A) | 67 dB(A) | 65 dB(A) | |
| Design Pressure (Lo/Hi) | 300/580 PSI | 300/580 PSI | 300/580 PSI | |
| Indoor Operation Temp | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F | 63°F-90°F/32°F-80°F | |
| Outdoor Operation Temp | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F | 64°F-109°F/41°F-75°F | |
| Dimension (WxDxH) | 42x21x16 in | 42x21x16 in | 42x21x16 in | |
| Packing (WxDxH) | 44.5x25x19.3 in | 44.5x25x19.3 in | 44.5x25x19.3 in | |
| Net/Gross Weight | 97.0/105.8 lbs | 103.6/112.4 lbs | 105.8/114.6 lbs | |
Multiple Control Methods

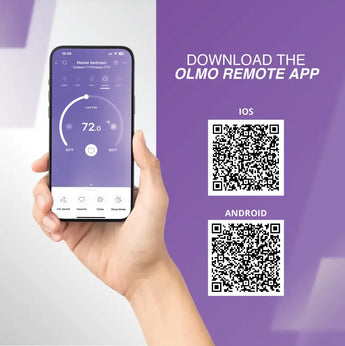

Olmo’s PTAC Unit can be managed with a user-friendly remote control or the optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a space up to 350 sq ft, the 9,000 BTU Olmo PTAC air conditioner is an excellent choice. This unit provides efficient heating and cooling, making it suitable for small to medium-sized rooms.
Can I install a mini split myself?
Yes, you can install the Olmo 9,000 BTU PTAC air conditioner yourself, especially if you select one of the installation kits available, such as the 16ft option. However, ensure you are familiar with electrical work as this unit operates on 230V.
Does the mini split come pre-charged with refrigerant?
The Olmo 9,000 BTU PTAC air conditioner comes pre-charged with R32 refrigerant for up to 25 ft of line set. This allows for a more straightforward installation process, as you won't need to add refrigerant during setup.
What warranty does the Olmo PTAC offer?
The Olmo 9,000 BTU PTAC air conditioner is backed by a 5-year parts and compressor warranty. This warranty provides peace of mind for your investment in this efficient heating and cooling solution.
What is the SEER rating of the Olmo mini split?
The Olmo 9,000 BTU PTAC air conditioner boasts an impressive SEER rating of 21+, ensuring high energy efficiency. This rating means significant savings on your energy bills while maintaining comfortable indoor temperatures.
What refrigerant does the Olmo PTAC use?
The Olmo 9,000 BTU PTAC air conditioner utilizes R32 refrigerant, which is known for its lower environmental impact and improved energy efficiency. This makes it a modern choice for both heating and cooling needs.
