Cooper & Hunter 9,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and Remote
Cooper & Hunter
Product specifications
| Brand | |
|---|---|
| Voltage | |
| EER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

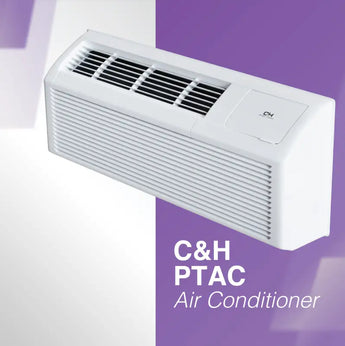

PTAC
Cooper&Hunter's PTAC (Packaged Terminal Air Conditioner) units offers a perfect blend of efficiency, reliability, and performance, ideal for a variety of commercial and residential applications. Whether you're outfitting a hotel room, office, or multi-family building, Cooper&Hunter's PTAC units provides powerful heating and cooling solutions, ensuring year-round comfort. Designed for easy installation, user-friendly operation, and minimal maintenance, these units are engineered to deliver consistent climate control with energy-efficient features that help reduce operational costs. With sleek, modern designs and advanced technology, Cooper&Hunter PTACs are the smart choice for dependable, affordable comfort.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Cooper&Hunter PTAC Unit delivers reliable heating and cooling for commercial and residential spaces. Featuring quiet operation, energy-efficient technology, and a sleek design, they ensure comfort year-round. These units include automatic defrost, washable filters, and easy installation, along with intuitive controls for user convenience. Ideal for hotels, apartments, and offices, they offer low maintenance and improved air quality.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Model | CH-PTW-09HPGF | CH-PTW-12HPGF | CH-PTW-HE15HP | |
|---|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | Rated Capacity | 9,300/9,200 Btu/h | 12,000/11,800 Btu/h | 14,700/14,500 Btu/h |
| Input | 820/810 W | 1,040/1,020 W | 1,390/1,370 W | |
| Current | 4.2/4.6 A | 5.3/5.8 A | 6.5/7.4 A | |
| EER2 | 11.4 W/W | 10.5 W/W | 10.6 W/W | |
| Heating (PTC) | Capacity | 10,900/8,900 Btu/h | 10,900/8,900 Btu/h | 10,900/8,900 Btu/h |
| Input(Heater) | 3,500/2,897 W | 3,500/2,897 W | 3,500/2,897 W | |
| Current | 15.3/13.7 A | 15.3/13.7 A | 15.3/13.7 A | |
| Heating (Heat pump) | Capacity | 8,100/7,900 Btu/h | 10,800/10,500 Btu/h | 13,500/13,200 Btu/h |
| Input | 720/690 W | 890/850 W | 1,170/1,120 W | |
| Current | 3.9/4.3 A | 5.0/5.3 A | 6.0/6.4 A | |
| COP | 3.4 W/W | 3.2 W/W | 3.2 W/W | |
| Indoor Air Flow (Hi/Lo) | 362.9/300 CMF | 438/344 CMF | 416/330 CMF | |
| Indoor Noise Level (Hi/Lo) | 50/49.5 dB(A) | 52/51.5 dB(A) | 53/52.5 dB(A) | |
| Outdoor Noise Level (Hi) | 64 dB(A) | 67 dB(A) | 67 dB(A) | |
| Refrigerant Type | R32 | R32 | R32 | |
| Design Pressure (Lo/Hi) | 15.17 oz | 26.81 oz | 31.75 oz | |
| OperationTemp | 540/300 psi | 540/300 psi | 540/300 psi | |
| Indoor (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F | |
| Outdoor (Cooling/Heating) | 64-109 / 23-76 °F | 64-109 / 23-76 °F | 64-109 / 23-76 °F | |
| Dimension (WxDxH) | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | |
| Packing (WxDxH) | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | |
| Net/Gross Weight | 99.21 / 108.03 lbs | 110.23 / 119.05 lbs | 113.54 / 122.36 lbs | |
Multiple Control Methods

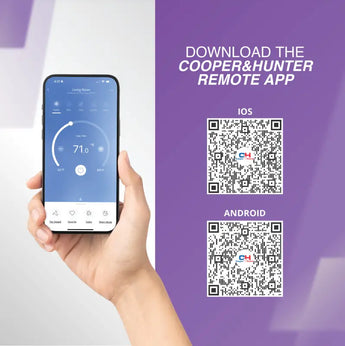

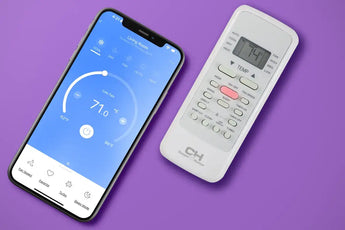

Cooper&Hunter’s PTAC unit can be managed with a user-friendly remote control, Cooper&Hunter wall thermostat or the optional phone application. These options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my space?
For coverage of up to 350 sq ft, the Cooper & Hunter 9,000 BTU PTAC Air Conditioner is an ideal choice. This capacity is suitable for small to medium-sized rooms, ensuring efficient heating and cooling.
How much does a mini split system cost?
The price of the Cooper & Hunter 9,000 BTU PTAC Air Conditioner can vary based on installation options, such as the choice of a 16ft, 25ft, or 50ft installation kit. Generally, you can expect to invest in a system that balances efficiency and performance with its 21+ SEER rating.
Can I install a mini split myself?

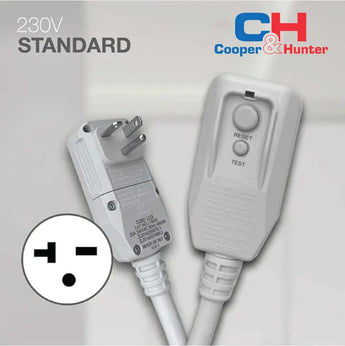

While the Cooper & Hunter 9,000 BTU PTAC Air Conditioner can be installed by a DIY enthusiast, proper knowledge of HVAC systems is essential. Ensure you follow installation guidelines, especially since it requires a 230V electrical connection.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 9,000 BTU PTAC Air Conditioner is pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies installation, but it's crucial to check refrigerant levels if extending beyond that distance.
What warranty does the Cooper & Hunter offer?
The Cooper & Hunter 9,000 BTU PTAC Air Conditioner comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of purchase. This warranty ensures peace of mind for your investment.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter 9,000 BTU PTAC Air Conditioner boasts a SEER rating of 21+, which exceeds the minimum efficiency requirements for most regions. Choosing a unit with such a high rating will help reduce energy costs and improve comfort.
