Cooper & Hunter 12,000 BTU PTAC Air Conditioner, Heat Pump, Heating and Cooling, w/Electric Cord and Remote
Cooper & Hunter
Product specifications
| Brand | |
|---|---|
| Voltage | |
| EER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

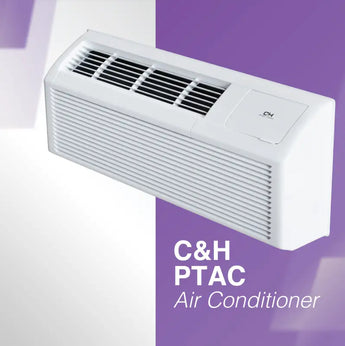

PTAC
Cooper&Hunter's PTAC (Packaged Terminal Air Conditioner) units offers a perfect blend of efficiency, reliability, and performance, ideal for a variety of commercial and residential applications. Whether you're outfitting a hotel room, office, or multi-family building, Cooper&Hunter's PTAC units provides powerful heating and cooling solutions, ensuring year-round comfort. Designed for easy installation, user-friendly operation, and minimal maintenance, these units are engineered to deliver consistent climate control with energy-efficient features that help reduce operational costs. With sleek, modern designs and advanced technology, Cooper&Hunter PTACs are the smart choice for dependable, affordable comfort.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Main Features
Cooper&Hunter PTAC Unit delivers reliable heating and cooling for commercial and residential spaces. Featuring quiet operation, energy-efficient technology, and a sleek design, they ensure comfort year-round. These units include automatic defrost, washable filters, and easy installation, along with intuitive controls for user convenience. Ideal for hotels, apartments, and offices, they offer low maintenance and improved air quality.
All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
| Model | CH-PTW-09HPGF | CH-PTW-12HPGF | CH-PTW-HE15HP | |
|---|---|---|---|---|
| Power Supply | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Cooling | Rated Capacity | 9,300/9,200 Btu/h | 12,000/11,800 Btu/h | 14,700/14,500 Btu/h |
| Input | 820/810 W | 1,040/1,020 W | 1,390/1,370 W | |
| Current | 4.2/4.6 A | 5.3/5.8 A | 6.5/7.4 A | |
| EER2 | 11.4 W/W | 10.5 W/W | 10.6 W/W | |
| Heating (PTC) | Capacity | 10,900/8,900 Btu/h | 10,900/8,900 Btu/h | 10,900/8,900 Btu/h |
| Input(Heater) | 3,500/2,897 W | 3,500/2,897 W | 3,500/2,897 W | |
| Current | 15.3/13.7 A | 15.3/13.7 A | 15.3/13.7 A | |
| Heating (Heat pump) | Capacity | 8,100/7,900 Btu/h | 10,800/10,500 Btu/h | 13,500/13,200 Btu/h |
| Input | 720/690 W | 890/850 W | 1,170/1,120 W | |
| Current | 3.9/4.3 A | 5.0/5.3 A | 6.0/6.4 A | |
| COP | 3.4 W/W | 3.2 W/W | 3.2 W/W | |
| Indoor Air Flow (Hi/Lo) | 362.9/300 CMF | 438/344 CMF | 416/330 CMF | |
| Indoor Noise Level (Hi/Lo) | 50/49.5 dB(A) | 52/51.5 dB(A) | 53/52.5 dB(A) | |
| Outdoor Noise Level (Hi) | 64 dB(A) | 67 dB(A) | 67 dB(A) | |
| Refrigerant Type | R32 | R32 | R32 | |
| Design Pressure (Lo/Hi) | 15.17 oz | 26.81 oz | 31.75 oz | |
| OperationTemp | 540/300 psi | 540/300 psi | 540/300 psi | |
| Indoor (Cooling/Heating) | 62-90 / 32-80 °F | 62-90 / 32-80 °F | 62-90 / 32-80 °F | |
| Outdoor (Cooling/Heating) | 64-109 / 23-76 °F | 64-109 / 23-76 °F | 64-109 / 23-76 °F | |
| Dimension (WxDxH) | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | 42.01x20.91x15.98 in | |
| Packing (WxDxH) | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | 44.49x24.61x19.29 in | |
| Net/Gross Weight | 99.21 / 108.03 lbs | 110.23 / 119.05 lbs | 113.54 / 122.36 lbs | |

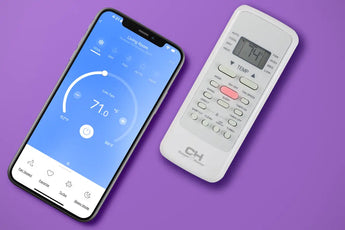

Multiple Control Methods
Cooper&Hunter’s PTAC unit can be managed with a user-friendly remote control, Cooper&Hunter wall thermostat or the optional phone application. These options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
What size mini split do I need for my room?
For a room size of up to 550 sq ft, the Cooper & Hunter 12,000 BTU PTAC Air Conditioner is ideal. It's designed to efficiently cool and heat spaces of this size, making it a great choice for single-zone applications.
Can I install a mini split myself?
While DIY installation is possible, it's recommended to hire a professional for optimal results. The Cooper & Hunter 12,000 BTU model comes with installation kit options of up to 50 ft, providing flexibility for your setup.
Does the mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 12,000 BTU PTAC Air Conditioner is pre-charged with R32 refrigerant for up to 25 ft of line set. This ensures quick and efficient operation right after installation.

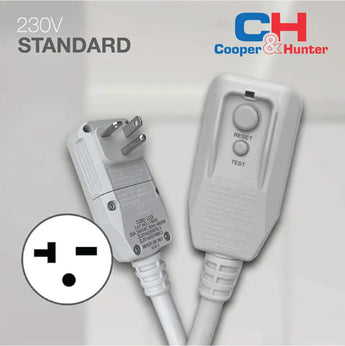

What voltage does the Cooper & Hunter mini split require?
The Cooper & Hunter 12,000 BTU PTAC unit operates on 230V, making it suitable for most residential applications. Ensure your electrical system can accommodate this voltage before installation.
What warranty does Cooper & Hunter offer on this model?
The Cooper & Hunter 12,000 BTU PTAC Air Conditioner comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register within 30 days of purchase. This gives you peace of mind with your investment.
What SEER rating do I need for energy efficiency?
The Cooper & Hunter model boasts a SEER rating of 21+, which is excellent for energy efficiency. A higher SEER rating means lower energy bills, making this unit a smart choice for both heating and cooling.
