Cooper & Hunter 60,000 BTU Single Zone Light Commercial Slim Duct, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump | No Kit
Cooper & Hunter
Product specifications
| Brand | |
|---|---|
| Voltage | |
| SEER | |
| WiFi | |
| Zone | |
| Type | |
| Freon | |
| Compressor |
Pickup available at 3550 Northwest 113th Court
Usually ready in 2-4 days

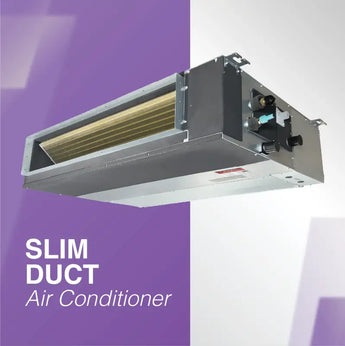

Concealed Duct
Cooper&Hunter's Slim Duct Units offer a discreet and efficient climate control solution for residential and commercial spaces. With capacities ranging from 9,000 to 60,000 BTU and SEER2 ratings up to 20.2, these units ensure energy-efficient performance.
Their slim design allows for concealed installation in ceilings or walls, maintaining a sleek interior. Equipped with advanced inverter technology, quiet operation, and optional Wi-Fi control, Slim Duct Units provide reliable, customizable comfort while blending seamlessly into any space.
Perfect for single or multi-zone systems, they deliver powerful performance with minimal ductwork.
Warranty and Tech Support Info
By selecting Cooper&Hunter products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.
Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.
Warranty terms
Energy Efficiency
Cooper&Hunter’s Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.
Main Features
Cooper&Hunter's Slim Duct Units feature inverter technology, ultra-quiet operation, flexible ducting, and optional Wi-Fi control, their slim design allows concealed installation, ensuring powerful performance, energy efficiency, and a seamless fit for any space.

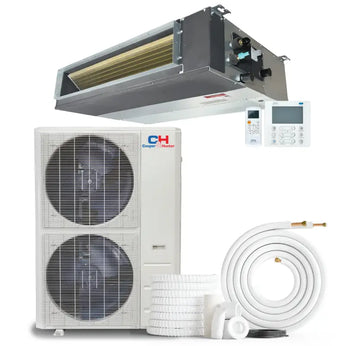

All Accessories Included
With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.
Technical Specifications
Indoor and Outdoor Hyper
| Indoor Model | CH-RS06MDT-MS CH-RS06-12MDT-MS (Dip Switch 6) |
CH-RS09MDT-MS CH-RS06-12MDT-MS (Dip Switch 9) |
CH-RS12MDT-MS CH-RS06-12MDT-MS (Dip Switch 12) |
CH-RS18MDT-MS | CH-RS24MDT-HS | CH-RS36CLCDT-HS | CH-RS48CLCDT-HS | CH-RS60CLCDT-HS |
|---|---|---|---|---|---|---|---|---|
| Power Supply | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Rated Capacity | 6,500/8,000 | 9,000/10,000 | 12,000/12,500 | 17,000/19,000 | 24,000/26,000 | 36,000/42,000 | 48,000/52,000 | 55,000/60,000 |
| Minimum Circuit Ampacity (MCA) | 3 | 3 | 3 | 3 | 3 | 4 | 5 | 5 |
| Max. Fuse | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM | 323.7/264.9/206.0/147.2/117.7 | 323.7/264.9/206.0/147.2/117.7 | 400.2/323.7/264.9/176.6/117.7 | 600.4/559.2/500.3/441.4/NA | 853.5/706.3/618.0/500.3/NA | 1236.1/1059.5/941.8/766.5/NA | 1648.1/1471.5/1294.9/1059.5/NA | 2001.2/1706.9/1412.6/1118.3/NA |
| Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) | NA/32.5/30.5/29.5/22 | NA/32.5/31/29.5/23 | NA/36/34.5/32.5/25.5 | NA/40/39/38/32 | NA/40/37/35/29.5 | NA/45/40/34/31 | NA/51/46/42/40 | NA/52/48/42/41 |
| Dimension (WxDxH) inch | 27.56 x 19.92 x 7.87 | 27.56 x 19.92 x 7.87 | 27.56 x 19.92 x 7.87 | 34.65 x 26.54 x 8.27 | 39.37 x 29.53 x 9.65 | 47.24 x 29.53 x 11.81 | 47.24 x 29.53 x 11.81 | 55.12 x 31.50 x 14.96 |
| Packing (WxDxH) inch | 33.86 x 21.26 x 11.22 | 33.86 x 21.26 x 11.22 | 33.86 x 21.26 x 11.22 | 42.13 x 28.54 x 11.02 | 48.23 x 33.86 x 11.97 | 56.10 x 33.86 x 14.13 | 56.10 x 33.86 x 14.13 | 62.99 x 36.02 x 17.52 |
| Net/Gross Weight lbs. | 39.46/46.74 | 39.46/46.74 | 39.46/46.74 | 54.45/66.14 | 80.47/91.93 | 106.26/120.37 | 111.33/124.78 | 161.38/178.13 |
| Room Temperature Cooling °F | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
| Room Temperature Heating °F | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 |
| Liquid Side/Gas Side inch | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/3/4" | 3/8"/3/4" | 3/8"/3/4" |

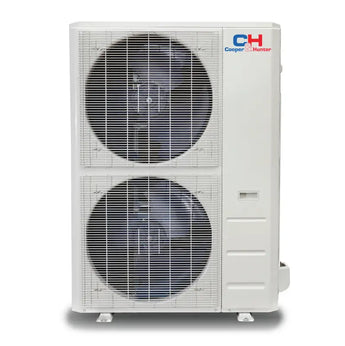

| Outdoor Model | CH-RHP06F9-230VO | CH-RHP09-230VO | CH-RHP12-230VO | CH-RHP18-230VO | CH-RHP24-230VO | CH-RHP36CLU-230VO | CH-RHP48CLU-230VO | CH-RHP60CLU-230VO |
|---|---|---|---|---|---|---|---|---|
| Power Supply Rated |
208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 | 208/230,1, 60 |
| Voltage Range | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 |
| Rated Capacity Range Cooling (Btu/h) |
3,300~11,800 | 3,400~13,500 | 3,400~13,500 | 6,500~18,800 | 5,000~28,000 | 9,800~37,000 | 11,000~55,500 | 14,200~60,100 |
| Rated Current Cooling (A) |
4.8 | 4.8 | 4.6 | 9.1 | 8.8 | 13.5 | 19.9 | 23.5 |
| EER2 (Btu/h) | 11.4 | 11.4 | 12.0 | 12.0 | 12.0 | 12.0 | 10.4 | 10.2 |
| SEER2 (Btu/h) | 21.4 | 21.4 | 21.4 | 19.0 | 15.8 | 17.7 | 15.8 | 15.8 |
| Rated Capacity Range Heating at 47°F (Btu/h) |
3,700~13,100 | 3,800~16,200 | 3,800~16,200 | 8,900~22,000 | 7,300~31,400 | 11,000~45,500 | 11,200~60,000 | 11,200~66,000 |
| Rated Current Heating (A) |
4.5 | 5.0 | 5.0 | 10.5 | 8.8 | 14.1 | 19.0 | 20.9 |
| COP (W/W) | 3.53 | 3.39 | 3.37 | 3.37 | 3.37 | 3.80 | 3.60 | 3.74 |
| HSPF4 | 13.8 | 10.8 | 10.5 | 11.7 | 9.0 | 11.1 | 10.8 | 10.4 |
| HSPF5 | 10.8 | 9.7 | 8.0 | 9.0 | 9.3 | 9.2 | 8.8 | 8.7 |
| Minimum Circuit Ampacity (A) | 12.0 | 15.0 | 15.0 | 19.0 | 24.9 | 38.0 | 44.0 | 44.0 |
| Max.Fuse (Outdoor Unit) (A) | 15.0 | 15.0 | 15.0 | 20.0 | 25.0 | 40.0 | 45.0 | 45.0 |
| Outdoor Air Flow (Max.) (CFM) | 1,236.1 | 1,471.5 | 1,471.5 | 1,765.8 | 2,236.7 | 3,001.9 | 4,237.9 | 4,237.9 |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 54.0 | 56.0 | 56.0 | 59.0 | 61.0 | 65.0 | 65.0 | 63.0 |
| Dimension (WxDxH) inch | 30.12 x 11.99 x 21.85 | 31.69 x 12.99 x 21.81 | 31.69 x 12.99 x 21.81 | 35.04 x 13.46 x 26.50 | 37.24 x 16.14 x 31.89 | 38.58 x 16.34 x 38.39 | 37.48 x 16.34 x 52.48 | 37.48 x 16.34 x 52.48 |
| Packing (WxDxH) inch | 34.92 x 13.27 x 24.02 | 36.02 x 14.57 x 24.21 | 36.02 x 14.57 x 24.21 | 39.17 x 15.67 x 28.13 | 42.91 x 19.68 x 34.84 | 45.08 x 19.68 x 42.52 | 43.11 x 19.49 x 57.48 | 43.11 x 19.49 x 58.27 |
| Net/Gross Weight (lbs.) | 62.17/67.68 | 72.75/78.70 | 72.75/78.70 | 99.87/107.80 | 130.29/141.31 | 206.57/237.44 | 208.78/239.86 | 230.38/261.69 |
| Refrigerant Type / Charge (oz.) | R454B / 35.27 | R454B / 35.27 | R454B / 35.27 | R454B / 55.38 | R454B / 63.49 | R454B / 126.99 | R454B / 126.99 | R454B / 151.68 |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Additional Charge for Each ft. (oz/ft) | 0.16 | 0.16 | 0.16 | 0.16 | 0.32 | 0.32 | 0.32 | 0.32 |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 1/4"/3/8" | 1/4"/3/8" | 1/4"/3/8" | 1/4"/1/2" | 3/8"/5/8" | 3/8"/3/4" | 3/8"/3/4" | 3/8"/3/4" |
| Max. Pipe Length (ft.) | 82.0 | 82.0 | 82.0 | 98.40 | 164.0 | 246.0 | 246.0 | 246.0 |
| Max. Difference in Level (ft.) | 32.8 | 32.8 | 32.8 | 65.60 | 82.00 | 98.40 | 98.40 | 98.40 |
| Ambient Temperature Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 |
| Ambient Temperature Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 |
| Certifications ETL | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications AHRI | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications Energy Star | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Certifications NEEP | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
Multiple Control Methods
Cooper&Hunter’s Slim Duct Unit can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
Frequently Asked Questions
How many rooms can the Cooper & Hunter 60,000 BTU mini split cool?
The Cooper & Hunter 60,000 BTU Single Zone Light Commercial Slim Duct mini split can effectively cover up to 2,500 square feet, making it suitable for multiple rooms depending on their size and layout.
Can I mix BTU sizes when installing a mini split system?
While you can mix BTU sizes in a multi-zone setup, it's essential to ensure that the total BTU does not exceed the capacity of the outdoor unit, such as the Cooper & Hunter's 60,000 BTU model which operates efficiently at a SEER rating of 18.0.
Do all zones run simultaneously in a multi-zone mini split system?
In a multi-zone system, such as those offered by Cooper & Hunter, zones can be controlled independently, allowing you to heat or cool different areas without all zones running at the same time.
What is the efficiency advantage of using a Cooper & Hunter mini split vs multiple single-zone units?
Using the Cooper & Hunter 60,000 BTU mini split, which boasts an 18.0 SEER rating, can be more energy-efficient compared to several single-zone units, as it minimizes energy loss and optimizes performance across larger spaces.
What warranty does the Cooper & Hunter mini split offer?
The Cooper & Hunter mini split system comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase.
Does the Cooper & Hunter mini split come pre-charged with refrigerant?
Yes, the Cooper & Hunter 60,000 BTU mini split is pre-charged with R454B refrigerant for up to 25 ft of line set, allowing for a straightforward installation process.
