Cooper & Hunter Hyper Heat 12,000 BTU Single Zone Wall Mount, 230V, R410A - Ductless Mini Split Air Conditioner Heat Pump | No Kit

Cooper & Hunter7-Yr Warranty923 shoppers interested

CH-HYP12-230VO12OLV
Product specifications
Brand Cooper & Hunter
Voltage 230V
SEER 21
WiFi Included
Zone Single Zone
Type Wall Mount
Freon R410A
Compressor Inverter
$816.00 $612.00 Save 25% Sold out
Shipping Policy calculated at checkout.
Installation Kit: NO INSTALLATION KIT
FREE Delivery
Out of stock right now We email you the ship date as soon as it lands. For the next arrival call (855) 775-4822.

Please note that all delivery dates and estimated transit times are approximate and are not guaranteed. Delivery times may vary due to carrier delays, weather, holidays, peak shipping periods, or other circumstances beyond our control. How delivery dates are calculated

Pickup currently unavailable at Medley Warehouse

Questions about this system?

Answers in seconds — tap a question below

  • Sized for about 300–500 sq ft. Rule of thumb: ~20 BTU per sq ft, and 12,000 BTU = 1 ton (this unit is 12,000 BTU (1-ton)). Ceiling height, insulation, sun and climate shift that — if you're between sizes, size up for hot/humid rooms. Not sure? We'll confirm the right BTU for your space.
  • 12,000 BTU = 1 ton — "tons" is just the older way of stating capacity. So 24,000 BTU = 2 tons, 36,000 = 3 tons, and so on. This system is 12,000 BTU (1-ton). BTU tells you the capacity; SEER2 tells you the efficiency.
  • It uses R410A — a proven, widely serviced refrigerant. The outdoor unit ships pre-charged for a standard line set, so most installs need no extra refrigerant; your licensed, EPA-608-certified installer verifies the charge and tops it off if your line set is longer.
  • Rated SEER2 21.0 — a strong efficiency number, and the higher it is the lower your energy bills. Its inverter compressor ramps up and down instead of cycling on/off, so it holds the temperature steadily, runs quietly, and uses less power than a standard AC or window unit.
  • Needs a dedicated 230V circuit, like a large household appliance, so it can deliver full capacity to larger rooms and multi-zone setups. Your licensed HVAC installer or electrician sets up the correct breaker and disconnect to meet local electrical code.
  • Yes — a big upgrade. It's far more efficient (inverter, SEER2 21.0) and much quieter, since the compressor sits outside instead of in your window or on the floor. It mounts permanently, doesn't block a window, and heats as well as cools year-round. Higher upfront cost, but lower bills and a longer lifespan.
  • Yes to all three. It's an inverter heat pump — cools in summer, heats in winter (even in the cold), far more efficiently than electric heaters. A Dry mode also pulls out humidity, so rooms feel cooler and less muggy.
  • Yes — WiFi is included, so you can set schedules, change the temperature, and even turn it on before you get home, all from the mobile app (and pair it with voice assistants). A standard remote is included too.
  • Ships as a complete set: CH-HYP12SPH230VO, CH-12MOLVWM-230VI. Everything arrives together — check the photos and specs for the full kit.
  • It should be installed by a licensed, EPA-608-certified HVAC professional — we don't recommend DIY installation. Handling refrigerant requires EPA Section 608 certification under U.S. law, and professional installation keeps the system safe, code-compliant, and your manufacturer warranty valid.
  • Yes — you get full inverter heat-pump technology and the same core features as premium brands without paying for the name, which is how we keep prices low. Shipping is free on U.S. orders over $300, and our team can help with sizing and support.
Hurry to buy! Get your mini-split system with R-410A refrigerant (offer valid until November 27)
Important info
  • R-410A is being phased down in favor of newer refrigerants; inventory is limited.
  • Existing R-410A systems remain serviceable; parts and qualified service are widely available.
  • Check local codes and rebates. Some incentives prioritize high-efficiency heat pumps (R-32/R-454B).
  • We stock both R-410A and next-gen options—choose what fits your timeline and budget.
Best brands with the best deals

Why buy this mini split from MiniSplitsForLess

  • Free Shipping over $300Ships free to the lower 48 states — flat rate, no surprises at checkout.
  • USA-Based Expert SupportReal U.S. HVAC pros help with BTU sizing, refrigerant and install questions.
  • Genuine Units & Full WarrantyBrand-new, authorized-dealer equipment backed by the full manufacturer warranty.
  • Fast Nationwide ShippingIn stock and ready to ship from U.S. warehouses across all 48 states.

What Stands Out

Sleek Wall-Mount Design

A slim, quiet indoor head mounts high on the wall and delivers 12000 BTU of Olivia-series heating & cooling — modern looks with whisper-quiet operation.

Inverter Efficiency — SEER2 21

A variable-speed inverter compressor ramps to match the load instead of cycling on/off, holding SEER2 21 on 230V — steady comfort with noticeably lower energy bills.

Right-Sized Coverage

Engineered to heat & cool up to 300–500 sq ft — matched capacity so you never over- or under-size the space.

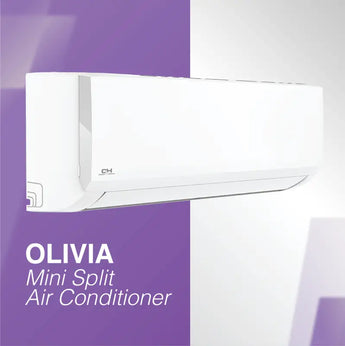

Olivia Wall Mount

The Cooper&Hunter Olivia Unit mini splits AC blends contemporary design with high-performance heating and cooling. Its sleek, modern appearance complements any space while providing efficient climate control for year-round comfort.

Featuring quiet operation, energy-saving technology, and advanced air filtration, it enhances indoor air quality. The unit mini splits AC is ideal for residential and light commercial applications, offering easy installation, minimal maintenance, and reliable performance.

Whether you're looking to cool or heat your space, the Olivia Midnight delivers optimal comfort with style and efficiency, making it a perfect choice for those seeking both function and elegance in their climate control solutions.

White air conditioner with purple shield logo and ’olivia’ text.

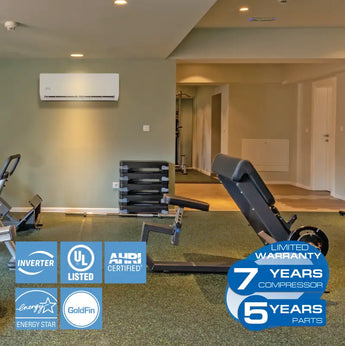

Warranty and Tech Support Info

By selecting Cooper&Hunter mini splits AC products for your home or business, you’ll receive expert technical support from heating and cooling specialists, including product manuals, troubleshooting guides, and warranty information.

Warranty terms: The manufacturer provides a Limited Warranty of 7 years for the compressor and 5 years for parts.

Warranty terms
White air conditioning unit with black fan and copper tubing design.

Energy Efficiency

Cooper&Hunter’s mini split AC Inverter Technology maximizes efficiency and reduces energy costs by adjusting the compressor speed to your specific needs. Experience unparalleled comfort, quieter operation, and longer equipment lifespan. Choose Cooper&Hunter for cutting-edge HVAC solutions that deliver optimal performance and reliability.

White leather sectional sofa with modern design and clean lines.

Main Features

Cooper&Hunter's Olivia Units mini split AC feature sleek, modern design with efficient heating and cooling capabilities. They offer quiet operation, energy-saving technology, and advanced air filtration for improved indoor air quality. Ideal for residential and light commercial use, these units provide easy installation, minimal maintenance, and reliable year-round comfort.

All Accessories Included

With your purchase mini split AC, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

Indoor Unit Specs

Indoor Unit Specs — CH-12MOLVWM-230VI
ModelCH-12MOLVWM-230VI
Unit Dimensions (WxDxH)31.57x7.87x11.61 in
Net/Gross Weight18.74/24.25 lb
Packing Dimensions (WxDxH)34.45x11.22x14.96 in
Power Supply208-230V, 1Ph, 60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity3 A
Copper Line Size (Liquid/Gas)1/4" - 1/2''
Noise Level (Hi/Med/Lo)41.5/36/24 dB
Airflow (Turbo/Hi/Mi/Lo)341.18/291.18/194.12/152.94 CFM
Dehumidification3.06 pt/h
Drain Pipe Diameter5/8"
ControllerRG10K-exclusive remote

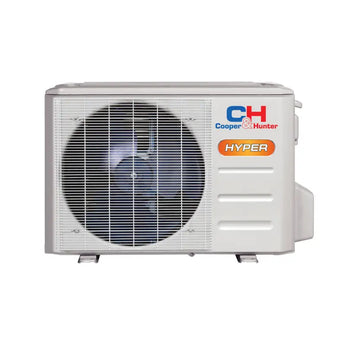

Outdoor Unit Specs

Outdoor Unit Specs — CH-HYP12SPH230VO
ModelCH-HYP12SPH230VO
Unit Dimensions (WxDxH)31.5x13.11x21.81 in
Net/Gross Weight88.18/93.7 lb
Power Supply208-230V,1Ph,60Hz
Maximum Fuse Size15 A
Min. Circuit Ampacity9 A
Noise Level56 dB
Airflow1177 CFM

System Specs

System Specs
Cooling Capacity 12,000 BTU
SEER2 21
Zones 1
Voltage 230V
Refrigerant Type R410A
Compressor Inverter
WiFi Included
Heating Capacity12000 BTU/h
Cooling Capacity Range12000 BTU/h

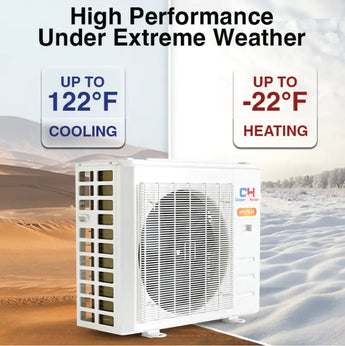

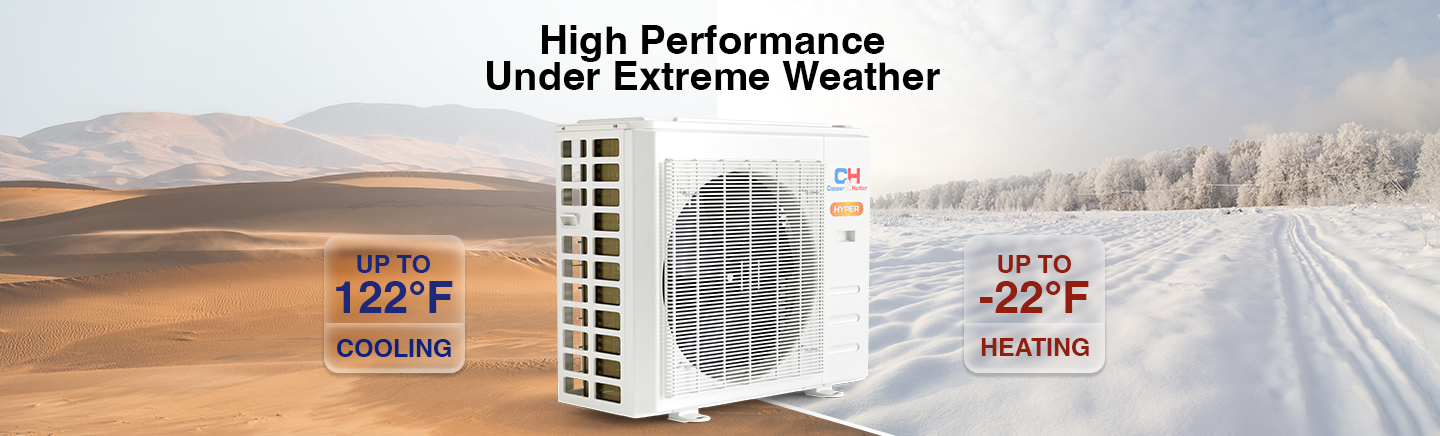

Operating Range (Cooling)-22~122 °F
Operating Range (Heating)-22~86 °F
Refrigerant Precharge52.9 ft
Max Height Difference33 ft

Series Comparison Table

Technical specifications for every model in the Hyper Heat series — this product is one of them.

INDOOR MODELS HYPER

Indoor Model CH-06MOLVWM-230WI CH-09MOLVWM-230WI CH-12MOLVWM-230WI CH-18MOLVWM-230WI CH-24MOLVWM-230WI
Power Supply Rated (V, Ph, Hz) 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity (Btu/h) 6,000 9,000 12,000 18,000 24,000
Minimum Circuit Ampacity (MCA) (A) 3 3 3 3 3
Max. Fuse (A) 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) 294/247/176/141 341/291/194/152 341/291/194/152 768/530/458/382 790/601/459/382
Indoor Noise Level (Hi/Mi/Lo) dB(A) 38.5/30/20.5 40/35/23.5 41.5/36/24 46/40/25 46.5/44/35
Dimension (WxDxH) (inch) 28.70x7.87x11.30 31.57x7.87x11.61 31.57x7.87x11.61 42.64x9.61x13.23 42.68x9.21x13.27
Packing (WxDxH) (inch) 31.10x10.83x14.76 34.45x11.22x14.96 34.45x11.22x14.96 45.47x16.34x12.40 45.47x16.34x12.40
Net/Gross Weight (lbs.) 17.64/22.49 18.96/24.25 18.74/24.25 29.54/37.48 29.98/38.14
Room Temperature Cooling (°F) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Room Temperature Heating (°F) 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86
Liquid Side/Gas Side (inch) 1/4" / 3/8" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"

INDOOR MODELS REGULAR

Indoor Model CH-060LVWM-115VI CH-090LVWM-115WI CH-120LVWM-115WI CH-09MOLVWM-230VI CH-12MOLVWM-230WI CH-18MOLVWM-230WI CH-24MOLVWM-230WI
Power Supply Rated (V, Ph, Hz) 115V, 1, 60 115, 1, 60 115, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Rated Capacity (Btu/h) 7,000 9,000 12,000 9,000 12,000 18,000 24,000
Minimum Circuit Ampacity (MCA) (A) 3 3 3 3 3 3 3
Max. Fuse (A) 15 15 15 15 15 15 15
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM) 341/300/241/176 341/300/241/176 341/300/241/176 291.18/194.12/152.94 341/291/194/152 768/530/458/382 790/601/459/382
Indoor Noise Level (Hi/Mi/Lo) dB(A) 41.5/36/24 41.5/36/24 41.5/36/24 40/34/23.5 42/36/25 45.5/41/24.5 48/40/28
Dimension (WxDxH) (inch) 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 31.57x7.87x11.61 42.64x9.61x13.23 42.68x9.21x13.27
Packing (WxDxH) (inch) 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 34.45x11.22x14.96 45.47x16.34x12.40 45.47x16.34x12.40
Net/Gross Weight (lbs.) 18.96/24.47 18.96/24.47 18.96/24.47 18.96/24.25 18.74/24.25 29.54/37.48 29.98/38.14
Room Temperature Cooling (°F) 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90 60 - 90
Room Temperature Heating (°F) 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86 32 - 86
Liquid Side/Gas Side (inch) 1/4" / 1/2" 1/4" / 1/2" 1/4" / 1/2" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"

OUTDOOR MODELS

Outdoor Regular CH-ES06-115V0 CH-ES09-115VO CH-ES12-115VO CH-ES09-230V0 CH-ES12-230V0 CH-ES18-230V0 CH-ES24-230V0
Power Supply 115V, 1Ph, 60Hz 115V, 1Ph, 60Hz 115V, 1Ph, 60Hz 208/230V, 1, 60 208/230, 1, 60 208/230, 1, 60 208/230, 1, 60
Voltage Range (V) 103.5~126.5 103.5~126.5 103.5~126.5 187~253 187~253 187~253 187~253
Rated Capacity (range) Cooling (Btu/h) 6,300 (3,900~13,200) 9,000 (3,900~13,200) 12,000 (3,900~13,800) 9,000 (2,560~11,900) 12,000 (3,080~13,300) 18,000 (7,320~19,500) 24,000 (9,200~25,000)
Rated Current Cooling (A) 3.8 6.5 8.7 3.48 4.5 6.31 10.35
EER2 (Btu/h) 13.6 13.8 12.5 14.7 13 13.5 13
SEER2 (Btu/h) 23 23 22.7 24 23.1 24 21
Rated Capacity (range) Heating (Btu/h) 7,000 (5,000~12,680) 10,000 (5,000~12,680) 12,000 (5,000~12,680) 10,000 (3,480~13,000) 12,000 (4,260~13,560) 18,000 (6,620~21,200) 26,000 (10,350~26,410)
Rated current Heating (A) 4.8 6.7 8.7 3.48 4.5 6.31 10.35
Heating at 47°F COP (W/W) 3.91 3.91 3.52 3.66 3.4 3.74 3.15
HSPF4 9.8 9.8 10.4 11.6 10.8 10.5 8.5
HSPF5 7.6 7.6 7.6 8.8 8 7.9 6.3
Minimum Circuit Ampacity (A) 19 19 19 13 13 19 23
Max.Fuse (A) 25 25 25 15 15 30 30
Outdoor Air Flow (Max.) (CFM) 794 794 794 1,294 1,294 2,058 2,235
Outdoor Noise Level (Sound Pressure) dB(A) 54 54 54 53 54.5 53.8 62
Dimension (WxDxH) (inch) 30.12x11.93x21.85 30.12x11.93x21.85 30.12x11.93x21.85 30.12x11.93x21.85 30.12x11.93x21.85 35.04x15.48x28.50 37.24x16.14x31.89
Packing (WxDxH) (inch) 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 34.92x13.27x24.02 39.17x15.67x29.13 42.91x19.69x34.64
Net/Gross Weight (lbs.) 66.80/72.31 66.80/72.31 66.80/72.31 63.71/69.00 63.71/69.00 94.36/100.97 124.78/134.92
Refrigerant Type / Charge R410A/38.81 R410A/38.81 R410A/38.81 R410A/38.1 R410A/38.1 R410A/56.44 R410A/82.89
Refrigerant Precharge Length (ft.) 25 25 25 25 25 25 25
Additional Charge For Each ft. (oz/ft.) 0.16 0.16 0.16 0.16 0.16 0.16 0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping Liquid Side/Gas Side (inch) 1/4" / 1/2" 1/4" / 1/2" 1/4" / 1/2" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"
Max. Pipe Length (ft.) 82 82 82 82 82 98 164
Max. Difference In Level (ft.) 32.8 32.8 32.8 32.8 32.8 66 82
Ambient Temp. Cooling (°F) -13~122 -13~122 -13~122 -13~122 -13~122 -13~122 -13~122
Ambient Temp. Heating (°F) -13~75 -13~75 -13~75 -13~75 -13~75 -13~75 -13~75
Certifications UL
Certifications AHRI
Certifications Energy Star
Outdoor Hyper CH-HPR06F9-230VO CH-HPR09-230V0 CH-HPR12-230V0 CH-HPR18-230V0 CH-HPR24-230V0
Power Supply - Rated (V, Ph, Hz) 208/230,1, 60 208/230,1, 60 208/230,1, 60 208/230,1, 60 208/230,1, 60
Power Supply - Voltage Range (V) 187-253 187-253 187-253 187-253 187-253
Cooling - Rated Capacity (range) (Btu/h) 6,000 (2,500-11,800) 9,000 (3,700~13,300) 12,000 (3,700~13,300) 18,000 (8,400~20,200) 23,000 (4,650~26,600)
Cooling - Rated Current (A) 4.75 4 4.25 9.2 11.38
Cooling - EER2 (Btu/h) 15 15.8 13 13 12.5
Cooling - SEER2 (Btu/h) 23.5 26.4 23.1 22 22.3
Heating at 47°F - Rated Capacity (range) (Btu/h) 7,000 (3,400-11,230) 12,000 (5,100~14,300) 12,000 (5,100~14,300) 18,000 (6,000~23,000) 26,000 (9.550~27,000)
Heating at 47°F - Rated current (A) 3.76 4 4.25 9.2 11.38
Heating at 47°F - COP (W/W) 3.76 3.9 3.6 3.35 3
Heating at 47°F - HSPF4 12 11.6 10.5 10.6 10.3
Heating at 47°F - HSPF5 10 8.5 8 7.9 7.7
Minimum Circuit Ampacity (A) 13 15 15 20 25
Max.Fuse (A) 15 15 15 25 35
Outdoor Air Flow (Max.) (CFM) 1,294 1,324 1,324 1,765 2,235
Outdoor Noise Level (Sound Pressure) (dB(A)) 53.5 55.5 56 58 62.5
Dimension (WxDxH) (inch) 30.12x11.93x21.85 31.69x12.99x21.81 31.69x12.99x21.81 35.04x13.46x26.50 37.24x16.14x31.89
Packing (WxDxH) (inch) 34.92x13.27x24.02 36.02x14.57x24.21 36.02x14.57x24.21 39.17x15.67x29.13 42.91x19.69x34.84
Net/Gross Weight (lbs) 63.71/69 74.07/80.25 73.63/79.37 100.97/108.03 134.48/144.40
Refrigerant Type / Charge (oz.) R410A/38.1 R410A/41.62 R410A/41.62 R410A/65.2 R410A/91.7
Refrigerant Precharge Length (ft.) 25 25 25 25 25
Additional Charge for Each ft. (oz/ft) 0.16 0.16 0.16 0.16 0.32
Design Pressure (PSIG) 550/340 550/340 550/340 550/340 550/340
Refrigerant Piping - Liquid Side/Gas Side (inch) 1/4" / 3/8" 1/4" / 3/8" 1/4" / 1/2" 1/4" / 1/2" 3/8" / 5/8"
Refrigerant Piping - Max. Pipe Length (ft.) 82 82 82 98 164
Refrigerant Piping - Max. Difference in Level (ft.) 32.8 32.8 32.8 66 82
Ambient Temperature - Cooling (°F) -22~122 -22~122 -22~122 -22~122 -22~122
Ambient Temperature - Heating (°F) -22~75 -22~75 -22~75 -22~75 -22~75
Certifications - UL
Certifications - AHRI
Certifications - Energy Star

What’s Included

What’s Included
Outdoor condenserCH-HYP12SPH230VO
Indoor unitCH-12MOLVWM-230VI
Remote controllerRG10K-exclusive remote

Installation kit is not included in the selected option — pick 16ft, 25ft or 50ft above to add one.

Shipping & Returns

  • Free shipping on every order over $300.
  • Delivery estimate for your ZIP is shown in the buy box above.
  • Returns accepted per our policy — unopened units in original packaging.

Warranty

7-year compressor / 5-year parts

  • Limited manufacturer warranty on the compressor and sealed system components.
  • Your order number is the proof of purchase — keep it for any claim.

Multiple Control Methods

Cooper&Hunter’s Olivia Midnight Unit mini split AC can be managed with a user-friendly remote control or the Cooper&Hunter optional phone application. Both options offer precise temperature adjustments and optimal climate control for ultimate convenience.

App Promo

Compare with similar items

12,000
up to 550 ft²
21.0
R410A
7 years
230V
Included
Hyper Heat
Wall Mount
12,000
up to 550 ft²
16.0
R32
7 / 5 years
230V
Included
Standard
Wall Mount
12,000
up to 550 ft²
21.3
R454B
7 years
230V
Included
MIA
Wall Mount
12,000
up to 550 ft²
24.0
R454B
7 years
230V
Included
Olivia
Wall Mount
12,000
up to 550 ft²
24.0
R454B
7 years
230V
Included
Olivia Hyper Heat
Wall Mount
12,000
up to 550 ft²
23.1
R454B
7 years
230V
Included
Olivia Midnight
Wall Mount

Frequently Asked Questions

What size mini split do I need for my room?

For optimal coverage, the Cooper & Hunter Olivia Hyper Heat 12,000 BTU mini split is suitable for rooms up to 550 sq ft. It's essential to choose a unit that matches the size of your space to ensure efficient heating and cooling.

How much does a mini split system like the Cooper & Hunter cost?

The price of the Cooper & Hunter Olivia Hyper Heat 12,000 BTU mini split system varies based on installation options, such as 16ft, 25ft, or 50ft line sets. Generally, you can expect a range around $1,200 to $2,000, excluding installation costs.

Can I install the Cooper & Hunter mini split myself?

While it's possible to install the Cooper & Hunter Olivia Hyper Heat mini split yourself, professional installation is recommended for optimal performance and warranty validation. DIY installation may void the warranty if not done correctly.

Does the Cooper & Hunter mini split come pre-charged with refrigerant?

Yes, the Cooper & Hunter Olivia Hyper Heat mini split is pre-charged with R410A refrigerant for up to 25 ft of line set. This feature simplifies installation, but it's important to ensure proper line set length during setup.

What warranty does the Cooper & Hunter Olivia Hyper Heat offer?

The Cooper & Hunter Olivia Hyper Heat comes with a 5-year parts warranty and a 7-year compressor warranty, provided you register the product within 30 days of purchase. This warranty ensures peace of mind for your investment.

What SEER rating do I need for efficiency?

The Cooper & Hunter Olivia Hyper Heat has an impressive SEER rating of 21.0, making it highly efficient for both heating and cooling. For optimal energy savings, look for units with a SEER rating above 16, especially in your climate zone.
