48,000 BTU 230V Ducted Mini Split AC Light Commercial Concealed Duct Heat Pump

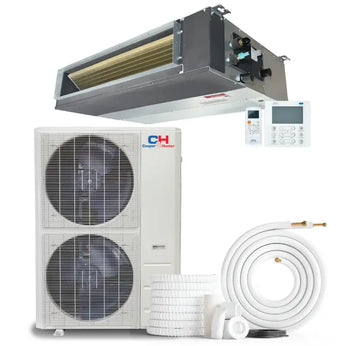

HVAC system showing indoor and outdoor units of 48,000 BTU Mini Split AC by C&H Sophia Series

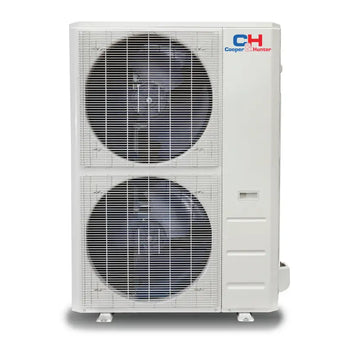

White dual-fan air conditioning unit for 48,000 BTU C&H Sophia Series Mini Split from Minisplits4less

Slim duct air conditioner from the C&H Sophia Series, perfect for mini splits 4 less

Drainage extension comparison for C&H Sophia Series 48,000 BTU Mini Split Heat Pump

Smartphone showcasing thermostat app for 48,000 BTU C&H Sophia Series Mini Split AC

Air conditioner components for C&H Sophia Series 48,000 BTU ducted mini split from Minisplits4less

Ceiling-mounted air conditioning unit from C&H Sophia Series, perfect for minisplits4less

Sku:N/A

Brand:	Cooper & Hunter
Voltage:	230V
SEER Rating:	17.4
WiFi:	Not Included
Zone:	Single Zone
Type:	Concealed Duct

In stock

Price

$3,486.34

Installation Kit

NO INSTALLATION KIT
16ft Kit
25ft Kit
50ft Kit

4.8

395 Reviews

93% of buyers have recommended this.

Cooper&Hunter's Slim Duct Units offer a discreet and efficient climate control solution for residential and commercial spaces. With capacities ranging from 9,000 to 60,000 BTU and SEER2 ratings up to 20.2, these units ensure energy-efficient performance. Their slim design allows for concealed installation in ceilings or walls, maintaining a sleek interior. Equipped with advanced inverter technology, quiet operation, and optional Wi-Fi control, Slim Duct Units provide reliable, customizable comfort while blending seamlessly into any space. Perfect for single or multi-zone systems, they deliver powerful performance with minimal ductwork.

All Accessories Included

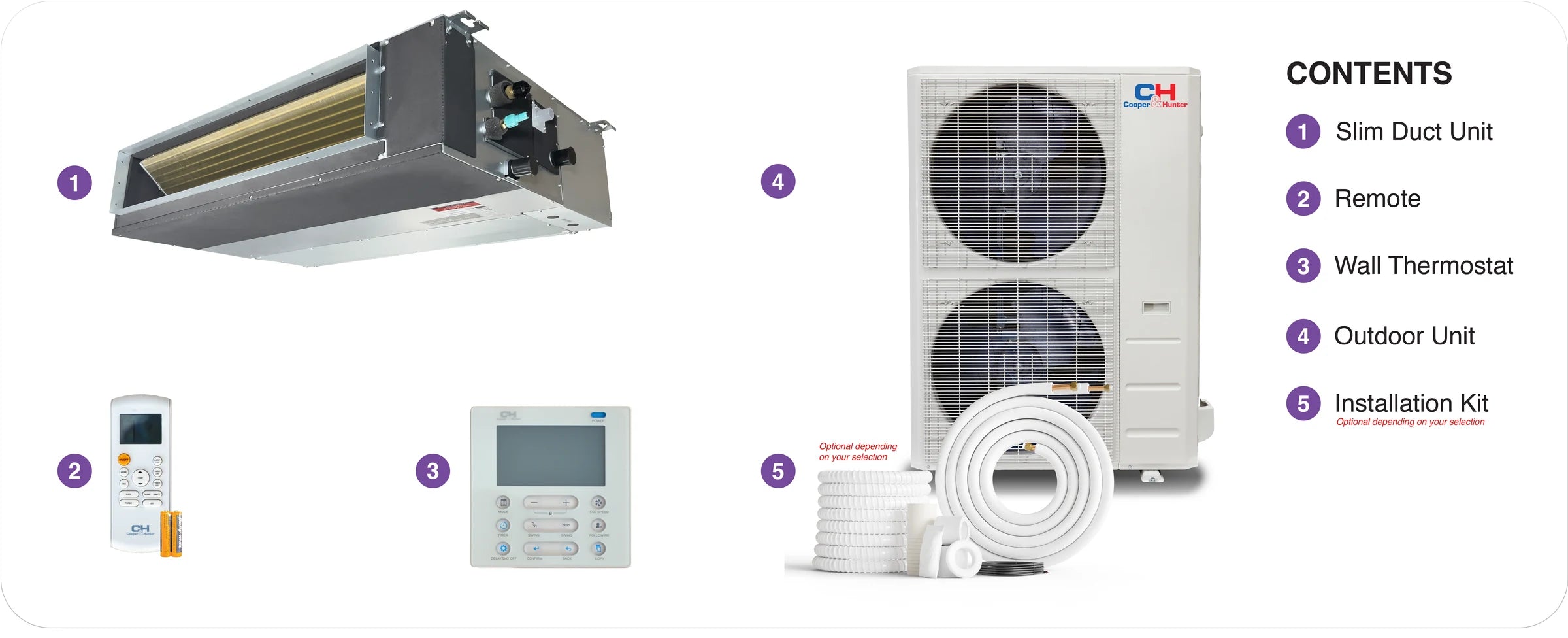

With your purchase, you receive a comprehensive MiniSplit system. MiniSplits4Less ensures you have everything needed for a seamless installation. Your package includes an Indoor Unit, Outdoor Unit, Remote Control, Manuals, optional LineSet, and a Smartkit (WIFI). We've meticulously thought of every detail to provide you with all the essentials for your installation.

Technical Specifications

INDOOR HYPER

Indoor Model	CH-MO9DTUI	CH-M12DTUI	CH-M18DTUI	CH-M24DTUI	CH-36LCDTU/I	CH-48LCDTU/I	CH-60LCDTU/I
Power Supply (V, Ph, Hz)	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60
Cooling (Btu/h)	9,000	12,000	17,000	24,000	36,000	48,000	60,000
Heating (Btu/h)	10,000	12,500	19,000	25,000	42,000	52,000	57,000
Minimum Circuit Ampacity (MCA) (A)	1.2	1.3	3	3	3	5	5
Max. Fuse (A)	15	15	15	15	15	15	15
Indoor Air Flow (Turbo/Hi/Mi/Lo) (CFM)	353/353/282/176	353/353/282/176	529/529/450/371	775/775/693/435	1,082/1,082/912/703	1,529/1,529/1,118/735	2,303/2,156/1,709/1,262
Indoor Noise Level (Hi/Mi/Lo) (dB(A))	33/30.5/27	40/31.5/26.5	40/37.5/35	44/40/35.5	49.5/46.5/43	54.5/50.5/47.5	54/49.5/46
Dimension (W×D×H) (inch)	27.56×19.92×7.87	27.56×19.92×7.87	34.65×26.54×8.27	43.31×30.47×9.80	53.54×30.47×9.80	47.24×34.41×11.81	55.12×33.78×18.11
Packing (W×D×H) (inch)	33.86×21.26×11.22	33.86×21.26×11.22	42.13×28.54×11.02	51.38×31.69×12.40	61.81×31.69×12.99	55.31×36.02×14.37	63.19×35.83×21.06
Net/Gross Weight (lbs.)	39.02/48.28	39.24/48.50	55.34/67.02	90.39/105.82	110.89/128.09	119.71/141.76	174.60/200.40
Room Temperature Cooling (°F)	62~90	62~90	62~90	62~90	62~90	62~90	62~90
Room Temperature Heating (°F)	32~86	32~86	32~86	32~86	32~86	32~86	32~86
Liquid Side/Gas Side (inch)	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 7/8"

OUTDOOR HYPER

Outdoor Model	CH-HPR09-230V0	CH-HPR12-230V0	CH-HPR18-230V0	CH-HPR24-230V0	CH-NHPR36LCU-230V0	CH-NHPR48LCU-230V0	CH-NHPR60LCU-230V0
Power Supply (V, Ph, Hz)	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253	187-253	187-253
Cooling Rated Capacity Range (Btu/h)	2,400~12,500	2,250~14,400	6,500~18,800	6,500~27,800	9,770~41,600	10,300~53,100	12,000~59,000
Cooling Rated Current (A)	4.7	4.22	9.32	8.52	17.5	26	26
EER2 (Btu/h)	13.2	11.7	11.7	12	9	8.2	9.4
SEER2 (Btu/h)	20.2	19.5	18	19.2	16.5	14.3	15.8
Heating Rated Capacity Range (Btu/h)	1,700~15,600	1,800~16,300	8,900~22,000	12,200~32,200	12,700~52,000	11,500~53,600	12,000~53,600
Heating Rated Current (A)	4.0	4.38	11.5	8.19	16.9	20.5	22.5
COP (W/W)	3.37	3.56	2.93	3.3	3.33	3.28	3.24
HSPF4	12	10	9.5	10.5	11	10.3	9.5
HSPF5	9.5	8.2	7.5	8.8	8.8	8.4	7.8
Minimum Circuit Ampacity (A)	15	15	20	25	40	40	44
Max.Fuse (Outdoor Unit) (A)	15	15	25	35	50	50	60
Outdoor Air Flow (Max.) (CFM)	1,324	1,324	1,765	2,235	4,500	4,500	4,235
Outdoor Noise Level (Sound Pressure) (dB(A))	54	52	59	62	65	65	60.5
Dimension (W×D×H) (inch)	31.69×12.99×21.81	31.69×12.99×21.81	35.04×13.46×26.50	37.24×16.14×31.89	37.48×16.34×52.48	37.48×16.34×52.48	37.48×16.34×52.48
Packing (W×D×H) (inch)	36.02×14.57×24.21	36.02×14.57×24.21	39.17×15.67×29.13	42.91×19.69×34.94	43.11×19.49×58.27	43.11×19.49×58.27	43.11×19.49×58.27
Net/Gross Weight (lbs.)	74.07/80.25	73.63/79.37	100.97/108.03	134.48/144.40	220.24/248.02	227.07/255.73	240.74/271.61
Refrigerant Type / Charge (oz.)	R410A / 41.62	R410A / 41.62	R410A / 65.26	R410A / 91.71	R410A / 148.4	R410A / 148	R410A / 169
Refrigerant Precharge Length (ft.)	25	25	25	25	25	25	25
Additional Charge for Each ft. (oz/ft)	0.16	0.16	0.16	0.32	0.32	0.32	0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side/Gas Side (inch)	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 7/8"
Max. Pipe Length (ft.)	82.02	82.02	98.42	164.04	213.25	213.25	213.25
Max. Difference in Level (ft.)	32.81	32.81	65.62	92.02	98.42	98.42	98.42
Ambient Temperature Cooling (°F)	-22~122	-22~122	-22~122	-22~122	5~122	5~122	5~122
Ambient Temperature Heating (°F)	-22~75	-22~75	-22~75	-22~75	-22~75	-22~75	-22~75
Certifications	UL, AHRI, NEEP	UL, AHRI, NEEP	UL, AHRI, NEEP	UL, AHRI, NEEP	UL, AHRI, NEEP	UL, AHRI, NEEP	UL, AHRI, NEEP

INDOOR REGULAR

Indoor Model	CH-MO9DTUI	CH-M12DTUI	CH-M18DTUI	CH-M24DTUI	CH-36LCDTU/l	CH-48LCDTU/I	CH-60LCDTU/I
Power Supply (V, Ph, Hz)	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60
Cooling (Btu/h)	9,000	11,500	17,000	23,000	36,000	48,000	60,000
Heating (Btu/h)	10,000	12,000	20,000	25,000	40,000	50,000	60,000
Minimum Circuit Ampacity (MCA)	1.3 A	1.3 A	3 A	3 A	3 A	3 A	5 A
Max. Fuse	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Indoor Air Flow (Turbo/Hi/Mi/Lo)	353/353/262/176 CFM	353/353/262/176 CFM	529/529/450/371 CFM	775/775/693/435 CFM	1,062/1,082/912/703 CFM	1,228/1,228/1,031/715 CFM	2,303/2,156/1,709/1,262 CFM
Indoor Noise Level (Hi/Mi/Lo)	33.5/28.5/27 dB(A)	39/34.5/31 dB(A)	42/38/35.5 dB(A)	44/41/37 dB(A)	48/43.5/40.5 dB(A)	52/50/49 dB(A)	57/54/51 dB(A)
Dimension (WxDxH)	27.56x19.92x7.87 inch	27.56x19.92x7.87 inch	34.65x26.54x8.27 inch	43.31x30.47x9.80 inch	53.54x30.47x9.80 inch	47.24x34.41x11.81 inch	55.12x33.78x18.11 inch
Packing (WxDxH)	33.86x21.26x11.22 inch	33.86x21.26x11.22 inch	42.13x28.54x11.02 inch	51.38x31.59x12.40 inch	61.81x31.59x12.99 inch	55.31x35.02x14.37 inch	63.19x35.83x21.05 inch
Net/Gross Weight	39.02/48.28 lbs.	39.24/48.30 lbs.	55.34/67.02 lbs.	90.39/105.82 lbs.	110.89/128.09 lbs.	119.71/141.76 lbs.	174.60/200.40 lbs.
Room Temperature Cooling	62~90 °F	62~90 °F	62~90 °F	62~90 °F	62~90 °F	62~90 °F	62~90 °F
Room Temperature Heating	32~86 °F	32~86 °F	32~86 °F	32~86 °F	32~86 °F	32~86 °F	32~86 °F
Liquid Side/Gas Side	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 7/8"

OUTDOOR REGULAR

Outdoor Model	CH-ES09-230V0	CH-ES12-230V0	CH-ES18-230V0	CH-ES24-230V0	CH-N36LCU-230V0	CH-N48LCU-230V0	CH-N60LCU-230V0
Power Supply (V, Ph, Hz)	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60	208/230,1,60
Voltage Range (V)	187-253	187-253	187-253	187-253	187-253	187-253	187-253
Cooling - Rated Capacity Range (Btu/h)	2,220~11,600	2,100~13,450	5,800~18,000	6,100~28,200	8,900~36,000	10,500~48,000	12,000~62,000
Cooling - Rated Current (A)	4.8	4.38	6.17	8.5	18.63	24.5	25
Cooling - EER2 (Btu/h)	12.5	11.7	12.5	12.5	8.8	8.5	10.3
Cooling - SEER2 (Btu/h)	19.2	19	20	19	15.8	15.1	17
Heating at 47°F - Rated Capacity Range (Btu/h)	2,240~13,350	1,900~15,000	5,000~20,000	11,700~33,000	12,700~40,000	11,000~63,400	12,000~60,000
Heating at 47°F - Rated Current (A)	3.7	4.78	7.90	9.3	15.4	20.5	22
Heating at 47°F - COP (W/W)	3.62	3.52	3.12	3.61	3.3	3.19	3.52
Heating at 47°F - HSPF4	10.2	10.3	10.6	11.2	8.8	9.3	8.4
Heating at 47°F - HSPF5	8	7.8	8.2	8.8	7	7.3	6.5
Minimum Circuit Ampacity (A)	13	13	19	22	30	39	39
Max.Fuse (Outdoor Unit) (A)	15	15	30	30	45	50	50
Outdoor Air Flow (Max.) (CFM)	1,294	1,294	2,059	2,235	3,000	4,500	2,647
Outdoor Noise Level (Sound Pressure) (dB(A))	55	53.5	60	59	65	63.5	62.5
Dimension (W×D×H) (inch)	30.12×11.93×21.85	30.12×11.93×21.85	35.04×13.46×26.50	37.24×16.14×31.89	37.24×16.14×31.89	37.48×16.34×52.48	37.48×16.34×52.48
Packing (W×D×H) (inch)	34.92×13.27×24.02	34.92×13.27×24.02	39.17×15.67×29.13	42.91×19.69×34.84	42.91×19.69×34.84	43.11×19.49×58.27	43.11×19.49×58.27
Net/Gross Weight (lbs.)	63.71/69.00	63.71/69.00	94.36/100.97	124.78/134.92	155.42/166.23	219.14/249.12	217.15/248.24
Refrigerant Type / Charge (oz.)	R410A / 38	R410A / 38	R410A / 56.44	R410A / 82.89	R410A / 112.9	R410A / 158.7	R410A / 169.3
Refrigerant Precharge Length (ft.)	25	25	25	25	25	25	25
Additional Charge for Each ft. (oz/ft)	0.16	0.16	0.16	0.32	0.32	0.32	0.32
Design Pressure (PSIG)	550/340	550/340	550/340	550/340	550/340	550/340	550/340
Refrigerant Piping Liquid Side/Gas Side (inch)	1/4" / 3/8"	1/4" / 1/2"	1/4" / 1/2"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 5/8"	3/8" / 7/8"
Max. Pipe Length (ft.)	82.02	82.02	98.42	164.04	213.25	213.25	213.25
Max. Difference in Level (ft.)	32.81	32.81	65.62	82.02	98.42	98.42	98.42
Ambient Temperature Cooling (°F)	-13~122	-13~122	-13~122	-13~122	5~122	5~122	5~122
Ambient Temperature Heating (°F)	-13~75	-13~75	-13~75	-13~75	-13~75	-13~75	-13~75
Certifications	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP	UL, ETL, AHRI, Energy Star, NEEP

Multiple Control Methods

Cooper&Hunter’s Slim Duct Unit can be managed with a user-friendly remote control, the wall thermostat or the Cooper&Hunter optional phone application. This options offer precise temperature adjustments and optimal climate control for ultimate convenience.
