Bravo

BRV-SD18HI-230VO+BRV-MP18AHUW-230VI
Product specifications
Brand Bravo
Voltage 230V
SEER 18.4
EER 11.5
WiFi Included
Zone Single Zone
Type Multi Position
Freon R32
Compressor Inverter
$2,087.00 $1,982.65 Save 5%
Shipping Policy calculated at checkout.
*Installation Kit Option*: No Installation Kit

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

*Installation Kit Option*
Discount Banner
Star
TrustScore 4.8

Bravo 18,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V

SKU: BRV-SD18HI-230VO + BRV-MP18AHUW-230VI

Overview

The Bravo 18,000 BTU heat pump system combines the BRV-SD18HI-230VO outdoor unit with the BRV-MP18AHUW-230VI indoor air handler to deliver dependable year-round comfort for residential applications. This system uses R32 refrigerant, supports 208-230V single-phase power, and is designed for flexible integration with 24V controls and compatible third-party components.

The indoor unit features a high-performance A-coil, multi-position installation, and an R32 refrigerant sensor for enhanced safety. The system also offers efficient inverter performance, multiple control options, and broad ambient operating capability for heating and cooling across changing outdoor conditions.

Highlights

18,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant Up to 18.4 SEER2 Multi-position air handler ECM constant torque motor 0.80 in. w.g. ESP 24V thermostat included Built-in WiFi wired controller Optional aux heat kit Crankcase heater standard
  • High-efficiency performance: Delivers up to 18.4 SEER2 with energy-saving inverter operation.
  • Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
  • Enhanced airflow control: ECM fan motor uses constant torque technology for dependable air delivery.
  • External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted applications.
  • Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
  • Auxiliary heat ready: Supports an optional auxiliary heat kit up to 20kW.
  • Multiple control options: Includes a wired controller with built-in WiFi and 24V thermostat.
  • Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
  • Cold-weather protection: Crankcase heater comes equipped as standard.
  • Service-friendly design: Built for easy maintenance and dependable long-term use.

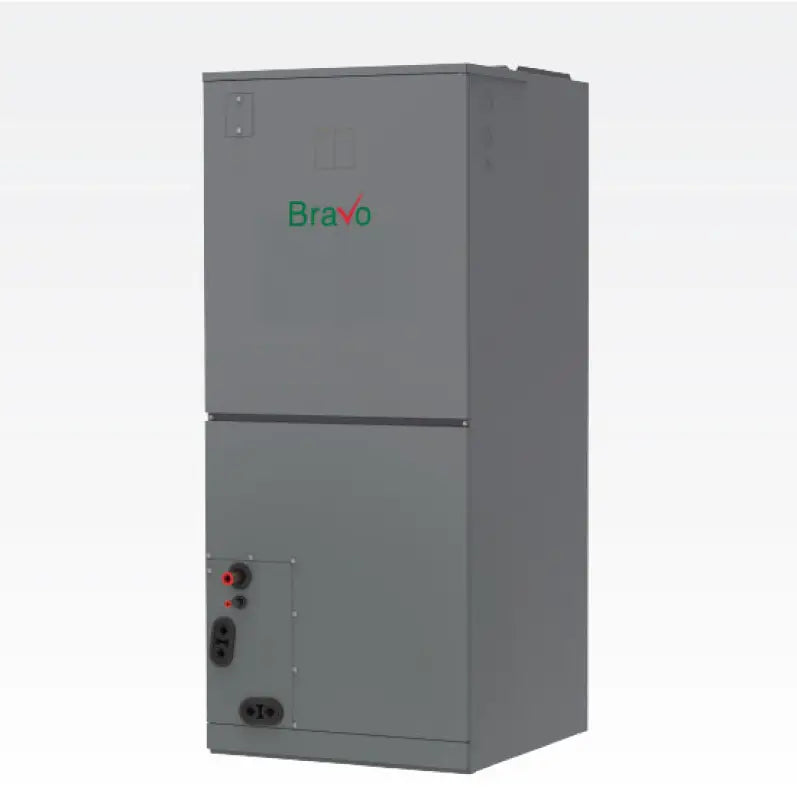

Indoor BRV-MP18AHUW-230VI

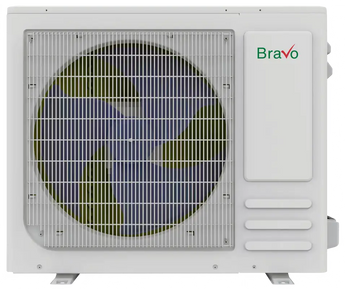

Outdoor BRV-SD18HI-230VO
Voltage 208-230V
Refrigerant R32

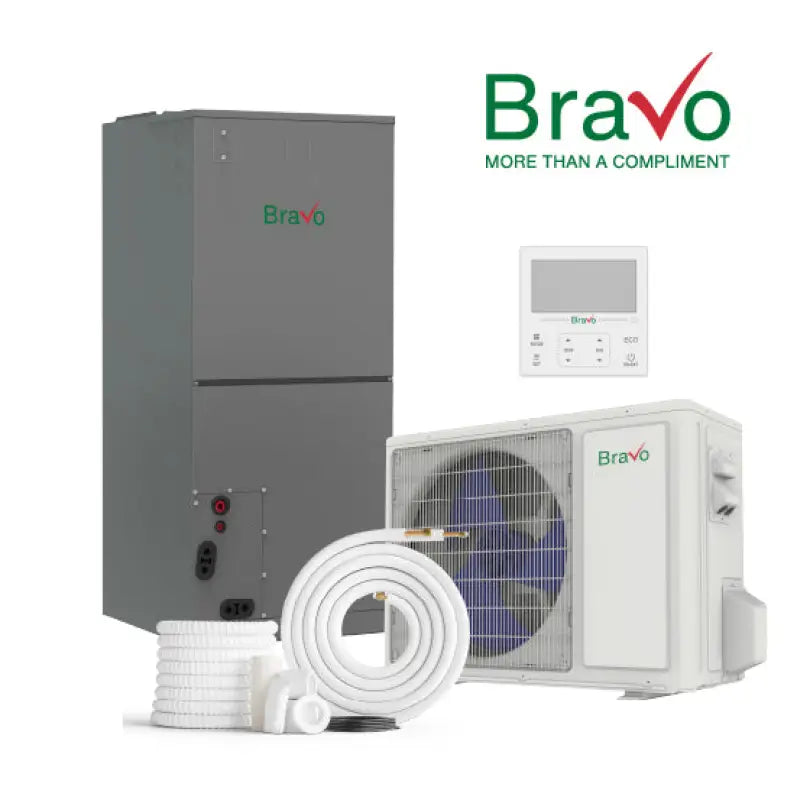

What’s Included

  • Indoor unit: BRV-MP18AHUW-230VI
  • Outdoor unit: BRV-SD18HI-230VO

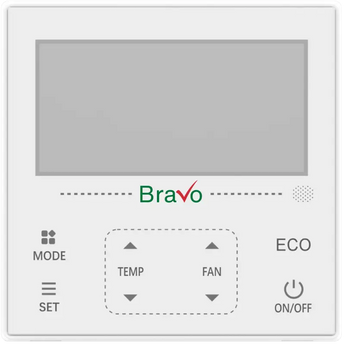

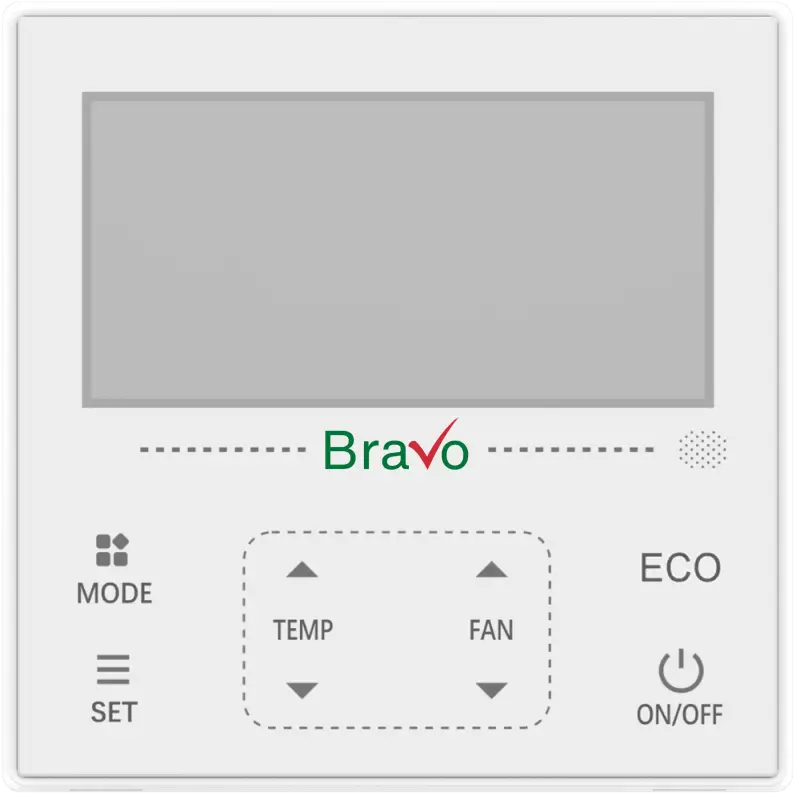

  • Wired controller with built-in WiFi
  • 24V thermostat

Indoor Specs

Spec Details
Model BRV-MP18AHUW-230VI
Power supply 208-230V, 1Ph, 60Hz
Communication wiring AWG 25x3
Cooling capacity 18,000 BTU/h (5,350 to 20,000)
Cooling input 1,565 W (400 to 1,900)
Cooling rated current 7 A (2.8 to 8.5)
EER / EER2 11.5
SEER / SEER2 18.4
Heating capacity at 47°F 19,000 BTU/h (5,600 to 19,000)
Heating input at 47°F 1,450 W (340 to 1,650)
Heating rated current at 47°F 6.5 A (2.6 to 7.5)
COP 3.85 W/W
Indoor fan motor qty 1
Indoor fan motor input 249 W
Indoor fan motor RLA 2.6 A
Indoor air flow 674 / 466 CFM
ESP range 0 to 0.8 in. w.g.
Indoor noise level 42 / 32 dB(A)
Dehumidification 1.58 L/H
Unit dimensions (W x D x H) 17-33/64 x 21-1/32 x 45 in.
Packed dimensions (W x D x H) 20-55/64 x 26-37/64 x 46-17/64 in.
Net / gross weight 114 / 127 lbs
Drain connection 3/4 in.
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Design pressure 609 / 174 PSIG
Controller Wired controller
Room temperature range, cooling 60 to 90°F
Room temperature range, heating 60 to 90°F

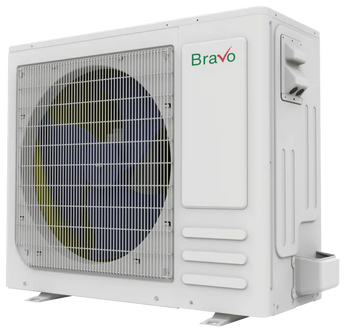

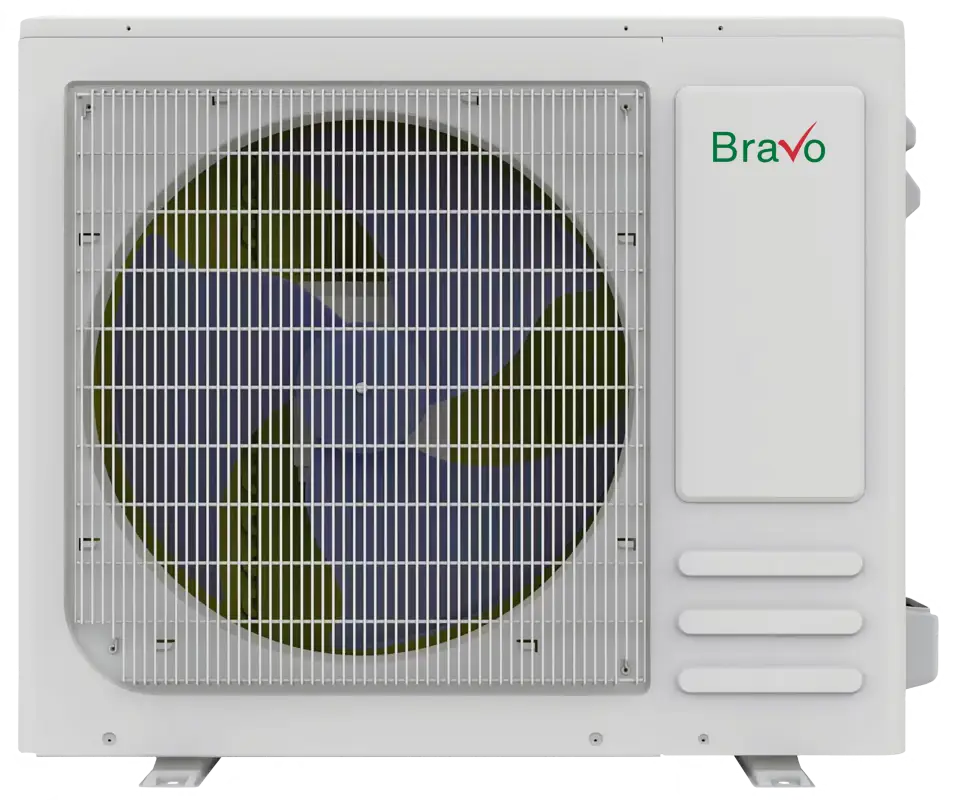

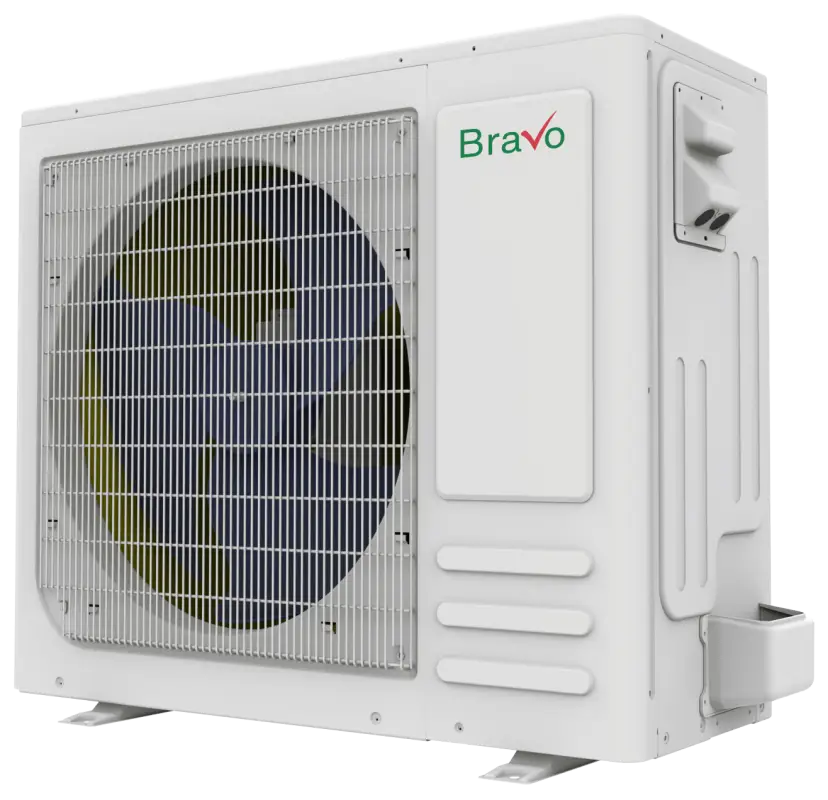

Outdoor Specs

Spec Details
Model BRV-SD18HI-230VO
Power supply 208-230V, 1Ph, 60Hz
Minimum circuit ampacity 16 A
Maximum fuse 20 A
Compressor model KSN140D33UFZ3
Compressor type Rotary
Compressor capacity 18,000 BTU/h
Compressor input 1,565 W (400 to 1,900)
Compressor rated current (RLA) 2.00 A
Refrigerant oil VGA74 / 14.2 oz
Outdoor fan motor qty 1
Outdoor fan motor input 75 W
Outdoor fan motor RLA 2.00 A
Outdoor airflow (max) 2,000 CFM
Outdoor noise level (max) 54 dB(A)
Throttle type Capillary
Unit dimensions (W x D x H) 36-1/32 x 25-19/32 x 13-37/64 in.
Packed dimensions (W x D x H) 40-5/32 x 28-15/16 x 17-1/8 in.
Net / gross weight 84 / 92 lbs
Refrigerant type R32
Factory precharge 24.6 ft
Additional charge for 3/8 in. liquid pipe 0.52 oz
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Maximum pipe length 98.4 ft
Maximum level difference 65.6 ft
Ambient range, cooling 5 to 131°F
Ambient range, heating -4 to 75°F

Frequently Asked Questions

What size mini split do I need for my room?

The Bravo 18,000 BTU single zone mini split is ideal for spaces up to 850 sq ft, making it suitable for larger rooms or open areas. Ensure that the BTU rating aligns with your specific heating and cooling needs.

Can I install a mini split myself?

Yes, you can install the Bravo mini split yourself, but it requires some technical knowledge, especially for the refrigerant lines. If you opt for the installation kit options available, such as the 16ft, 25ft, or 50ft, it can simplify the process.

Does the mini split come pre-charged with refrigerant?

The Bravo mini split comes pre-charged with R32 refrigerant for up to 25 ft of line set, which means you can start using it right after installation without needing to add refrigerant. This feature simplifies the setup process significantly.

What voltage does the Bravo mini split require?

The Bravo 18,000 BTU mini split operates on a 230V power supply, which is standard for many residential HVAC systems. Ensure your electrical setup can accommodate this voltage for optimal performance.

What warranty does the Bravo mini split offer?

The Bravo mini split comes with a robust 5-year parts and compressor warranty, providing peace of mind regarding the durability and reliability of your system. This warranty underscores Bravo's commitment to quality.

What is the SEER rating of the Bravo mini split and why is it important?

The Bravo mini split has an impressive SEER rating of 18.4, indicating its energy efficiency. A higher SEER rating means lower energy bills and a better environmental impact, making it a smart choice for heating and cooling.
