Bravo

BRV-SD24HI-230VO+BRV-MP24AHUW-230VI
Product specifications
Brand Bravo
Voltage 230V
SEER 17.7
EER 10.4
WiFi Included
Zone Single Zone
Type Multi Position
Freon R32
Compressor Inverter
$2,290.00 $2,175.50 Save 5%
Shipping Policy calculated at checkout.
*Installation Kit Option*: No Installation Kit

Pickup available at 3550 Northwest 113th Court

Usually ready in 2-4 days

FREE Armbridge Accessory With This Purchase

Choose one below — it will be added to your cart for free

Select your free accessory:

FREE
ARMBRIDGE AB-RF Rubber Feet Mounting Set Heavy-Duty Adjustable Base with Built-In Leveler
AB-RF Rubber Feet Mounting Set Heavy-Duty Adjustable Base...
FREE
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Zinc, Vibration-Absorbing (Up to 550 lbs Each)
Mini Split Wall Mounting Bracket High Load Capacity Zinc,...
FREE
ARMBRIDGE Mini Split Wall Mounting Bracket High Load Capacity Foldable 304 Stainless Steel, Vibration-Absorbing (Up to 550 lbs Each)
Mini Split Wall Mounting Bracket High Load Capacity Folda...
FREE
ARMBRIDGE Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets for 24,000–60,000 BTU Units Weatherproof Design, 330+ lbs Capacity
Heavy-Duty Mini Split Ground Stand, Zinc-Coated Brackets ...
FREE
ARMBRIDGE 18"x38"x3" Ribbed Plastic Condenser Pad Shock-Absorbing, Anti-Slip Foundation for HVAC Systems and Outdoor Equipment
18"x38"x3" Ribbed Plastic Condenser Pad Shock-Absorbing, ...
Free gift added to your cart!
*Installation Kit Option*
Discount Banner
Star
TrustScore 4.8

Bravo 24,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V

SKU: BRV-SD24HI-230VO + BRV-MP24AHUW-230VI

Overview

The Bravo 24,000 BTU heat pump system pairs the BRV-SD24HI-230VO outdoor unit with the BRV-MP24AHUW-230VI indoor air handler for efficient year-round comfort in mid-sized residential applications. This single-zone system uses R32 refrigerant, operates on 208-230V single-phase power, and is designed for dependable heating and cooling performance across a broad range of outdoor conditions.

The indoor unit features multi-position installation, an ECM fan motor with constant torque technology, and support for up to 0.80 in. w.g. external static pressure. AHRI and ETL certifications add confidence for long-term performance and safety.

Highlights

24,000 BTU class Single-zone system 208-230V, 1Ph, 60Hz R32 refrigerant 17.7 SEER2 Multi-position air handler ECM constant torque motor 0.80 in. w.g. ESP Optional aux heat kit Crankcase heater standard
  • Efficient comfort: This pairing is rated at 17.7 SEER2 and 10.4 EER2 in the provided specs.
  • Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
  • Enhanced airflow control: ECM fan motor uses constant torque technology for dependable air delivery.
  • External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted applications.
  • Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
  • Auxiliary heat ready: Supports an optional auxiliary heat kit up to 20kW.
  • Multiple control options: Feature copy provided for this system notes a wired controller with built-in WiFi and 24V thermostat.
  • Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
  • Cold-weather protection: Crankcase heater comes equipped as standard.
  • Service-friendly design: Built for easy maintenance and dependable long-term use.

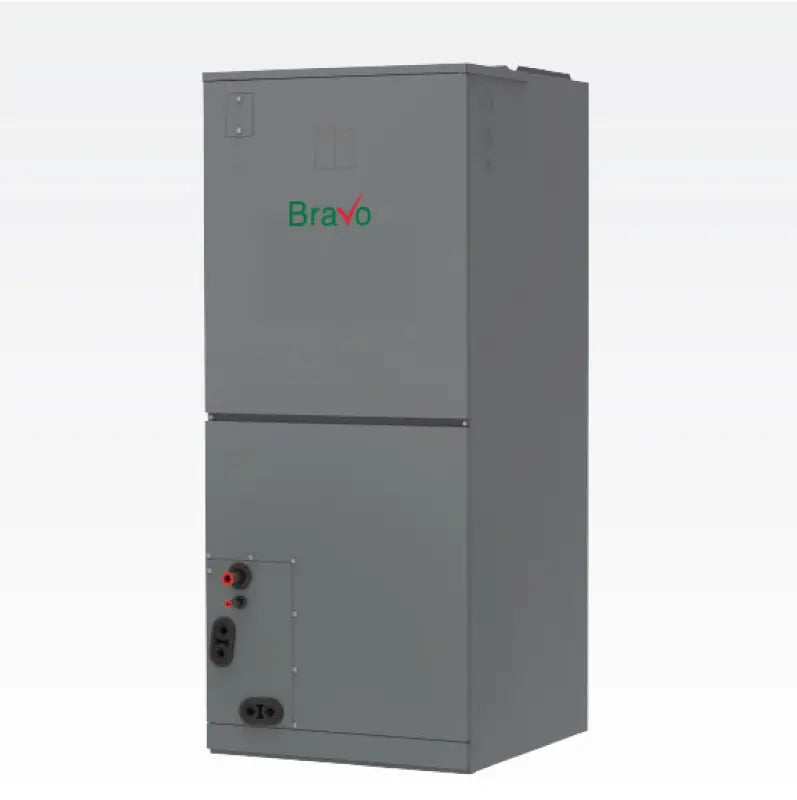

Indoor BRV-MP24AHUW-230VI

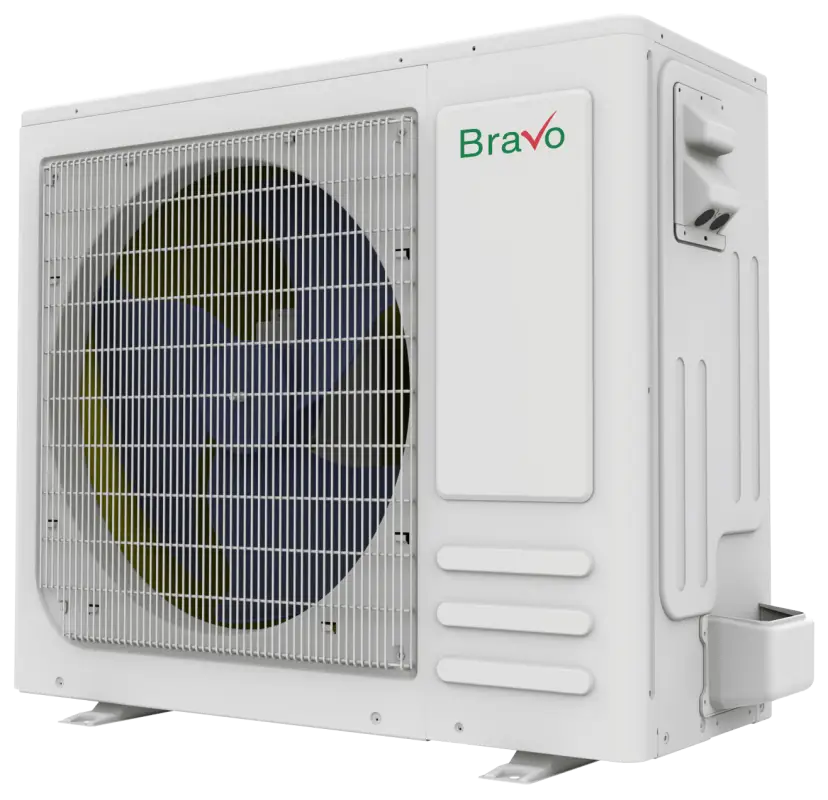

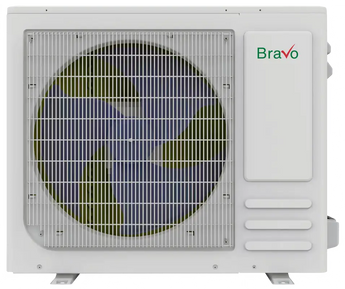

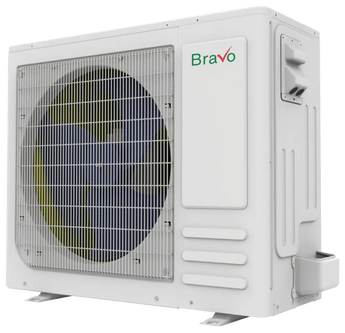

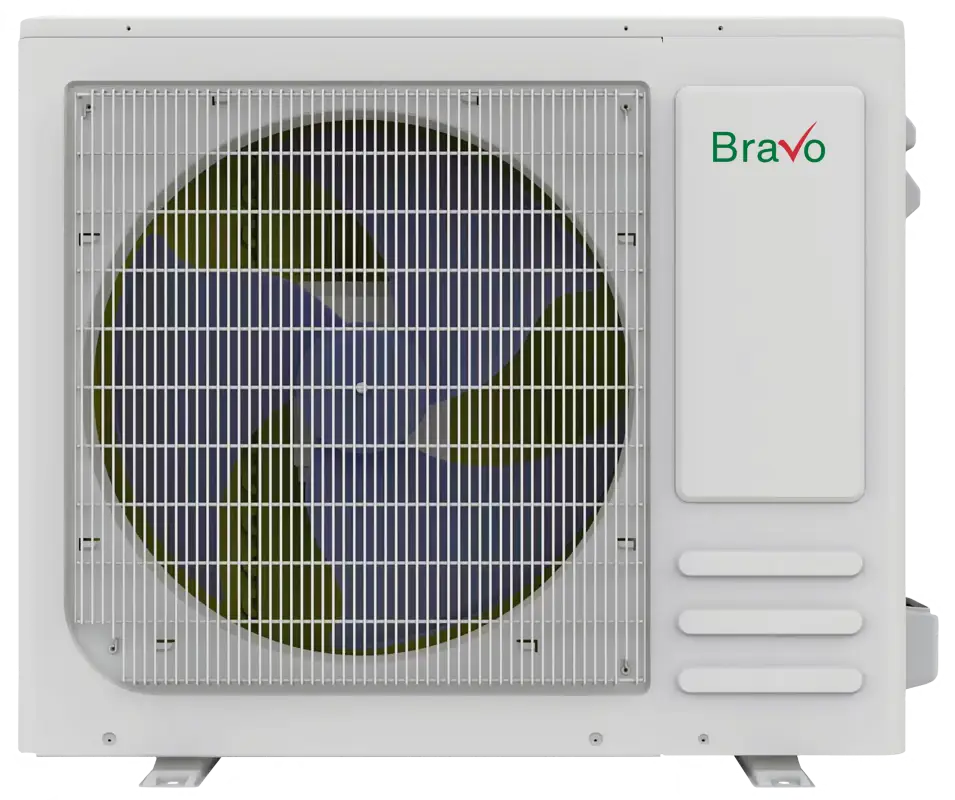

Outdoor BRV-SD24HI-230VO
Voltage 208-230V
Refrigerant R32

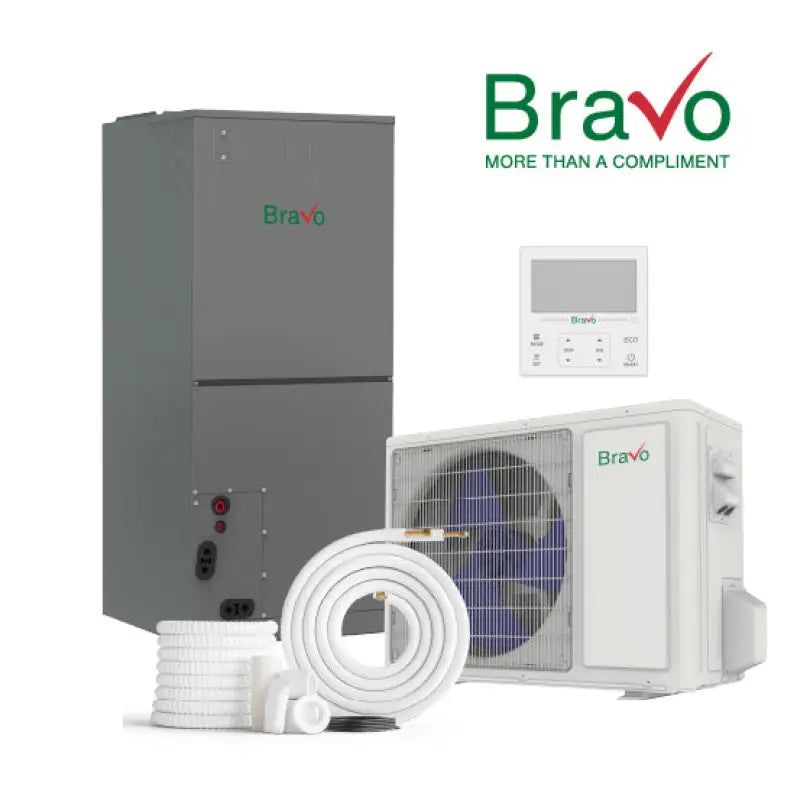

What’s Included

  • Indoor unit: BRV-MP24AHUW-230VI
  • Outdoor unit: BRV-SD24HI-230VO

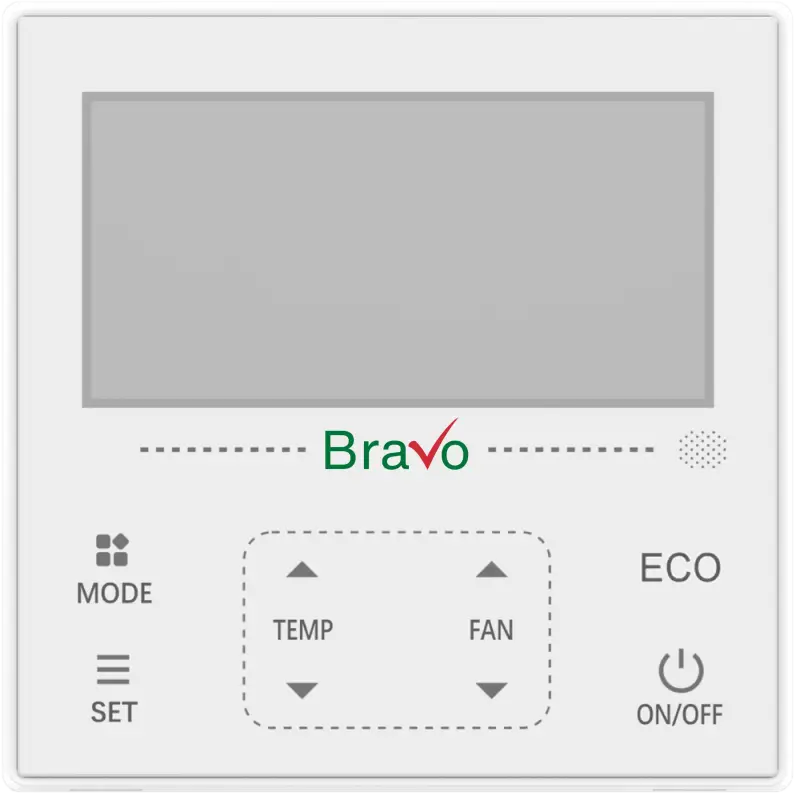

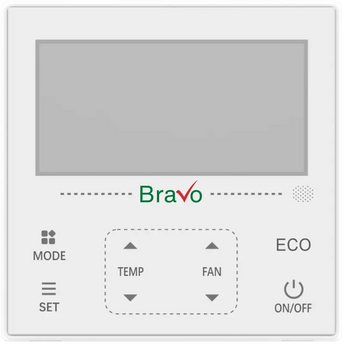

  • Wired controller

Indoor Specs

Spec Details
Model BRV-MP24AHUW-230VI
Power supply 208-230V, 1Ph, 60Hz
Communication wiring AWG 25x3
Cooling capacity 24,000 BTU/h (7,200 to 27,000)
Cooling input 2,308 W (530 to 2,870)
Cooling rated current 10.5 A (3.4 to 12.6)
EER / EER2 10.4
SEER / SEER2 17.7
Heating capacity at 47°F 26,000 BTU/h (7,100 to 30,000)
Heating input at 47°F 2,265 W (440 to 2,730)
Heating rated current at 47°F 10 A (2.4 to 12)
COP 3.4 W/W
Indoor fan motor qty 1
Indoor fan motor input 249 W
Indoor fan motor RLA 2.6 A
Indoor air flow 867 / 618 CFM
ESP range 0 to 0.8 in. w.g.
Indoor noise level 45 / 34 dB(A)
Dehumidification 2.64 L/H
Unit dimensions (W x D x H) 17-33/64 x 21-1/32 x 45 in.
Packed dimensions (W x D x H) 20-55/64 x 26-37/64 x 46-17/64 in.
Net / gross weight 114 / 127 lbs
Drain connection 3/4 in.
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Design pressure 609 / 174 PSIG
Controller Wired controller
Room temperature range, cooling 60 to 90°F
Room temperature range, heating 60 to 90°F

Outdoor Specs

Spec Details
Model BRV-SD24HI-230VO
Power supply 208-230V, 1Ph, 60Hz
Minimum circuit ampacity 20 A
Maximum fuse 25 A
Compressor model KTM240D57UMT
Compressor type Rotary
Compressor capacity 24,000 BTU/h
Compressor input 2,308 W (530 to 2,870)
Compressor rated current (RLA) 2.00 A
Refrigerant oil VGA74 / 22.6 oz
Outdoor fan motor qty 1
Outdoor fan motor input 75 W
Outdoor fan motor RLA 2.00 A
Outdoor airflow (max) 2,000 CFM
Outdoor noise level (max) 55 dB(A)
Throttle type Capillary
Unit dimensions (W x D x H) 36-1/32 x 25-19/32 x 13-37/64 in.
Packed dimensions (W x D x H) 40-5/32 x 28-15/16 x 17-1/8 in.
Net / gross weight 84 / 92 lbs
Refrigerant type R32
Factory precharge 24.6 ft
Additional charge for 3/8 in. liquid pipe 0.52 oz
Refrigerant piping 3/8 in. liquid, 3/4 in. gas
Maximum pipe length 164 ft
Maximum level difference 82 ft
Ambient range, cooling 5 to 131°F
Ambient range, heating -4 to 75°F

Frequently Asked Questions

What size mini split do I need for my space?

For areas up to 1200 sq ft, the Bravo 24,000 BTU Single Zone Air Handler is an excellent choice. Its capacity ensures effective cooling and heating for medium to large rooms.

How much does a mini split system like Bravo cost?

The price of a Bravo mini split system can vary based on installation kits and features. Typically, you can expect the cost to include options like 16ft, 25ft, or 50ft installation kits to suit your needs.

Can I install a mini split myself?

While DIY installation is possible, it is recommended to hire a professional for the Bravo 24,000 BTU system to ensure proper setup and performance. The installation process can be complex, especially when dealing with refrigerant lines.

Does the mini split come pre-charged with refrigerant?

Yes, the Bravo mini split system is pre-charged with R32 refrigerant for up to 25 ft of line set. This feature simplifies installation and ensures efficient operation right out of the box.

What is the voltage requirement for the Bravo mini split?

The Bravo 24,000 BTU unit operates on 230V, making it compatible with most residential electrical systems. Ensure your electrical setup meets this requirement for optimal performance.

What warranty does the Bravo offer?

Bravo provides a solid 5-year parts and compressor warranty, ensuring peace of mind for your investment. This warranty covers key components, reflecting the brand's confidence in its product quality.
